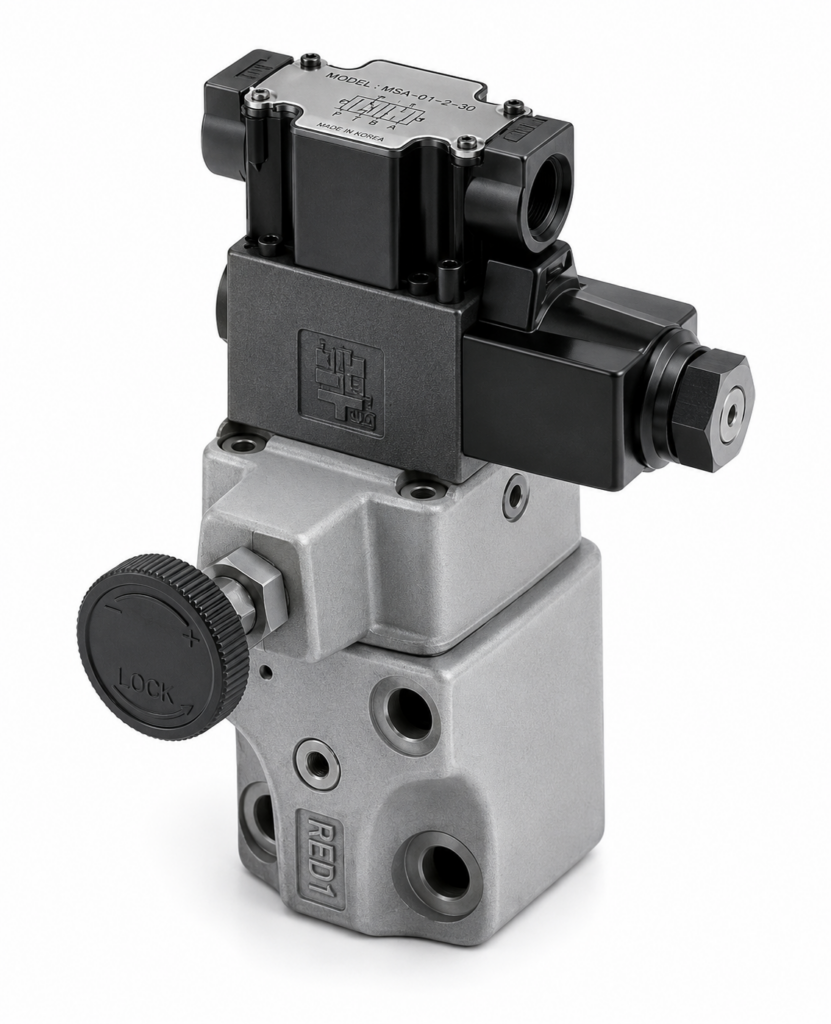

[Yuken] — Solenoid Controlled Relief Valve (BSG-03)
Family ID: YUK-PC-SOL-BSG-03
Solenoid Controlled Relief Valves. Max. operating pressure: 25 MPa. Pressure adjustment range: to 25 MPa. Max. flow: 100 L/min. Sub-plate type. Vent forms: 2B3A / 2B3B / 2B2B / 2B2 / 3C2 / 3C3. Coil (specify): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt). Wiring: Terminal box type (std) / DIN connector type (-N, opt). Mass 6.3–7.3 kg (single/double solenoid / shock-prevention).
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BSG-03-2B3A-48 | Solenoid Controlled Relief Valve BSG-03-2B3A, Sub-plate | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B3A | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48 | ||
| BSG-03-2B3B-48 | Solenoid Controlled Relief Valve BSG-03-2B3B, Sub-plate | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B3B | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48 | ||
| BSG-03-2B2B-48 | Solenoid Controlled Relief Valve BSG-03-2B2B, Sub-plate | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B2B | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-2B2-48 | Solenoid Controlled Relief Valve BSG-03-2B2, Sub-plate | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B2 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-3C2-48 | Solenoid Controlled Relief Valve BSG-03-3C2, Sub-plate | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 3C2 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-3C3-48 | Solenoid Controlled Relief Valve BSG-03-3C3, Sub-plate | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 3C3 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-V-2B3A-48 | Solenoid Controlled Relief Valve BSG-03-V-2B3A, Sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B3A | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48 | ||
| BSG-03-V-2B3B-48 | Solenoid Controlled Relief Valve BSG-03-V-2B3B, Sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B3B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 48 | ||
| BSG-03-V-2B2B-48 | Solenoid Controlled Relief Valve BSG-03-V-2B2B, Sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B2B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-V-2B2-48 | Solenoid Controlled Relief Valve BSG-03-V-2B2, Sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 2B2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-V-3C2-48 | Solenoid Controlled Relief Valve BSG-03-V-3C2, Sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 3C2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 | ||
| BSG-03-V-3C3-48 | Solenoid Controlled Relief Valve BSG-03-V-3C3, Sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve | Mounting: Sub-plate | Valve Size: 03 | Vent Form: 3C3 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 48 |
