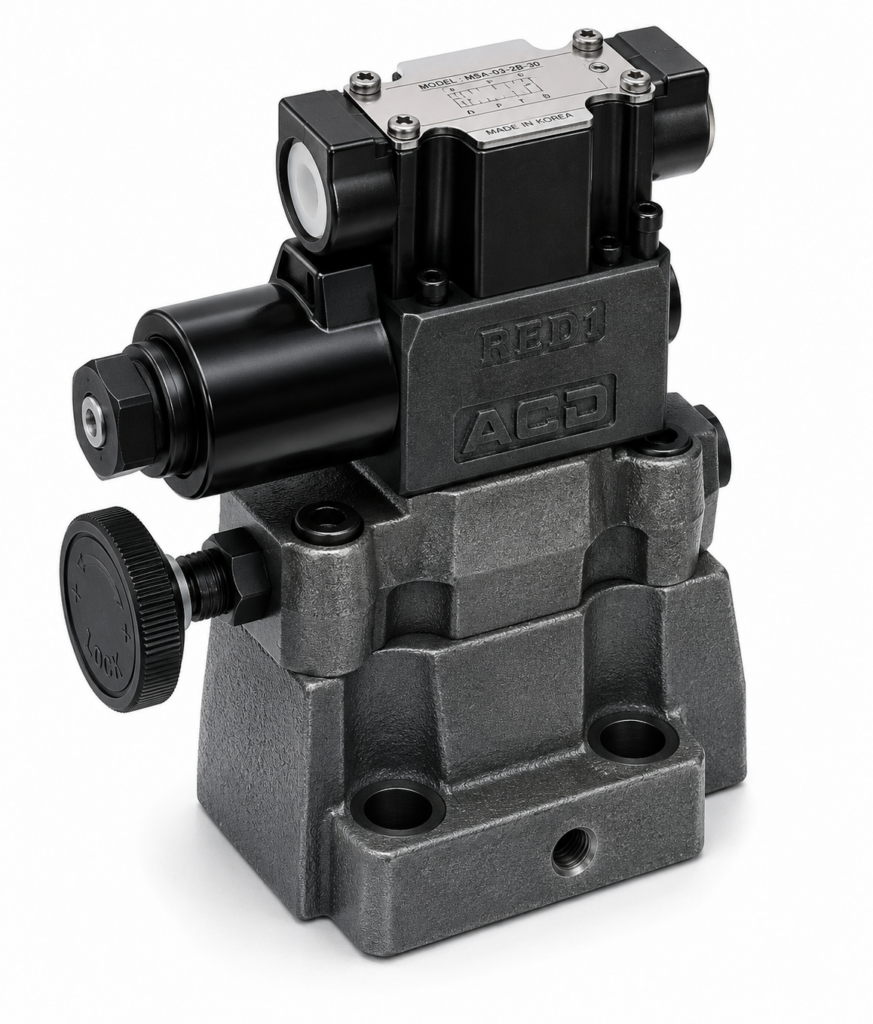

[Yuken] — Solenoid Controlled Relief Valve High Pressure (B3SG-06)
Family ID: YUK-PC-SOL-B3SG-06
Solenoid Controlled Relief Valves (High Pressure Type). Max. operating pressure: 35 MPa. Pressure adjustment range: to 35 MPa. Max. flow: 500 L/min. Sub-plate mounting. Vent forms: 2B3A / 2B3B / 2B2B / 2B2 / 3C2 / 3C3. Coil (specify): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt). Wiring: Terminal box type (std) / DIN connector type (-N, opt). Mass 6.5–7.6 kg.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| B3SG-06-2B3A-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-2B3A, sub-plate | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B3A | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 10 | ||
| B3SG-06-2B3B-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-2B3B, sub-plate | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B3B | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 10 | ||
| B3SG-06-2B2B-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-2B2B, sub-plate | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B2B | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-2B2-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-2B2, sub-plate | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B2 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-3C2-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-3C2, sub-plate | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 3C2 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-3C3-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-3C3, sub-plate | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 3C3 | High-Vent Type: No | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-V-2B3A-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-V-2B3A, sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B3A | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 10 | ||
| B3SG-06-V-2B3B-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-V-2B3B, sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B3B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): A- prefix available (shock-prevention valve; only on 2B3A/2B3B) | Design No.: 10 | ||
| B3SG-06-V-2B2B-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-V-2B2B, sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B2B | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-V-2B2-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-V-2B2, sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 2B2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-V-3C2-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-V-3C2, sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 3C2 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 | ||
| B3SG-06-V-3C3-10 | Solenoid Controlled Relief Valve (HP) B3SG-06-V-3C3, sub-plate, high-vent | Yuken | Type: Solenoid Controlled Relief Valve (High Pressure) | Mounting: Sub-plate | Valve Size: 06 | Vent Form: 3C3 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 35 MPa | Pressure Adjustment Range: to 35 MPa | Max. Flow: 500 L/min | Coil (RFQ): AC A100/A200 (std), A120/A240 (opt); DC D24 (std), D12/D48 (opt); AC-DC R200 (std), R100 (opt) | Wiring (RFQ): Terminal box type (std) / DIN connector type (-N, opt) | Shock-Prevention (RFQ): Not applicable for this vent form | Design No.: 10 |
