![[YUKEN] — YC-100 Contami-Kit (Hydraulic Oil Contamination Measuring Device)](https://img.prosourcemro.com/2026/05/002-175-1024x837.png)
Accessories
Yuken

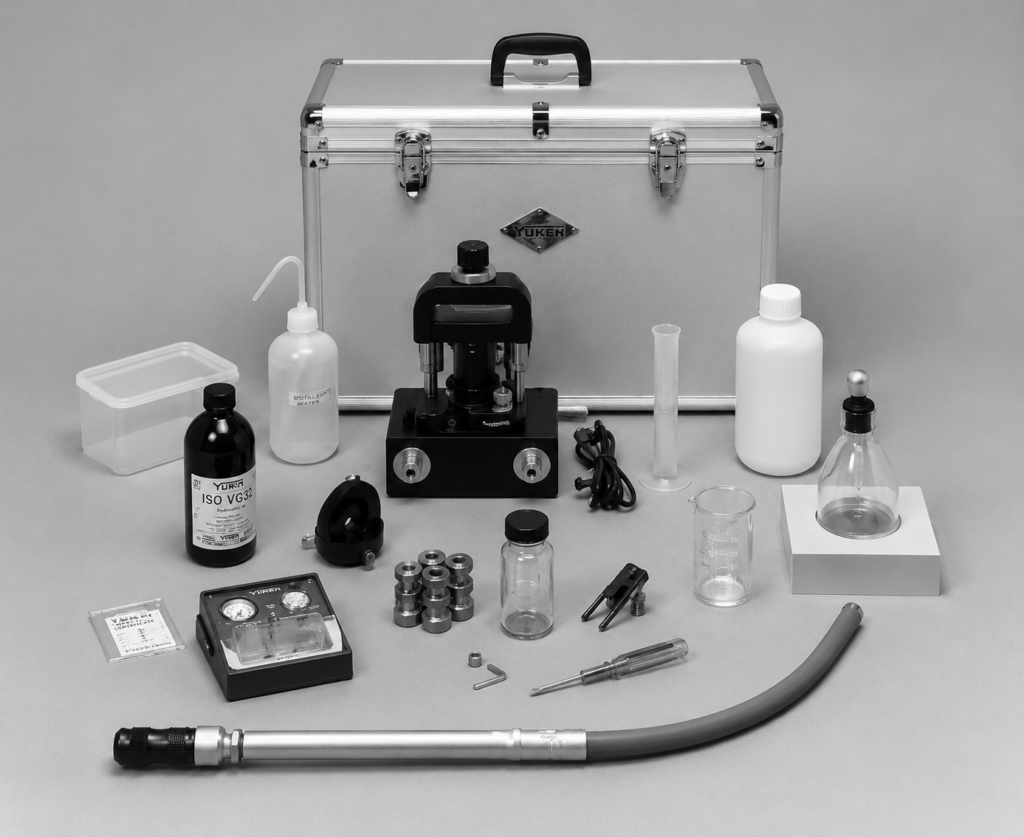

[YUKEN] — YC-100 Contami-Kit (Hydraulic Oil Contamination Measuring Device)
Family ID: YK-YC100
Contami-Kit (Microscopic Inspection Device) YC-100. A portable measuring device that determines the contamination level of hydraulic fluid by comparison with standard contamination plates; the level can be obtained as a NAS1638 class (reference value). Reliable and simple to handle. Usable anywhere (portable, AC/DC switchable power). No skill is required since it compares against contamination plates. Measurement takes about 10 minutes. Records can be kept by photograph using a standard SLR camera. Options: water/glycol-fluid filter set (M-KYC-100-F-20) and 4x objective lens (KYC-100-L-20, 40x total magnification, for samples with relatively large, widely distributed contaminant particles). Separately sold parts include camera adapter, vacuum pump kit, filter/glass bottles, funnel, clamp, stand, spare bulb, filter set and cleaning solution. Note: the cleaning solution (KYC-100-N-20) is a flammable substance and cannot be handled for transport by air or ship - purchase solvent locally.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| YC-100 | YC-100 Contami-Kit - Main device | YUKEN | Role: Main device | Type: Portable hydraulic-oil contamination measuring device (Contami-Kit / microscopic inspection) | Method: comparison with standard contamination plates | Result: NAS1638 class (reference) | Power: AC/DC switchable (portable) | Measurement time: approx. 10 min | Recording: photograph via standard SLR camera | ||
| M-KYC-100-F-20 | YC-100 Contami-Kit - Option: water/glycol fluid filter set | YUKEN | Role: Option: water/glycol fluid filter set | For measuring contamination of water/glycol fluids (use clean tap water, not cleaning solution; other parts: use standard items) | Contents: membrane filter x50 (dia.25mm, 3um), slide glass x50, single-side adhesive paper x50 | ||
| KYC-100-L-20 | YC-100 Contami-Kit - Option: 4x objective lens | YUKEN | Role: Option: 4x objective lens | 40x total magnification, wider microscope field; suited to samples with relatively large, widely distributed contaminant particles | Contents: 4x objective lens x2 | ||
| KYC-100-C-20 | YC-100 Contami-Kit - Part: camera set adapter | YUKEN | Role: Part: camera set adapter | ||
| KYC-100-P-20 | YC-100 Contami-Kit - Part: vacuum pump kit | YUKEN | Role: Part: vacuum pump kit | With vacuum hose (0.4 m attached) | ||
| KYC-100-R1-20 | YC-100 Contami-Kit - Part: filter bottle | YUKEN | Role: Part: filter bottle | ||
| KYC-100-R2-20 | YC-100 Contami-Kit - Part: glass bottle with rubber stopper | YUKEN | Role: Part: glass bottle with rubber stopper | ||
| KYC-100-R3-21 | YC-100 Contami-Kit - Part: funnel | YUKEN | Role: Part: funnel | ||
| KYC-100-R4-21 | YC-100 Contami-Kit - Part: clamp | YUKEN | Role: Part: clamp | ||
| KYC-100-R5-20 | YC-100 Contami-Kit - Part: stand | YUKEN | Role: Part: stand | ||
| KYC-100-D-20 | YC-100 Contami-Kit - Part: spare bulb | YUKEN | Role: Part: spare bulb | 5V / 0.47A (gas-filled) | ||
| KYC-100-F-20 | YC-100 Contami-Kit - Part: filter set | YUKEN | Role: Part: filter set | Membrane filter x50, slide glass x50, single-side adhesive paper x50 | ||
| KYC-100-N-20 | YC-100 Contami-Kit - Part: cleaning solution | YUKEN | Role: Part: cleaning solution | 500 ml x6 bottles | Flammable substance: cannot be transported by air or ship; purchase solvent locally |
