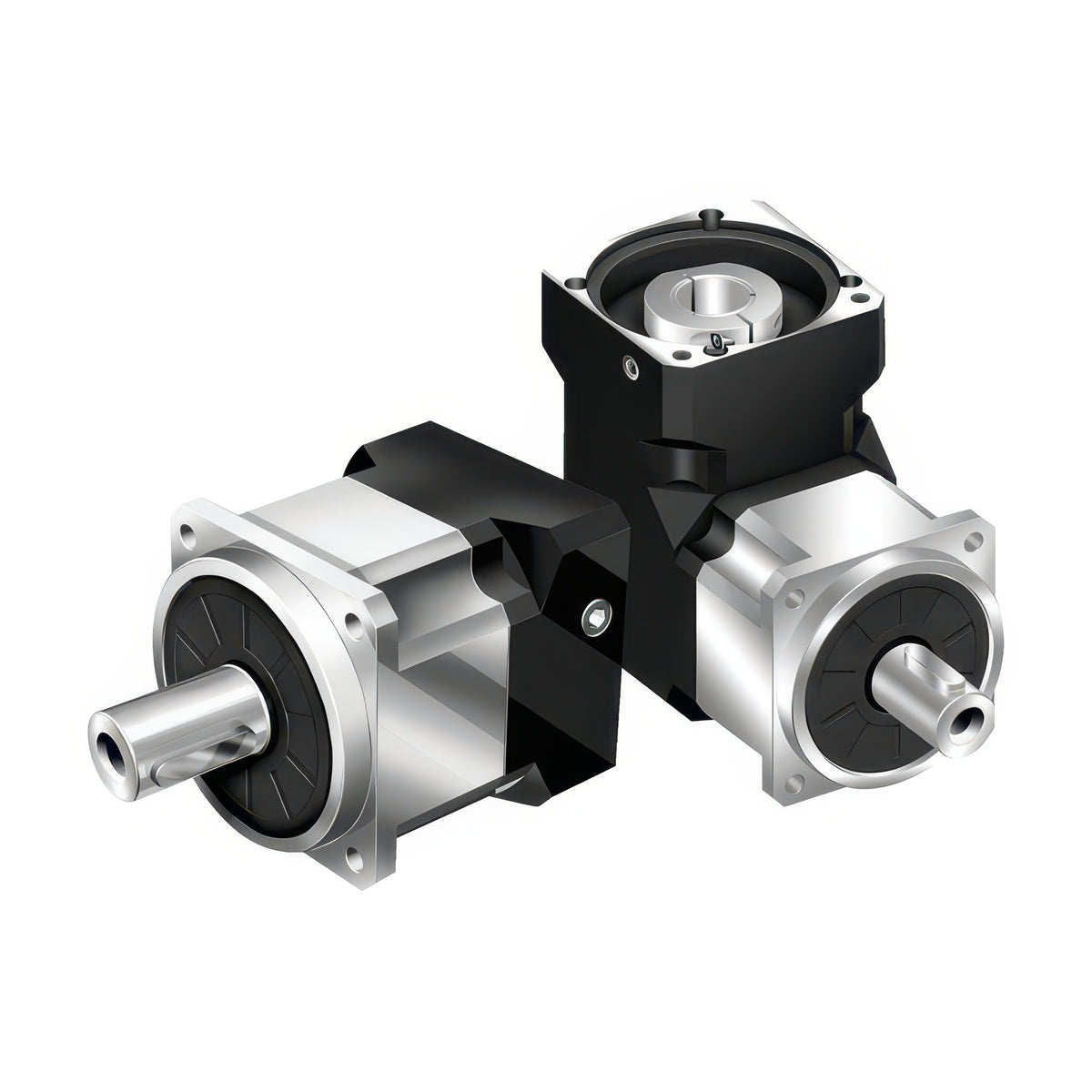

APEX Dynamics AB Series Precision Planetary Gearbox (Inline, Helical Gear)

APEX Dynamics AB Series Precision Planetary Gearbox (Inline, Helical Gear)

The AB series is a precision inline planetary gearbox with helical gearing for servo and stepper motor mounting.

Key features

  • It is offered in 1-stage ratios 3-10 and 2-stage ratios 15-100, with frame sizes from 42 to 220 mm
  • Three backlash grades are available: micro (P0), reduced (P1) and standard (P2)
  • The output shaft can be smooth (S1) or keyed (S2), and the motor adapter is matched to the motor maker and model
  • The gearbox is lubricated for life with synthetic grease (NYOGEL 792D), rated IP65 (IP67 option), mounts in any direction and has a 20,000 h service life

Specifications

Protection IP65 (option IP67)
AB042 Frame size: 42 mm | Ratio range: 3-100 | Nominal output torque: 14-22 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 3 Nm/arcmin | Max. radial load: 780 N | Max. axial load: 390 N | Weight 1-stage: 0.6 kg | Weight 2-stage: 0.8 kg | Noise: <=56 dB(A) | Protection: IP65 (option IP67)
AB060 Frame size: 60 mm | Ratio range: 3-100 | Nominal output torque: 40-60 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 7 Nm/arcmin | Max. radial load: 1530 N | Max. axial load: 765 N | Weight 1-stage: 1.3 kg | Weight 2-stage: 1.5 kg | Noise: <=58 dB(A) | Protection: IP65 (option IP67)
AB060A Frame size: 60 mm | Ratio range: 15-100 (2-stage only) | Nominal output torque: 40-60 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Reduced backlash P1 (1-stage / 2-stage): <=5 (2-stage) arcmin | Standard backlash P2 (1-stage / 2-stage): <=7 (2-stage) arcmin | Torsional rigidity: 7 Nm/arcmin | Max. radial load: 1530 N | Max. axial load: 765 N | Weight 2-stage: 1.9 kg | Noise: <=60 dB(A) | Protection: IP65 (option IP67)
AB090 Frame size: 90 mm | Ratio range: 3-100 | Nominal output torque: 100-160 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Micro backlash P0 (1-stage / 2-stage): <=1 (1-stage) arcmin | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 14 Nm/arcmin | Max. radial load: 3250 N | Max. axial load: 1625 N | Weight 1-stage: 3.7 kg | Weight 2-stage: 4.1 kg | Noise: <=60 dB(A) | Protection: IP65 (option IP67)
AB090A Frame size: 90 mm | Ratio range: 15-100 (2-stage only) | Nominal output torque: 100-160 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Reduced backlash P1 (1-stage / 2-stage): <=5 (2-stage) arcmin | Standard backlash P2 (1-stage / 2-stage): <=7 (2-stage) arcmin | Torsional rigidity: 14 Nm/arcmin | Max. radial load: 3250 N | Max. axial load: 1625 N | Weight 2-stage: 5.3 kg | Noise: <=63 dB(A) | Protection: IP65 (option IP67)
AB115 Frame size: 115 mm | Ratio range: 3-100 | Nominal output torque: 208-330 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Micro backlash P0 (1-stage / 2-stage): <=1 / <=3 arcmin | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 25 Nm/arcmin | Max. radial load: 6700 N | Max. axial load: 3350 N | Weight 1-stage: 7.8 kg | Weight 2-stage: 9 kg | Noise: <=63 dB(A) | Protection: IP65 (option IP67)
AB142 Frame size: 142 mm | Ratio range: 3-100 | Nominal output torque: 342-650 Nm | Nominal input speed: 3000 rpm | Max. input speed: 6000 rpm | Micro backlash P0 (1-stage / 2-stage): <=1 / <=3 arcmin | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 50 Nm/arcmin | Max. radial load: 9400 N | Max. axial load: 4700 N | Weight 1-stage: 14.5 kg | Weight 2-stage: 17.5 kg | Noise: <=65 dB(A) | Protection: IP65 (option IP67)
AB180 Frame size: 180 mm | Ratio range: 3-100 | Nominal output torque: 588-1200 Nm | Nominal input speed: 3000 rpm | Max. input speed: 6000 rpm | Micro backlash P0 (1-stage / 2-stage): <=1 / <=3 arcmin | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 145 Nm/arcmin | Max. radial load: 14500 N | Max. axial load: 7250 N | Weight 1-stage: 29 kg | Weight 2-stage: 33 kg | Noise: <=67 dB(A) | Protection: IP65 (option IP67)
AB220 Frame size: 220 mm | Ratio range: 3-100 | Nominal output torque: 1140-2000 Nm | Nominal input speed: 2000 rpm | Max. input speed: 4000 rpm | Micro backlash P0 (1-stage / 2-stage): <=1 / <=3 arcmin | Reduced backlash P1 (1-stage / 2-stage): <=3 / <=5 arcmin | Standard backlash P2 (1-stage / 2-stage): <=5 / <=7 arcmin | Torsional rigidity: 225 Nm/arcmin | Max. radial load: 50000 N | Max. axial load: 25000 N | Weight 1-stage: 48 kg | Weight 2-stage: 60 kg | Noise: <=70 dB(A) | Protection: IP65 (option IP67)
