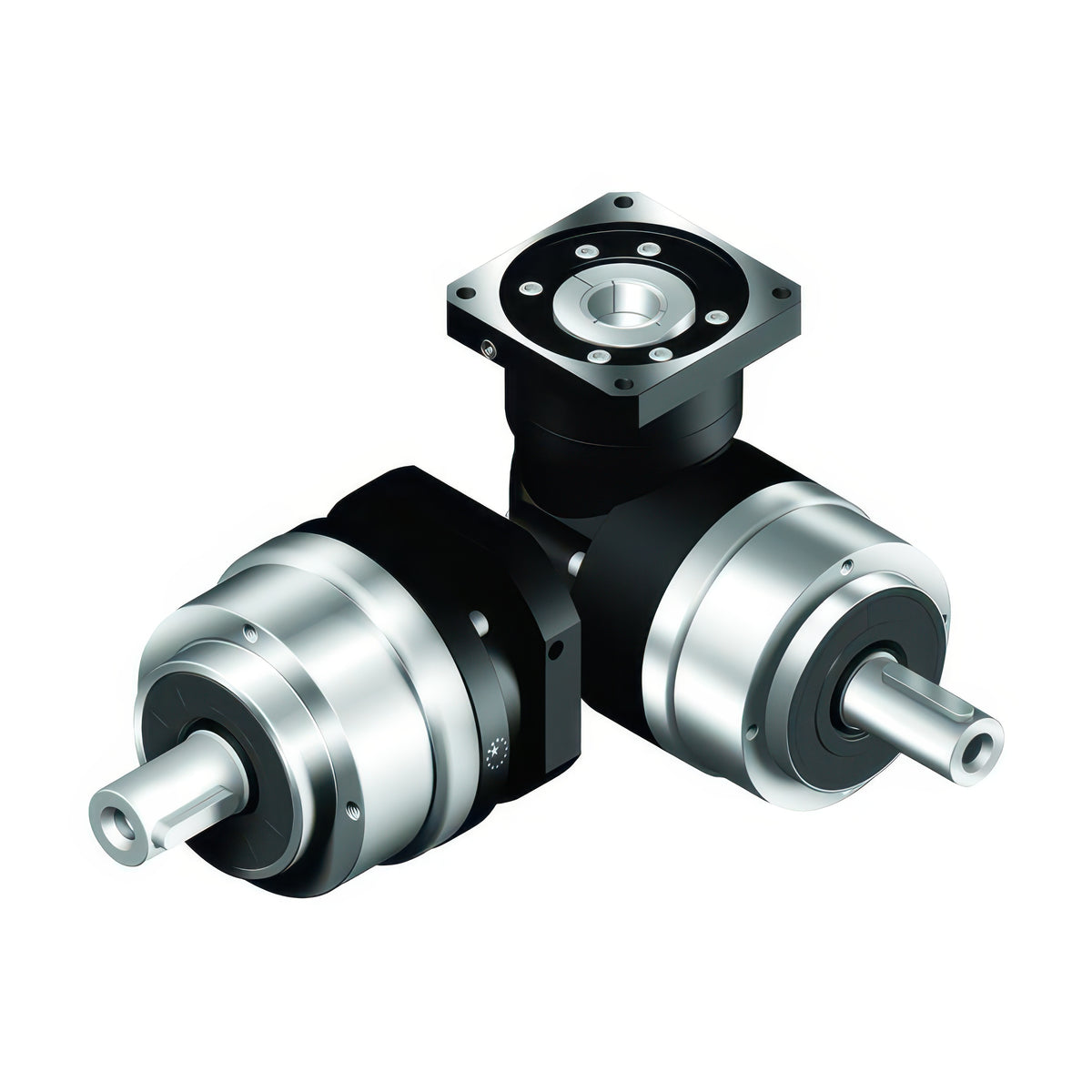

APEX Dynamics AER Series Right-Angle Economy Planetary Gearbox

APEX Dynamics AER Series Right-Angle Economy Planetary Gearbox

The AER series is a right-angle version of the AE economy planetary gearbox for servo motors.

Key features

  • It offers 1-stage ratios up to 20 and 2-stage ratios up to 200 in frame sizes from 50 to 235 mm
  • The motor adapter is matched to the motor maker and model specified at order
  • Efficiency is at least 95% in 1-stage and 92% in 2-stage versions
  • It is lubricated for life with synthetic grease (NYOGEL 792D), rated IP65 (IP67 option) and mounts in any direction

Specifications

Standard backlash <=10 arcmin (1-stage), <=14 arcmin (2-stage)
Efficiency >=95% (1-stage), >=92% (2-stage)
AER050 Frame size: 50 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 9-20 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 3 Nm/arcmin | Max. radial load: 702 N | Max. axial load: 390 N | Weight 1-stage: 1 kg | Weight 2-stage: 1.3 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=61 dB(A)
AER070 Frame size: 70 mm | Ratio range: 3-20 (1-stage), 25-100 (2-stage) | Nominal output torque: 36-60 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 7 Nm/arcmin | Max. radial load: 1377 N | Max. axial load: 765 N | Weight 1-stage: 2.1 kg | Weight 2-stage: 2 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=63 dB(A)
AER090 Frame size: 90 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 90-150 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 14 Nm/arcmin | Max. radial load: 2985 N | Max. axial load: 1625 N | Weight 1-stage: 5.8 kg | Weight 2-stage: 4.6 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=65 dB(A)
AER120 Frame size: 120 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 195-325 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 25 Nm/arcmin | Max. radial load: 6100 N | Max. axial load: 3350 N | Weight 1-stage: 11.2 kg | Weight 2-stage: 11.1 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=68 dB(A)
AER155 Frame size: 155 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 342-650 Nm | Nominal input speed: 3000 rpm | Max. input speed: 6000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 50 Nm/arcmin | Max. radial load: 8460 N | Max. axial load: 4700 N | Weight 1-stage: 22.4 kg | Weight 2-stage: 21.8 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=70 dB(A)
AER205 Frame size: 205 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 588-1200 Nm | Nominal input speed: 3000 rpm | Max. input speed: 6000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 145 Nm/arcmin | Max. radial load: 13050 N | Max. axial load: 7250 N | Weight 1-stage: 46.8 kg | Weight 2-stage: 43.7 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=72 dB(A)
AER235 Frame size: 235 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 1140-2000 Nm | Nominal input speed: 2000 rpm | Max. input speed: 4000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 225 Nm/arcmin | Max. radial load: 8700 N | Max. axial load: 18000 N | Weight 1-stage: 78 kg | Weight 2-stage: 81.9 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=74 dB(A)
Planetary GearboxesAPEX Dynamics
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

APEX Dynamics AER Series Right-Angle Economy Planetary Gearbox

Brand APEX Dynamics·Planetary Gearboxes

Available part numbers (7)

AER050, AER070, AER090, AER120, AER155, AER205, AER235

How to order

Send the APEX Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AER050Frame size: 50 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 9-20 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 3 Nm/arcmin | Max. radial load: 702 N | Max. axial load: 390 N | Weight 1-stage: 1 kg | Weight 2-stage: 1.3 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=61 dB(A)
AER070Frame size: 70 mm | Ratio range: 3-20 (1-stage), 25-100 (2-stage) | Nominal output torque: 36-60 Nm | Nominal input speed: 5000 rpm | Max. input speed: 10000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 7 Nm/arcmin | Max. radial load: 1377 N | Max. axial load: 765 N | Weight 1-stage: 2.1 kg | Weight 2-stage: 2 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=63 dB(A)
AER090Frame size: 90 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 90-150 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 14 Nm/arcmin | Max. radial load: 2985 N | Max. axial load: 1625 N | Weight 1-stage: 5.8 kg | Weight 2-stage: 4.6 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=65 dB(A)
AER120Frame size: 120 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 195-325 Nm | Nominal input speed: 4000 rpm | Max. input speed: 8000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 25 Nm/arcmin | Max. radial load: 6100 N | Max. axial load: 3350 N | Weight 1-stage: 11.2 kg | Weight 2-stage: 11.1 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=68 dB(A)
AER155Frame size: 155 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 342-650 Nm | Nominal input speed: 3000 rpm | Max. input speed: 6000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 50 Nm/arcmin | Max. radial load: 8460 N | Max. axial load: 4700 N | Weight 1-stage: 22.4 kg | Weight 2-stage: 21.8 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=70 dB(A)
AER205Frame size: 205 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 588-1200 Nm | Nominal input speed: 3000 rpm | Max. input speed: 6000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 145 Nm/arcmin | Max. radial load: 13050 N | Max. axial load: 7250 N | Weight 1-stage: 46.8 kg | Weight 2-stage: 43.7 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=72 dB(A)
AER235Frame size: 235 mm | Ratio range: 3-20 (1-stage), 25-200 (2-stage) | Nominal output torque: 1140-2000 Nm | Nominal input speed: 2000 rpm | Max. input speed: 4000 rpm | Standard backlash: <=10 arcmin (1-stage), <=14 arcmin (2-stage) | Torsional rigidity: 225 Nm/arcmin | Max. radial load: 8700 N | Max. axial load: 18000 N | Weight 1-stage: 78 kg | Weight 2-stage: 81.9 kg | Efficiency: >=95% (1-stage), >=92% (2-stage) | Noise: <=74 dB(A)

Need a different model, or a part not listed here? Send us your parts list →
