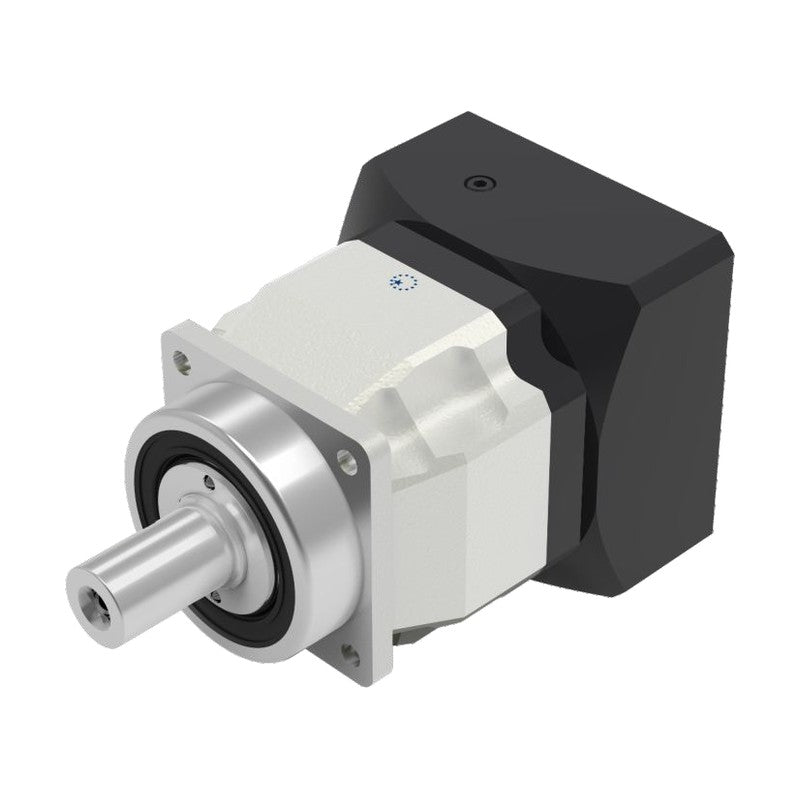

Apex Dynamics AFX Precision Planetary Gearboxes (Frame 042-075A)

APEX Dynamics AFX high-precision helical planetary gearboxes, frame sizes 042, 060, 060A, 075, 075A, for servo motors in continuous-duty automation.

Key features

Ordering code: size - ratio - output shaft - backlash / motor, e.g. AFX075-005-S1-P1
Output shaft S1 smooth, S2 keyed or S3 DIN 5480 spline (S3 not offered on frame 042)
Backlash classes P0 micro, P1 reduced and P2 standard where listed for the size and stage
Suffix-A frames (060A-140A) are 2-stage versions with a larger motor input interface
High torque, low noise and limited temperature rise; designed for continuous operation

Specifications

Max. input speed n1B	10,000 rpm (042-060A), 8,000 rpm (075/075A)
Torsional rigidity	3 (042), 7 (060/060A), 14 (075/075A) Nm/arcmin
Gear type	Helical planetary, inline
Efficiency	>=97% (1-stage), >=94% (2-stage)
Emergency stop torque T2NOT	3 x nominal output torque
Max. acceleration torque T2B	60% of T2NOT
Protection class	IP67
Operating temperature	-10 to +90 C
Lubrication	Lubricated for life, any mounting position
Motor adapter	Specify motor make and model when ordering (code suffix / MOTOR)
Source	APEX Dynamics AFX catalog (AFX/AFXR), p. 3-8

AFX042-003-S1-P1		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
AFX042-003-S1-P2		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-003-S2-P1		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
AFX042-003-S2-P2		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-004-S1-P1		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
AFX042-004-S1-P2		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-004-S2-P1		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
AFX042-004-S2-P2		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-005-S1-P1		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 22 Nm
AFX042-005-S1-P2		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 22 Nm
AFX042-005-S2-P1		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 22 Nm
AFX042-005-S2-P2		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 22 Nm
AFX042-006-S1-P1		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
AFX042-006-S1-P2		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-006-S2-P1		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
AFX042-006-S2-P2		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-007-S1-P1		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
AFX042-007-S1-P2		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-007-S2-P1		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
AFX042-007-S2-P2		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-008-S1-P1		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 17 Nm
AFX042-008-S1-P2		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-008-S2-P1		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 17 Nm
AFX042-008-S2-P2		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-009-S1-P1		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
AFX042-009-S1-P2		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-009-S2-P1		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
AFX042-009-S2-P2		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-010-S1-P1		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
AFX042-010-S1-P2		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-010-S2-P1		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
AFX042-010-S2-P2		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-012-S1-P1		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-012-S1-P2		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-012-S2-P1		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-012-S2-P2		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-015-S1-P1		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-015-S1-P2		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
AFX042-015-S2-P1		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-015-S2-P2		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
AFX042-016-S1-P1		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-016-S1-P2		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-016-S2-P1		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-016-S2-P2		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-020-S1-P1		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-020-S1-P2		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-020-S2-P1		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-020-S2-P2		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-025-S1-P1		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
AFX042-025-S1-P2		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
AFX042-025-S2-P1		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
AFX042-025-S2-P2		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
AFX042-028-S1-P1		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-028-S1-P2		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-028-S2-P1		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-028-S2-P2		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-030-S1-P1		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-030-S1-P2		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
AFX042-030-S2-P1		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-030-S2-P2		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
AFX042-032-S1-P1		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-032-S1-P2		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
AFX042-032-S2-P1		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-032-S2-P2		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
AFX042-035-S1-P1		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-035-S1-P2		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-035-S2-P1		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-035-S2-P2		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-040-S1-P1		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-040-S1-P2		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
AFX042-040-S2-P1		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-040-S2-P2		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
AFX042-045-S1-P1		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-045-S1-P2		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
AFX042-045-S2-P1		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-045-S2-P2		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
AFX042-050-S1-P1		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
AFX042-050-S1-P2		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
AFX042-050-S2-P1		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
AFX042-050-S2-P2		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
AFX042-060-S1-P1		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-060-S1-P2		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
AFX042-060-S2-P1		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
AFX042-060-S2-P2		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
AFX042-070-S1-P1		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-070-S1-P2		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-070-S2-P1		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
AFX042-070-S2-P2		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
AFX042-080-S1-P1		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-080-S1-P2		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
AFX042-080-S2-P1		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
AFX042-080-S2-P2		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
AFX042-090-S1-P1		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-090-S1-P2		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
AFX042-090-S2-P1		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-090-S2-P2		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
AFX042-100-S1-P1		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-100-S1-P2		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
AFX042-100-S2-P1		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
AFX042-100-S2-P2		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
AFX060-003-S1-P1		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
AFX060-003-S1-P2		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-003-S2-P1		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
AFX060-003-S2-P2		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-003-S3-P1		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
AFX060-003-S3-P2		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-004-S1-P1		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
AFX060-004-S1-P2		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-004-S2-P1		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
AFX060-004-S2-P2		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-004-S3-P1		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
AFX060-004-S3-P2		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-005-S1-P1		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 60 Nm
AFX060-005-S1-P2		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-005-S2-P1		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 60 Nm
AFX060-005-S2-P2		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-005-S3-P1		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 60 Nm
AFX060-005-S3-P2		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-006-S1-P1		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
AFX060-006-S1-P2		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-006-S2-P1		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
AFX060-006-S2-P2		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-006-S3-P1		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
AFX060-006-S3-P2		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-007-S1-P1		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
AFX060-007-S1-P2		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-007-S2-P1		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
AFX060-007-S2-P2		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-007-S3-P1		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
AFX060-007-S3-P2		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-008-S1-P1		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 45 Nm
AFX060-008-S1-P2		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-008-S2-P1		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 45 Nm
AFX060-008-S2-P2		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-008-S3-P1		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 45 Nm
AFX060-008-S3-P2		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-009-S1-P1		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
AFX060-009-S1-P2		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-009-S2-P1		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
AFX060-009-S2-P2		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-009-S3-P1		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
AFX060-009-S3-P2		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-010-S1-P1		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
AFX060-010-S1-P2		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-010-S2-P1		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
AFX060-010-S2-P2		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-010-S3-P1		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
AFX060-010-S3-P2		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-015-S1-P1		Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-015-S1-P2		Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-015-S2-P1		Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-015-S2-P2		Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-015-S3-P1		Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-015-S3-P2		Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-020-S1-P1		Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-020-S1-P2		Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-020-S2-P1		Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-020-S2-P2		Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-020-S3-P1		Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-020-S3-P2		Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-025-S1-P1		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-025-S1-P2		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060-025-S2-P1		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-025-S2-P2		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060-025-S3-P1		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-025-S3-P2		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060-030-S1-P1		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-030-S1-P2		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-030-S2-P1		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-030-S2-P2		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-030-S3-P1		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-030-S3-P2		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-035-S1-P1		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-035-S1-P2		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-035-S2-P1		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-035-S2-P2		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-035-S3-P1		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-035-S3-P2		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-040-S1-P1		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-040-S1-P2		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060-040-S2-P1		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-040-S2-P2		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060-040-S3-P1		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-040-S3-P2		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060-045-S1-P1		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-045-S1-P2		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-045-S2-P1		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-045-S2-P2		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-045-S3-P1		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-045-S3-P2		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-050-S1-P1		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-050-S1-P2		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060-050-S2-P1		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-050-S2-P2		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060-050-S3-P1		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060-050-S3-P2		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060-060-S1-P1		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-060-S1-P2		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-060-S2-P1		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-060-S2-P2		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-060-S3-P1		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060-060-S3-P2		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060-070-S1-P1		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-070-S1-P2		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-070-S2-P1		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-070-S2-P2		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-070-S3-P1		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060-070-S3-P2		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060-080-S1-P1		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-080-S1-P2		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060-080-S2-P1		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-080-S2-P2		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060-080-S3-P1		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060-080-S3-P2		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060-090-S1-P1		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-090-S1-P2		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-090-S2-P1		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-090-S2-P2		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-090-S3-P1		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-090-S3-P2		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-100-S1-P1		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-100-S1-P2		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-100-S2-P1		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-100-S2-P2		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060-100-S3-P1		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060-100-S3-P2		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-015-S1-P1		Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-015-S1-P2		Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-015-S2-P1		Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-015-S2-P2		Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-015-S3-P1		Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-015-S3-P2		Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-020-S1-P1		Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-020-S1-P2		Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-020-S2-P1		Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-020-S2-P2		Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-020-S3-P1		Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-020-S3-P2		Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-025-S1-P1		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-025-S1-P2		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-025-S2-P1		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-025-S2-P2		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-025-S3-P1		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-025-S3-P2		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-030-S1-P1		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-030-S1-P2		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-030-S2-P1		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-030-S2-P2		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-030-S3-P1		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-030-S3-P2		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-035-S1-P1		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-035-S1-P2		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-035-S2-P1		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-035-S2-P2		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-035-S3-P1		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-035-S3-P2		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-040-S1-P1		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-040-S1-P2		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-040-S2-P1		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-040-S2-P2		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-040-S3-P1		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-040-S3-P2		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-045-S1-P1		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-045-S1-P2		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-045-S2-P1		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-045-S2-P2		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-045-S3-P1		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-045-S3-P2		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-050-S1-P1		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-050-S1-P2		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-050-S2-P1		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-050-S2-P2		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-050-S3-P1		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-050-S3-P2		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
AFX060A-060-S1-P1		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-060-S1-P2		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-060-S2-P1		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-060-S2-P2		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-060-S3-P1		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-060-S3-P2		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
AFX060A-070-S1-P1		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-070-S1-P2		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-070-S2-P1		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-070-S2-P2		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-070-S3-P1		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-070-S3-P2		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
AFX060A-080-S1-P1		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-080-S1-P2		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-080-S2-P1		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-080-S2-P2		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-080-S3-P1		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-080-S3-P2		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
AFX060A-090-S1-P1		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-090-S1-P2		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-090-S2-P1		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-090-S2-P2		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-090-S3-P1		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-090-S3-P2		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-100-S1-P1		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-100-S1-P2		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-100-S2-P1		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-100-S2-P2		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-100-S3-P1		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
AFX060A-100-S3-P2		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
AFX075-003-S1-P0		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S1-P1		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S1-P2		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S2-P0		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S2-P1		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S2-P2		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S3-P0		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S3-P1		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 130 Nm
AFX075-003-S3-P2		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075-004-S1-P0		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S1-P1		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S1-P2		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S2-P0		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S2-P1		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S2-P2		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S3-P0		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S3-P1		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
AFX075-004-S3-P2		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-005-S1-P0		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S1-P1		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S1-P2		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S2-P0		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S2-P1		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S2-P2		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S3-P0		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S3-P1		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 160 Nm
AFX075-005-S3-P2		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-006-S1-P0		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S1-P1		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S1-P2		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S2-P0		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S2-P1		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S2-P2		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S3-P0		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S3-P1		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 150 Nm
AFX075-006-S3-P2		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-007-S1-P0		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S1-P1		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S1-P2		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S2-P0		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S2-P1		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S2-P2		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S3-P0		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S3-P1		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
AFX075-007-S3-P2		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-008-S1-P0		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S1-P1		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S1-P2		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S2-P0		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S2-P1		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S2-P2		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S3-P0		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S3-P1		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 120 Nm
AFX075-008-S3-P2		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-009-S1-P0		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S1-P1		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S1-P2		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S2-P0		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S2-P1		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S2-P2		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S3-P0		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S3-P1		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
AFX075-009-S3-P2		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S1-P0		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S1-P1		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S1-P2		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S2-P0		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S2-P1		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S2-P2		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S3-P0		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S3-P1		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
AFX075-010-S3-P2		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-012-S1-P1		Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-012-S1-P2		Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-012-S2-P1		Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-012-S2-P2		Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-012-S3-P1		Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-012-S3-P2		Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-015-S1-P1		Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075-015-S1-P2		Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
AFX075-015-S2-P1		Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075-015-S2-P2		Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
AFX075-015-S3-P1		Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075-015-S3-P2		Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
AFX075-016-S1-P1		Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-016-S1-P2		Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-016-S2-P1		Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-016-S2-P2		Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-016-S3-P1		Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-016-S3-P2		Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-020-S1-P1		Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-020-S1-P2		Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-020-S2-P1		Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-020-S2-P2		Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-020-S3-P1		Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-020-S3-P2		Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-025-S1-P1		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-025-S1-P2		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075-025-S2-P1		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-025-S2-P2		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075-025-S3-P1		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-025-S3-P2		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075-028-S1-P1		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-028-S1-P2		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-028-S2-P1		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-028-S2-P2		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-028-S3-P1		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-028-S3-P2		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-030-S1-P1		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-030-S1-P2		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075-030-S2-P1		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-030-S2-P2		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075-030-S3-P1		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-030-S3-P2		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075-032-S1-P1		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-032-S1-P2		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-032-S2-P1		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-032-S2-P2		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-032-S3-P1		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-032-S3-P2		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-035-S1-P1		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-035-S1-P2		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-035-S2-P1		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-035-S2-P2		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-035-S3-P1		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-035-S3-P2		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-040-S1-P1		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-040-S1-P2		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-040-S2-P1		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-040-S2-P2		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-040-S3-P1		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-040-S3-P2		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-045-S1-P1		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-045-S1-P2		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-045-S2-P1		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-045-S2-P2		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-045-S3-P1		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-045-S3-P2		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-050-S1-P1		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-050-S1-P2		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075-050-S2-P1		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-050-S2-P2		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075-050-S3-P1		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075-050-S3-P2		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075-060-S1-P1		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-060-S1-P2		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075-060-S2-P1		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-060-S2-P2		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075-060-S3-P1		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075-060-S3-P2		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075-070-S1-P1		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-070-S1-P2		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-070-S2-P1		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-070-S2-P2		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-070-S3-P1		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075-070-S3-P2		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075-080-S1-P1		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-080-S1-P2		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-080-S2-P1		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-080-S2-P2		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-080-S3-P1		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075-080-S3-P2		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075-090-S1-P1		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-090-S1-P2		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-090-S2-P1		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-090-S2-P2		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-090-S3-P1		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-090-S3-P2		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-100-S1-P1		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-100-S1-P2		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-100-S2-P1		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-100-S2-P2		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075-100-S3-P1		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075-100-S3-P2		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-012-S1-P1		Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-012-S1-P2		Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-012-S2-P1		Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-012-S2-P2		Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-012-S3-P1		Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-012-S3-P2		Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-015-S1-P1		Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075A-015-S1-P2		Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
AFX075A-015-S2-P1		Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075A-015-S2-P2		Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
AFX075A-015-S3-P1		Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
AFX075A-015-S3-P2		Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
AFX075A-016-S1-P1		Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-016-S1-P2		Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-016-S2-P1		Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-016-S2-P2		Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-016-S3-P1		Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-016-S3-P2		Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-020-S1-P1		Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-020-S1-P2		Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-020-S2-P1		Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-020-S2-P2		Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-020-S3-P1		Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-020-S3-P2		Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-025-S1-P1		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-025-S1-P2		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-025-S2-P1		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-025-S2-P2		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-025-S3-P1		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-025-S3-P2		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-028-S1-P1		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-028-S1-P2		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-028-S2-P1		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-028-S2-P2		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-028-S3-P1		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-028-S3-P2		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-030-S1-P1		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-030-S1-P2		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-030-S2-P1		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-030-S2-P2		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-030-S3-P1		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-030-S3-P2		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-032-S1-P1		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-032-S1-P2		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-032-S2-P1		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-032-S2-P2		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-032-S3-P1		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-032-S3-P2		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-035-S1-P1		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-035-S1-P2		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-035-S2-P1		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-035-S2-P2		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-035-S3-P1		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-035-S3-P2		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-040-S1-P1		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-040-S1-P2		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-040-S2-P1		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-040-S2-P2		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-040-S3-P1		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-040-S3-P2		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-045-S1-P1		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-045-S1-P2		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-045-S2-P1		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-045-S2-P2		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-045-S3-P1		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-045-S3-P2		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-050-S1-P1		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-050-S1-P2		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-050-S2-P1		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-050-S2-P2		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-050-S3-P1		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-050-S3-P2		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
AFX075A-060-S1-P1		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-060-S1-P2		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-060-S2-P1		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-060-S2-P2		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-060-S3-P1		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-060-S3-P2		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
AFX075A-070-S1-P1		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-070-S1-P2		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-070-S2-P1		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-070-S2-P2		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-070-S3-P1		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-070-S3-P2		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
AFX075A-080-S1-P1		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-080-S1-P2		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-080-S2-P1		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-080-S2-P2		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-080-S3-P1		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-080-S3-P2		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
AFX075A-090-S1-P1		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-090-S1-P2		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-090-S2-P1		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-090-S2-P2		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-090-S3-P1		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-090-S3-P2		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-100-S1-P1		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-100-S1-P2		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-100-S2-P1		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-100-S2-P2		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-100-S3-P1		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
AFX075A-100-S3-P2		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm

Planetary GearboxesApex Dynamics

580 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AFX Precision Planetary Gearboxes (Frame 042-075A)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (580)

AFX042-003-S1-P1, AFX042-003-S1-P2, AFX042-003-S2-P1, AFX042-003-S2-P2, AFX042-004-S1-P1, AFX042-004-S1-P2, AFX042-004-S2-P1, AFX042-004-S2-P2, AFX042-005-S1-P1, AFX042-005-S1-P2 + 570 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AFX042-003-S1-P1	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-003-S1-P2	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-003-S2-P1	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-003-S2-P2	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-004-S1-P1	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-004-S1-P2	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-004-S2-P1	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-004-S2-P2	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-005-S1-P1	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-005-S1-P2	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-005-S2-P1	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-005-S2-P2	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-006-S1-P1	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-006-S1-P2	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-006-S2-P1	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-006-S2-P2	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-007-S1-P1	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-007-S1-P2	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-007-S2-P1	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-007-S2-P2	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-008-S1-P1	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-008-S1-P2	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-008-S2-P1	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-008-S2-P2	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-009-S1-P1	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-009-S1-P2	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-009-S2-P1	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-009-S2-P2	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-010-S1-P1	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-010-S1-P2	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-010-S2-P1	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-010-S2-P2	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-012-S1-P1	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-012-S1-P2	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-012-S2-P1	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-012-S2-P2	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-015-S1-P1	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-015-S1-P2	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-015-S2-P1	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-015-S2-P2	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-016-S1-P1	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-016-S1-P2	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-016-S2-P1	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-016-S2-P2	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-020-S1-P1	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-020-S1-P2	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-020-S2-P1	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-020-S2-P2	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-025-S1-P1	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-025-S1-P2	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-025-S2-P1	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-025-S2-P2	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-028-S1-P1	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-028-S1-P2	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-028-S2-P1	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-028-S2-P2	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-030-S1-P1	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-030-S1-P2	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-030-S2-P1	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-030-S2-P2	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-032-S1-P1	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-032-S1-P2	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-032-S2-P1	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-032-S2-P2	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-035-S1-P1	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-035-S1-P2	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-035-S2-P1	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-035-S2-P2	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-040-S1-P1	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-040-S1-P2	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-040-S2-P1	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-040-S2-P2	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-045-S1-P1	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-045-S1-P2	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-045-S2-P1	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-045-S2-P2	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-050-S1-P1	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-050-S1-P2	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-050-S2-P1	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-050-S2-P2	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 22 Nm
	AFX042-060-S1-P1	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-060-S1-P2	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-060-S2-P1	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-060-S2-P2	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 20 Nm
	AFX042-070-S1-P1	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-070-S1-P2	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-070-S2-P1	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-070-S2-P2	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 19 Nm
	AFX042-080-S1-P1	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-080-S1-P2	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-080-S2-P1	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-080-S2-P2	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 17 Nm
	AFX042-090-S1-P1	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-090-S1-P2	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-090-S2-P1	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-090-S2-P2	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-100-S1-P1	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-100-S1-P2	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-100-S2-P1	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 14 Nm
	AFX042-100-S2-P2	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 14 Nm
	AFX060-003-S1-P1	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-003-S1-P2	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-003-S2-P1	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-003-S2-P2	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-003-S3-P1	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-003-S3-P2	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-004-S1-P1	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-004-S1-P2	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-004-S2-P1	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-004-S2-P2	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-004-S3-P1	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-004-S3-P2	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-005-S1-P1	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-005-S1-P2	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-005-S2-P1	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-005-S2-P2	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-005-S3-P1	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-005-S3-P2	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-006-S1-P1	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-006-S1-P2	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-006-S2-P1	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-006-S2-P2	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-006-S3-P1	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-006-S3-P2	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-007-S1-P1	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-007-S1-P2	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-007-S2-P1	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-007-S2-P2	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-007-S3-P1	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-007-S3-P2	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-008-S1-P1	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-008-S1-P2	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-008-S2-P1	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-008-S2-P2	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-008-S3-P1	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-008-S3-P2	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-009-S1-P1	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-009-S1-P2	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-009-S2-P1	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-009-S2-P2	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-009-S3-P1	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-009-S3-P2	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-010-S1-P1	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-010-S1-P2	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-010-S2-P1	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-010-S2-P2	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-010-S3-P1	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-010-S3-P2	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-015-S1-P1	Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-015-S1-P2	Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-015-S2-P1	Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-015-S2-P2	Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-015-S3-P1	Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-015-S3-P2	Frame: 060 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-020-S1-P1	Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-020-S1-P2	Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-020-S2-P1	Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-020-S2-P2	Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-020-S3-P1	Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-020-S3-P2	Frame: 060 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-025-S1-P1	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-025-S1-P2	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-025-S2-P1	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-025-S2-P2	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-025-S3-P1	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-025-S3-P2	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-030-S1-P1	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-030-S1-P2	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-030-S2-P1	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-030-S2-P2	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-030-S3-P1	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-030-S3-P2	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-035-S1-P1	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-035-S1-P2	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-035-S2-P1	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-035-S2-P2	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-035-S3-P1	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-035-S3-P2	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-040-S1-P1	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-040-S1-P2	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-040-S2-P1	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-040-S2-P2	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-040-S3-P1	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-040-S3-P2	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-045-S1-P1	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-045-S1-P2	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-045-S2-P1	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-045-S2-P2	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-045-S3-P1	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-045-S3-P2	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-050-S1-P1	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-050-S1-P2	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-050-S2-P1	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-050-S2-P2	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-050-S3-P1	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-050-S3-P2	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060-060-S1-P1	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-060-S1-P2	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-060-S2-P1	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-060-S2-P2	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-060-S3-P1	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-060-S3-P2	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060-070-S1-P1	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-070-S1-P2	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-070-S2-P1	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-070-S2-P2	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-070-S3-P1	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-070-S3-P2	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060-080-S1-P1	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-080-S1-P2	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-080-S2-P1	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-080-S2-P2	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-080-S3-P1	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-080-S3-P2	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060-090-S1-P1	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-090-S1-P2	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-090-S2-P1	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-090-S2-P2	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-090-S3-P1	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-090-S3-P2	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-100-S1-P1	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-100-S1-P2	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-100-S2-P1	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-100-S2-P2	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-100-S3-P1	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060-100-S3-P2	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-015-S1-P1	Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-015-S1-P2	Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-015-S2-P1	Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-015-S2-P2	Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-015-S3-P1	Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-015-S3-P2	Frame: 060A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-020-S1-P1	Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-020-S1-P2	Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-020-S2-P1	Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-020-S2-P2	Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-020-S3-P1	Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-020-S3-P2	Frame: 060A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-025-S1-P1	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-025-S1-P2	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-025-S2-P1	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-025-S2-P2	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-025-S3-P1	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-025-S3-P2	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-030-S1-P1	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-030-S1-P2	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-030-S2-P1	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-030-S2-P2	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-030-S3-P1	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-030-S3-P2	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-035-S1-P1	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-035-S1-P2	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-035-S2-P1	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-035-S2-P2	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-035-S3-P1	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-035-S3-P2	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-040-S1-P1	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-040-S1-P2	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-040-S2-P1	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-040-S2-P2	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-040-S3-P1	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-040-S3-P2	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-045-S1-P1	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-045-S1-P2	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-045-S2-P1	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-045-S2-P2	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-045-S3-P1	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-045-S3-P2	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-050-S1-P1	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-050-S1-P2	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-050-S2-P1	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-050-S2-P2	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-050-S3-P1	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-050-S3-P2	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 60 Nm
	AFX060A-060-S1-P1	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-060-S1-P2	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-060-S2-P1	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-060-S2-P2	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-060-S3-P1	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-060-S3-P2	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 55 Nm
	AFX060A-070-S1-P1	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-070-S1-P2	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-070-S2-P1	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-070-S2-P2	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-070-S3-P1	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-070-S3-P2	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 50 Nm
	AFX060A-080-S1-P1	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-080-S1-P2	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-080-S2-P1	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-080-S2-P2	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-080-S3-P1	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-080-S3-P2	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 45 Nm
	AFX060A-090-S1-P1	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-090-S1-P2	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-090-S2-P1	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-090-S2-P2	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-090-S3-P1	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-090-S3-P2	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-100-S1-P1	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-100-S1-P2	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-100-S2-P1	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-100-S2-P2	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-100-S3-P1	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 40 Nm
	AFX060A-100-S3-P2	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 40 Nm
	AFX075-003-S1-P0	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S1-P1	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S1-P2	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S2-P0	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S2-P1	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S2-P2	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S3-P0	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S3-P1	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-003-S3-P2	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-004-S1-P0	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S1-P1	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S1-P2	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S2-P0	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S2-P1	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S2-P2	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S3-P0	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S3-P1	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-004-S3-P2	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-005-S1-P0	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S1-P1	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S1-P2	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S2-P0	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S2-P1	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S2-P2	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S3-P0	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S3-P1	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-005-S3-P2	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-006-S1-P0	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S1-P1	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S1-P2	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S2-P0	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S2-P1	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S2-P2	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S3-P0	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S3-P1	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-006-S3-P2	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-007-S1-P0	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S1-P1	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S1-P2	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S2-P0	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S2-P1	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S2-P2	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S3-P0	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S3-P1	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-007-S3-P2	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-008-S1-P0	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S1-P1	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S1-P2	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S2-P0	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S2-P1	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S2-P2	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S3-P0	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S3-P1	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-008-S3-P2	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-009-S1-P0	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S1-P1	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S1-P2	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S2-P0	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S2-P1	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S2-P2	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S3-P0	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S3-P1	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-009-S3-P2	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S1-P0	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S1-P1	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S1-P2	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S1 smooth \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S2-P0	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S2-P1	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S2-P2	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S2 keyed \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S3-P0	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P0 micro <=1 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S3-P1	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=3 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-010-S3-P2	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-012-S1-P1	Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-012-S1-P2	Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-012-S2-P1	Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-012-S2-P2	Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-012-S3-P1	Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-012-S3-P2	Frame: 075 \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-015-S1-P1	Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-015-S1-P2	Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-015-S2-P1	Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-015-S2-P2	Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-015-S3-P1	Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-015-S3-P2	Frame: 075 \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
	AFX075-016-S1-P1	Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-016-S1-P2	Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-016-S2-P1	Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-016-S2-P2	Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-016-S3-P1	Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-016-S3-P2	Frame: 075 \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-020-S1-P1	Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-020-S1-P2	Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-020-S2-P1	Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-020-S2-P2	Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-020-S3-P1	Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-020-S3-P2	Frame: 075 \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-025-S1-P1	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-025-S1-P2	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-025-S2-P1	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-025-S2-P2	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-025-S3-P1	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-025-S3-P2	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-028-S1-P1	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-028-S1-P2	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-028-S2-P1	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-028-S2-P2	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-028-S3-P1	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-028-S3-P2	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-030-S1-P1	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-030-S1-P2	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-030-S2-P1	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-030-S2-P2	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-030-S3-P1	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-030-S3-P2	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-032-S1-P1	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-032-S1-P2	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-032-S2-P1	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-032-S2-P2	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-032-S3-P1	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-032-S3-P2	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-035-S1-P1	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-035-S1-P2	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-035-S2-P1	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-035-S2-P2	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-035-S3-P1	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-035-S3-P2	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-040-S1-P1	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-040-S1-P2	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-040-S2-P1	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-040-S2-P2	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-040-S3-P1	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-040-S3-P2	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-045-S1-P1	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-045-S1-P2	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-045-S2-P1	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-045-S2-P2	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-045-S3-P1	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-045-S3-P2	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-050-S1-P1	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-050-S1-P2	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-050-S2-P1	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-050-S2-P2	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-050-S3-P1	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-050-S3-P2	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075-060-S1-P1	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-060-S1-P2	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-060-S2-P1	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-060-S2-P2	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-060-S3-P1	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-060-S3-P2	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075-070-S1-P1	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-070-S1-P2	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-070-S2-P1	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-070-S2-P2	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-070-S3-P1	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-070-S3-P2	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075-080-S1-P1	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-080-S1-P2	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-080-S2-P1	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-080-S2-P2	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-080-S3-P1	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-080-S3-P2	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075-090-S1-P1	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-090-S1-P2	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-090-S2-P1	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-090-S2-P2	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-090-S3-P1	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-090-S3-P2	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-100-S1-P1	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-100-S1-P2	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-100-S2-P1	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-100-S2-P2	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-100-S3-P1	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075-100-S3-P2	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-012-S1-P1	Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-012-S1-P2	Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-012-S2-P1	Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-012-S2-P2	Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-012-S3-P1	Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-012-S3-P2	Frame: 075A \| Ratio i: 12 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-015-S1-P1	Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075A-015-S1-P2	Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
	AFX075A-015-S2-P1	Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075A-015-S2-P2	Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
	AFX075A-015-S3-P1	Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 130 Nm
	AFX075A-015-S3-P2	Frame: 075A \| Ratio i: 15 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 130 Nm
	AFX075A-016-S1-P1	Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-016-S1-P2	Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-016-S2-P1	Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-016-S2-P2	Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-016-S3-P1	Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-016-S3-P2	Frame: 075A \| Ratio i: 16 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-020-S1-P1	Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-020-S1-P2	Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-020-S2-P1	Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-020-S2-P2	Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-020-S3-P1	Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-020-S3-P2	Frame: 075A \| Ratio i: 20 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-025-S1-P1	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-025-S1-P2	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-025-S2-P1	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-025-S2-P2	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-025-S3-P1	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-025-S3-P2	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-028-S1-P1	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-028-S1-P2	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-028-S2-P1	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-028-S2-P2	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-028-S3-P1	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-028-S3-P2	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-030-S1-P1	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-030-S1-P2	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-030-S2-P1	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-030-S2-P2	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-030-S3-P1	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-030-S3-P2	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-032-S1-P1	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-032-S1-P2	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-032-S2-P1	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-032-S2-P2	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-032-S3-P1	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-032-S3-P2	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-035-S1-P1	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-035-S1-P2	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-035-S2-P1	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-035-S2-P2	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-035-S3-P1	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-035-S3-P2	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-040-S1-P1	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-040-S1-P2	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-040-S2-P1	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-040-S2-P2	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-040-S3-P1	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-040-S3-P2	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-045-S1-P1	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-045-S1-P2	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-045-S2-P1	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-045-S2-P2	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-045-S3-P1	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-045-S3-P2	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-050-S1-P1	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-050-S1-P2	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-050-S2-P1	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-050-S2-P2	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-050-S3-P1	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-050-S3-P2	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 160 Nm
	AFX075A-060-S1-P1	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-060-S1-P2	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-060-S2-P1	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-060-S2-P2	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-060-S3-P1	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-060-S3-P2	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 150 Nm
	AFX075A-070-S1-P1	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-070-S1-P2	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-070-S2-P1	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-070-S2-P2	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-070-S3-P1	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-070-S3-P2	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 140 Nm
	AFX075A-080-S1-P1	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-080-S1-P2	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-080-S2-P1	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-080-S2-P2	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-080-S3-P1	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-080-S3-P2	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 120 Nm
	AFX075A-090-S1-P1	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-090-S1-P2	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-090-S2-P1	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-090-S2-P2	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-090-S3-P1	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-090-S3-P2	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-100-S1-P1	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-100-S1-P2	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S1 smooth \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-100-S2-P1	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-100-S2-P2	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S2 keyed \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-100-S3-P1	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P1 reduced <=5 arcmin \| Nominal torque T2N: 100 Nm
	AFX075A-100-S3-P2	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Output shaft: S3 DIN 5480 spline \| Backlash: P2 standard <=7 arcmin \| Nominal torque T2N: 100 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics AFX Precision Planetary Gearboxes (Frame 042-075A)
