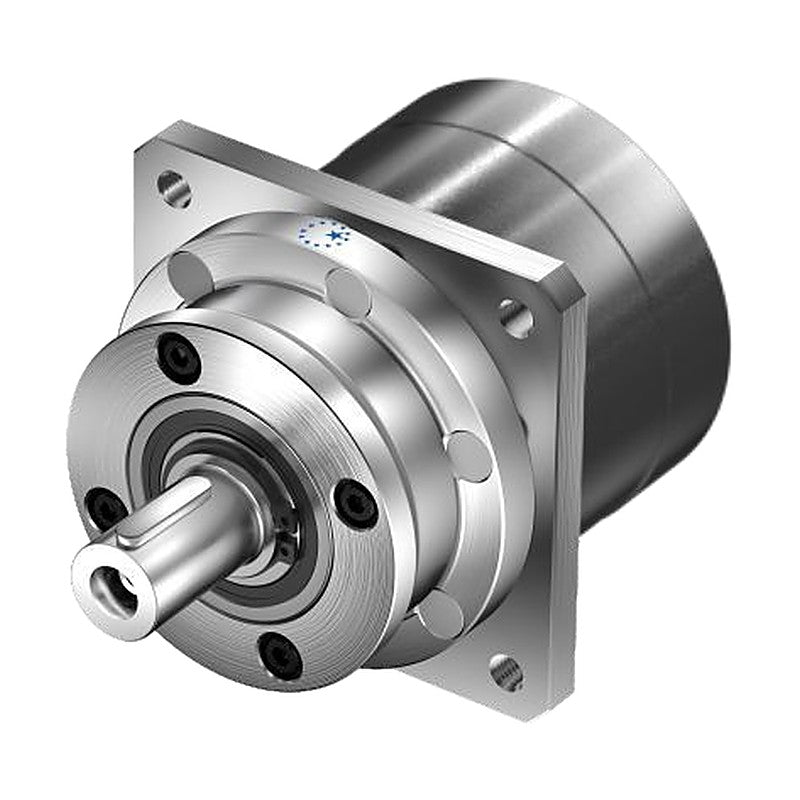

Apex Dynamics GLS Input-Shaft Planetary Gearboxes (082-132)

Apex Dynamics GLS Input-Shaft Planetary Gearboxes (082-132)

Apex Dynamics GLS planetary gearboxes are the GL rotating-housing version with a solid input shaft instead of a motor hub, for belt, coupling or other shaft drives.

Key features

  • Solid input shaft S1 smooth or S2 with key replaces the GL motor hub
  • Rotating housing output with high radial load up to 7,200 N
  • Ratios 3-9 (1-stage) and 10-90 (2-stage), backlash <=6 arcmin
  • Max. input shaft radial load 275-800 N, axial load 137-400 N (at 1000 rpm)
  • Efficiency up to 97%, IP65 protection, synthetic grease lubrication for life

Specifications

Backlash <=6 arcmin
Emergency stop / max. accel. torque 3 x T2N / 1.5 x T2N
Torsional rigidity 8 / 22 / 60 Nm/arcmin (082/100/132)
Max. radial / axial load 2,860-7,200 N / 1,430-3,600 N
Max. tilting moment M2K 117 / 155 / 452 Nm (082/100/132)
Efficiency >=97% (1-stage), >=94% (2-stage)
Protection / lubrication IP65, synthetic lubrication grease
Operating temperature -10 to +90 C
Mounting position All directions
Source APEX Dynamics GL/GLS catalog, p. 2-6
GLS082-003-S1 Frame: 082 | Ratio i: 3 | Stages: 1 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 90 Nm
GLS082-003-S2 Frame: 082 | Ratio i: 3 | Stages: 1 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 90 Nm
GLS082-004-S1 Frame: 082 | Ratio i: 4 | Stages: 1 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 83 Nm
GLS082-004-S2 Frame: 082 | Ratio i: 4 | Stages: 1 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 83 Nm
GLS082-006-S1 Frame: 082 | Ratio i: 6 | Stages: 1 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 54 Nm
GLS082-006-S2 Frame: 082 | Ratio i: 6 | Stages: 1 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 54 Nm
GLS082-009-S1 Frame: 082 | Ratio i: 9 | Stages: 1 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 21 Nm
GLS082-009-S2 Frame: 082 | Ratio i: 9 | Stages: 1 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 21 Nm
GLS082-010-S1 Frame: 082 | Ratio i: 10 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 60 Nm
GLS082-010-S2 Frame: 082 | Ratio i: 10 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 60 Nm
GLS082-015-S1 Frame: 082 | Ratio i: 15 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 90 Nm
GLS082-015-S2 Frame: 082 | Ratio i: 15 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 90 Nm
GLS082-020-S1 Frame: 082 | Ratio i: 20 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 83 Nm
GLS082-020-S2 Frame: 082 | Ratio i: 20 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 83 Nm
GLS082-024-S1 Frame: 082 | Ratio i: 24 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 54 Nm
GLS082-024-S2 Frame: 082 | Ratio i: 24 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 54 Nm
GLS082-030-S1 Frame: 082 | Ratio i: 30 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 54 Nm
GLS082-030-S2 Frame: 082 | Ratio i: 30 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 54 Nm
GLS082-036-S1 Frame: 082 | Ratio i: 36 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 21 Nm
GLS082-036-S2 Frame: 082 | Ratio i: 36 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 21 Nm
GLS082-040-S1 Frame: 082 | Ratio i: 40 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 53 Nm
GLS082-040-S2 Frame: 082 | Ratio i: 40 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 53 Nm
GLS082-045-S1 Frame: 082 | Ratio i: 45 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 21 Nm
GLS082-045-S2 Frame: 082 | Ratio i: 45 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 21 Nm
GLS082-060-S1 Frame: 082 | Ratio i: 60 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 54 Nm
GLS082-060-S2 Frame: 082 | Ratio i: 60 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 54 Nm
GLS082-090-S1 Frame: 082 | Ratio i: 90 | Stages: 2 | Input shaft: S1 smooth input shaft D10 h6 | Nominal torque T2N: 21 Nm
GLS082-090-S2 Frame: 082 | Ratio i: 90 | Stages: 2 | Input shaft: S2 input shaft with key D10 h6 | Nominal torque T2N: 21 Nm
GLS100-003-S1 Frame: 100 | Ratio i: 3 | Stages: 1 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 155 Nm
GLS100-003-S2 Frame: 100 | Ratio i: 3 | Stages: 1 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 155 Nm
GLS100-004-S1 Frame: 100 | Ratio i: 4 | Stages: 1 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 168 Nm
GLS100-004-S2 Frame: 100 | Ratio i: 4 | Stages: 1 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 168 Nm
GLS100-006-S1 Frame: 100 | Ratio i: 6 | Stages: 1 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 115 Nm
GLS100-006-S2 Frame: 100 | Ratio i: 6 | Stages: 1 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 115 Nm
GLS100-009-S1 Frame: 100 | Ratio i: 9 | Stages: 1 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 50 Nm
GLS100-009-S2 Frame: 100 | Ratio i: 9 | Stages: 1 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 50 Nm
GLS100-010-S1 Frame: 100 | Ratio i: 10 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 102 Nm
GLS100-010-S2 Frame: 100 | Ratio i: 10 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 102 Nm
GLS100-015-S1 Frame: 100 | Ratio i: 15 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 155 Nm
GLS100-015-S2 Frame: 100 | Ratio i: 15 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 155 Nm
GLS100-020-S1 Frame: 100 | Ratio i: 20 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 168 Nm
GLS100-020-S2 Frame: 100 | Ratio i: 20 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 168 Nm
GLS100-024-S1 Frame: 100 | Ratio i: 24 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 115 Nm
GLS100-024-S2 Frame: 100 | Ratio i: 24 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 115 Nm
GLS100-030-S1 Frame: 100 | Ratio i: 30 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 115 Nm
GLS100-030-S2 Frame: 100 | Ratio i: 30 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 115 Nm
GLS100-036-S1 Frame: 100 | Ratio i: 36 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 50 Nm
GLS100-036-S2 Frame: 100 | Ratio i: 36 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 50 Nm
GLS100-040-S1 Frame: 100 | Ratio i: 40 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 96 Nm
GLS100-040-S2 Frame: 100 | Ratio i: 40 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 96 Nm
GLS100-045-S1 Frame: 100 | Ratio i: 45 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 50 Nm
GLS100-045-S2 Frame: 100 | Ratio i: 45 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 50 Nm
GLS100-060-S1 Frame: 100 | Ratio i: 60 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 115 Nm
GLS100-060-S2 Frame: 100 | Ratio i: 60 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 115 Nm
GLS100-090-S1 Frame: 100 | Ratio i: 90 | Stages: 2 | Input shaft: S1 smooth input shaft D12 h6 | Nominal torque T2N: 50 Nm
GLS100-090-S2 Frame: 100 | Ratio i: 90 | Stages: 2 | Input shaft: S2 input shaft with key D12 h6 | Nominal torque T2N: 50 Nm
GLS132-003-S1 Frame: 132 | Ratio i: 3 | Stages: 1 | Input shaft: S1 smooth input shaft D28 h6 | Nominal torque T2N: 355 Nm
GLS132-003-S2 Frame: 132 | Ratio i: 3 | Stages: 1 | Input shaft: S2 input shaft with key D28 h6 | Nominal torque T2N: 355 Nm
GLS132-004-S1 Frame: 132 | Ratio i: 4 | Stages: 1 | Input shaft: S1 smooth input shaft D28 h6 | Nominal torque T2N: 308 Nm
GLS132-004-S2 Frame: 132 | Ratio i: 4 | Stages: 1 | Input shaft: S2 input shaft with key D28 h6 | Nominal torque T2N: 308 Nm
GLS132-006-S1 Frame: 132 | Ratio i: 6 | Stages: 1 | Input shaft: S1 smooth input shaft D28 h6 | Nominal torque T2N: 252 Nm
GLS132-006-S2 Frame: 132 | Ratio i: 6 | Stages: 1 | Input shaft: S2 input shaft with key D28 h6 | Nominal torque T2N: 252 Nm
GLS132-009-S1 Frame: 132 | Ratio i: 9 | Stages: 1 | Input shaft: S1 smooth input shaft D28 h6 | Nominal torque T2N: 145 Nm
GLS132-009-S2 Frame: 132 | Ratio i: 9 | Stages: 1 | Input shaft: S2 input shaft with key D28 h6 | Nominal torque T2N: 145 Nm
GLS132-010-S1 Frame: 132 | Ratio i: 10 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 280 Nm
GLS132-010-S2 Frame: 132 | Ratio i: 10 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 280 Nm
GLS132-015-S1 Frame: 132 | Ratio i: 15 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 355 Nm
GLS132-015-S2 Frame: 132 | Ratio i: 15 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 355 Nm
GLS132-020-S1 Frame: 132 | Ratio i: 20 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 308 Nm
GLS132-020-S2 Frame: 132 | Ratio i: 20 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 308 Nm
GLS132-024-S1 Frame: 132 | Ratio i: 24 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 252 Nm
GLS132-024-S2 Frame: 132 | Ratio i: 24 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 252 Nm
GLS132-030-S1 Frame: 132 | Ratio i: 30 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 252 Nm
GLS132-030-S2 Frame: 132 | Ratio i: 30 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 252 Nm
GLS132-036-S1 Frame: 132 | Ratio i: 36 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 145 Nm
GLS132-036-S2 Frame: 132 | Ratio i: 36 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 145 Nm
GLS132-040-S1 Frame: 132 | Ratio i: 40 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 229 Nm
GLS132-040-S2 Frame: 132 | Ratio i: 40 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 229 Nm
GLS132-045-S1 Frame: 132 | Ratio i: 45 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 145 Nm
GLS132-045-S2 Frame: 132 | Ratio i: 45 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 145 Nm
GLS132-060-S1 Frame: 132 | Ratio i: 60 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 252 Nm
GLS132-060-S2 Frame: 132 | Ratio i: 60 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 252 Nm
GLS132-090-S1 Frame: 132 | Ratio i: 90 | Stages: 2 | Input shaft: S1 smooth input shaft D22 h6 | Nominal torque T2N: 145 Nm
GLS132-090-S2 Frame: 132 | Ratio i: 90 | Stages: 2 | Input shaft: S2 input shaft with key D22 h6 | Nominal torque T2N: 145 Nm
Planetary GearboxesApex Dynamics
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics GLS Input-Shaft Planetary Gearboxes (082-132)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (84)

GLS082-003-S1, GLS082-003-S2, GLS082-004-S1, GLS082-004-S2, GLS082-006-S1, GLS082-006-S2, GLS082-009-S1, GLS082-009-S2, GLS082-010-S1, GLS082-010-S2 + 74 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
