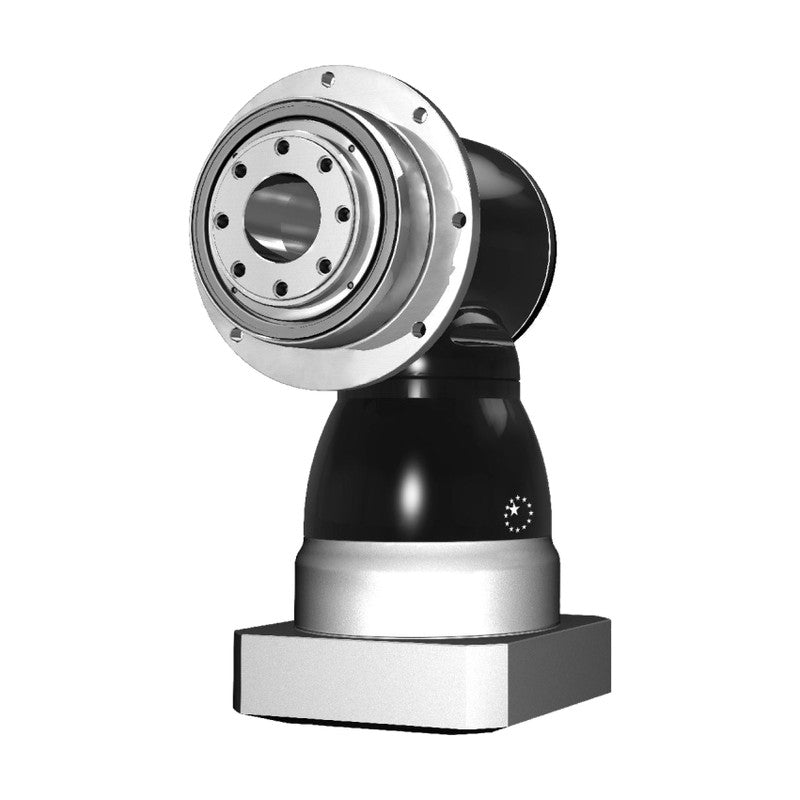

Apex Dynamics KH Hypoid Gearboxes (Flange Output, 064-285)

Apex Dynamics KH Hypoid Gearboxes (Flange Output, 064-285)

Apex Dynamics KH high-performance right-angle hypoid gearboxes with a flange output and hollow center, in seven frame sizes from KH064 to KH285 with ratios 3 to 100.

Key features

  • Hypoid helical bevel gearing with optimized inertia moment for servo motor drives
  • Backlash <=3 arcmin on 1- and 2-stage versions (measured at 2% of T2N)
  • Output rotates in the same direction as the servo motor, simplifying machine control
  • 1-stage ratios 3-10 (efficiency >=96%), 2-stage ratios 12-100 (efficiency >=94%)
  • IP65, lifetime synthetic grease lubrication, any mounting position
  • Motor adapter to suit any servo motor: specify motor make and model when ordering

Specifications

Output Output flange with through hole (KH)
Backlash <=3 arcmin (1- and 2-stage)
Emergency stop torque 2 x T2N
Max. acceleration torque 1.5 x T2N
Efficiency >=96% (1-stage), >=94% (2-stage)
Protection IP65
Lubrication Synthetic lubrication grease
Operating temperature 0 to +90 C
Mounting position All directions
Ordering code KH<size>-<ratio>/<motor make and model>
Source APEX Dynamics K Series (KH/KF) catalog, p. 2-6
KH064-003 Frame: KH064 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 25 Nm
KH064-004 Frame: KH064 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 25 Nm
KH064-005 Frame: KH064 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 25 Nm
KH064-007 Frame: KH064 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 23 Nm
KH064-010 Frame: KH064 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 18 Nm
KH064-012 Frame: KH064 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-016 Frame: KH064 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-020 Frame: KH064 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-025 Frame: KH064 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-028 Frame: KH064 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-035 Frame: KH064 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-040 Frame: KH064 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-050 Frame: KH064 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-070 Frame: KH064 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 23 Nm
KH064-100 Frame: KH064 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 18 Nm
KH090-003 Frame: KH090 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 50 Nm
KH090-004 Frame: KH090 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 60 Nm
KH090-005 Frame: KH090 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 60 Nm
KH090-007 Frame: KH090 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 50 Nm
KH090-010 Frame: KH090 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 40 Nm
KH090-012 Frame: KH090 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-016 Frame: KH090 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-020 Frame: KH090 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-025 Frame: KH090 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-028 Frame: KH090 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-035 Frame: KH090 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-040 Frame: KH090 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-050 Frame: KH090 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-070 Frame: KH090 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 50 Nm
KH090-100 Frame: KH090 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 40 Nm
KH110-003 Frame: KH110 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 110 Nm
KH110-004 Frame: KH110 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 110 Nm
KH110-005 Frame: KH110 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 110 Nm
KH110-007 Frame: KH110 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 100 Nm
KH110-010 Frame: KH110 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 85 Nm
KH110-012 Frame: KH110 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-016 Frame: KH110 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-020 Frame: KH110 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-025 Frame: KH110 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-028 Frame: KH110 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-035 Frame: KH110 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-040 Frame: KH110 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-050 Frame: KH110 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-070 Frame: KH110 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 100 Nm
KH110-100 Frame: KH110 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 85 Nm
KH140-003 Frame: KH140 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 210 Nm
KH140-004 Frame: KH140 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 210 Nm
KH140-005 Frame: KH140 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 210 Nm
KH140-007 Frame: KH140 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 200 Nm
KH140-010 Frame: KH140 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 170 Nm
KH140-012 Frame: KH140 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-016 Frame: KH140 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-020 Frame: KH140 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-025 Frame: KH140 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-028 Frame: KH140 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-035 Frame: KH140 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-040 Frame: KH140 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-050 Frame: KH140 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-070 Frame: KH140 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 200 Nm
KH140-100 Frame: KH140 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 170 Nm
KH200-003 Frame: KH200 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 420 Nm
KH200-004 Frame: KH200 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 420 Nm
KH200-005 Frame: KH200 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 420 Nm
KH200-007 Frame: KH200 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 390 Nm
KH200-010 Frame: KH200 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 360 Nm
KH200-012 Frame: KH200 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-016 Frame: KH200 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-020 Frame: KH200 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-025 Frame: KH200 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-028 Frame: KH200 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-035 Frame: KH200 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-040 Frame: KH200 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-050 Frame: KH200 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-070 Frame: KH200 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 390 Nm
KH200-100 Frame: KH200 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 360 Nm
KH255-003 Frame: KH255 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 820 Nm
KH255-004 Frame: KH255 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 820 Nm
KH255-005 Frame: KH255 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 820 Nm
KH255-007 Frame: KH255 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 750 Nm
KH255-010 Frame: KH255 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 600 Nm
KH255-012 Frame: KH255 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-016 Frame: KH255 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-020 Frame: KH255 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-025 Frame: KH255 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-028 Frame: KH255 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-035 Frame: KH255 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-040 Frame: KH255 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-050 Frame: KH255 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-070 Frame: KH255 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 750 Nm
KH255-100 Frame: KH255 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 600 Nm
KH285-003 Frame: KH285 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 1,600 Nm
KH285-004 Frame: KH285 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 1,600 Nm
KH285-005 Frame: KH285 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 1,600 Nm
KH285-007 Frame: KH285 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 1,400 Nm
KH285-010 Frame: KH285 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 1,100 Nm
KH285-012 Frame: KH285 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-016 Frame: KH285 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-020 Frame: KH285 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-025 Frame: KH285 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-028 Frame: KH285 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-035 Frame: KH285 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-040 Frame: KH285 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-050 Frame: KH285 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-070 Frame: KH285 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 1,400 Nm
KH285-100 Frame: KH285 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 1,100 Nm
Hypoid GearboxesApex Dynamics
105 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics KH Hypoid Gearboxes (Flange Output, 064-285)

Brand Apex Dynamics·Hypoid Gearboxes

Available part numbers (105)

KH064-003, KH064-004, KH064-005, KH064-007, KH064-010, KH064-012, KH064-016, KH064-020, KH064-025, KH064-028 + 95 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH064-003Frame: KH064 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 25 Nm
KH064-004Frame: KH064 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 25 Nm
KH064-005Frame: KH064 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 25 Nm
KH064-007Frame: KH064 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 23 Nm
KH064-010Frame: KH064 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 18 Nm
KH064-012Frame: KH064 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-016Frame: KH064 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-020Frame: KH064 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-025Frame: KH064 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-028Frame: KH064 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-035Frame: KH064 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-040Frame: KH064 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-050Frame: KH064 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 25 Nm
KH064-070Frame: KH064 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 23 Nm
KH064-100Frame: KH064 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 18 Nm
KH090-003Frame: KH090 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 50 Nm
KH090-004Frame: KH090 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 60 Nm
KH090-005Frame: KH090 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 60 Nm
KH090-007Frame: KH090 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 50 Nm
KH090-010Frame: KH090 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 40 Nm
KH090-012Frame: KH090 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-016Frame: KH090 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-020Frame: KH090 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-025Frame: KH090 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-028Frame: KH090 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-035Frame: KH090 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-040Frame: KH090 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-050Frame: KH090 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 60 Nm
KH090-070Frame: KH090 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 50 Nm
KH090-100Frame: KH090 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 40 Nm
KH110-003Frame: KH110 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 110 Nm
KH110-004Frame: KH110 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 110 Nm
KH110-005Frame: KH110 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 110 Nm
KH110-007Frame: KH110 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 100 Nm
KH110-010Frame: KH110 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 85 Nm
KH110-012Frame: KH110 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-016Frame: KH110 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-020Frame: KH110 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-025Frame: KH110 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-028Frame: KH110 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-035Frame: KH110 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-040Frame: KH110 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-050Frame: KH110 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 110 Nm
KH110-070Frame: KH110 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 100 Nm
KH110-100Frame: KH110 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 85 Nm
KH140-003Frame: KH140 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 210 Nm
KH140-004Frame: KH140 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 210 Nm
KH140-005Frame: KH140 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 210 Nm
KH140-007Frame: KH140 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 200 Nm
KH140-010Frame: KH140 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 170 Nm
KH140-012Frame: KH140 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-016Frame: KH140 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-020Frame: KH140 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-025Frame: KH140 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-028Frame: KH140 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-035Frame: KH140 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-040Frame: KH140 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-050Frame: KH140 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 210 Nm
KH140-070Frame: KH140 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 200 Nm
KH140-100Frame: KH140 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 170 Nm
KH200-003Frame: KH200 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 420 Nm
KH200-004Frame: KH200 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 420 Nm
KH200-005Frame: KH200 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 420 Nm
KH200-007Frame: KH200 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 390 Nm
KH200-010Frame: KH200 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 360 Nm
KH200-012Frame: KH200 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-016Frame: KH200 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-020Frame: KH200 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-025Frame: KH200 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-028Frame: KH200 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-035Frame: KH200 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-040Frame: KH200 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-050Frame: KH200 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 420 Nm
KH200-070Frame: KH200 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 390 Nm
KH200-100Frame: KH200 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 360 Nm
KH255-003Frame: KH255 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 820 Nm
KH255-004Frame: KH255 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 820 Nm
KH255-005Frame: KH255 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 820 Nm
KH255-007Frame: KH255 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 750 Nm
KH255-010Frame: KH255 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 600 Nm
KH255-012Frame: KH255 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-016Frame: KH255 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-020Frame: KH255 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-025Frame: KH255 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-028Frame: KH255 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-035Frame: KH255 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-040Frame: KH255 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-050Frame: KH255 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 820 Nm
KH255-070Frame: KH255 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 750 Nm
KH255-100Frame: KH255 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 600 Nm
KH285-003Frame: KH285 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 1,600 Nm
KH285-004Frame: KH285 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 1,600 Nm
KH285-005Frame: KH285 | Ratio i: 5 | Stages: 1 | Nominal torque T2N: 1,600 Nm
KH285-007Frame: KH285 | Ratio i: 7 | Stages: 1 | Nominal torque T2N: 1,400 Nm
KH285-010Frame: KH285 | Ratio i: 10 | Stages: 1 | Nominal torque T2N: 1,100 Nm
KH285-012Frame: KH285 | Ratio i: 12 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-016Frame: KH285 | Ratio i: 16 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-020Frame: KH285 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-025Frame: KH285 | Ratio i: 25 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-028Frame: KH285 | Ratio i: 28 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-035Frame: KH285 | Ratio i: 35 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-040Frame: KH285 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-050Frame: KH285 | Ratio i: 50 | Stages: 2 | Nominal torque T2N: 1,600 Nm
KH285-070Frame: KH285 | Ratio i: 70 | Stages: 2 | Nominal torque T2N: 1,400 Nm
KH285-100Frame: KH285 | Ratio i: 100 | Stages: 2 | Nominal torque T2N: 1,100 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
