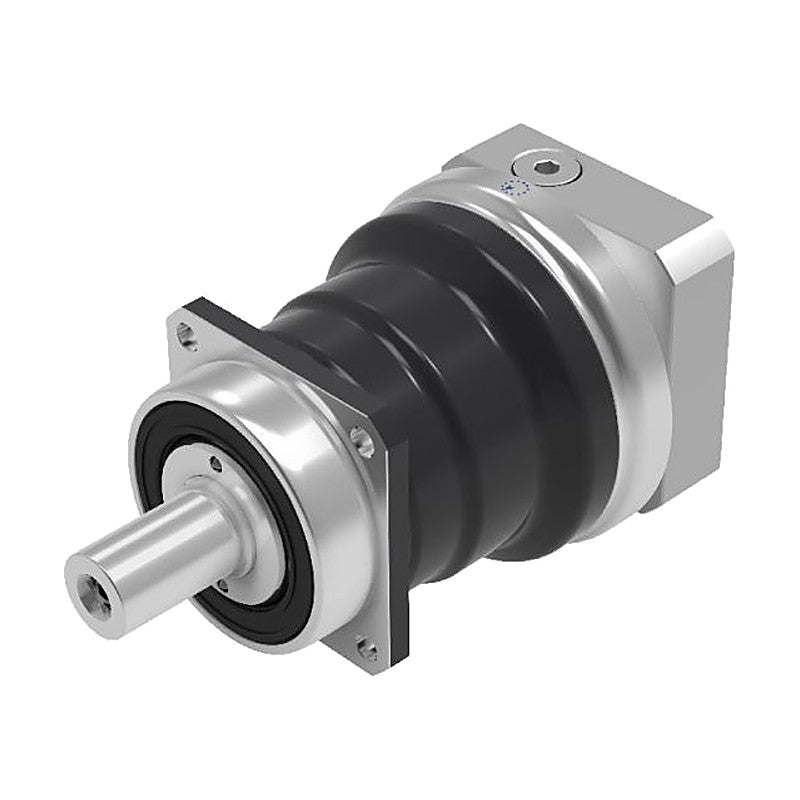

Apex Dynamics MF Precision Planetary Gearboxes (060-240)

Apex Dynamics MF Precision Planetary Gearboxes (060-240)

Apex Dynamics MF new-generation inline precision planetary gearboxes in seven frame sizes from MF060 to MF240, 1-stage ratios 3-10 and 2-stage ratios 16-100.

Key features

  • High rigidity, high torque and persistent low backlash over a long service life
  • Backlash <=3 arcmin (1-stage) and <=4 arcmin (2-stage), measured at 2% of T2N
  • Output shafts S1 smooth, S2 keyed, S3 DIN 5480 spline; S4 hollow on MF060-MF180
  • Efficiency >=97% (1-stage) and >=94% (2-stage); running noise <=58-70 dB(A)
  • IP65, synthetic grease lubrication, any mounting position
  • Motor adapter to suit any servo motor: specify motor make and model when ordering

Specifications

Emergency stop torque 3 x T2N
Max. acceleration torque 1.5 x T2N
Efficiency >=97% (1-stage), >=94% (2-stage)
Protection IP65
Lubrication Synthetic lubrication grease
Operating temperature -10 to +90 C
Mounting position All directions
Ordering code MF<size>-<ratio>-<shaft>/<motor make and model>
Source APEX Dynamics MF/MFK Series catalog, p. 2-6
MF060-003-S1 Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 30 Nm
MF060-003-S2 Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 30 Nm
MF060-003-S3 Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 30 Nm
MF060-003-S4 Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 30 Nm
MF060-004-S1 Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 100 Nm
MF060-004-S2 Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 100 Nm
MF060-004-S3 Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 100 Nm
MF060-004-S4 Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 100 Nm
MF060-005-S1 Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
MF060-005-S2 Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
MF060-005-S3 Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
MF060-005-S4 Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
MF060-007-S1 Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
MF060-007-S2 Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
MF060-007-S3 Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
MF060-007-S4 Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
MF060-010-S1 Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 24 Nm
MF060-010-S2 Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 24 Nm
MF060-010-S3 Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 24 Nm
MF060-010-S4 Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 24 Nm
MF060-016-S1 Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
MF060-016-S2 Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
MF060-016-S3 Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
MF060-016-S4 Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
MF060-020-S1 Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 80 Nm
MF060-020-S2 Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 80 Nm
MF060-020-S3 Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 80 Nm
MF060-020-S4 Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 80 Nm
MF060-025-S1 Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 90 Nm
MF060-025-S2 Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 90 Nm
MF060-025-S3 Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 90 Nm
MF060-025-S4 Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 90 Nm
MF060-028-S1 Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
MF060-028-S2 Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
MF060-028-S3 Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
MF060-028-S4 Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
MF060-035-S1 Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 75 Nm
MF060-035-S2 Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 75 Nm
MF060-035-S3 Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 75 Nm
MF060-035-S4 Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 75 Nm
MF060-040-S1 Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 40 Nm
MF060-040-S2 Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 40 Nm
MF060-040-S3 Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 40 Nm
MF060-040-S4 Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 40 Nm
MF060-050-S1 Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
MF060-050-S2 Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
MF060-050-S3 Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
MF060-050-S4 Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
MF060-070-S1 Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
MF060-070-S2 Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
MF060-070-S3 Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
MF060-070-S4 Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
MF060-100-S1 Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 24 Nm
MF060-100-S2 Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 24 Nm
MF060-100-S3 Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 24 Nm
MF060-100-S4 Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 24 Nm
MF075-003-S1 Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 105 Nm
MF075-003-S2 Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 105 Nm
MF075-003-S3 Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 105 Nm
MF075-003-S4 Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 105 Nm
MF075-004-S1 Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 205 Nm
MF075-004-S2 Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 205 Nm
MF075-004-S3 Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 205 Nm
MF075-004-S4 Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 205 Nm
MF075-005-S1 Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 185 Nm
MF075-005-S2 Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 185 Nm
MF075-005-S3 Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 185 Nm
MF075-005-S4 Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 185 Nm
MF075-007-S1 Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 135 Nm
MF075-007-S2 Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 135 Nm
MF075-007-S3 Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 135 Nm
MF075-007-S4 Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 135 Nm
MF075-010-S1 Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 55 Nm
MF075-010-S2 Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 55 Nm
MF075-010-S3 Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 55 Nm
MF075-010-S4 Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 55 Nm
MF075-016-S1 Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 195 Nm
MF075-016-S2 Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 195 Nm
MF075-016-S3 Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 195 Nm
MF075-016-S4 Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 195 Nm
MF075-020-S1 Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 190 Nm
MF075-020-S2 Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 190 Nm
MF075-020-S3 Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 190 Nm
MF075-020-S4 Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 190 Nm
MF075-025-S1 Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 195 Nm
MF075-025-S2 Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 195 Nm
MF075-025-S3 Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 195 Nm
MF075-025-S4 Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 195 Nm
MF075-028-S1 Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 180 Nm
MF075-028-S2 Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 180 Nm
MF075-028-S3 Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 180 Nm
MF075-028-S4 Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 180 Nm
MF075-035-S1 Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 195 Nm
MF075-035-S2 Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 195 Nm
MF075-035-S3 Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 195 Nm
MF075-035-S4 Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 195 Nm
MF075-040-S1 Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 96 Nm
MF075-040-S2 Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 96 Nm
MF075-040-S3 Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 96 Nm
MF075-040-S4 Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 96 Nm
MF075-050-S1 Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 120 Nm
MF075-050-S2 Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 120 Nm
MF075-050-S3 Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 120 Nm
MF075-050-S4 Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 120 Nm
MF075-070-S1 Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 135 Nm
MF075-070-S2 Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 135 Nm
MF075-070-S3 Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 135 Nm
MF075-070-S4 Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 135 Nm
MF075-100-S1 Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 55 Nm
MF075-100-S2 Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 55 Nm
MF075-100-S3 Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 55 Nm
MF075-100-S4 Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 55 Nm
MF100-003-S1 Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 200 Nm
MF100-003-S2 Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 200 Nm
MF100-003-S3 Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 200 Nm
MF100-003-S4 Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 200 Nm
MF100-004-S1 Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 380 Nm
MF100-004-S2 Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 380 Nm
MF100-004-S3 Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 380 Nm
MF100-004-S4 Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 380 Nm
MF100-005-S1 Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 325 Nm
MF100-005-S2 Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 325 Nm
MF100-005-S3 Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 325 Nm
MF100-005-S4 Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 325 Nm
MF100-007-S1 Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
MF100-007-S2 Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
MF100-007-S3 Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
MF100-007-S4 Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 260 Nm
MF100-010-S1 Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 160 Nm
MF100-010-S2 Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 160 Nm
MF100-010-S3 Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 160 Nm
MF100-010-S4 Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 160 Nm
MF100-016-S1 Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 385 Nm
MF100-016-S2 Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 385 Nm
MF100-016-S3 Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 385 Nm
MF100-016-S4 Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 385 Nm
MF100-020-S1 Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 370 Nm
MF100-020-S2 Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 370 Nm
MF100-020-S3 Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 370 Nm
MF100-020-S4 Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 370 Nm
MF100-025-S1 Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 345 Nm
MF100-025-S2 Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 345 Nm
MF100-025-S3 Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 345 Nm
MF100-025-S4 Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 345 Nm
MF100-028-S1 Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 345 Nm
MF100-028-S2 Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 345 Nm
MF100-028-S3 Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 345 Nm
MF100-028-S4 Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 345 Nm
MF100-035-S1 Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 350 Nm
MF100-035-S2 Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 350 Nm
MF100-035-S3 Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 350 Nm
MF100-035-S4 Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 350 Nm
MF100-040-S1 Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 220 Nm
MF100-040-S2 Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 220 Nm
MF100-040-S3 Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 220 Nm
MF100-040-S4 Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 220 Nm
MF100-050-S1 Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 275 Nm
MF100-050-S2 Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 275 Nm
MF100-050-S3 Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 275 Nm
MF100-050-S4 Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 275 Nm
MF100-070-S1 Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 285 Nm
MF100-070-S2 Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 285 Nm
MF100-070-S3 Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 285 Nm
MF100-070-S4 Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 285 Nm
MF100-100-S1 Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 160 Nm
MF100-100-S2 Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 160 Nm
MF100-100-S3 Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 160 Nm
MF100-100-S4 Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 160 Nm
MF140-003-S1 Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 395 Nm
MF140-003-S2 Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 395 Nm
MF140-003-S3 Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 395 Nm
MF140-003-S4 Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 395 Nm
MF140-004-S1 Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 765 Nm
MF140-004-S2 Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 765 Nm
MF140-004-S3 Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 765 Nm
MF140-004-S4 Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 765 Nm
MF140-005-S1 Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 660 Nm
MF140-005-S2 Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 660 Nm
MF140-005-S3 Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 660 Nm
MF140-005-S4 Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 660 Nm
MF140-007-S1 Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 515 Nm
MF140-007-S2 Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 515 Nm
MF140-007-S3 Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 515 Nm
MF140-007-S4 Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 515 Nm
MF140-010-S1 Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 315 Nm
MF140-010-S2 Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 315 Nm
MF140-010-S3 Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 315 Nm
MF140-010-S4 Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 315 Nm
MF140-016-S1 Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 805 Nm
MF140-016-S2 Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 805 Nm
MF140-016-S3 Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 805 Nm
MF140-016-S4 Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 805 Nm
MF140-020-S1 Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 795 Nm
MF140-020-S2 Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 795 Nm
MF140-020-S3 Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 795 Nm
MF140-020-S4 Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 795 Nm
MF140-025-S1 Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 700 Nm
MF140-025-S2 Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 700 Nm
MF140-025-S3 Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 700 Nm
MF140-025-S4 Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 700 Nm
MF140-028-S1 Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 755 Nm
MF140-028-S2 Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 755 Nm
MF140-028-S3 Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 755 Nm
MF140-028-S4 Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 755 Nm
MF140-035-S1 Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 705 Nm
MF140-035-S2 Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 705 Nm
MF140-035-S3 Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 705 Nm
MF140-035-S4 Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 705 Nm
MF140-040-S1 Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 615 Nm
MF140-040-S2 Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 615 Nm
MF140-040-S3 Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 615 Nm
MF140-040-S4 Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 615 Nm
MF140-050-S1 Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 715 Nm
MF140-050-S2 Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 715 Nm
MF140-050-S3 Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 715 Nm
MF140-050-S4 Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 715 Nm
MF140-070-S1 Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 585 Nm
MF140-070-S2 Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 585 Nm
MF140-070-S3 Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 585 Nm
MF140-070-S4 Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 585 Nm
MF140-100-S1 Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 345 Nm
MF140-100-S2 Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 345 Nm
MF140-100-S3 Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 345 Nm
MF140-100-S4 Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 345 Nm
MF180-003-S1 Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 825 Nm
MF180-003-S2 Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 825 Nm
MF180-003-S3 Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 825 Nm
MF180-003-S4 Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 825 Nm
MF180-004-S1 Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,415 Nm
MF180-004-S2 Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,415 Nm
MF180-004-S3 Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,415 Nm
MF180-004-S4 Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,415 Nm
MF180-005-S1 Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,225 Nm
MF180-005-S2 Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,225 Nm
MF180-005-S3 Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,225 Nm
MF180-005-S4 Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,225 Nm
MF180-007-S1 Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 980 Nm
MF180-007-S2 Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 980 Nm
MF180-007-S3 Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 980 Nm
MF180-007-S4 Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 980 Nm
MF180-010-S1 Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 700 Nm
MF180-010-S2 Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 700 Nm
MF180-010-S3 Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 700 Nm
MF180-010-S4 Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 700 Nm
MF180-016-S1 Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,485 Nm
MF180-016-S2 Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,485 Nm
MF180-016-S3 Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,485 Nm
MF180-016-S4 Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,485 Nm
MF180-020-S1 Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,495 Nm
MF180-020-S2 Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,495 Nm
MF180-020-S3 Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,495 Nm
MF180-020-S4 Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,495 Nm
MF180-025-S1 Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,295 Nm
MF180-025-S2 Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,295 Nm
MF180-025-S3 Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,295 Nm
MF180-025-S4 Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,295 Nm
MF180-028-S1 Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,510 Nm
MF180-028-S2 Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,510 Nm
MF180-028-S3 Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,510 Nm
MF180-028-S4 Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,510 Nm
MF180-035-S1 Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,310 Nm
MF180-035-S2 Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,310 Nm
MF180-035-S3 Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,310 Nm
MF180-035-S4 Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,310 Nm
MF180-040-S1 Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,260 Nm
MF180-040-S2 Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,260 Nm
MF180-040-S3 Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,260 Nm
MF180-040-S4 Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,260 Nm
MF180-050-S1 Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,325 Nm
MF180-050-S2 Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,325 Nm
MF180-050-S3 Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,325 Nm
MF180-050-S4 Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,325 Nm
MF180-070-S1 Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,095 Nm
MF180-070-S2 Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,095 Nm
MF180-070-S3 Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,095 Nm
MF180-070-S4 Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,095 Nm
MF180-100-S1 Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 660 Nm
MF180-100-S2 Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 660 Nm
MF180-100-S3 Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 660 Nm
MF180-100-S4 Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 660 Nm
MF210-003-S1 Frame: MF210 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,385 Nm
MF210-003-S2 Frame: MF210 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,385 Nm
MF210-003-S3 Frame: MF210 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,385 Nm
MF210-004-S1 Frame: MF210 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,190 Nm
MF210-004-S2 Frame: MF210 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,190 Nm
MF210-004-S3 Frame: MF210 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,190 Nm
MF210-005-S1 Frame: MF210 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,905 Nm
MF210-005-S2 Frame: MF210 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,905 Nm
MF210-005-S3 Frame: MF210 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,905 Nm
MF210-007-S1 Frame: MF210 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,530 Nm
MF210-007-S2 Frame: MF210 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,530 Nm
MF210-007-S3 Frame: MF210 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,530 Nm
MF210-010-S1 Frame: MF210 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,070 Nm
MF210-010-S2 Frame: MF210 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,070 Nm
MF210-010-S3 Frame: MF210 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,070 Nm
MF210-016-S1 Frame: MF210 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,295 Nm
MF210-016-S2 Frame: MF210 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,295 Nm
MF210-016-S3 Frame: MF210 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,295 Nm
MF210-020-S1 Frame: MF210 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,310 Nm
MF210-020-S2 Frame: MF210 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,310 Nm
MF210-020-S3 Frame: MF210 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,310 Nm
MF210-025-S1 Frame: MF210 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,005 Nm
MF210-025-S2 Frame: MF210 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,005 Nm
MF210-025-S3 Frame: MF210 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,005 Nm
MF210-028-S1 Frame: MF210 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,335 Nm
MF210-028-S2 Frame: MF210 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,335 Nm
MF210-028-S3 Frame: MF210 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,335 Nm
MF210-035-S1 Frame: MF210 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,030 Nm
MF210-035-S2 Frame: MF210 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,030 Nm
MF210-035-S3 Frame: MF210 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,030 Nm
MF210-040-S1 Frame: MF210 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,360 Nm
MF210-040-S2 Frame: MF210 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,360 Nm
MF210-040-S3 Frame: MF210 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,360 Nm
MF210-050-S1 Frame: MF210 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,050 Nm
MF210-050-S2 Frame: MF210 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,050 Nm
MF210-050-S3 Frame: MF210 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,050 Nm
MF210-070-S1 Frame: MF210 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,670 Nm
MF210-070-S2 Frame: MF210 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,670 Nm
MF210-070-S3 Frame: MF210 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,670 Nm
MF210-100-S1 Frame: MF210 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,005 Nm
MF210-100-S2 Frame: MF210 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,005 Nm
MF210-100-S3 Frame: MF210 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,005 Nm
MF240-003-S1 Frame: MF240 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,110 Nm
MF240-003-S2 Frame: MF240 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,110 Nm
MF240-003-S3 Frame: MF240 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,110 Nm
MF240-004-S1 Frame: MF240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,035 Nm
MF240-004-S2 Frame: MF240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,035 Nm
MF240-004-S3 Frame: MF240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,035 Nm
MF240-005-S1 Frame: MF240 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,505 Nm
MF240-005-S2 Frame: MF240 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,505 Nm
MF240-005-S3 Frame: MF240 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,505 Nm
MF240-007-S1 Frame: MF240 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,530 Nm
MF240-007-S2 Frame: MF240 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,530 Nm
MF240-007-S3 Frame: MF240 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,530 Nm
MF240-010-S1 Frame: MF240 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,810 Nm
MF240-010-S2 Frame: MF240 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,810 Nm
MF240-010-S3 Frame: MF240 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,810 Nm
MF240-016-S1 Frame: MF240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,215 Nm
MF240-016-S2 Frame: MF240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,215 Nm
MF240-016-S3 Frame: MF240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,215 Nm
MF240-020-S1 Frame: MF240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,245 Nm
MF240-020-S2 Frame: MF240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,245 Nm
MF240-020-S3 Frame: MF240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,245 Nm
MF240-025-S1 Frame: MF240 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,685 Nm
MF240-025-S2 Frame: MF240 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,685 Nm
MF240-025-S3 Frame: MF240 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,685 Nm
MF240-028-S1 Frame: MF240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,290 Nm
MF240-028-S2 Frame: MF240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,290 Nm
MF240-028-S3 Frame: MF240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,290 Nm
MF240-035-S1 Frame: MF240 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,725 Nm
MF240-035-S2 Frame: MF240 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,725 Nm
MF240-035-S3 Frame: MF240 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,725 Nm
MF240-040-S1 Frame: MF240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,280 Nm
MF240-040-S2 Frame: MF240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,280 Nm
MF240-040-S3 Frame: MF240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,280 Nm
MF240-050-S1 Frame: MF240 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,765 Nm
MF240-050-S2 Frame: MF240 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,765 Nm
MF240-050-S3 Frame: MF240 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,765 Nm
MF240-070-S1 Frame: MF240 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,675 Nm
MF240-070-S2 Frame: MF240 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,675 Nm
MF240-070-S3 Frame: MF240 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,675 Nm
MF240-100-S1 Frame: MF240 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
MF240-100-S2 Frame: MF240 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
MF240-100-S3 Frame: MF240 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
Planetary GearboxesApex Dynamics
364 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MF Precision Planetary Gearboxes (060-240)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (364)

MF060-003-S1, MF060-003-S2, MF060-003-S3, MF060-003-S4, MF060-004-S1, MF060-004-S2, MF060-004-S3, MF060-004-S4, MF060-005-S1, MF060-005-S2 + 354 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MF060-003-S1Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 30 Nm
MF060-003-S2Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 30 Nm
MF060-003-S3Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 30 Nm
MF060-003-S4Frame: MF060 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 30 Nm
MF060-004-S1Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 100 Nm
MF060-004-S2Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 100 Nm
MF060-004-S3Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 100 Nm
MF060-004-S4Frame: MF060 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 100 Nm
MF060-005-S1Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
MF060-005-S2Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
MF060-005-S3Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
MF060-005-S4Frame: MF060 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
MF060-007-S1Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
MF060-007-S2Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
MF060-007-S3Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
MF060-007-S4Frame: MF060 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
MF060-010-S1Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 24 Nm
MF060-010-S2Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 24 Nm
MF060-010-S3Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 24 Nm
MF060-010-S4Frame: MF060 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 24 Nm
MF060-016-S1Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
MF060-016-S2Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
MF060-016-S3Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
MF060-016-S4Frame: MF060 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
MF060-020-S1Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 80 Nm
MF060-020-S2Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 80 Nm
MF060-020-S3Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 80 Nm
MF060-020-S4Frame: MF060 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 80 Nm
MF060-025-S1Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 90 Nm
MF060-025-S2Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 90 Nm
MF060-025-S3Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 90 Nm
MF060-025-S4Frame: MF060 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 90 Nm
MF060-028-S1Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
MF060-028-S2Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
MF060-028-S3Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
MF060-028-S4Frame: MF060 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
MF060-035-S1Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 75 Nm
MF060-035-S2Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 75 Nm
MF060-035-S3Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 75 Nm
MF060-035-S4Frame: MF060 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 75 Nm
MF060-040-S1Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 40 Nm
MF060-040-S2Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 40 Nm
MF060-040-S3Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 40 Nm
MF060-040-S4Frame: MF060 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 40 Nm
MF060-050-S1Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
MF060-050-S2Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
MF060-050-S3Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
MF060-050-S4Frame: MF060 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
MF060-070-S1Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
MF060-070-S2Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
MF060-070-S3Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
MF060-070-S4Frame: MF060 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
MF060-100-S1Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 24 Nm
MF060-100-S2Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 24 Nm
MF060-100-S3Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 24 Nm
MF060-100-S4Frame: MF060 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 24 Nm
MF075-003-S1Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 105 Nm
MF075-003-S2Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 105 Nm
MF075-003-S3Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 105 Nm
MF075-003-S4Frame: MF075 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 105 Nm
MF075-004-S1Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 205 Nm
MF075-004-S2Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 205 Nm
MF075-004-S3Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 205 Nm
MF075-004-S4Frame: MF075 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 205 Nm
MF075-005-S1Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 185 Nm
MF075-005-S2Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 185 Nm
MF075-005-S3Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 185 Nm
MF075-005-S4Frame: MF075 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 185 Nm
MF075-007-S1Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 135 Nm
MF075-007-S2Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 135 Nm
MF075-007-S3Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 135 Nm
MF075-007-S4Frame: MF075 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 135 Nm
MF075-010-S1Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 55 Nm
MF075-010-S2Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 55 Nm
MF075-010-S3Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 55 Nm
MF075-010-S4Frame: MF075 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 55 Nm
MF075-016-S1Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 195 Nm
MF075-016-S2Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 195 Nm
MF075-016-S3Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 195 Nm
MF075-016-S4Frame: MF075 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 195 Nm
MF075-020-S1Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 190 Nm
MF075-020-S2Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 190 Nm
MF075-020-S3Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 190 Nm
MF075-020-S4Frame: MF075 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 190 Nm
MF075-025-S1Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 195 Nm
MF075-025-S2Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 195 Nm
MF075-025-S3Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 195 Nm
MF075-025-S4Frame: MF075 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 195 Nm
MF075-028-S1Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 180 Nm
MF075-028-S2Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 180 Nm
MF075-028-S3Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 180 Nm
MF075-028-S4Frame: MF075 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 180 Nm
MF075-035-S1Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 195 Nm
MF075-035-S2Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 195 Nm
MF075-035-S3Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 195 Nm
MF075-035-S4Frame: MF075 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 195 Nm
MF075-040-S1Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 96 Nm
MF075-040-S2Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 96 Nm
MF075-040-S3Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 96 Nm
MF075-040-S4Frame: MF075 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 96 Nm
MF075-050-S1Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 120 Nm
MF075-050-S2Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 120 Nm
MF075-050-S3Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 120 Nm
MF075-050-S4Frame: MF075 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 120 Nm
MF075-070-S1Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 135 Nm
MF075-070-S2Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 135 Nm
MF075-070-S3Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 135 Nm
MF075-070-S4Frame: MF075 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 135 Nm
MF075-100-S1Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 55 Nm
MF075-100-S2Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 55 Nm
MF075-100-S3Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 55 Nm
MF075-100-S4Frame: MF075 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 55 Nm
MF100-003-S1Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 200 Nm
MF100-003-S2Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 200 Nm
MF100-003-S3Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 200 Nm
MF100-003-S4Frame: MF100 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 200 Nm
MF100-004-S1Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 380 Nm
MF100-004-S2Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 380 Nm
MF100-004-S3Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 380 Nm
MF100-004-S4Frame: MF100 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 380 Nm
MF100-005-S1Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 325 Nm
MF100-005-S2Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 325 Nm
MF100-005-S3Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 325 Nm
MF100-005-S4Frame: MF100 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 325 Nm
MF100-007-S1Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
MF100-007-S2Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
MF100-007-S3Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
MF100-007-S4Frame: MF100 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 260 Nm
MF100-010-S1Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 160 Nm
MF100-010-S2Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 160 Nm
MF100-010-S3Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 160 Nm
MF100-010-S4Frame: MF100 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 160 Nm
MF100-016-S1Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 385 Nm
MF100-016-S2Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 385 Nm
MF100-016-S3Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 385 Nm
MF100-016-S4Frame: MF100 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 385 Nm
MF100-020-S1Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 370 Nm
MF100-020-S2Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 370 Nm
MF100-020-S3Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 370 Nm
MF100-020-S4Frame: MF100 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 370 Nm
MF100-025-S1Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 345 Nm
MF100-025-S2Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 345 Nm
MF100-025-S3Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 345 Nm
MF100-025-S4Frame: MF100 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 345 Nm
MF100-028-S1Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 345 Nm
MF100-028-S2Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 345 Nm
MF100-028-S3Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 345 Nm
MF100-028-S4Frame: MF100 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 345 Nm
MF100-035-S1Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 350 Nm
MF100-035-S2Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 350 Nm
MF100-035-S3Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 350 Nm
MF100-035-S4Frame: MF100 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 350 Nm
MF100-040-S1Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 220 Nm
MF100-040-S2Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 220 Nm
MF100-040-S3Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 220 Nm
MF100-040-S4Frame: MF100 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 220 Nm
MF100-050-S1Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 275 Nm
MF100-050-S2Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 275 Nm
MF100-050-S3Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 275 Nm
MF100-050-S4Frame: MF100 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 275 Nm
MF100-070-S1Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 285 Nm
MF100-070-S2Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 285 Nm
MF100-070-S3Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 285 Nm
MF100-070-S4Frame: MF100 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 285 Nm
MF100-100-S1Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 160 Nm
MF100-100-S2Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 160 Nm
MF100-100-S3Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 160 Nm
MF100-100-S4Frame: MF100 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 160 Nm
MF140-003-S1Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 395 Nm
MF140-003-S2Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 395 Nm
MF140-003-S3Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 395 Nm
MF140-003-S4Frame: MF140 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 395 Nm
MF140-004-S1Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 765 Nm
MF140-004-S2Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 765 Nm
MF140-004-S3Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 765 Nm
MF140-004-S4Frame: MF140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 765 Nm
MF140-005-S1Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 660 Nm
MF140-005-S2Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 660 Nm
MF140-005-S3Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 660 Nm
MF140-005-S4Frame: MF140 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 660 Nm
MF140-007-S1Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 515 Nm
MF140-007-S2Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 515 Nm
MF140-007-S3Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 515 Nm
MF140-007-S4Frame: MF140 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 515 Nm
MF140-010-S1Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 315 Nm
MF140-010-S2Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 315 Nm
MF140-010-S3Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 315 Nm
MF140-010-S4Frame: MF140 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 315 Nm
MF140-016-S1Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 805 Nm
MF140-016-S2Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 805 Nm
MF140-016-S3Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 805 Nm
MF140-016-S4Frame: MF140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 805 Nm
MF140-020-S1Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 795 Nm
MF140-020-S2Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 795 Nm
MF140-020-S3Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 795 Nm
MF140-020-S4Frame: MF140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 795 Nm
MF140-025-S1Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 700 Nm
MF140-025-S2Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 700 Nm
MF140-025-S3Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 700 Nm
MF140-025-S4Frame: MF140 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 700 Nm
MF140-028-S1Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 755 Nm
MF140-028-S2Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 755 Nm
MF140-028-S3Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 755 Nm
MF140-028-S4Frame: MF140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 755 Nm
MF140-035-S1Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 705 Nm
MF140-035-S2Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 705 Nm
MF140-035-S3Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 705 Nm
MF140-035-S4Frame: MF140 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 705 Nm
MF140-040-S1Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 615 Nm
MF140-040-S2Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 615 Nm
MF140-040-S3Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 615 Nm
MF140-040-S4Frame: MF140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 615 Nm
MF140-050-S1Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 715 Nm
MF140-050-S2Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 715 Nm
MF140-050-S3Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 715 Nm
MF140-050-S4Frame: MF140 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 715 Nm
MF140-070-S1Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 585 Nm
MF140-070-S2Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 585 Nm
MF140-070-S3Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 585 Nm
MF140-070-S4Frame: MF140 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 585 Nm
MF140-100-S1Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 345 Nm
MF140-100-S2Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 345 Nm
MF140-100-S3Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 345 Nm
MF140-100-S4Frame: MF140 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 345 Nm
MF180-003-S1Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 825 Nm
MF180-003-S2Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 825 Nm
MF180-003-S3Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 825 Nm
MF180-003-S4Frame: MF180 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 825 Nm
MF180-004-S1Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,415 Nm
MF180-004-S2Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,415 Nm
MF180-004-S3Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,415 Nm
MF180-004-S4Frame: MF180 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,415 Nm
MF180-005-S1Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,225 Nm
MF180-005-S2Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,225 Nm
MF180-005-S3Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,225 Nm
MF180-005-S4Frame: MF180 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,225 Nm
MF180-007-S1Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 980 Nm
MF180-007-S2Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 980 Nm
MF180-007-S3Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 980 Nm
MF180-007-S4Frame: MF180 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 980 Nm
MF180-010-S1Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 700 Nm
MF180-010-S2Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 700 Nm
MF180-010-S3Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 700 Nm
MF180-010-S4Frame: MF180 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 700 Nm
MF180-016-S1Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,485 Nm
MF180-016-S2Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,485 Nm
MF180-016-S3Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,485 Nm
MF180-016-S4Frame: MF180 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,485 Nm
MF180-020-S1Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,495 Nm
MF180-020-S2Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,495 Nm
MF180-020-S3Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,495 Nm
MF180-020-S4Frame: MF180 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,495 Nm
MF180-025-S1Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,295 Nm
MF180-025-S2Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,295 Nm
MF180-025-S3Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,295 Nm
MF180-025-S4Frame: MF180 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,295 Nm
MF180-028-S1Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,510 Nm
MF180-028-S2Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,510 Nm
MF180-028-S3Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,510 Nm
MF180-028-S4Frame: MF180 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,510 Nm
MF180-035-S1Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,310 Nm
MF180-035-S2Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,310 Nm
MF180-035-S3Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,310 Nm
MF180-035-S4Frame: MF180 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,310 Nm
MF180-040-S1Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,260 Nm
MF180-040-S2Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,260 Nm
MF180-040-S3Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,260 Nm
MF180-040-S4Frame: MF180 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,260 Nm
MF180-050-S1Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,325 Nm
MF180-050-S2Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,325 Nm
MF180-050-S3Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,325 Nm
MF180-050-S4Frame: MF180 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,325 Nm
MF180-070-S1Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,095 Nm
MF180-070-S2Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,095 Nm
MF180-070-S3Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,095 Nm
MF180-070-S4Frame: MF180 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 1,095 Nm
MF180-100-S1Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 660 Nm
MF180-100-S2Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 660 Nm
MF180-100-S3Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 660 Nm
MF180-100-S4Frame: MF180 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S4 hollow | Nominal torque T2N: 660 Nm
MF210-003-S1Frame: MF210 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,385 Nm
MF210-003-S2Frame: MF210 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,385 Nm
MF210-003-S3Frame: MF210 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,385 Nm
MF210-004-S1Frame: MF210 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,190 Nm
MF210-004-S2Frame: MF210 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,190 Nm
MF210-004-S3Frame: MF210 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,190 Nm
MF210-005-S1Frame: MF210 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,905 Nm
MF210-005-S2Frame: MF210 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,905 Nm
MF210-005-S3Frame: MF210 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,905 Nm
MF210-007-S1Frame: MF210 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,530 Nm
MF210-007-S2Frame: MF210 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,530 Nm
MF210-007-S3Frame: MF210 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,530 Nm
MF210-010-S1Frame: MF210 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,070 Nm
MF210-010-S2Frame: MF210 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,070 Nm
MF210-010-S3Frame: MF210 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,070 Nm
MF210-016-S1Frame: MF210 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,295 Nm
MF210-016-S2Frame: MF210 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,295 Nm
MF210-016-S3Frame: MF210 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,295 Nm
MF210-020-S1Frame: MF210 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,310 Nm
MF210-020-S2Frame: MF210 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,310 Nm
MF210-020-S3Frame: MF210 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,310 Nm
MF210-025-S1Frame: MF210 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,005 Nm
MF210-025-S2Frame: MF210 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,005 Nm
MF210-025-S3Frame: MF210 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,005 Nm
MF210-028-S1Frame: MF210 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,335 Nm
MF210-028-S2Frame: MF210 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,335 Nm
MF210-028-S3Frame: MF210 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,335 Nm
MF210-035-S1Frame: MF210 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,030 Nm
MF210-035-S2Frame: MF210 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,030 Nm
MF210-035-S3Frame: MF210 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,030 Nm
MF210-040-S1Frame: MF210 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,360 Nm
MF210-040-S2Frame: MF210 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,360 Nm
MF210-040-S3Frame: MF210 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,360 Nm
MF210-050-S1Frame: MF210 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,050 Nm
MF210-050-S2Frame: MF210 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,050 Nm
MF210-050-S3Frame: MF210 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,050 Nm
MF210-070-S1Frame: MF210 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,670 Nm
MF210-070-S2Frame: MF210 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,670 Nm
MF210-070-S3Frame: MF210 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,670 Nm
MF210-100-S1Frame: MF210 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,005 Nm
MF210-100-S2Frame: MF210 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,005 Nm
MF210-100-S3Frame: MF210 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,005 Nm
MF240-003-S1Frame: MF240 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,110 Nm
MF240-003-S2Frame: MF240 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,110 Nm
MF240-003-S3Frame: MF240 | Ratio i: 3 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,110 Nm
MF240-004-S1Frame: MF240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,035 Nm
MF240-004-S2Frame: MF240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,035 Nm
MF240-004-S3Frame: MF240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,035 Nm
MF240-005-S1Frame: MF240 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,505 Nm
MF240-005-S2Frame: MF240 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,505 Nm
MF240-005-S3Frame: MF240 | Ratio i: 5 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,505 Nm
MF240-007-S1Frame: MF240 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,530 Nm
MF240-007-S2Frame: MF240 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,530 Nm
MF240-007-S3Frame: MF240 | Ratio i: 7 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,530 Nm
MF240-010-S1Frame: MF240 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,810 Nm
MF240-010-S2Frame: MF240 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,810 Nm
MF240-010-S3Frame: MF240 | Ratio i: 10 | Stages: 1 | Backlash: <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,810 Nm
MF240-016-S1Frame: MF240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,215 Nm
MF240-016-S2Frame: MF240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,215 Nm
MF240-016-S3Frame: MF240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,215 Nm
MF240-020-S1Frame: MF240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,245 Nm
MF240-020-S2Frame: MF240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,245 Nm
MF240-020-S3Frame: MF240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,245 Nm
MF240-025-S1Frame: MF240 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,685 Nm
MF240-025-S2Frame: MF240 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,685 Nm
MF240-025-S3Frame: MF240 | Ratio i: 25 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,685 Nm
MF240-028-S1Frame: MF240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,290 Nm
MF240-028-S2Frame: MF240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,290 Nm
MF240-028-S3Frame: MF240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,290 Nm
MF240-035-S1Frame: MF240 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,725 Nm
MF240-035-S2Frame: MF240 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,725 Nm
MF240-035-S3Frame: MF240 | Ratio i: 35 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,725 Nm
MF240-040-S1Frame: MF240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 4,280 Nm
MF240-040-S2Frame: MF240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 4,280 Nm
MF240-040-S3Frame: MF240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 4,280 Nm
MF240-050-S1Frame: MF240 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 3,765 Nm
MF240-050-S2Frame: MF240 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 3,765 Nm
MF240-050-S3Frame: MF240 | Ratio i: 50 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 3,765 Nm
MF240-070-S1Frame: MF240 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,675 Nm
MF240-070-S2Frame: MF240 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,675 Nm
MF240-070-S3Frame: MF240 | Ratio i: 70 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,675 Nm
MF240-100-S1Frame: MF240 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
MF240-100-S2Frame: MF240 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
MF240-100-S3Frame: MF240 | Ratio i: 100 | Stages: 2 | Backlash: <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
