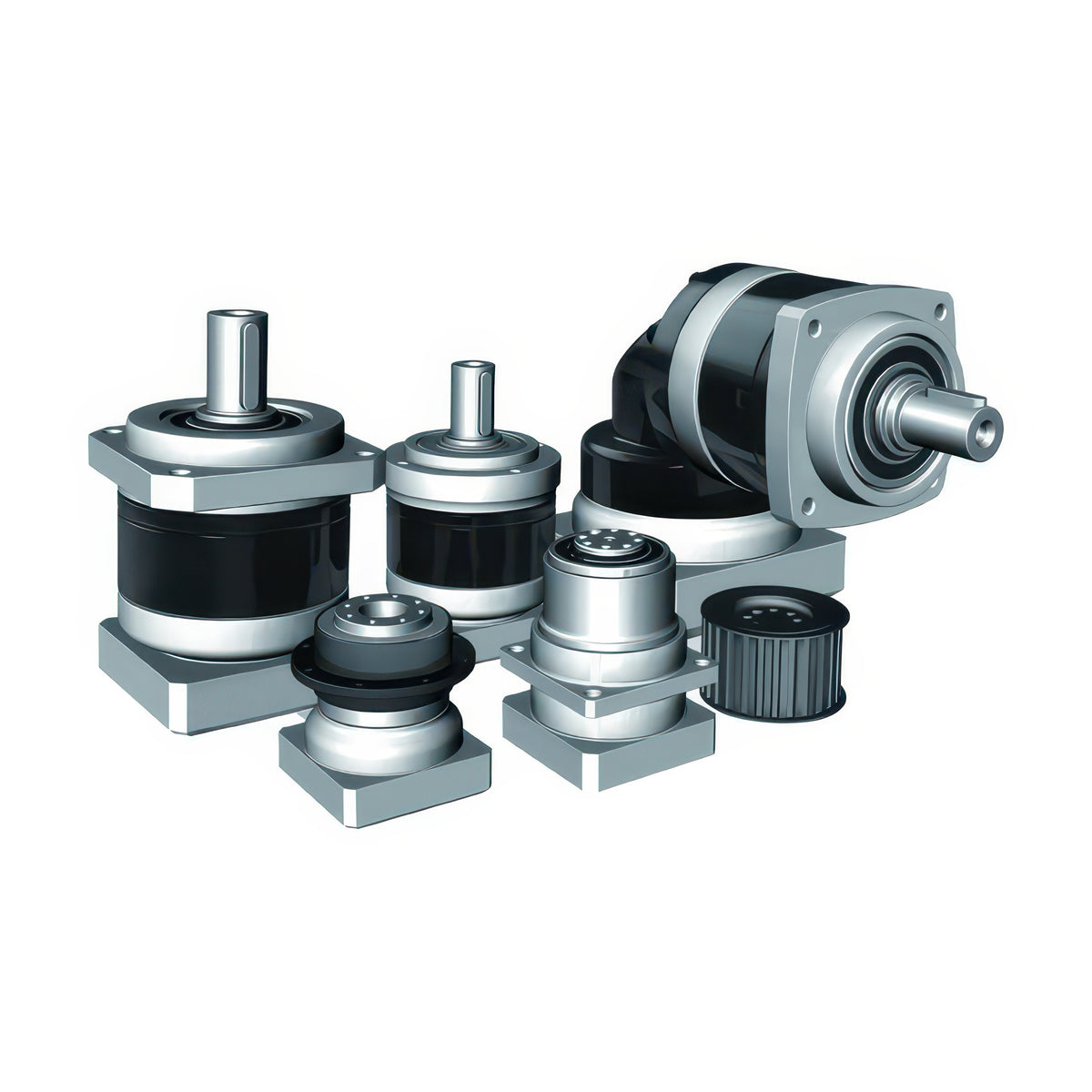

APEX Dynamics PA2 Series Planetary Gearbox (Inline, New Generation P Series)

APEX Dynamics PA2 Series Planetary Gearbox (Inline, New Generation P Series)

The PA2 series is an inline planetary gearbox from the new-generation P series for servo motors.

Key features

  • It is designed for high efficiency, low noise, reduced backlash, optimized inertia and limited temperature rise
  • Ratios are 3-10 in 1-stage and 15-100 in 2-stage versions, with frame sizes 42 to 142 mm and flexible motor mounting diameters
  • It is lubricated with synthetic grease, rated IP65, operates from 0 to +90 C, mounts in any direction and has a 20,000 h service life

Specifications

Ratio range 3-10 (1-stage), 15-100 (2-stage)
Emergency stop torque 3 x nominal torque
Efficiency >=97% (1-stage), >=94% (2-stage)
Protection IP65
PA2042 Frame size: 42 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 8-16 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 4500 rpm | Max. input speed: 8000 rpm | Backlash: <=8 arcmin (1-stage), <=10 arcmin (2-stage) | Torsional rigidity: 0.9 Nm/arcmin | Max. radial load: 810 N | Max. axial load: 405 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=60 dB(A) | Protection: IP65
PA2060 Frame size: 60 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 24-43 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 4000 rpm | Max. input speed: 6000 rpm | Backlash: <=7 arcmin (1-stage), <=9 arcmin (2-stage) | Torsional rigidity: 2.2 Nm/arcmin | Max. radial load: 1150 N | Max. axial load: 575 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=62 dB(A) | Protection: IP65
PA2090 Frame size: 90 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 59-123 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 3600 rpm | Max. input speed: 6000 rpm | Backlash: <=6 arcmin (1-stage), <=8 arcmin (2-stage) | Torsional rigidity: 8 Nm/arcmin | Max. radial load: 1530 N | Max. axial load: 765 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=64 dB(A) | Protection: IP65
PA2115 Frame size: 115 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 125-232 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 3600 rpm | Max. input speed: 4800 rpm | Backlash: <=6 arcmin (1-stage), <=8 arcmin (2-stage) | Torsional rigidity: 12 Nm/arcmin | Max. radial load: 3470 N | Max. axial load: 1735 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=66 dB(A) | Protection: IP65
PA2142 Frame size: 142 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 273-459 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 2500 rpm | Max. input speed: 3600 rpm | Backlash: <=6 arcmin (1-stage), <=8 arcmin (2-stage) | Torsional rigidity: 16 Nm/arcmin | Max. radial load: 4640 N | Max. axial load: 2320 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=68 dB(A) | Protection: IP65
Planetary GearboxesAPEX Dynamics
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

APEX Dynamics PA2 Series Planetary Gearbox (Inline, New Generation P Series)

Brand APEX Dynamics·Planetary Gearboxes

Available part numbers (5)

PA2042, PA2060, PA2090, PA2115, PA2142

How to order

Send the APEX Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PA2042Frame size: 42 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 8-16 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 4500 rpm | Max. input speed: 8000 rpm | Backlash: <=8 arcmin (1-stage), <=10 arcmin (2-stage) | Torsional rigidity: 0.9 Nm/arcmin | Max. radial load: 810 N | Max. axial load: 405 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=60 dB(A) | Protection: IP65
PA2060Frame size: 60 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 24-43 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 4000 rpm | Max. input speed: 6000 rpm | Backlash: <=7 arcmin (1-stage), <=9 arcmin (2-stage) | Torsional rigidity: 2.2 Nm/arcmin | Max. radial load: 1150 N | Max. axial load: 575 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=62 dB(A) | Protection: IP65
PA2090Frame size: 90 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 59-123 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 3600 rpm | Max. input speed: 6000 rpm | Backlash: <=6 arcmin (1-stage), <=8 arcmin (2-stage) | Torsional rigidity: 8 Nm/arcmin | Max. radial load: 1530 N | Max. axial load: 765 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=64 dB(A) | Protection: IP65
PA2115Frame size: 115 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 125-232 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 3600 rpm | Max. input speed: 4800 rpm | Backlash: <=6 arcmin (1-stage), <=8 arcmin (2-stage) | Torsional rigidity: 12 Nm/arcmin | Max. radial load: 3470 N | Max. axial load: 1735 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=66 dB(A) | Protection: IP65
PA2142Frame size: 142 mm | Ratio range: 3-10 (1-stage), 15-100 (2-stage) | Nominal output torque: 273-459 Nm | Emergency stop torque: 3 x nominal torque | Nominal input speed: 2500 rpm | Max. input speed: 3600 rpm | Backlash: <=6 arcmin (1-stage), <=8 arcmin (2-stage) | Torsional rigidity: 16 Nm/arcmin | Max. radial load: 4640 N | Max. axial load: 2320 N | Efficiency: >=97% (1-stage), >=94% (2-stage) | Noise: <=68 dB(A) | Protection: IP65
