Apex Dynamics PGII Planetary Gearboxes (040-160)

Apex Dynamics PGII Planetary Gearboxes (040-160)

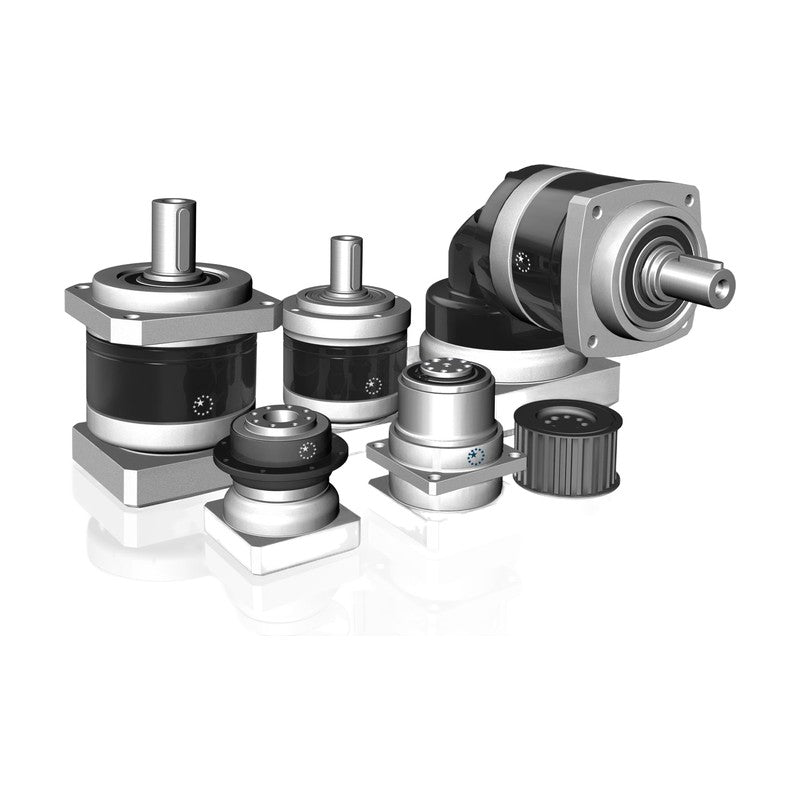

Apex Dynamics PGII inline servo planetary gearboxes with square flange and keyed shaft, frame sizes 040-160, ratios 3-100 plus 3-stage 120-1000 on sizes 040-080.

Key features

  • New Generation P series: economic, high efficiency, low noise, reduced backlash, compact and light
  • Only P series with 3-stage ratios 120-1000 (frame sizes 040, 060 and 080)
  • Ratios 3-10 (1-stage), 12-100 (2-stage) including i=9 and i=81
  • Keyed (S2) output shaft 10-40 mm; nominal output torque 8-459 Nm
  • Motor adapter (input hub) matched to the servo motor; specify motor make and model when ordering
  • Input shaft version PGIIS available as an option instead of the input hub

Specifications

Series PGII
Output shaft S2 keyed (standard)
Emergency stop torque T2NOT 3 x T2N
Max. acceleration torque T2B 60% of T2NOT
Nominal input speed n1N 4,500 (040) to 2,500 (160) rpm
Max. input speed n1B 8,000 (040) to 3,600 (160) rpm
Torsional rigidity 0.5 to 16 Nm/arcmin
Efficiency >=97% / >=94% / >=91%
Protection IP65
Operating temperature 0 to +90 C
Source APEX Dynamics PII/PIIR catalog, p. 08-12
PGII040-003 Frame: 040 | Ratio i: 3 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 16 Nm
PGII040-004 Frame: 040 | Ratio i: 4 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 16 Nm
PGII040-005 Frame: 040 | Ratio i: 5 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 15 Nm
PGII040-007 Frame: 040 | Ratio i: 7 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 12 Nm
PGII040-009 Frame: 040 | Ratio i: 9 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 8 Nm
PGII040-010 Frame: 040 | Ratio i: 10 | Stages: 1 | Backlash: <=8 arcmin | Nominal torque T2N: 10 Nm
PGII040-012 Frame: 040 | Ratio i: 12 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PGII040-015 Frame: 040 | Ratio i: 15 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PGII040-016 Frame: 040 | Ratio i: 16 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PGII040-020 Frame: 040 | Ratio i: 20 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PGII040-025 Frame: 040 | Ratio i: 25 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PGII040-030 Frame: 040 | Ratio i: 30 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PGII040-035 Frame: 040 | Ratio i: 35 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 12 Nm
PGII040-040 Frame: 040 | Ratio i: 40 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 16 Nm
PGII040-050 Frame: 040 | Ratio i: 50 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 15 Nm
PGII040-070 Frame: 040 | Ratio i: 70 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 12 Nm
PGII040-081 Frame: 040 | Ratio i: 81 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 8 Nm
PGII040-100 Frame: 040 | Ratio i: 100 | Stages: 2 | Backlash: <=10 arcmin | Nominal torque T2N: 10 Nm
PGII040-120 Frame: 040 | Ratio i: 120 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 19 Nm
PGII040-160 Frame: 040 | Ratio i: 160 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 16 Nm
PGII040-200 Frame: 040 | Ratio i: 200 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 16 Nm
PGII040-280 Frame: 040 | Ratio i: 280 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 12 Nm
PGII040-350 Frame: 040 | Ratio i: 350 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 12 Nm
PGII040-500 Frame: 040 | Ratio i: 500 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 15 Nm
PGII040-700 Frame: 040 | Ratio i: 700 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 12 Nm
PGII040-1000 Frame: 040 | Ratio i: 1000 | Stages: 3 | Backlash: <=12 arcmin | Nominal torque T2N: 10 Nm
PGII060-003 Frame: 060 | Ratio i: 3 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 42 Nm
PGII060-004 Frame: 060 | Ratio i: 4 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 42 Nm
PGII060-005 Frame: 060 | Ratio i: 5 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 40 Nm
PGII060-007 Frame: 060 | Ratio i: 7 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 35 Nm
PGII060-009 Frame: 060 | Ratio i: 9 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 24 Nm
PGII060-010 Frame: 060 | Ratio i: 10 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 27 Nm
PGII060-012 Frame: 060 | Ratio i: 12 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PGII060-015 Frame: 060 | Ratio i: 15 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PGII060-016 Frame: 060 | Ratio i: 16 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PGII060-020 Frame: 060 | Ratio i: 20 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PGII060-025 Frame: 060 | Ratio i: 25 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PGII060-030 Frame: 060 | Ratio i: 30 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PGII060-035 Frame: 060 | Ratio i: 35 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 35 Nm
PGII060-040 Frame: 060 | Ratio i: 40 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 43 Nm
PGII060-050 Frame: 060 | Ratio i: 50 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PGII060-070 Frame: 060 | Ratio i: 70 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 35 Nm
PGII060-081 Frame: 060 | Ratio i: 81 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 24 Nm
PGII060-100 Frame: 060 | Ratio i: 100 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 27 Nm
PGII060-120 Frame: 060 | Ratio i: 120 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 50 Nm
PGII060-160 Frame: 060 | Ratio i: 160 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 43 Nm
PGII060-200 Frame: 060 | Ratio i: 200 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 43 Nm
PGII060-280 Frame: 060 | Ratio i: 280 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 35 Nm
PGII060-350 Frame: 060 | Ratio i: 350 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 35 Nm
PGII060-500 Frame: 060 | Ratio i: 500 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 40 Nm
PGII060-700 Frame: 060 | Ratio i: 700 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 35 Nm
PGII060-1000 Frame: 060 | Ratio i: 1000 | Stages: 3 | Backlash: <=11 arcmin | Nominal torque T2N: 27 Nm
PGII080-003 Frame: 080 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 110 Nm
PGII080-004 Frame: 080 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 113 Nm
PGII080-005 Frame: 080 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 118 Nm
PGII080-007 Frame: 080 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 96 Nm
PGII080-009 Frame: 080 | Ratio i: 9 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 60 Nm
PGII080-010 Frame: 080 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 68 Nm
PGII080-012 Frame: 080 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 110 Nm
PGII080-015 Frame: 080 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 109 Nm
PGII080-016 Frame: 080 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 116 Nm
PGII080-020 Frame: 080 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 116 Nm
PGII080-025 Frame: 080 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 123 Nm
PGII080-030 Frame: 080 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 108 Nm
PGII080-035 Frame: 080 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 100 Nm
PGII080-040 Frame: 080 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 117 Nm
PGII080-050 Frame: 080 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 123 Nm
PGII080-070 Frame: 080 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 100 Nm
PGII080-081 Frame: 080 | Ratio i: 81 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 59 Nm
PGII080-100 Frame: 080 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 70 Nm
PGII080-120 Frame: 080 | Ratio i: 120 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 137 Nm
PGII080-160 Frame: 080 | Ratio i: 160 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 118 Nm
PGII080-200 Frame: 080 | Ratio i: 200 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 118 Nm
PGII080-280 Frame: 080 | Ratio i: 280 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 99 Nm
PGII080-350 Frame: 080 | Ratio i: 350 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 99 Nm
PGII080-500 Frame: 080 | Ratio i: 500 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 122 Nm
PGII080-700 Frame: 080 | Ratio i: 700 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 99 Nm
PGII080-1000 Frame: 080 | Ratio i: 1000 | Stages: 3 | Backlash: <=10 arcmin | Nominal torque T2N: 70 Nm
PGII120-003 Frame: 120 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 217 Nm
PGII120-004 Frame: 120 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 223 Nm
PGII120-005 Frame: 120 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 220 Nm
PGII120-007 Frame: 120 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 198 Nm
PGII120-009 Frame: 120 | Ratio i: 9 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 125 Nm
PGII120-010 Frame: 120 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 155 Nm
PGII120-012 Frame: 120 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 217 Nm
PGII120-015 Frame: 120 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 213 Nm
PGII120-016 Frame: 120 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 228 Nm
PGII120-020 Frame: 120 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 230 Nm
PGII120-025 Frame: 120 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 228 Nm
PGII120-030 Frame: 120 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 212 Nm
PGII120-035 Frame: 120 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 206 Nm
PGII120-040 Frame: 120 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 232 Nm
PGII120-050 Frame: 120 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 228 Nm
PGII120-070 Frame: 120 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 206 Nm
PGII120-081 Frame: 120 | Ratio i: 81 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 131 Nm
PGII120-100 Frame: 120 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 162 Nm
PGII160-003 Frame: 160 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 430 Nm
PGII160-004 Frame: 160 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 440 Nm
PGII160-005 Frame: 160 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 435 Nm
PGII160-007 Frame: 160 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 366 Nm
PGII160-009 Frame: 160 | Ratio i: 9 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 273 Nm
PGII160-010 Frame: 160 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 295 Nm
PGII160-012 Frame: 160 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 430 Nm
PGII160-015 Frame: 160 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 424 Nm
PGII160-016 Frame: 160 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 452 Nm
PGII160-020 Frame: 160 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 454 Nm
PGII160-025 Frame: 160 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 450 Nm
PGII160-030 Frame: 160 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 422 Nm
PGII160-035 Frame: 160 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 382 Nm
PGII160-040 Frame: 160 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 459 Nm
PGII160-050 Frame: 160 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 450 Nm
PGII160-070 Frame: 160 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 382 Nm
PGII160-081 Frame: 160 | Ratio i: 81 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 285 Nm
PGII160-100 Frame: 160 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 308 Nm
