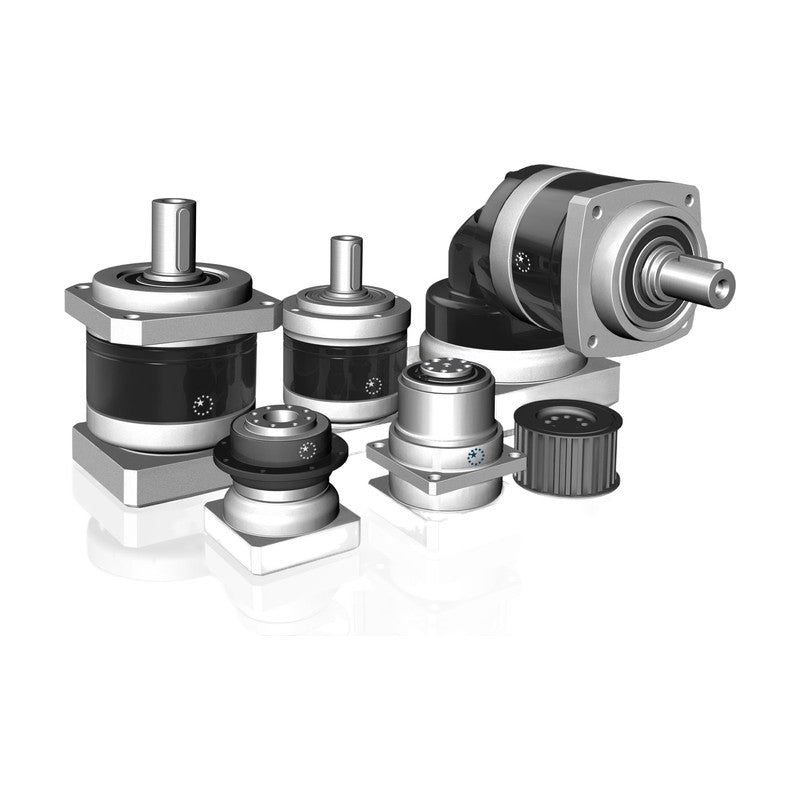

Apex Dynamics PIIS Input-Shaft Planetary Gearboxes (PEIIS-PNIIS, PDS)

Apex Dynamics PIIS Input-Shaft Planetary Gearboxes (PEIIS-PNIIS, PDS)

Apex Dynamics PIIS versions of the PEII, PGII, PAII, PSII, PNII and PD planetary gearboxes with a keyed input shaft instead of the motor input hub.

Key features

  • Keyed input shaft (h6) in place of the motor input hub, for belt, coupling or non-servo drives
  • Available on PEII, PGII, PAII, PSII, PNII and PD (PDS) gearboxes
  • Input shaft 8 mm to 35 mm by size group; output ratings as the base series
  • Max. input radial load 125 to 2,000 N, axial 63 to 1,000 N (at 1,000 rpm)
  • Ordering code <series>IIS<size>-<ratio>, no motor field
  • Customized details on request from APEX

Specifications

Input Keyed shaft (option to input hub)
Max. input radial load F1rB 125 to 2,000 N
Max. input axial load F1aB 63 to 1,000 N
Moment of inertia 0.03 to 10.90 kg.cm2
Output ratings As base PII series
Protection IP65
Operating temperature 0 to +90 C
Source APEX Dynamics PII/PIIR catalog, p. 38-38
PEIIS050-003 Model: PEIIS050 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-004 Model: PEIIS050 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-005 Model: PEIIS050 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-007 Model: PEIIS050 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PEIIS050-010 Model: PEIIS050 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PEIIS050-012 Model: PEIIS050 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-015 Model: PEIIS050 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-016 Model: PEIIS050 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-020 Model: PEIIS050 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-025 Model: PEIIS050 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-030 Model: PEIIS050 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-035 Model: PEIIS050 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PEIIS050-040 Model: PEIIS050 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-050 Model: PEIIS050 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-070 Model: PEIIS050 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PEIIS050-100 Model: PEIIS050 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PEIIS070-003 Model: PEIIS070 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-004 Model: PEIIS070 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-005 Model: PEIIS070 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-007 Model: PEIIS070 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PEIIS070-010 Model: PEIIS070 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PEIIS070-012 Model: PEIIS070 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-015 Model: PEIIS070 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-016 Model: PEIIS070 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-020 Model: PEIIS070 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-025 Model: PEIIS070 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-030 Model: PEIIS070 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-035 Model: PEIIS070 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PEIIS070-040 Model: PEIIS070 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PEIIS070-050 Model: PEIIS070 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-070 Model: PEIIS070 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PEIIS070-100 Model: PEIIS070 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PEIIS090-003 Model: PEIIS090 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PEIIS090-004 Model: PEIIS090 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PEIIS090-005 Model: PEIIS090 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PEIIS090-007 Model: PEIIS090 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PEIIS090-010 Model: PEIIS090 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PEIIS090-012 Model: PEIIS090 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PEIIS090-015 Model: PEIIS090 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PEIIS090-016 Model: PEIIS090 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PEIIS090-020 Model: PEIIS090 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PEIIS090-025 Model: PEIIS090 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PEIIS090-030 Model: PEIIS090 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PEIIS090-035 Model: PEIIS090 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PEIIS090-040 Model: PEIIS090 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PEIIS090-050 Model: PEIIS090 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PEIIS090-070 Model: PEIIS090 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PEIIS090-100 Model: PEIIS090 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PEIIS120-003 Model: PEIIS120 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PEIIS120-004 Model: PEIIS120 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PEIIS120-005 Model: PEIIS120 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PEIIS120-007 Model: PEIIS120 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PEIIS120-010 Model: PEIIS120 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PEIIS120-012 Model: PEIIS120 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PEIIS120-015 Model: PEIIS120 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PEIIS120-016 Model: PEIIS120 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PEIIS120-020 Model: PEIIS120 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PEIIS120-025 Model: PEIIS120 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PEIIS120-030 Model: PEIIS120 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PEIIS120-035 Model: PEIIS120 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PEIIS120-040 Model: PEIIS120 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PEIIS120-050 Model: PEIIS120 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PEIIS120-070 Model: PEIIS120 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PEIIS120-100 Model: PEIIS120 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PEIIS155-003 Model: PEIIS155 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PEIIS155-004 Model: PEIIS155 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PEIIS155-005 Model: PEIIS155 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PEIIS155-007 Model: PEIIS155 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PEIIS155-010 Model: PEIIS155 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PEIIS155-012 Model: PEIIS155 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PEIIS155-015 Model: PEIIS155 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PEIIS155-016 Model: PEIIS155 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PEIIS155-020 Model: PEIIS155 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PEIIS155-025 Model: PEIIS155 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PEIIS155-030 Model: PEIIS155 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PEIIS155-035 Model: PEIIS155 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PEIIS155-040 Model: PEIIS155 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PEIIS155-050 Model: PEIIS155 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PEIIS155-070 Model: PEIIS155 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PEIIS155-100 Model: PEIIS155 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PGIIS040-003 Model: PGIIS040 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-004 Model: PGIIS040 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-005 Model: PGIIS040 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-007 Model: PGIIS040 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-009 Model: PGIIS040 | Ratio i: 9 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PGIIS040-010 Model: PGIIS040 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PGIIS040-012 Model: PGIIS040 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-015 Model: PGIIS040 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-016 Model: PGIIS040 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-020 Model: PGIIS040 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-025 Model: PGIIS040 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-030 Model: PGIIS040 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-035 Model: PGIIS040 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-040 Model: PGIIS040 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-050 Model: PGIIS040 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-070 Model: PGIIS040 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-081 Model: PGIIS040 | Ratio i: 81 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PGIIS040-100 Model: PGIIS040 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PGIIS040-120 Model: PGIIS040 | Ratio i: 120 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 19 Nm
PGIIS040-160 Model: PGIIS040 | Ratio i: 160 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-200 Model: PGIIS040 | Ratio i: 200 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-280 Model: PGIIS040 | Ratio i: 280 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-350 Model: PGIIS040 | Ratio i: 350 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-500 Model: PGIIS040 | Ratio i: 500 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-700 Model: PGIIS040 | Ratio i: 700 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-1000 Model: PGIIS040 | Ratio i: 1000 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PGIIS060-003 Model: PGIIS060 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-004 Model: PGIIS060 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-005 Model: PGIIS060 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-007 Model: PGIIS060 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-009 Model: PGIIS060 | Ratio i: 9 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PGIIS060-010 Model: PGIIS060 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PGIIS060-012 Model: PGIIS060 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-015 Model: PGIIS060 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-016 Model: PGIIS060 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-020 Model: PGIIS060 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-025 Model: PGIIS060 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-030 Model: PGIIS060 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-035 Model: PGIIS060 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-040 Model: PGIIS060 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PGIIS060-050 Model: PGIIS060 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-070 Model: PGIIS060 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-081 Model: PGIIS060 | Ratio i: 81 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PGIIS060-100 Model: PGIIS060 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PGIIS060-120 Model: PGIIS060 | Ratio i: 120 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 50 Nm
PGIIS060-160 Model: PGIIS060 | Ratio i: 160 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PGIIS060-200 Model: PGIIS060 | Ratio i: 200 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PGIIS060-280 Model: PGIIS060 | Ratio i: 280 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-350 Model: PGIIS060 | Ratio i: 350 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-500 Model: PGIIS060 | Ratio i: 500 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-700 Model: PGIIS060 | Ratio i: 700 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-1000 Model: PGIIS060 | Ratio i: 1000 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PGIIS080-003 Model: PGIIS080 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PGIIS080-004 Model: PGIIS080 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PGIIS080-005 Model: PGIIS080 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PGIIS080-007 Model: PGIIS080 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PGIIS080-009 Model: PGIIS080 | Ratio i: 9 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 60 Nm
PGIIS080-010 Model: PGIIS080 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PGIIS080-012 Model: PGIIS080 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PGIIS080-015 Model: PGIIS080 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PGIIS080-016 Model: PGIIS080 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PGIIS080-020 Model: PGIIS080 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PGIIS080-025 Model: PGIIS080 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PGIIS080-030 Model: PGIIS080 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PGIIS080-035 Model: PGIIS080 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PGIIS080-040 Model: PGIIS080 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PGIIS080-050 Model: PGIIS080 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PGIIS080-070 Model: PGIIS080 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PGIIS080-081 Model: PGIIS080 | Ratio i: 81 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 59 Nm
PGIIS080-100 Model: PGIIS080 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PGIIS080-120 Model: PGIIS080 | Ratio i: 120 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 137 Nm
PGIIS080-160 Model: PGIIS080 | Ratio i: 160 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PGIIS080-200 Model: PGIIS080 | Ratio i: 200 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PGIIS080-280 Model: PGIIS080 | Ratio i: 280 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 99 Nm
PGIIS080-350 Model: PGIIS080 | Ratio i: 350 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 99 Nm
PGIIS080-500 Model: PGIIS080 | Ratio i: 500 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 122 Nm
PGIIS080-700 Model: PGIIS080 | Ratio i: 700 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 99 Nm
PGIIS080-1000 Model: PGIIS080 | Ratio i: 1000 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PGIIS120-003 Model: PGIIS120 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PGIIS120-004 Model: PGIIS120 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PGIIS120-005 Model: PGIIS120 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PGIIS120-007 Model: PGIIS120 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PGIIS120-009 Model: PGIIS120 | Ratio i: 9 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 125 Nm
PGIIS120-010 Model: PGIIS120 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PGIIS120-012 Model: PGIIS120 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PGIIS120-015 Model: PGIIS120 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PGIIS120-016 Model: PGIIS120 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PGIIS120-020 Model: PGIIS120 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PGIIS120-025 Model: PGIIS120 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PGIIS120-030 Model: PGIIS120 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PGIIS120-035 Model: PGIIS120 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PGIIS120-040 Model: PGIIS120 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PGIIS120-050 Model: PGIIS120 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PGIIS120-070 Model: PGIIS120 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PGIIS120-081 Model: PGIIS120 | Ratio i: 81 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 131 Nm
PGIIS120-100 Model: PGIIS120 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PGIIS160-003 Model: PGIIS160 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PGIIS160-004 Model: PGIIS160 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PGIIS160-005 Model: PGIIS160 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PGIIS160-007 Model: PGIIS160 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PGIIS160-009 Model: PGIIS160 | Ratio i: 9 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 273 Nm
PGIIS160-010 Model: PGIIS160 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PGIIS160-012 Model: PGIIS160 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PGIIS160-015 Model: PGIIS160 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PGIIS160-016 Model: PGIIS160 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PGIIS160-020 Model: PGIIS160 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PGIIS160-025 Model: PGIIS160 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PGIIS160-030 Model: PGIIS160 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PGIIS160-035 Model: PGIIS160 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PGIIS160-040 Model: PGIIS160 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PGIIS160-050 Model: PGIIS160 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PGIIS160-070 Model: PGIIS160 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PGIIS160-081 Model: PGIIS160 | Ratio i: 81 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 285 Nm
PGIIS160-100 Model: PGIIS160 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PAIIS042-003 Model: PAIIS042 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-004 Model: PAIIS042 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-005 Model: PAIIS042 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-007 Model: PAIIS042 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PAIIS042-009 Model: PAIIS042 | Ratio i: 9 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PAIIS042-010 Model: PAIIS042 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PAIIS042-012 Model: PAIIS042 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-015 Model: PAIIS042 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-016 Model: PAIIS042 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-020 Model: PAIIS042 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-025 Model: PAIIS042 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-030 Model: PAIIS042 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-035 Model: PAIIS042 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PAIIS042-040 Model: PAIIS042 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-050 Model: PAIIS042 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-070 Model: PAIIS042 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PAIIS042-081 Model: PAIIS042 | Ratio i: 81 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PAIIS042-100 Model: PAIIS042 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PAIIS060-003 Model: PAIIS060 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-004 Model: PAIIS060 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-005 Model: PAIIS060 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-007 Model: PAIIS060 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PAIIS060-009 Model: PAIIS060 | Ratio i: 9 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PAIIS060-010 Model: PAIIS060 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PAIIS060-012 Model: PAIIS060 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-015 Model: PAIIS060 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-016 Model: PAIIS060 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-020 Model: PAIIS060 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-025 Model: PAIIS060 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-030 Model: PAIIS060 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-035 Model: PAIIS060 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PAIIS060-040 Model: PAIIS060 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PAIIS060-050 Model: PAIIS060 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-070 Model: PAIIS060 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PAIIS060-081 Model: PAIIS060 | Ratio i: 81 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PAIIS060-100 Model: PAIIS060 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PAIIS090-003 Model: PAIIS090 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PAIIS090-004 Model: PAIIS090 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PAIIS090-005 Model: PAIIS090 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PAIIS090-007 Model: PAIIS090 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PAIIS090-009 Model: PAIIS090 | Ratio i: 9 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 60 Nm
PAIIS090-010 Model: PAIIS090 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PAIIS090-012 Model: PAIIS090 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PAIIS090-015 Model: PAIIS090 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PAIIS090-016 Model: PAIIS090 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PAIIS090-020 Model: PAIIS090 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PAIIS090-025 Model: PAIIS090 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PAIIS090-030 Model: PAIIS090 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PAIIS090-035 Model: PAIIS090 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PAIIS090-040 Model: PAIIS090 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PAIIS090-050 Model: PAIIS090 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PAIIS090-070 Model: PAIIS090 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PAIIS090-081 Model: PAIIS090 | Ratio i: 81 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 59 Nm
PAIIS090-100 Model: PAIIS090 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PAIIS115-003 Model: PAIIS115 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PAIIS115-004 Model: PAIIS115 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PAIIS115-005 Model: PAIIS115 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PAIIS115-007 Model: PAIIS115 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PAIIS115-009 Model: PAIIS115 | Ratio i: 9 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 125 Nm
PAIIS115-010 Model: PAIIS115 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PAIIS115-012 Model: PAIIS115 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PAIIS115-015 Model: PAIIS115 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PAIIS115-016 Model: PAIIS115 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PAIIS115-020 Model: PAIIS115 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PAIIS115-025 Model: PAIIS115 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PAIIS115-030 Model: PAIIS115 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PAIIS115-035 Model: PAIIS115 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PAIIS115-040 Model: PAIIS115 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PAIIS115-050 Model: PAIIS115 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PAIIS115-070 Model: PAIIS115 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PAIIS115-081 Model: PAIIS115 | Ratio i: 81 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 131 Nm
PAIIS115-100 Model: PAIIS115 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PAIIS142-003 Model: PAIIS142 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PAIIS142-004 Model: PAIIS142 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PAIIS142-005 Model: PAIIS142 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PAIIS142-007 Model: PAIIS142 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PAIIS142-009 Model: PAIIS142 | Ratio i: 9 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 273 Nm
PAIIS142-010 Model: PAIIS142 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PAIIS142-012 Model: PAIIS142 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PAIIS142-015 Model: PAIIS142 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PAIIS142-016 Model: PAIIS142 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PAIIS142-020 Model: PAIIS142 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PAIIS142-025 Model: PAIIS142 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PAIIS142-030 Model: PAIIS142 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PAIIS142-035 Model: PAIIS142 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PAIIS142-040 Model: PAIIS142 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PAIIS142-050 Model: PAIIS142 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PAIIS142-070 Model: PAIIS142 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PAIIS142-081 Model: PAIIS142 | Ratio i: 81 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 285 Nm
PAIIS142-100 Model: PAIIS142 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PSIISA-003 Model: PSIISA | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-004 Model: PSIISA | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-005 Model: PSIISA | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-007 Model: PSIISA | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PSIISA-009 Model: PSIISA | Ratio i: 9 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PSIISA-010 Model: PSIISA | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PSIISA-012 Model: PSIISA | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-015 Model: PSIISA | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-016 Model: PSIISA | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-020 Model: PSIISA | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-025 Model: PSIISA | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-030 Model: PSIISA | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-035 Model: PSIISA | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PSIISA-040 Model: PSIISA | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-050 Model: PSIISA | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-070 Model: PSIISA | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PSIISA-081 Model: PSIISA | Ratio i: 81 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PSIISA-100 Model: PSIISA | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PSIISB-003 Model: PSIISB | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-004 Model: PSIISB | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-005 Model: PSIISB | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-007 Model: PSIISB | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PSIISB-009 Model: PSIISB | Ratio i: 9 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PSIISB-010 Model: PSIISB | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PSIISB-012 Model: PSIISB | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-015 Model: PSIISB | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-016 Model: PSIISB | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-020 Model: PSIISB | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-025 Model: PSIISB | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-030 Model: PSIISB | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-035 Model: PSIISB | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PSIISB-040 Model: PSIISB | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PSIISB-050 Model: PSIISB | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-070 Model: PSIISB | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PSIISB-081 Model: PSIISB | Ratio i: 81 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PSIISB-100 Model: PSIISB | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PSIISC-003 Model: PSIISC | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PSIISC-004 Model: PSIISC | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PSIISC-005 Model: PSIISC | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PSIISC-007 Model: PSIISC | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PSIISC-009 Model: PSIISC | Ratio i: 9 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 60 Nm
PSIISC-010 Model: PSIISC | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PSIISC-012 Model: PSIISC | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PSIISC-015 Model: PSIISC | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PSIISC-016 Model: PSIISC | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PSIISC-020 Model: PSIISC | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PSIISC-025 Model: PSIISC | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PSIISC-030 Model: PSIISC | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PSIISC-035 Model: PSIISC | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PSIISC-040 Model: PSIISC | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PSIISC-050 Model: PSIISC | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PSIISC-070 Model: PSIISC | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PSIISC-081 Model: PSIISC | Ratio i: 81 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 59 Nm
PSIISC-100 Model: PSIISC | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PSIISD-003 Model: PSIISD | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PSIISD-004 Model: PSIISD | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PSIISD-005 Model: PSIISD | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PSIISD-007 Model: PSIISD | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PSIISD-009 Model: PSIISD | Ratio i: 9 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 125 Nm
PSIISD-010 Model: PSIISD | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PSIISD-012 Model: PSIISD | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PSIISD-015 Model: PSIISD | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PSIISD-016 Model: PSIISD | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PSIISD-020 Model: PSIISD | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PSIISD-025 Model: PSIISD | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PSIISD-030 Model: PSIISD | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PSIISD-035 Model: PSIISD | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PSIISD-040 Model: PSIISD | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PSIISD-050 Model: PSIISD | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PSIISD-070 Model: PSIISD | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PSIISD-081 Model: PSIISD | Ratio i: 81 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 131 Nm
PSIISD-100 Model: PSIISD | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PSIISE-003 Model: PSIISE | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PSIISE-004 Model: PSIISE | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PSIISE-005 Model: PSIISE | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PSIISE-007 Model: PSIISE | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PSIISE-009 Model: PSIISE | Ratio i: 9 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 273 Nm
PSIISE-010 Model: PSIISE | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PSIISE-012 Model: PSIISE | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PSIISE-015 Model: PSIISE | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PSIISE-016 Model: PSIISE | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PSIISE-020 Model: PSIISE | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PSIISE-025 Model: PSIISE | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PSIISE-030 Model: PSIISE | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PSIISE-035 Model: PSIISE | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PSIISE-040 Model: PSIISE | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PSIISE-050 Model: PSIISE | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PSIISE-070 Model: PSIISE | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PSIISE-081 Model: PSIISE | Ratio i: 81 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 285 Nm
PSIISE-100 Model: PSIISE | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PNIIS017-003 Model: PNIIS017 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-004 Model: PNIIS017 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-005 Model: PNIIS017 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-007 Model: PNIIS017 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PNIIS017-010 Model: PNIIS017 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PNIIS017-012 Model: PNIIS017 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-015 Model: PNIIS017 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-016 Model: PNIIS017 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-020 Model: PNIIS017 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-025 Model: PNIIS017 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-030 Model: PNIIS017 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-035 Model: PNIIS017 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PNIIS017-040 Model: PNIIS017 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-050 Model: PNIIS017 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-070 Model: PNIIS017 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PNIIS017-100 Model: PNIIS017 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PNIIS023-003 Model: PNIIS023 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-004 Model: PNIIS023 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-005 Model: PNIIS023 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-007 Model: PNIIS023 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PNIIS023-010 Model: PNIIS023 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PNIIS023-012 Model: PNIIS023 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-015 Model: PNIIS023 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-016 Model: PNIIS023 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-020 Model: PNIIS023 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-025 Model: PNIIS023 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-030 Model: PNIIS023 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-035 Model: PNIIS023 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PNIIS023-040 Model: PNIIS023 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PNIIS023-050 Model: PNIIS023 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-070 Model: PNIIS023 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PNIIS023-100 Model: PNIIS023 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PNIIS034-003 Model: PNIIS034 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PNIIS034-004 Model: PNIIS034 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PNIIS034-005 Model: PNIIS034 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PNIIS034-007 Model: PNIIS034 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PNIIS034-010 Model: PNIIS034 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PNIIS034-012 Model: PNIIS034 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PNIIS034-015 Model: PNIIS034 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PNIIS034-016 Model: PNIIS034 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PNIIS034-020 Model: PNIIS034 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PNIIS034-025 Model: PNIIS034 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PNIIS034-030 Model: PNIIS034 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PNIIS034-035 Model: PNIIS034 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PNIIS034-040 Model: PNIIS034 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PNIIS034-050 Model: PNIIS034 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PNIIS034-070 Model: PNIIS034 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PNIIS034-100 Model: PNIIS034 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PNIIS042-003 Model: PNIIS042 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PNIIS042-004 Model: PNIIS042 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PNIIS042-005 Model: PNIIS042 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PNIIS042-007 Model: PNIIS042 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PNIIS042-010 Model: PNIIS042 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PNIIS042-012 Model: PNIIS042 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PNIIS042-015 Model: PNIIS042 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PNIIS042-016 Model: PNIIS042 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PNIIS042-020 Model: PNIIS042 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PNIIS042-025 Model: PNIIS042 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PNIIS042-030 Model: PNIIS042 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PNIIS042-035 Model: PNIIS042 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PNIIS042-040 Model: PNIIS042 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PNIIS042-050 Model: PNIIS042 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PNIIS042-070 Model: PNIIS042 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PNIIS042-100 Model: PNIIS042 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PNIIS056-003 Model: PNIIS056 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PNIIS056-004 Model: PNIIS056 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PNIIS056-005 Model: PNIIS056 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PNIIS056-007 Model: PNIIS056 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PNIIS056-010 Model: PNIIS056 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PNIIS056-012 Model: PNIIS056 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PNIIS056-015 Model: PNIIS056 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PNIIS056-016 Model: PNIIS056 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PNIIS056-020 Model: PNIIS056 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PNIIS056-025 Model: PNIIS056 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PNIIS056-030 Model: PNIIS056 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PNIIS056-035 Model: PNIIS056 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PNIIS056-040 Model: PNIIS056 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PNIIS056-050 Model: PNIIS056 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PNIIS056-070 Model: PNIIS056 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PNIIS056-100 Model: PNIIS056 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PDS053-003 Model: PDS053 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-004 Model: PDS053 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-005 Model: PDS053 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-007 Model: PDS053 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PDS053-010 Model: PDS053 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PDS053-012 Model: PDS053 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-015 Model: PDS053 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-016 Model: PDS053 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-020 Model: PDS053 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-025 Model: PDS053 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-030 Model: PDS053 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-035 Model: PDS053 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PDS053-040 Model: PDS053 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-050 Model: PDS053 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-070 Model: PDS053 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PDS053-100 Model: PDS053 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PDS064-003 Model: PDS064 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-004 Model: PDS064 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-005 Model: PDS064 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-007 Model: PDS064 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PDS064-010 Model: PDS064 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PDS064-012 Model: PDS064 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-015 Model: PDS064 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-016 Model: PDS064 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-020 Model: PDS064 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-025 Model: PDS064 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-030 Model: PDS064 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-035 Model: PDS064 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PDS064-040 Model: PDS064 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PDS064-050 Model: PDS064 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-070 Model: PDS064 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PDS064-100 Model: PDS064 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PDS090-003 Model: PDS090 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PDS090-004 Model: PDS090 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PDS090-005 Model: PDS090 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PDS090-007 Model: PDS090 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PDS090-010 Model: PDS090 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PDS090-012 Model: PDS090 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PDS090-015 Model: PDS090 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PDS090-016 Model: PDS090 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PDS090-020 Model: PDS090 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PDS090-025 Model: PDS090 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PDS090-030 Model: PDS090 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PDS090-035 Model: PDS090 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PDS090-040 Model: PDS090 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PDS090-050 Model: PDS090 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PDS090-070 Model: PDS090 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PDS090-100 Model: PDS090 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PDS110-003 Model: PDS110 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PDS110-004 Model: PDS110 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PDS110-005 Model: PDS110 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PDS110-007 Model: PDS110 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PDS110-010 Model: PDS110 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PDS110-012 Model: PDS110 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PDS110-015 Model: PDS110 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PDS110-016 Model: PDS110 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PDS110-020 Model: PDS110 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PDS110-025 Model: PDS110 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PDS110-030 Model: PDS110 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PDS110-035 Model: PDS110 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PDS110-040 Model: PDS110 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PDS110-050 Model: PDS110 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PDS110-070 Model: PDS110 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PDS110-100 Model: PDS110 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
Planetary GearboxesApex Dynamics
518 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics PIIS Input-Shaft Planetary Gearboxes (PEIIS-PNIIS, PDS)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (518)

PEIIS050-003, PEIIS050-004, PEIIS050-005, PEIIS050-007, PEIIS050-010, PEIIS050-012, PEIIS050-015, PEIIS050-016, PEIIS050-020, PEIIS050-025 + 508 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PEIIS050-003Model: PEIIS050 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-004Model: PEIIS050 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-005Model: PEIIS050 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-007Model: PEIIS050 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PEIIS050-010Model: PEIIS050 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PEIIS050-012Model: PEIIS050 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-015Model: PEIIS050 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-016Model: PEIIS050 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-020Model: PEIIS050 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-025Model: PEIIS050 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-030Model: PEIIS050 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-035Model: PEIIS050 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PEIIS050-040Model: PEIIS050 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PEIIS050-050Model: PEIIS050 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PEIIS050-070Model: PEIIS050 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PEIIS050-100Model: PEIIS050 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PEIIS070-003Model: PEIIS070 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-004Model: PEIIS070 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-005Model: PEIIS070 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-007Model: PEIIS070 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PEIIS070-010Model: PEIIS070 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PEIIS070-012Model: PEIIS070 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-015Model: PEIIS070 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-016Model: PEIIS070 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-020Model: PEIIS070 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PEIIS070-025Model: PEIIS070 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-030Model: PEIIS070 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-035Model: PEIIS070 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PEIIS070-040Model: PEIIS070 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PEIIS070-050Model: PEIIS070 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PEIIS070-070Model: PEIIS070 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PEIIS070-100Model: PEIIS070 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PEIIS090-003Model: PEIIS090 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PEIIS090-004Model: PEIIS090 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PEIIS090-005Model: PEIIS090 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PEIIS090-007Model: PEIIS090 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PEIIS090-010Model: PEIIS090 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PEIIS090-012Model: PEIIS090 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PEIIS090-015Model: PEIIS090 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PEIIS090-016Model: PEIIS090 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PEIIS090-020Model: PEIIS090 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PEIIS090-025Model: PEIIS090 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PEIIS090-030Model: PEIIS090 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PEIIS090-035Model: PEIIS090 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PEIIS090-040Model: PEIIS090 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PEIIS090-050Model: PEIIS090 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PEIIS090-070Model: PEIIS090 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PEIIS090-100Model: PEIIS090 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PEIIS120-003Model: PEIIS120 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PEIIS120-004Model: PEIIS120 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PEIIS120-005Model: PEIIS120 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PEIIS120-007Model: PEIIS120 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PEIIS120-010Model: PEIIS120 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PEIIS120-012Model: PEIIS120 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PEIIS120-015Model: PEIIS120 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PEIIS120-016Model: PEIIS120 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PEIIS120-020Model: PEIIS120 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PEIIS120-025Model: PEIIS120 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PEIIS120-030Model: PEIIS120 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PEIIS120-035Model: PEIIS120 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PEIIS120-040Model: PEIIS120 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PEIIS120-050Model: PEIIS120 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PEIIS120-070Model: PEIIS120 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PEIIS120-100Model: PEIIS120 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PEIIS155-003Model: PEIIS155 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PEIIS155-004Model: PEIIS155 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PEIIS155-005Model: PEIIS155 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PEIIS155-007Model: PEIIS155 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PEIIS155-010Model: PEIIS155 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PEIIS155-012Model: PEIIS155 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PEIIS155-015Model: PEIIS155 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PEIIS155-016Model: PEIIS155 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PEIIS155-020Model: PEIIS155 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PEIIS155-025Model: PEIIS155 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PEIIS155-030Model: PEIIS155 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PEIIS155-035Model: PEIIS155 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PEIIS155-040Model: PEIIS155 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PEIIS155-050Model: PEIIS155 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PEIIS155-070Model: PEIIS155 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PEIIS155-100Model: PEIIS155 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PGIIS040-003Model: PGIIS040 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-004Model: PGIIS040 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-005Model: PGIIS040 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-007Model: PGIIS040 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-009Model: PGIIS040 | Ratio i: 9 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PGIIS040-010Model: PGIIS040 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PGIIS040-012Model: PGIIS040 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-015Model: PGIIS040 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-016Model: PGIIS040 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-020Model: PGIIS040 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-025Model: PGIIS040 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-030Model: PGIIS040 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-035Model: PGIIS040 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-040Model: PGIIS040 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-050Model: PGIIS040 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-070Model: PGIIS040 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-081Model: PGIIS040 | Ratio i: 81 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PGIIS040-100Model: PGIIS040 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PGIIS040-120Model: PGIIS040 | Ratio i: 120 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 19 Nm
PGIIS040-160Model: PGIIS040 | Ratio i: 160 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-200Model: PGIIS040 | Ratio i: 200 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PGIIS040-280Model: PGIIS040 | Ratio i: 280 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-350Model: PGIIS040 | Ratio i: 350 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-500Model: PGIIS040 | Ratio i: 500 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PGIIS040-700Model: PGIIS040 | Ratio i: 700 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PGIIS040-1000Model: PGIIS040 | Ratio i: 1000 | Stages: 3 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PGIIS060-003Model: PGIIS060 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-004Model: PGIIS060 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-005Model: PGIIS060 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-007Model: PGIIS060 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-009Model: PGIIS060 | Ratio i: 9 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PGIIS060-010Model: PGIIS060 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PGIIS060-012Model: PGIIS060 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-015Model: PGIIS060 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-016Model: PGIIS060 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-020Model: PGIIS060 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PGIIS060-025Model: PGIIS060 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-030Model: PGIIS060 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-035Model: PGIIS060 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-040Model: PGIIS060 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PGIIS060-050Model: PGIIS060 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-070Model: PGIIS060 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-081Model: PGIIS060 | Ratio i: 81 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PGIIS060-100Model: PGIIS060 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PGIIS060-120Model: PGIIS060 | Ratio i: 120 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 50 Nm
PGIIS060-160Model: PGIIS060 | Ratio i: 160 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PGIIS060-200Model: PGIIS060 | Ratio i: 200 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PGIIS060-280Model: PGIIS060 | Ratio i: 280 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-350Model: PGIIS060 | Ratio i: 350 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-500Model: PGIIS060 | Ratio i: 500 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PGIIS060-700Model: PGIIS060 | Ratio i: 700 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PGIIS060-1000Model: PGIIS060 | Ratio i: 1000 | Stages: 3 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PGIIS080-003Model: PGIIS080 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PGIIS080-004Model: PGIIS080 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PGIIS080-005Model: PGIIS080 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PGIIS080-007Model: PGIIS080 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PGIIS080-009Model: PGIIS080 | Ratio i: 9 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 60 Nm
PGIIS080-010Model: PGIIS080 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PGIIS080-012Model: PGIIS080 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PGIIS080-015Model: PGIIS080 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PGIIS080-016Model: PGIIS080 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PGIIS080-020Model: PGIIS080 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PGIIS080-025Model: PGIIS080 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PGIIS080-030Model: PGIIS080 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PGIIS080-035Model: PGIIS080 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PGIIS080-040Model: PGIIS080 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PGIIS080-050Model: PGIIS080 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PGIIS080-070Model: PGIIS080 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PGIIS080-081Model: PGIIS080 | Ratio i: 81 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 59 Nm
PGIIS080-100Model: PGIIS080 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PGIIS080-120Model: PGIIS080 | Ratio i: 120 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 137 Nm
PGIIS080-160Model: PGIIS080 | Ratio i: 160 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PGIIS080-200Model: PGIIS080 | Ratio i: 200 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PGIIS080-280Model: PGIIS080 | Ratio i: 280 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 99 Nm
PGIIS080-350Model: PGIIS080 | Ratio i: 350 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 99 Nm
PGIIS080-500Model: PGIIS080 | Ratio i: 500 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 122 Nm
PGIIS080-700Model: PGIIS080 | Ratio i: 700 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 99 Nm
PGIIS080-1000Model: PGIIS080 | Ratio i: 1000 | Stages: 3 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PGIIS120-003Model: PGIIS120 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PGIIS120-004Model: PGIIS120 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PGIIS120-005Model: PGIIS120 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PGIIS120-007Model: PGIIS120 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PGIIS120-009Model: PGIIS120 | Ratio i: 9 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 125 Nm
PGIIS120-010Model: PGIIS120 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PGIIS120-012Model: PGIIS120 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PGIIS120-015Model: PGIIS120 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PGIIS120-016Model: PGIIS120 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PGIIS120-020Model: PGIIS120 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PGIIS120-025Model: PGIIS120 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PGIIS120-030Model: PGIIS120 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PGIIS120-035Model: PGIIS120 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PGIIS120-040Model: PGIIS120 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PGIIS120-050Model: PGIIS120 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PGIIS120-070Model: PGIIS120 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PGIIS120-081Model: PGIIS120 | Ratio i: 81 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 131 Nm
PGIIS120-100Model: PGIIS120 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PGIIS160-003Model: PGIIS160 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PGIIS160-004Model: PGIIS160 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PGIIS160-005Model: PGIIS160 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PGIIS160-007Model: PGIIS160 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PGIIS160-009Model: PGIIS160 | Ratio i: 9 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 273 Nm
PGIIS160-010Model: PGIIS160 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PGIIS160-012Model: PGIIS160 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PGIIS160-015Model: PGIIS160 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PGIIS160-016Model: PGIIS160 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PGIIS160-020Model: PGIIS160 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PGIIS160-025Model: PGIIS160 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PGIIS160-030Model: PGIIS160 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PGIIS160-035Model: PGIIS160 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PGIIS160-040Model: PGIIS160 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PGIIS160-050Model: PGIIS160 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PGIIS160-070Model: PGIIS160 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PGIIS160-081Model: PGIIS160 | Ratio i: 81 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 285 Nm
PGIIS160-100Model: PGIIS160 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PAIIS042-003Model: PAIIS042 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-004Model: PAIIS042 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-005Model: PAIIS042 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-007Model: PAIIS042 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PAIIS042-009Model: PAIIS042 | Ratio i: 9 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PAIIS042-010Model: PAIIS042 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PAIIS042-012Model: PAIIS042 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-015Model: PAIIS042 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-016Model: PAIIS042 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-020Model: PAIIS042 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-025Model: PAIIS042 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-030Model: PAIIS042 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-035Model: PAIIS042 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PAIIS042-040Model: PAIIS042 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PAIIS042-050Model: PAIIS042 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PAIIS042-070Model: PAIIS042 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PAIIS042-081Model: PAIIS042 | Ratio i: 81 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PAIIS042-100Model: PAIIS042 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PAIIS060-003Model: PAIIS060 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-004Model: PAIIS060 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-005Model: PAIIS060 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-007Model: PAIIS060 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PAIIS060-009Model: PAIIS060 | Ratio i: 9 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PAIIS060-010Model: PAIIS060 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PAIIS060-012Model: PAIIS060 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-015Model: PAIIS060 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-016Model: PAIIS060 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-020Model: PAIIS060 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PAIIS060-025Model: PAIIS060 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-030Model: PAIIS060 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-035Model: PAIIS060 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PAIIS060-040Model: PAIIS060 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PAIIS060-050Model: PAIIS060 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PAIIS060-070Model: PAIIS060 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PAIIS060-081Model: PAIIS060 | Ratio i: 81 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PAIIS060-100Model: PAIIS060 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PAIIS090-003Model: PAIIS090 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PAIIS090-004Model: PAIIS090 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PAIIS090-005Model: PAIIS090 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PAIIS090-007Model: PAIIS090 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PAIIS090-009Model: PAIIS090 | Ratio i: 9 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 60 Nm
PAIIS090-010Model: PAIIS090 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PAIIS090-012Model: PAIIS090 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PAIIS090-015Model: PAIIS090 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PAIIS090-016Model: PAIIS090 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PAIIS090-020Model: PAIIS090 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PAIIS090-025Model: PAIIS090 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PAIIS090-030Model: PAIIS090 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PAIIS090-035Model: PAIIS090 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PAIIS090-040Model: PAIIS090 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PAIIS090-050Model: PAIIS090 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PAIIS090-070Model: PAIIS090 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PAIIS090-081Model: PAIIS090 | Ratio i: 81 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 59 Nm
PAIIS090-100Model: PAIIS090 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PAIIS115-003Model: PAIIS115 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PAIIS115-004Model: PAIIS115 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PAIIS115-005Model: PAIIS115 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PAIIS115-007Model: PAIIS115 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PAIIS115-009Model: PAIIS115 | Ratio i: 9 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 125 Nm
PAIIS115-010Model: PAIIS115 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PAIIS115-012Model: PAIIS115 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PAIIS115-015Model: PAIIS115 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PAIIS115-016Model: PAIIS115 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PAIIS115-020Model: PAIIS115 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PAIIS115-025Model: PAIIS115 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PAIIS115-030Model: PAIIS115 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PAIIS115-035Model: PAIIS115 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PAIIS115-040Model: PAIIS115 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PAIIS115-050Model: PAIIS115 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PAIIS115-070Model: PAIIS115 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PAIIS115-081Model: PAIIS115 | Ratio i: 81 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 131 Nm
PAIIS115-100Model: PAIIS115 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PAIIS142-003Model: PAIIS142 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PAIIS142-004Model: PAIIS142 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PAIIS142-005Model: PAIIS142 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PAIIS142-007Model: PAIIS142 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PAIIS142-009Model: PAIIS142 | Ratio i: 9 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 273 Nm
PAIIS142-010Model: PAIIS142 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PAIIS142-012Model: PAIIS142 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PAIIS142-015Model: PAIIS142 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PAIIS142-016Model: PAIIS142 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PAIIS142-020Model: PAIIS142 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PAIIS142-025Model: PAIIS142 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PAIIS142-030Model: PAIIS142 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PAIIS142-035Model: PAIIS142 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PAIIS142-040Model: PAIIS142 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PAIIS142-050Model: PAIIS142 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PAIIS142-070Model: PAIIS142 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PAIIS142-081Model: PAIIS142 | Ratio i: 81 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 285 Nm
PAIIS142-100Model: PAIIS142 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PSIISA-003Model: PSIISA | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-004Model: PSIISA | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-005Model: PSIISA | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-007Model: PSIISA | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PSIISA-009Model: PSIISA | Ratio i: 9 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PSIISA-010Model: PSIISA | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PSIISA-012Model: PSIISA | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-015Model: PSIISA | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-016Model: PSIISA | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-020Model: PSIISA | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-025Model: PSIISA | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-030Model: PSIISA | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-035Model: PSIISA | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PSIISA-040Model: PSIISA | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PSIISA-050Model: PSIISA | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PSIISA-070Model: PSIISA | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PSIISA-081Model: PSIISA | Ratio i: 81 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 8 Nm
PSIISA-100Model: PSIISA | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PSIISB-003Model: PSIISB | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-004Model: PSIISB | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-005Model: PSIISB | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-007Model: PSIISB | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PSIISB-009Model: PSIISB | Ratio i: 9 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PSIISB-010Model: PSIISB | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PSIISB-012Model: PSIISB | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-015Model: PSIISB | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-016Model: PSIISB | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-020Model: PSIISB | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PSIISB-025Model: PSIISB | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-030Model: PSIISB | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-035Model: PSIISB | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PSIISB-040Model: PSIISB | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PSIISB-050Model: PSIISB | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PSIISB-070Model: PSIISB | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PSIISB-081Model: PSIISB | Ratio i: 81 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 24 Nm
PSIISB-100Model: PSIISB | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PSIISC-003Model: PSIISC | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PSIISC-004Model: PSIISC | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PSIISC-005Model: PSIISC | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PSIISC-007Model: PSIISC | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PSIISC-009Model: PSIISC | Ratio i: 9 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 60 Nm
PSIISC-010Model: PSIISC | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PSIISC-012Model: PSIISC | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PSIISC-015Model: PSIISC | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PSIISC-016Model: PSIISC | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PSIISC-020Model: PSIISC | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PSIISC-025Model: PSIISC | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PSIISC-030Model: PSIISC | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PSIISC-035Model: PSIISC | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PSIISC-040Model: PSIISC | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PSIISC-050Model: PSIISC | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PSIISC-070Model: PSIISC | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PSIISC-081Model: PSIISC | Ratio i: 81 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 59 Nm
PSIISC-100Model: PSIISC | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PSIISD-003Model: PSIISD | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PSIISD-004Model: PSIISD | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PSIISD-005Model: PSIISD | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PSIISD-007Model: PSIISD | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PSIISD-009Model: PSIISD | Ratio i: 9 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 125 Nm
PSIISD-010Model: PSIISD | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PSIISD-012Model: PSIISD | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PSIISD-015Model: PSIISD | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PSIISD-016Model: PSIISD | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PSIISD-020Model: PSIISD | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PSIISD-025Model: PSIISD | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PSIISD-030Model: PSIISD | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PSIISD-035Model: PSIISD | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PSIISD-040Model: PSIISD | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PSIISD-050Model: PSIISD | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PSIISD-070Model: PSIISD | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PSIISD-081Model: PSIISD | Ratio i: 81 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 131 Nm
PSIISD-100Model: PSIISD | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PSIISE-003Model: PSIISE | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PSIISE-004Model: PSIISE | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PSIISE-005Model: PSIISE | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PSIISE-007Model: PSIISE | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PSIISE-009Model: PSIISE | Ratio i: 9 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 273 Nm
PSIISE-010Model: PSIISE | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PSIISE-012Model: PSIISE | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PSIISE-015Model: PSIISE | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PSIISE-016Model: PSIISE | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PSIISE-020Model: PSIISE | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PSIISE-025Model: PSIISE | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PSIISE-030Model: PSIISE | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PSIISE-035Model: PSIISE | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PSIISE-040Model: PSIISE | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PSIISE-050Model: PSIISE | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PSIISE-070Model: PSIISE | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PSIISE-081Model: PSIISE | Ratio i: 81 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 285 Nm
PSIISE-100Model: PSIISE | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PNIIS017-003Model: PNIIS017 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-004Model: PNIIS017 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-005Model: PNIIS017 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-007Model: PNIIS017 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PNIIS017-010Model: PNIIS017 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PNIIS017-012Model: PNIIS017 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-015Model: PNIIS017 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-016Model: PNIIS017 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-020Model: PNIIS017 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-025Model: PNIIS017 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-030Model: PNIIS017 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-035Model: PNIIS017 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PNIIS017-040Model: PNIIS017 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PNIIS017-050Model: PNIIS017 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PNIIS017-070Model: PNIIS017 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PNIIS017-100Model: PNIIS017 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PNIIS023-003Model: PNIIS023 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-004Model: PNIIS023 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-005Model: PNIIS023 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-007Model: PNIIS023 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PNIIS023-010Model: PNIIS023 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PNIIS023-012Model: PNIIS023 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-015Model: PNIIS023 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-016Model: PNIIS023 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-020Model: PNIIS023 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PNIIS023-025Model: PNIIS023 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-030Model: PNIIS023 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-035Model: PNIIS023 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PNIIS023-040Model: PNIIS023 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PNIIS023-050Model: PNIIS023 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PNIIS023-070Model: PNIIS023 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PNIIS023-100Model: PNIIS023 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PNIIS034-003Model: PNIIS034 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PNIIS034-004Model: PNIIS034 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PNIIS034-005Model: PNIIS034 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PNIIS034-007Model: PNIIS034 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PNIIS034-010Model: PNIIS034 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PNIIS034-012Model: PNIIS034 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PNIIS034-015Model: PNIIS034 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PNIIS034-016Model: PNIIS034 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PNIIS034-020Model: PNIIS034 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PNIIS034-025Model: PNIIS034 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PNIIS034-030Model: PNIIS034 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PNIIS034-035Model: PNIIS034 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PNIIS034-040Model: PNIIS034 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PNIIS034-050Model: PNIIS034 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PNIIS034-070Model: PNIIS034 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PNIIS034-100Model: PNIIS034 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PNIIS042-003Model: PNIIS042 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PNIIS042-004Model: PNIIS042 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PNIIS042-005Model: PNIIS042 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PNIIS042-007Model: PNIIS042 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PNIIS042-010Model: PNIIS042 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PNIIS042-012Model: PNIIS042 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PNIIS042-015Model: PNIIS042 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PNIIS042-016Model: PNIIS042 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PNIIS042-020Model: PNIIS042 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PNIIS042-025Model: PNIIS042 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PNIIS042-030Model: PNIIS042 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PNIIS042-035Model: PNIIS042 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PNIIS042-040Model: PNIIS042 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PNIIS042-050Model: PNIIS042 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PNIIS042-070Model: PNIIS042 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PNIIS042-100Model: PNIIS042 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm
PNIIS056-003Model: PNIIS056 | Ratio i: 3 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PNIIS056-004Model: PNIIS056 | Ratio i: 4 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 440 Nm
PNIIS056-005Model: PNIIS056 | Ratio i: 5 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 435 Nm
PNIIS056-007Model: PNIIS056 | Ratio i: 7 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 366 Nm
PNIIS056-010Model: PNIIS056 | Ratio i: 10 | Stages: 1 | Input shaft dia: 35 mm | Nominal torque T2N: 295 Nm
PNIIS056-012Model: PNIIS056 | Ratio i: 12 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 430 Nm
PNIIS056-015Model: PNIIS056 | Ratio i: 15 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 424 Nm
PNIIS056-016Model: PNIIS056 | Ratio i: 16 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 452 Nm
PNIIS056-020Model: PNIIS056 | Ratio i: 20 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 454 Nm
PNIIS056-025Model: PNIIS056 | Ratio i: 25 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PNIIS056-030Model: PNIIS056 | Ratio i: 30 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 422 Nm
PNIIS056-035Model: PNIIS056 | Ratio i: 35 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PNIIS056-040Model: PNIIS056 | Ratio i: 40 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 459 Nm
PNIIS056-050Model: PNIIS056 | Ratio i: 50 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 450 Nm
PNIIS056-070Model: PNIIS056 | Ratio i: 70 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 382 Nm
PNIIS056-100Model: PNIIS056 | Ratio i: 100 | Stages: 2 | Input shaft dia: 35 mm | Nominal torque T2N: 308 Nm
PDS053-003Model: PDS053 | Ratio i: 3 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-004Model: PDS053 | Ratio i: 4 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-005Model: PDS053 | Ratio i: 5 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-007Model: PDS053 | Ratio i: 7 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PDS053-010Model: PDS053 | Ratio i: 10 | Stages: 1 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PDS053-012Model: PDS053 | Ratio i: 12 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-015Model: PDS053 | Ratio i: 15 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-016Model: PDS053 | Ratio i: 16 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-020Model: PDS053 | Ratio i: 20 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-025Model: PDS053 | Ratio i: 25 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-030Model: PDS053 | Ratio i: 30 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-035Model: PDS053 | Ratio i: 35 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PDS053-040Model: PDS053 | Ratio i: 40 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 16 Nm
PDS053-050Model: PDS053 | Ratio i: 50 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 15 Nm
PDS053-070Model: PDS053 | Ratio i: 70 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 12 Nm
PDS053-100Model: PDS053 | Ratio i: 100 | Stages: 2 | Input shaft dia: 8 mm | Nominal torque T2N: 10 Nm
PDS064-003Model: PDS064 | Ratio i: 3 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-004Model: PDS064 | Ratio i: 4 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-005Model: PDS064 | Ratio i: 5 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-007Model: PDS064 | Ratio i: 7 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PDS064-010Model: PDS064 | Ratio i: 10 | Stages: 1 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PDS064-012Model: PDS064 | Ratio i: 12 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-015Model: PDS064 | Ratio i: 15 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-016Model: PDS064 | Ratio i: 16 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-020Model: PDS064 | Ratio i: 20 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 42 Nm
PDS064-025Model: PDS064 | Ratio i: 25 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-030Model: PDS064 | Ratio i: 30 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-035Model: PDS064 | Ratio i: 35 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PDS064-040Model: PDS064 | Ratio i: 40 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 43 Nm
PDS064-050Model: PDS064 | Ratio i: 50 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 40 Nm
PDS064-070Model: PDS064 | Ratio i: 70 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 35 Nm
PDS064-100Model: PDS064 | Ratio i: 100 | Stages: 2 | Input shaft dia: 10 mm | Nominal torque T2N: 27 Nm
PDS090-003Model: PDS090 | Ratio i: 3 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PDS090-004Model: PDS090 | Ratio i: 4 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 113 Nm
PDS090-005Model: PDS090 | Ratio i: 5 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 118 Nm
PDS090-007Model: PDS090 | Ratio i: 7 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 96 Nm
PDS090-010Model: PDS090 | Ratio i: 10 | Stages: 1 | Input shaft dia: 16 mm | Nominal torque T2N: 68 Nm
PDS090-012Model: PDS090 | Ratio i: 12 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 110 Nm
PDS090-015Model: PDS090 | Ratio i: 15 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 109 Nm
PDS090-016Model: PDS090 | Ratio i: 16 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PDS090-020Model: PDS090 | Ratio i: 20 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 116 Nm
PDS090-025Model: PDS090 | Ratio i: 25 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PDS090-030Model: PDS090 | Ratio i: 30 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 108 Nm
PDS090-035Model: PDS090 | Ratio i: 35 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PDS090-040Model: PDS090 | Ratio i: 40 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 117 Nm
PDS090-050Model: PDS090 | Ratio i: 50 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 123 Nm
PDS090-070Model: PDS090 | Ratio i: 70 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 100 Nm
PDS090-100Model: PDS090 | Ratio i: 100 | Stages: 2 | Input shaft dia: 16 mm | Nominal torque T2N: 70 Nm
PDS110-003Model: PDS110 | Ratio i: 3 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PDS110-004Model: PDS110 | Ratio i: 4 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 223 Nm
PDS110-005Model: PDS110 | Ratio i: 5 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 220 Nm
PDS110-007Model: PDS110 | Ratio i: 7 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 198 Nm
PDS110-010Model: PDS110 | Ratio i: 10 | Stages: 1 | Input shaft dia: 20 mm | Nominal torque T2N: 155 Nm
PDS110-012Model: PDS110 | Ratio i: 12 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 217 Nm
PDS110-015Model: PDS110 | Ratio i: 15 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 213 Nm
PDS110-016Model: PDS110 | Ratio i: 16 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PDS110-020Model: PDS110 | Ratio i: 20 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 230 Nm
PDS110-025Model: PDS110 | Ratio i: 25 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PDS110-030Model: PDS110 | Ratio i: 30 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 212 Nm
PDS110-035Model: PDS110 | Ratio i: 35 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PDS110-040Model: PDS110 | Ratio i: 40 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 232 Nm
PDS110-050Model: PDS110 | Ratio i: 50 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 228 Nm
PDS110-070Model: PDS110 | Ratio i: 70 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 206 Nm
PDS110-100Model: PDS110 | Ratio i: 100 | Stages: 2 | Input shaft dia: 20 mm | Nominal torque T2N: 162 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
