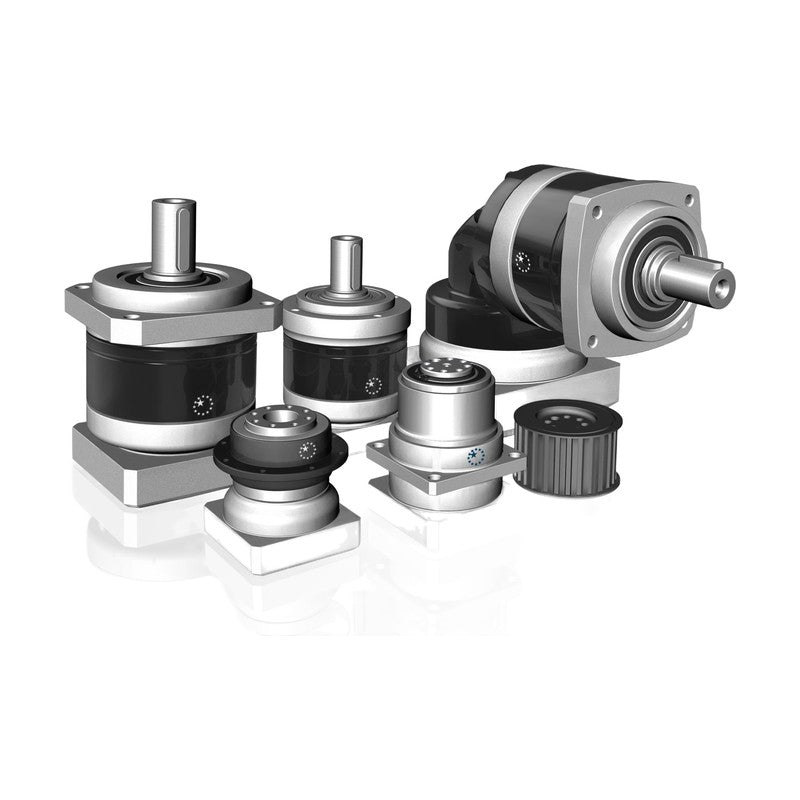

Apex Dynamics PL Pulley Planetary Gearboxes (070-120)

Apex Dynamics PL Pulley Planetary Gearboxes (070-120)

Apex Dynamics PL inline planetary gearboxes designed for belt-pulley output, frame sizes 070-120, ratios 3-100.

Key features

  • New Generation P series: economic, high efficiency, low noise, reduced backlash, compact and light
  • Output flange designed for mounting a timing-belt pulley (PL+Pulley combination available)
  • Max. belt tension 560 N (070), 950 N (090), 1,200 N (120)
  • High radial load capacity F2rB 2,600 to 6,550 N
  • Ratios 3-10 (1-stage) and 12-100 (2-stage); nominal output torque 27-143 Nm
  • Motor adapter (input hub) matched to the servo motor; specify motor make and model when ordering

Specifications

Series PL
Output Flange for belt pulley
Emergency stop torque T2NOT 3 x T2N
Max. acceleration torque T2B 60% of T2NOT
Nominal input speed n1N 4,000 (070) to 3,600 (120) rpm
Max. input speed n1B 6,000 (070) to 4,800 (120) rpm
Torsional rigidity 2.2 to 12 Nm/arcmin
Efficiency >=97% / >=94%
Protection IP65
Operating temperature 0 to +90 C
Source APEX Dynamics PII/PIIR catalog, p. 32-37
PL070-003 Frame: 070 | Ratio i: 3 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 30 Nm
PL070-004 Frame: 070 | Ratio i: 4 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 39 Nm
PL070-005 Frame: 070 | Ratio i: 5 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 40 Nm
PL070-007 Frame: 070 | Ratio i: 7 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 37 Nm
PL070-010 Frame: 070 | Ratio i: 10 | Stages: 1 | Backlash: <=7 arcmin | Nominal torque T2N: 27 Nm
PL070-012 Frame: 070 | Ratio i: 12 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 31 Nm
PL070-015 Frame: 070 | Ratio i: 15 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 31 Nm
PL070-016 Frame: 070 | Ratio i: 16 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 39 Nm
PL070-020 Frame: 070 | Ratio i: 20 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 39 Nm
PL070-025 Frame: 070 | Ratio i: 25 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 40 Nm
PL070-030 Frame: 070 | Ratio i: 30 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 32 Nm
PL070-035 Frame: 070 | Ratio i: 35 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 36 Nm
PL070-040 Frame: 070 | Ratio i: 40 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 41 Nm
PL070-050 Frame: 070 | Ratio i: 50 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 42 Nm
PL070-070 Frame: 070 | Ratio i: 70 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 37 Nm
PL070-100 Frame: 070 | Ratio i: 100 | Stages: 2 | Backlash: <=9 arcmin | Nominal torque T2N: 27 Nm
PL090-003 Frame: 090 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 67 Nm
PL090-004 Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 86 Nm
PL090-005 Frame: 090 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 89 Nm
PL090-007 Frame: 090 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 80 Nm
PL090-010 Frame: 090 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 59 Nm
PL090-012 Frame: 090 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 69 Nm
PL090-015 Frame: 090 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 70 Nm
PL090-016 Frame: 090 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 86 Nm
PL090-020 Frame: 090 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 88 Nm
PL090-025 Frame: 090 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 89 Nm
PL090-030 Frame: 090 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 72 Nm
PL090-035 Frame: 090 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 80 Nm
PL090-040 Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 92 Nm
PL090-050 Frame: 090 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 90 Nm
PL090-070 Frame: 090 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 81 Nm
PL090-100 Frame: 090 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 59 Nm
PL120-003 Frame: 120 | Ratio i: 3 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 107 Nm
PL120-004 Frame: 120 | Ratio i: 4 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 137 Nm
PL120-005 Frame: 120 | Ratio i: 5 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 140 Nm
PL120-007 Frame: 120 | Ratio i: 7 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 128 Nm
PL120-010 Frame: 120 | Ratio i: 10 | Stages: 1 | Backlash: <=6 arcmin | Nominal torque T2N: 93 Nm
PL120-012 Frame: 120 | Ratio i: 12 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 109 Nm
PL120-015 Frame: 120 | Ratio i: 15 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 110 Nm
PL120-016 Frame: 120 | Ratio i: 16 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 137 Nm
PL120-020 Frame: 120 | Ratio i: 20 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 141 Nm
PL120-025 Frame: 120 | Ratio i: 25 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 140 Nm
PL120-030 Frame: 120 | Ratio i: 30 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 111 Nm
PL120-035 Frame: 120 | Ratio i: 35 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 130 Nm
PL120-040 Frame: 120 | Ratio i: 40 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 143 Nm
PL120-050 Frame: 120 | Ratio i: 50 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 143 Nm
PL120-070 Frame: 120 | Ratio i: 70 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 131 Nm
PL120-100 Frame: 120 | Ratio i: 100 | Stages: 2 | Backlash: <=8 arcmin | Nominal torque T2N: 93 Nm
