• ASAHI Ball End Hex L-Key Metric AQ
1 1

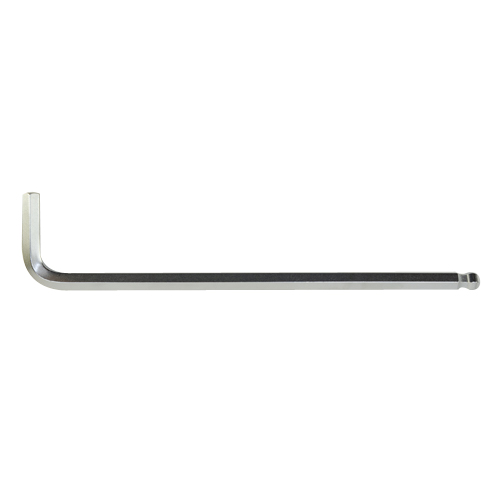

ASAHI Ball End Hex L-Key Metric AQ

ASAHI Ball End Hex L-Key Metric AQ

Ball end hex L-key.

Key features

  • Max 25° working angle
  • Ultra-high-strength alloy steel (6mm and below) / Cr-V (8mm and above)
  • Multi-country origin, Korean design
  • Sold individually in metric sizes from 1.5mm to 19mm
207-2001 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0150) | Size: 1.5mm / L1: 14 / L2: 90
207-2010 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0200) | Size: 2mm / L1: 16 / L2: 100
207-2029 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0250) | Size: 2.5mm / L1: 18 / L2: 112
207-2038 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0300) | Size: 3mm / L1: 20 / L2: 126
207-2047 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0400) | Size: 4mm / L1: 23 / L2: 142
207-2056 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0500) | Size: 5mm / L1: 28 / L2: 160
207-2065 Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0600) | Size: 6mm / L1: 32 / L2: 180
207-2074 Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ0800) | Size: 8mm / L1: 36 / L2: 200
207-2083 Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1000) | Size: 10mm / L1: 40 / L2: 224
207-2092 Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1200) | Size: 12mm / L1: 45 / L2: 250
207-2108 Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1400) | Size: 14mm / L1: 56 / L2: 280
207-2117 Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1700) | Size: 17mm / L1: 63 / L2: 320
207-2126 Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1900) | Size: 19mm / L1: 70 / L2: 360
Ball EndASAHI
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ASAHI Ball End Hex L-Key Metric AQ

Brand ASAHI·Ball End

Available part numbers (13)

207-2001, 207-2010, 207-2029, 207-2038, 207-2047, 207-2056, 207-2065, 207-2074, 207-2083, 207-2092 + 3 more — see full table ↓

How to order

Send the ASAHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
207-2001Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0150) | Size: 1.5mm / L1: 14 / L2: 90
207-2010Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0200) | Size: 2mm / L1: 16 / L2: 100
207-2029Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0250) | Size: 2.5mm / L1: 18 / L2: 112
207-2038Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0300) | Size: 3mm / L1: 20 / L2: 126
207-2047Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0400) | Size: 4mm / L1: 23 / L2: 142
207-2056Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0500) | Size: 5mm / L1: 28 / L2: 160
207-2065Ball end hex L-key, ultra-high-strength alloy steel, 25° max angle, individual piece (AQ0600) | Size: 6mm / L1: 32 / L2: 180
207-2074Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ0800) | Size: 8mm / L1: 36 / L2: 200
207-2083Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1000) | Size: 10mm / L1: 40 / L2: 224
207-2092Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1200) | Size: 12mm / L1: 45 / L2: 250
207-2108Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1400) | Size: 14mm / L1: 56 / L2: 280
207-2117Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1700) | Size: 17mm / L1: 63 / L2: 320
207-2126Ball end hex L-key, CR-V, 25° max angle, individual piece (AQ1900) | Size: 19mm / L1: 70 / L2: 360
