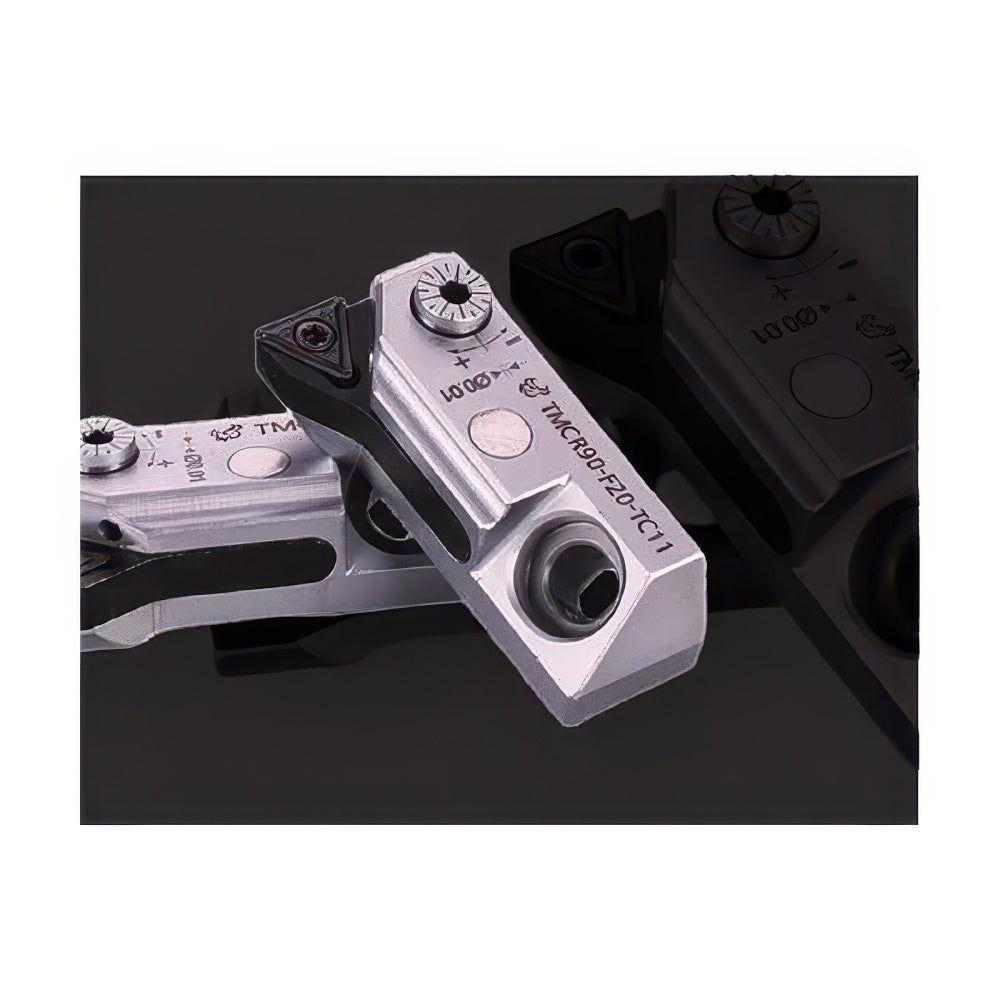

TAUMAX TMC Precision Micro Adjusting Cartridge

Micro-adjustable boring cartridges with internal coolant for fine diameter adjustment in 0.01 mm steps.

Key features

Right- and left-hand versions with internal coolant
Minimum boring diameter 28 mm
90° and 95° lead angle versions
Diameter adjustable in 0.01 mm steps within 0.3 mm radial range
Axial adjustment range 1.0 mm

Specifications

Unit	mm
Corner radius	0.4 mm
Package weight	1 kg

TMCR90-F16-CC06		Lead angle: 90° \| Hand: Right \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: CC..0602.. \| Package weight: 1 kg
TMCL90-F16-CC06		Lead angle: 90° \| Hand: Left \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: CC..0602.. \| Package weight: 1 kg
TMCR95-F16-CC06		Lead angle: 95° \| Hand: Right \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: CC..0602.. \| Package weight: 1 kg
TMCL95-F16-CC06		Lead angle: 95° \| Hand: Left \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: CC..0602.. \| Package weight: 1 kg
TMCR90-F16-TP09		Lead angle: 90° \| Hand: Right \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: TP..0902.. \| Package weight: 1 kg
TMCL90-F16-TP09		Lead angle: 90° \| Hand: Left \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: TP..0902.. \| Package weight: 1 kg
TMCR/L95-F16-TP09		Lead angle: 95° \| Hand: Right/Left \| Cartridge size (F): 16 mm \| Min. bore dia.: 28 mm \| Corner radius: 0.4 mm \| Insert: TP..0902.. \| Package weight: 1 kg
TMCR90-F20-TC11		Lead angle: 90° \| Hand: Right \| Cartridge size (F): 20 mm \| Min. bore dia.: 36 mm \| Corner radius: 0.4 mm \| Insert: TC..1102.. \| Package weight: 1 kg
TMCL90-F20-TC11		Lead angle: 90° \| Hand: Left \| Cartridge size (F): 20 mm \| Min. bore dia.: 36 mm \| Corner radius: 0.4 mm \| Insert: TC..1102.. \| Package weight: 1 kg
TMCR/L95-F20-TC11		Lead angle: 95° \| Hand: Right/Left \| Cartridge size (F): 20 mm \| Min. bore dia.: 36 mm \| Corner radius: 0.4 mm \| Insert: TC..1102.. \| Package weight: 1 kg
TMCR/L90-F20-TP11		Lead angle: 90° \| Hand: Right/Left \| Cartridge size (F): 20 mm \| Min. bore dia.: 36 mm \| Corner radius: 0.4 mm \| Insert: TP..1103.. \| Package weight: 1 kg
TMCR/L95-F20-TP11		Lead angle: 95° \| Hand: Right/Left \| Cartridge size (F): 20 mm \| Min. bore dia.: 36 mm \| Corner radius: 0.4 mm \| Insert: TP..1103.. \| Package weight: 1 kg
TMCR90-F22-CC09		Lead angle: 90° \| Hand: Right \| Cartridge size (F): 22 mm \| Min. bore dia.: 34 mm \| Corner radius: 0.4 mm \| Insert: CC..09 \| Package weight: 1 kg
TMCR120-F16-DC07		Lead angle: 120° \| Hand: Right \| Cartridge size (F): 16 mm \| Min. bore dia.: 34 mm \| Corner radius: 0.4 mm \| Insert: DC..07 \| Package weight: 1 kg

Boring CartridgesTAUMAX

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX TMC Precision Micro Adjusting Cartridge

Brand TAUMAX·Boring Cartridges

Available part numbers (14)

TMCR90-F16-CC06, TMCL90-F16-CC06, TMCR95-F16-CC06, TMCL95-F16-CC06, TMCR90-F16-TP09, TMCL90-F16-TP09, TMCR/L95-F16-TP09, TMCR90-F20-TC11, TMCL90-F20-TC11, TMCR/L95-F20-TC11 + 4 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
