• Autonics SPRS Series Modular Multi-Channel Power Controllers
1 1

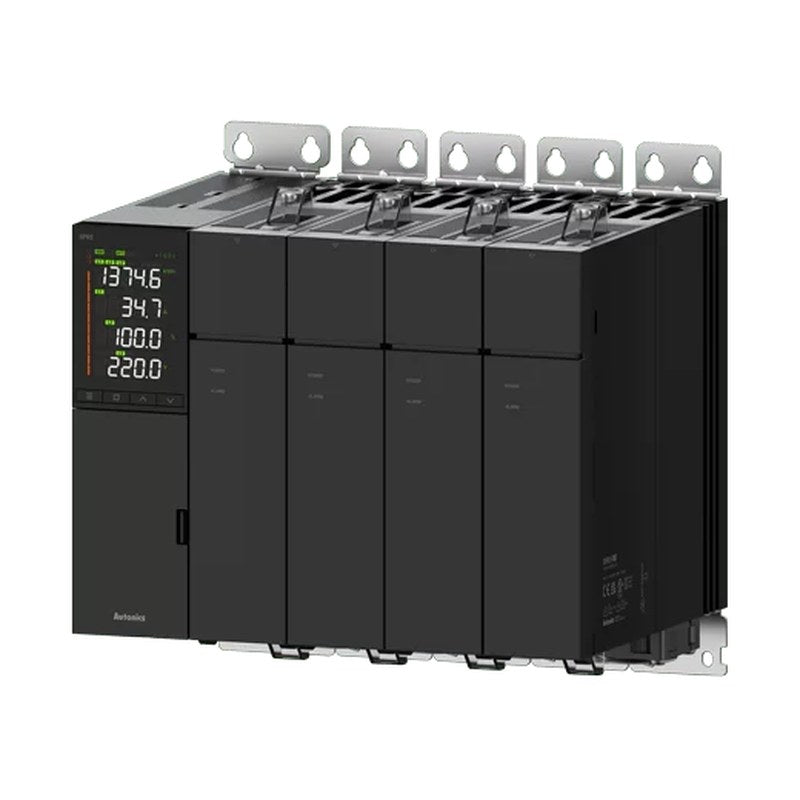

Autonics SPRS Series Modular Multi-Channel Power Controllers

Autonics SPRS Series Modular Multi-Channel Power Controllers

The SPRS series modular multi-channel power controllers combine control modules and power modules to accurately control temperature of heating machinery.

Key features

  • Modular power controllers with separate control and power modules
  • Connect up to 4 power modules to a single control module
  • Various rated current models : 25A to 600A
  • Single-phase control or three-phase control selectable
  • Various functions - power distribution control (cycle control), alarm history, PI control, self-diagnosis, dual single-phase control, input voltage monitoring etc.
  • Various alarms functions - heater break, partial heater break, fuse break, heatsink overheat, overcurrent, FAN error, etc.

Specifications

Brand Autonics (Korea)
Series SPRS
Control phase Single-phase control, single-phase dual control, 3-phase control (wiring and parameter setting)
Source Autonics official model list (autonics.com, SPRS series page)
SPRS-CM-EI Rated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + EtherNet/IP
SPRS-CM-R Rated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485
SPRS-CM-CL Rated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + CC-Link
SPRS-CM-EC Rated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + EtherCAT
SPRS-CM-PN Rated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + PROFINET
SPRS-F400 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 400A | Display method: - | Communication output: -
SPRS-F500 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 500A | Display method: - | Communication output: -
SPRS-F600 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 600A | Display method: - | Communication output: -
SPRS-F110 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 110A | Display method: - | Communication output: -
SPRS-F150 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 150A | Display method: - | Communication output: -
SPRS-F180 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 180A | Display method: - | Communication output: -
SPRS-F200 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 200A | Display method: - | Communication output: -
SPRS-F25 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 25A | Display method: - | Communication output: -
SPRS-F250 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 250A | Display method: - | Communication output: -
SPRS-F350 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 350A | Display method: - | Communication output: -
SPRS-F40 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 40A | Display method: - | Communication output: -
SPRS-F55 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 55A | Display method: - | Communication output: -
SPRS-F70 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 70A | Display method: - | Communication output: -
SPRS-F90 Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 90A | Display method: - | Communication output: -
Power ControllerAutonics
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics SPRS Series Modular Multi-Channel Power Controllers

Brand Autonics·Power Controller

Available part numbers (19)

SPRS-CM-EI, SPRS-CM-R, SPRS-CM-CL, SPRS-CM-EC, SPRS-CM-PN, SPRS-F400, SPRS-F500, SPRS-F600, SPRS-F110, SPRS-F150 + 9 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPRS-CM-EIRated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + EtherNet/IP
SPRS-CM-RRated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485
SPRS-CM-CLRated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + CC-Link
SPRS-CM-ECRated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + EtherCAT
SPRS-CM-PNRated load voltage: - | Rated load current: - | Display method: 5 digit 11 segment LCD (white) × 4,… | Communication output: RS485 + PROFINET
SPRS-F400Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 400A | Display method: - | Communication output: -
SPRS-F500Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 500A | Display method: - | Communication output: -
SPRS-F600Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 600A | Display method: - | Communication output: -
SPRS-F110Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 110A | Display method: - | Communication output: -
SPRS-F150Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 150A | Display method: - | Communication output: -
SPRS-F180Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 180A | Display method: - | Communication output: -
SPRS-F200Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 200A | Display method: - | Communication output: -
SPRS-F25Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 25A | Display method: - | Communication output: -
SPRS-F250Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 250A | Display method: - | Communication output: -
SPRS-F350Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 350A | Display method: - | Communication output: -
SPRS-F40Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 40A | Display method: - | Communication output: -
SPRS-F55Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 55A | Display method: - | Communication output: -
SPRS-F70Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 70A | Display method: - | Communication output: -
SPRS-F90Rated load voltage: Free voltage 220 - 490 VAC~ 50 / 60 Hz | Rated load current: 90A | Display method: - | Communication output: -
