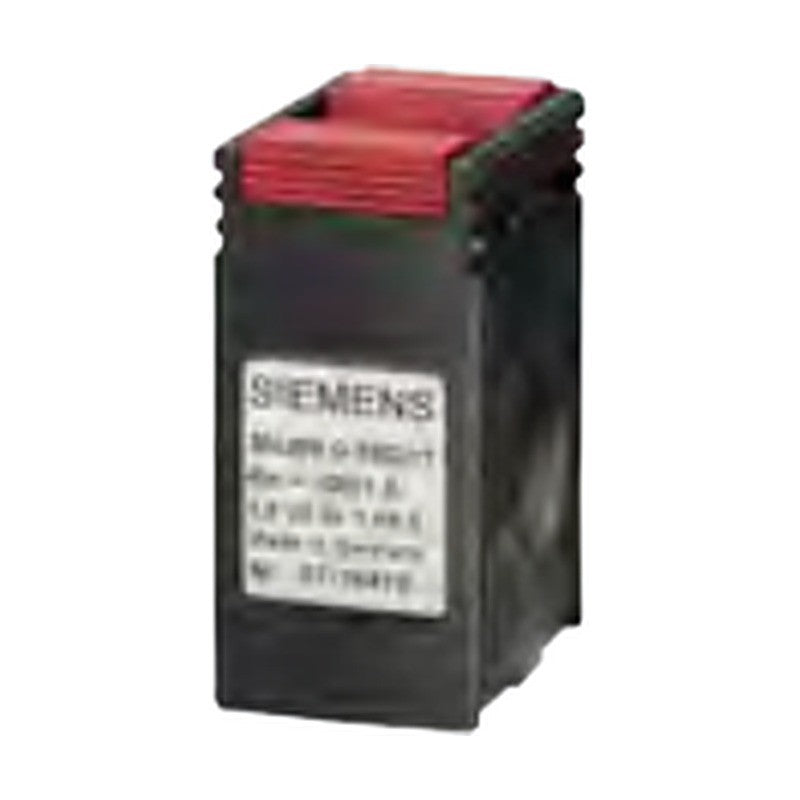

Siemens 3NJ6 Calibrated & 7KT 3-Phase Current Transformers

Siemens 3NJ6 Calibrated & 7KT 3-Phase Current Transformers

Calibrated 3NJ6 1-phase and 7KT 3-phase bushing-type current transformers for measurement purposes.

Key features

  • 3NJ6 calibrated 1-phase CTs 100-600 A, accuracy class 0.5, 5 A or 1 A secondary
  • 3NJ6 inner diameters 14, 15 and 32 mm; overcurrent limiting factor FS5
  • 7KT 3-phase CTs 60-150 A, accuracy class 1.0, 5 A secondary, 13 mm openings
  • Maximum voltage for equipment Um = 720 V (rms)

Specifications

Series 3NJ6 / 7KT
Purpose Measurement
Max. voltage for equipment Um = 720 V
Mounting Bushing type
Source Siemens Catalog LV 10 · 2026, p. 846-847
7KT1200 Type: 7KT 3-phase | Inner diameter: 13 mm | Primary current: 60 A / 100 A | Secondary current: 5 A | Rated power: 1.25 VA / 2.5 VA | Accuracy class: 1.0
7KT1202 Type: 7KT 3-phase | Inner diameter: 13 mm | Primary current: 150 A | Secondary current: 5 A | Rated power: 3.75 VA | Accuracy class: 1.0
AccessoriesSiemens
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens 3NJ6 Calibrated & 7KT 3-Phase Current Transformers

Brand Siemens·Accessories

Available part numbers (2)

7KT1200, 7KT1202

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7KT1200Type: 7KT 3-phase | Inner diameter: 13 mm | Primary current: 60 A / 100 A | Secondary current: 5 A | Rated power: 1.25 VA / 2.5 VA | Accuracy class: 1.0
7KT1202Type: 7KT 3-phase | Inner diameter: 13 mm | Primary current: 150 A | Secondary current: 5 A | Rated power: 3.75 VA | Accuracy class: 1.0
