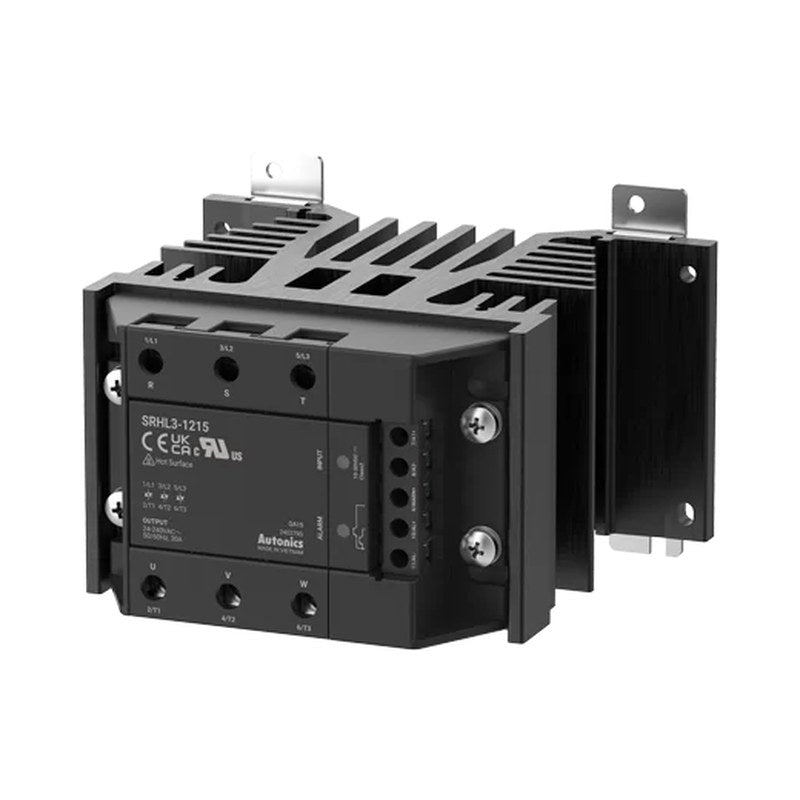

Autonics SRHL3 Series Three-Phase SSRs

Autonics SRHL3 Series Three-Phase SSRs

The SRHL3 series three phase solid state relays with an integrated heatsink and overheat prevention enable reliable control of high-power loads for industrial equipment large motors, high-capacity heaters and more.

Key features

  • Rated input voltage : 10-30VDC, 24VAC, 90-240VAC
  • Rated load voltage : 24-240VAC, 48-480VAC
  • Rated load current : 15A, 30A, 40A, 50A, 75A
  • Zero cross turn-on and random turn-on models available
  • Dielectric strength : 2,500VAC
  • Overheat prevention function : Warning output, Alarm indicator (Red LED), Alarm output

Specifications

Brand Autonics (Korea)
Series SRHL3
Control phase 3-phase
Source Autonics official model list (autonics.com, SRHL3 series page)
SRHL3-1215 Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-1230 Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-1250 Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-1275 Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-4215 Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-4230 Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-4250 Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-4275 Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-1415 Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-1430 Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-1440 Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Zero cross turn-on
SRHL3-1450 Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-1475 Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-2415 Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-2430 Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-2440 Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Zero cross turn-on
SRHL3-2450 Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-2475 Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-4415 Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-4430 Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-4440 Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Zero cross turn-on
SRHL3-4450 Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-4475 Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-1415R Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Random turn-on
SRHL3-1430R Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Random turn-on
SRHL3-1440R Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Random turn-on
SRHL3-1450R Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Random turn-on
SRHL3-1475R Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Random turn-on
Solid State RelayAutonics
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics SRHL3 Series Three-Phase SSRs

Brand Autonics·Solid State Relay

Available part numbers (28)

SRHL3-1215, SRHL3-1230, SRHL3-1250, SRHL3-1275, SRHL3-4215, SRHL3-4230, SRHL3-4250, SRHL3-4275, SRHL3-1415, SRHL3-1430 + 18 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRHL3-1215Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-1230Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-1250Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-1275Rated input voltage: 10-30VDC DC | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-4215Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-4230Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-4250Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-4275Rated input voltage: 90-240VAC~ | Rated load voltage: 24-240VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-1415Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-1430Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-1440Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Zero cross turn-on
SRHL3-1450Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-1475Rated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-2415Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-2430Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-2440Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Zero cross turn-on
SRHL3-2450Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-2475Rated input voltage: 24VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-4415Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Zero cross turn-on
SRHL3-4430Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Zero cross turn-on
SRHL3-4440Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Zero cross turn-on
SRHL3-4450Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Zero cross turn-on
SRHL3-4475Rated input voltage: 90-240VAC~ | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Zero cross turn-on
SRHL3-1415RRated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 15A | Function: Random turn-on
SRHL3-1430RRated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 30A | Function: Random turn-on
SRHL3-1440RRated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 40A | Function: Random turn-on
SRHL3-1450RRated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 50A | Function: Random turn-on
SRHL3-1475RRated input voltage: 10-30VDC DC | Rated load voltage: 48-480VAC~ (50/60Hz) | Rated load current: 75A | Function: Random turn-on
