• BlueTec S08K SCLCR06 Holder Internal Boring Bar
1 1

BlueTec S08K SCLCR06 Holder Internal Boring Bar

BlueTec S08K SCLCR06 Holder Internal Boring Bar

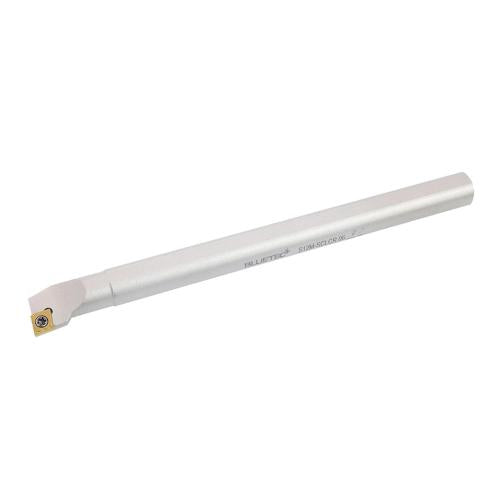

The BlueTec S08K SCLCR06 is an internal boring bar holder designed to securely clamp SCLCR-style carbide inserts for precision inner-diameter turning operations, sourced direct from Korea.

Key features

  • Machinists and CNC operators rely on boring bar holders like this to achieve accurate bore finishing, tight dimensional control, and repeatable toolpath performance on lathes and turning centers
349-5582 S08K SCLCR06 | Spec: S08K SCLCR 06 | Min. bore: 11 | Applicable insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5591 S10K SCLCR06 | Spec: S10K SCLCR 06 | Min. bore: 13 | Applicable insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5607 S12M SCLCR06 | Spec: S12M SCLCR 06 | Min. bore: 16 | Applicable insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5625 S16R SCLCR06 | Spec: S16R SCLCR 06 | Minimum Diameter: 20 | Applicable Insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5634 S16R SCLCR09 | Spec: S16R SCLCR 09 | Min. bore: 20 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5643 S20S SCLCR09 | Spec: S20S SCLCR 09 | Min. bore: 25 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5652 S25T SCLCR09 | Spec: S25T SCLCR 09 | Min. bore: 32 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5661 S25T SCLCR12 | Spec: S25T SCLCR 12 | Min. bore: 32 | Applicable insert: CC□T 1204 □□ | Wrench: T20 | Screw: L60M5*12-7.2
349-5698 S20S SCLCL09 | Spec: S20S SCLCL 09 | Min. bore: 25 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5740 S10K SDQCR07 | Spec: S10K SDQCR 07 | Min. bore: 13 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5759 S12M SDQCR07 | Spec: S12M SDQCR 07 | Min. bore: 16 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5768 S16R SDQCR07 | Spec: S16R SDQCR 07 | Min. bore: 20 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5777 S16R SDQCR11 | Spec: S16R SDQCR 11 | Min. bore: 20 | Applicable insert: DC□T 0702 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5786 S20S SDQCR11 | Spec: S20S SDQCR 11 | Min. bore: 25 | Applicable insert: DC□T 0702 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5795 S25T SDQCR11 | Spec: S25T SDQCR 11 | Min. bore: 32 | Applicable insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5801 S10K SDUCR07 | Spec: S12M SDUCR 07 | Min. bore: 13 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5810 S12M SDUCR07 | Spec: S12M SDUCR 07 | Min. bore: 16 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5829 S16R SDUCR07 | Spec: S16R SDUCR 07 | Min. bore: 20 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5838 S16R SDUCR11 | Spec: S16R SDUCR 11 | Min. bore: 20 | Applicable insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5847 S20S SDUCR11 | Spec: S20S SDUCR 11 | Min. bore: 25 | Applicable insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5856 S25T SDUCR11 | Spec: S25T SDUCR 11 | Minimum Diameter: 32 | Applicable Insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5865 S32U SDUCR11 | Spec: S32U SDUCR 11 | Minimum Diameter: 40 | Applicable Insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5874 S08K STFCR09 | Spec: S08K STFCR 09 | Min. bore: 11 | Applicable insert: TC□T 0902 □□ | Wrench: T06 | Screw: L60M2.2*5
349-5883 S10K STFCR09 | Spec: S10K STFCR 09 | Min. bore: 13 | Applicable insert: TC□T 0902 □□ | Wrench: T06 | Screw: L60M2.2*5
349-5908 S12M STFCR11 | Spec: S12M STFCR 11 | Min. bore: 16 | Applicable insert: TC□T 1102 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5917 S16R STFCR11 | Spec: S16R STFCR 11 | Minimum Diameter: 20 | Applicable Insert: TC□T 1102 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5926 S16R STFCR16 | Spec: S16R STFCR 16 | Min. bore: 20 | Applicable insert: TC□T 16T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5935 S20S STFCR11 | Spec: S20S STFCR 11 | Min. bore: 25 | Applicable insert: TC□T 1102 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5944 S20S STFCR16 | Spec: S20S STFCR 16 | Min. bore: 25 | Applicable insert: TC□T 16T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5953 S25T STFCR16 | Spec: S25T STFCR 16 | Min. bore: 32 | Applicable insert: TC□T 16T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
389-1528 MPN: ST35085-60 | SO 35080I(ST35085-60) | a: 5.3 | b: 1.4 | c: 8.5 | M: M3.5x0.6 | Wrench: T15 | Related product No.: SO35080I | A(˚): 60
389-1607 MPN: ST2206-60 | SO 22050I(ST2206-60) | a: 3.1 | b: 0.8 | c: 6 | M: M2.2x0.45 | Wrench: T7 | Related product No.: SO22050I | A(˚): 60
389-1643 MPN: ST4510-60 | SO 45100I(ST4510-60) | a: 7 | b: 0.9 | c: 10 | M: M4.5x0.75 | Wrench: T20 | Related product No.: SO45100I | A(˚): 60
Carbide Inserts & HoldersBlueTec
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

BlueTec S08K SCLCR06 Holder Internal Boring Bar

Brand BlueTec·Carbide Inserts & Holders

Available part numbers (33)

349-5582, 349-5591, 349-5607, 349-5625, 349-5634, 349-5643, 349-5652, 349-5661, 349-5698, 349-5740 + 23 more — see full table ↓

How to order

Send the BlueTec part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
349-5582S08K SCLCR06 | Spec: S08K SCLCR 06 | Min. bore: 11 | Applicable insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5591S10K SCLCR06 | Spec: S10K SCLCR 06 | Min. bore: 13 | Applicable insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5607S12M SCLCR06 | Spec: S12M SCLCR 06 | Min. bore: 16 | Applicable insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5625S16R SCLCR06 | Spec: S16R SCLCR 06 | Minimum Diameter: 20 | Applicable Insert: CC□T 0602 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5634S16R SCLCR09 | Spec: S16R SCLCR 09 | Min. bore: 20 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5643S20S SCLCR09 | Spec: S20S SCLCR 09 | Min. bore: 25 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5652S25T SCLCR09 | Spec: S25T SCLCR 09 | Min. bore: 32 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5661S25T SCLCR12 | Spec: S25T SCLCR 12 | Min. bore: 32 | Applicable insert: CC□T 1204 □□ | Wrench: T20 | Screw: L60M5*12-7.2
349-5698S20S SCLCL09 | Spec: S20S SCLCL 09 | Min. bore: 25 | Applicable insert: CC□T 09T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5740S10K SDQCR07 | Spec: S10K SDQCR 07 | Min. bore: 13 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5759S12M SDQCR07 | Spec: S12M SDQCR 07 | Min. bore: 16 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5768S16R SDQCR07 | Spec: S16R SDQCR 07 | Min. bore: 20 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5777S16R SDQCR11 | Spec: S16R SDQCR 11 | Min. bore: 20 | Applicable insert: DC□T 0702 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5786S20S SDQCR11 | Spec: S20S SDQCR 11 | Min. bore: 25 | Applicable insert: DC□T 0702 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5795S25T SDQCR11 | Spec: S25T SDQCR 11 | Min. bore: 32 | Applicable insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5801S10K SDUCR07 | Spec: S12M SDUCR 07 | Min. bore: 13 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5810S12M SDUCR07 | Spec: S12M SDUCR 07 | Min. bore: 16 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5829S16R SDUCR07 | Spec: S16R SDUCR 07 | Min. bore: 20 | Applicable insert: DC□T 0702 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5838S16R SDUCR11 | Spec: S16R SDUCR 11 | Min. bore: 20 | Applicable insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5847S20S SDUCR11 | Spec: S20S SDUCR 11 | Min. bore: 25 | Applicable insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5856S25T SDUCR11 | Spec: S25T SDUCR 11 | Minimum Diameter: 32 | Applicable Insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5865S32U SDUCR11 | Spec: S32U SDUCR 11 | Minimum Diameter: 40 | Applicable Insert: DC□T 11T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5874S08K STFCR09 | Spec: S08K STFCR 09 | Min. bore: 11 | Applicable insert: TC□T 0902 □□ | Wrench: T06 | Screw: L60M2.2*5
349-5883S10K STFCR09 | Spec: S10K STFCR 09 | Min. bore: 13 | Applicable insert: TC□T 0902 □□ | Wrench: T06 | Screw: L60M2.2*5
349-5908S12M STFCR11 | Spec: S12M STFCR 11 | Min. bore: 16 | Applicable insert: TC□T 1102 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5917S16R STFCR11 | Spec: S16R STFCR 11 | Minimum Diameter: 20 | Applicable Insert: TC□T 1102 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5926S16R STFCR16 | Spec: S16R STFCR 16 | Min. bore: 20 | Applicable insert: TC□T 16T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5935S20S STFCR11 | Spec: S20S STFCR 11 | Min. bore: 25 | Applicable insert: TC□T 1102 □□ | Wrench: T08 | Screw: L60M2.5*5-3.6
349-5944S20S STFCR16 | Spec: S20S STFCR 16 | Min. bore: 25 | Applicable insert: TC□T 16T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
349-5953S25T STFCR16 | Spec: S25T STFCR 16 | Min. bore: 32 | Applicable insert: TC□T 16T3 □□ | Wrench: T15 | Screw: L60M4*8-5.6
389-1528MPN: ST35085-60 | SO 35080I(ST35085-60) | a: 5.3 | b: 1.4 | c: 8.5 | M: M3.5x0.6 | Wrench: T15 | Related product No.: SO35080I | A(˚): 60
389-1607MPN: ST2206-60 | SO 22050I(ST2206-60) | a: 3.1 | b: 0.8 | c: 6 | M: M2.2x0.45 | Wrench: T7 | Related product No.: SO22050I | A(˚): 60
389-1643MPN: ST4510-60 | SO 45100I(ST4510-60) | a: 7 | b: 0.9 | c: 10 | M: M4.5x0.75 | Wrench: T20 | Related product No.: SO45100I | A(˚): 60

Need a different model, or a part not listed here? Send us your parts list →
