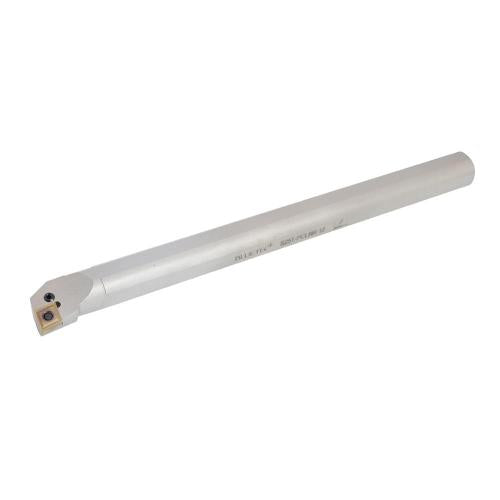

BlueTec S25T PCLNR12 Holder Internal Boring Bar

The BlueTec S25T PCLNR12 Holder Internal Boring Bar is a precision toolholder designed to securely seat carbide inserts for internal turning and boring operations, sourced direct from Korea.

Key features

Machinists and CNC lathe operators rely on internal boring bar holders like this to achieve accurate, repeatable cuts on bored holes, stepped bores, and internal profiles across a range of workpiece materials

349-6101		S25T PCLNR12 \| Spec: S25T PCLNR 12 \| Lever: LV4A \| Minimum Diameter: 32 \| Applicable Insert: CN□□ 1204 □□ \| Wrench: S2.5 \| Screw: VHX0613
349-6110		S32U PCLNR12 \| Spec: S32U PCLNR 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 40 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821
349-6129		S40V PCLNR12 \| Spec: S40V PCLNR 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 50 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821
349-6138		S50W PCLNR12 \| Spec: S50W PCLNR 12 \| Lever: LV4 \| Center Pin: SP4 \| Minimum Diameter: 63 \| Applicable Insert: CN□□ 1204 □□ \| Center: PC12 \| Wrench: S3 \| Screw: VHX0821
349-6165		S25T PCLNL12 \| Spec: S25T PCLNL 12 \| Lever: LV4A \| Min. bore: 32 \| Applicable insert: CN□□ 1204 □□ \| Wrench: S2.5 \| Screw: VHX0613
349-6183		S40V PCLNL12 \| Spec: S40V PCLNL 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 50 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821
349-6192		S50W PCLNL12 \| Spec: S50W PCLNL 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 63 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821

Carbide Inserts & HoldersBlueTec

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

BlueTec S25T PCLNR12 Holder Internal Boring Bar

Brand BlueTec·Carbide Inserts & Holders

Available part numbers (7)

349-6101, 349-6110, 349-6129, 349-6138, 349-6165, 349-6183, 349-6192

How to order

Send the BlueTec part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	349-6101	S25T PCLNR12 \| Spec: S25T PCLNR 12 \| Lever: LV4A \| Minimum Diameter: 32 \| Applicable Insert: CN□□ 1204 □□ \| Wrench: S2.5 \| Screw: VHX0613
	349-6110	S32U PCLNR12 \| Spec: S32U PCLNR 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 40 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821
	349-6129	S40V PCLNR12 \| Spec: S40V PCLNR 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 50 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821
	349-6138	S50W PCLNR12 \| Spec: S50W PCLNR 12 \| Lever: LV4 \| Center Pin: SP4 \| Minimum Diameter: 63 \| Applicable Insert: CN□□ 1204 □□ \| Center: PC12 \| Wrench: S3 \| Screw: VHX0821
	349-6165	S25T PCLNL12 \| Spec: S25T PCLNL 12 \| Lever: LV4A \| Min. bore: 32 \| Applicable insert: CN□□ 1204 □□ \| Wrench: S2.5 \| Screw: VHX0613
	349-6183	S40V PCLNL12 \| Spec: S40V PCLNL 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 50 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821
	349-6192	S50W PCLNL12 \| Spec: S50W PCLNL 12 \| Lever: LV4 \| Shim pin: SP4 \| Min. bore: 63 \| Applicable insert: CN□□ 1204 □□ \| Shim: PC12 \| Wrench: S3 \| Screw: VHX0821

Need a different model, or a part not listed here? Send us your parts list →
