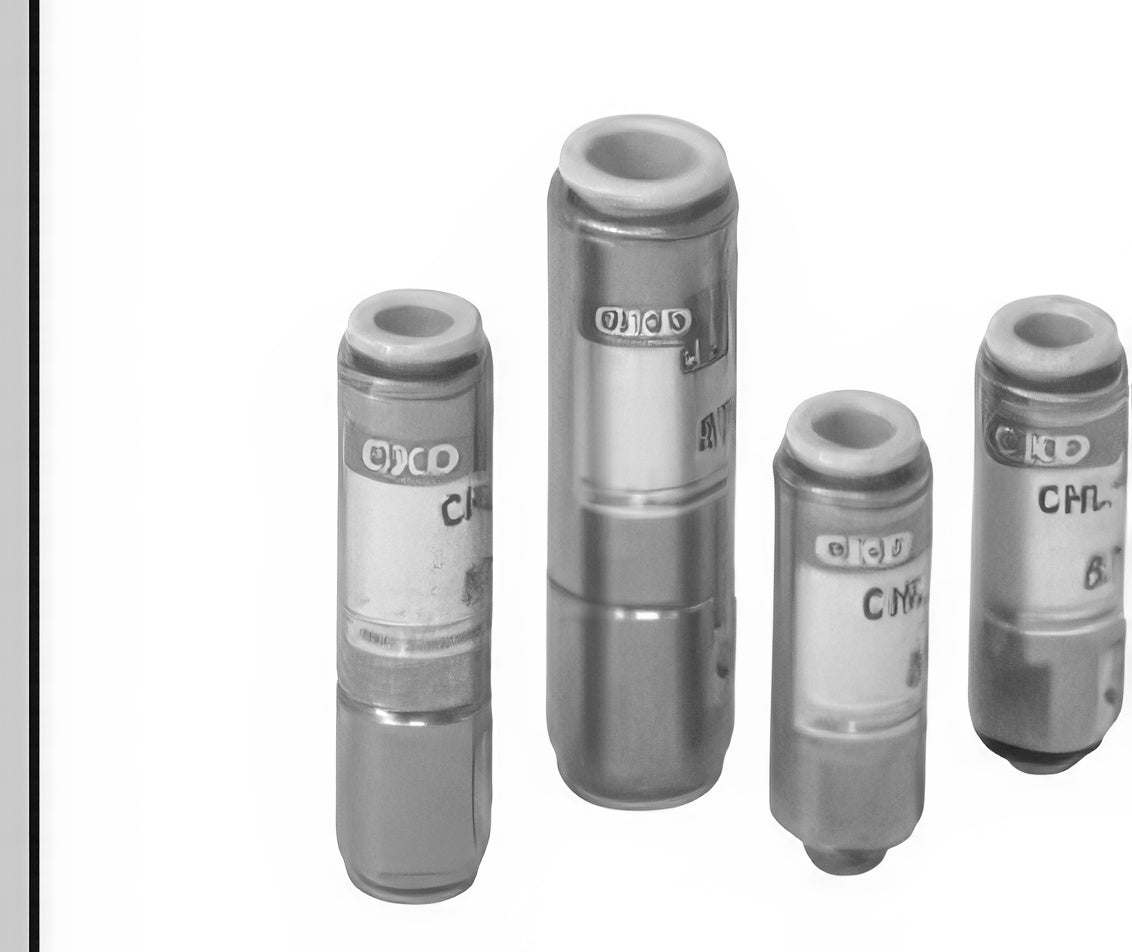

CKD Compact Check Valve with Push-in Fitting CHL Series

CKD Compact Check Valve with Push-in Fitting CHL Series

Small, space-saving inline check valve with push-in fittings; usable for vacuum holding and at low pressure.

Specifications

Fluid Compressed air
Max. working pressure (MPa) 1.0
Min. working pressure (MPa) 0.03
Proof pressure (MPa) 1.5
CHL-M54 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.03 | Proof pressure (MPa): 1.5 | Port size: M5 | Mass (g): 8.9 | Tube OD: φ4 | Effective area (mm): 2.6
CHL-H44 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.03 | Proof pressure (MPa): 1.5 | Port size: φ4 | Mass (g): 10.8 | Tube OD: φ4 | Effective area (mm): 2.8
CHL-H66 Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.03 | Proof pressure (MPa): 1.5 | Port size: φ6 | Mass (g): 16.6 | Tube OD: φ6 | Effective area (mm): 6.8
Check ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Compact Check Valve with Push-in Fitting CHL Series

Brand CKD·Check Valves

Available part numbers (3)

CHL-M54, CHL-H44, CHL-H66

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHL-M54Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.03 | Proof pressure (MPa): 1.5 | Port size: M5 | Mass (g): 8.9 | Tube OD: φ4 | Effective area (mm): 2.6
CHL-H44Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.03 | Proof pressure (MPa): 1.5 | Port size: φ4 | Mass (g): 10.8 | Tube OD: φ4 | Effective area (mm): 2.8
CHL-H66Fluid: Compressed air | Max. working pressure (MPa): 1.0 | Min. working pressure (MPa): 0.03 | Proof pressure (MPa): 1.5 | Port size: φ6 | Mass (g): 16.6 | Tube OD: φ6 | Effective area (mm): 6.8
