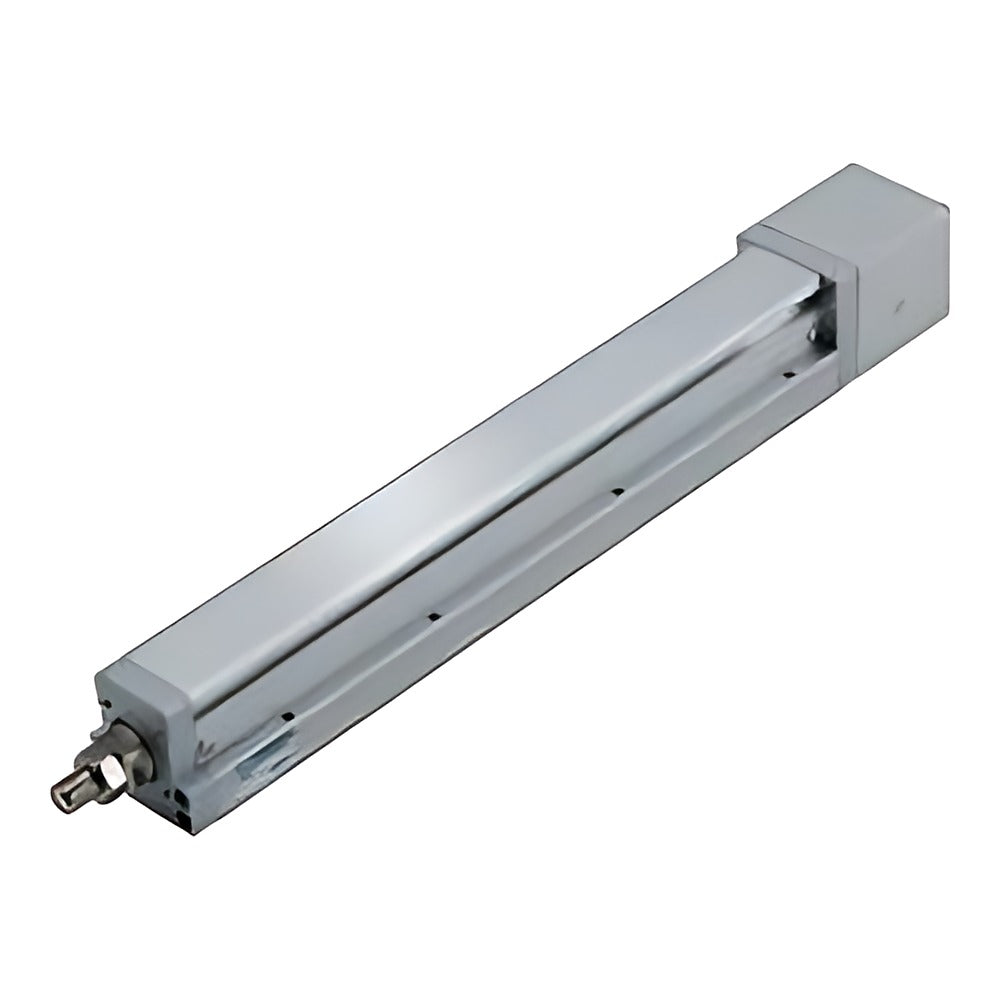

CKD EBR-L Motorless Rod Actuator (Stepping Motor, Built-in Guide)

CKD EBR-L motorless ball-screw rod actuator with built-in guide for customer-supplied 42, 56 or 60 sq. stepping motors.

Key features

Rod type with built-in guide; body widths 44, 54 and 82 mm
Straight motor mounting (E) or folded mounting to the right (R), bottom (D) or left (L)
Mounting motor spec symbol selects adapter parts for Oriental Motor, MinebeaMitsumi or Dyadic Systems motors
Strokes in 50 mm steps: 50-400 mm (04, 05), 50-700 mm (08)
Origin/limit sensor set (C/B) optional; replacement sensor EBR-SENSOR-N and grease nozzle EBS-NOZZLE
Motor and driver are prepared, mounted and adjusted by the customer

Specifications

Drive	Ball screw (dia. 10/12/16 mm)
Motor	Motorless (L); stepping motor by customer
Brake	N (none)
Sensors in listed codes	None (origin N, limit N); C/B option
Repeatability	+/-0.01 mm
Lost motion	0.1 mm or less
Max. speed	85-1000 mm/s depending on lead/stroke
Ambient	0-40 C, 35-80% RH, no condensation
Code format	EBR-<size>L<dir>-00-<lead><stroke>NNN-<spec><motor>NN
Source	CKD Korea catalog CB-055K-1, p. 561-591

EBR-04LE-00-060050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-060400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-060400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LE-00-120400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LE-00-120400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-060400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-060400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LR-00-120400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LR-00-120400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-060400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-060400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LD-00-120400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LD-00-120400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-060400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-060400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120050NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120050NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120100NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120100NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120150NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120150NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120200NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120200NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120250NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120250NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120300NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120300NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120350NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120350NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-04LL-00-120400NNN-AANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-04LL-00-120400NNN-BANN		Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-020400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-020400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-050400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-050400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-100400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-100400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LE-00-200400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LE-00-200400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-020400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-020400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-050400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-050400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-100400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-100400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LR-00-200400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LR-00-200400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-020400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-020400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-050400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-050400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-100400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-100400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LD-00-200400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LD-00-200400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-020400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-020400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-050400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-050400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-100400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-100400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200050NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200050NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200100NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200100NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200150NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200150NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200200NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200200NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200250NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200250NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200300NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200300NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200350NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200350NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-05LL-00-200400NNN-AANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
EBR-05LL-00-200400NNN-BANN		Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
EBR-08LE-00-050050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-050700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-050700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-050700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-100700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-100700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-100700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LE-00-200700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LE-00-200700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LE-00-200700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-050700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-050700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-050700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-100700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-100700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-100700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LR-00-200700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LR-00-200700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LR-00-200700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-050700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-050700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-050700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-100700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-100700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-100700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LD-00-200700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LD-00-200700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LD-00-200700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-050700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-050700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-050700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-100700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-100700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-100700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200050NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200050NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200050NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200100NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200100NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200100NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200150NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200150NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200150NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200200NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200200NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200200NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200250NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200250NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200250NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200300NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200300NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200300NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200350NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200350NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200350NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200400NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200400NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200400NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200450NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200450NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200450NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200500NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200500NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200500NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200550NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200550NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200550NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200600NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200600NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200600NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200650NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200650NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200650NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
EBR-08LL-00-200700NNN-BBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
EBR-08LL-00-200700NNN-CBNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
EBR-08LL-00-200700NNN-ACNN		Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.

Electric ActuatorsCKD

888 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD EBR-L Motorless Rod Actuator (Stepping Motor, Built-in Guide)

Brand CKD·Electric Actuators

Available part numbers (888)

EBR-04LE-00-060050NNN-AANN, EBR-04LE-00-060050NNN-BANN, EBR-04LE-00-060100NNN-AANN, EBR-04LE-00-060100NNN-BANN, EBR-04LE-00-060150NNN-AANN, EBR-04LE-00-060150NNN-BANN, EBR-04LE-00-060200NNN-AANN, EBR-04LE-00-060200NNN-BANN, EBR-04LE-00-060250NNN-AANN, EBR-04LE-00-060250NNN-BANN + 878 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EBR-04LE-00-060050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-060400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-060400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LE-00-120400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LE-00-120400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-060400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-060400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LR-00-120400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LR-00-120400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Right folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-060400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-060400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LD-00-120400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LD-00-120400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Bottom folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-060400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-060400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 6 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120050NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120050NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120100NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120100NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120150NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120150NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120200NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120200NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120250NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120250NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120300NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120300NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120350NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120350NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-04LL-00-120400NNN-AANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-04LL-00-120400NNN-BANN	Size: 04 (44 mm wide) \| Motor mounting: Left folded \| Lead: 12 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-020400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-020400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-050400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-050400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-100400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-100400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LE-00-200400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LE-00-200400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-020400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-020400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-050400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-050400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-100400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-100400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LR-00-200400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LR-00-200400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-020400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-020400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-050400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-050400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-100400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-100400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LD-00-200400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LD-00-200400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-020400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-020400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 2 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-050400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-050400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-100400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-100400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200050NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200050NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200100NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200100NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200150NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200150NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200200NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200200NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200250NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200250NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200300NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200300NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200350NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200350NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-05LL-00-200400NNN-AANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 42 sq.
	EBR-05LL-00-200400NNN-BANN	Size: 05 (54 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: Minebea/Dyadic, 42 sq.
	EBR-08LE-00-050050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-050700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-050700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-050700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-100700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-100700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-100700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LE-00-200700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LE-00-200700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LE-00-200700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-050700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-050700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-050700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-100700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-100700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-100700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LR-00-200700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LR-00-200700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LR-00-200700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Right folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-050700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-050700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-050700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-100700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-100700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-100700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LD-00-200700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LD-00-200700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LD-00-200700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Bottom folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-050700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-050700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-050700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 5 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-100700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-100700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-100700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 10 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200050NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200050NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200050NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 50 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200100NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200100NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200100NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 100 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200150NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200150NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200150NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 150 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200200NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200200NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200200NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 200 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200250NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200250NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200250NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 250 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200300NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200300NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200300NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 300 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200350NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200350NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200350NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 350 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200400NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200400NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200400NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 400 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200450NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200450NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200450NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 450 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200500NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200500NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200500NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 500 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200550NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200550NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200550NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 550 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200600NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200600NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200600NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 600 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200650NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200650NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200650NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 650 mm \| Motor: A: Oriental Motor, 60 sq.
	EBR-08LL-00-200700NNN-BBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: B: MinebeaMitsumi, 56 sq.
	EBR-08LL-00-200700NNN-CBNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: C: Dyadic Systems, 56 sq.
	EBR-08LL-00-200700NNN-ACNN	Size: 08 (82 mm wide) \| Motor mounting: Left folded \| Lead: 20 mm \| Stroke: 700 mm \| Motor: A: Oriental Motor, 60 sq.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

CKD EBR-L Motorless Rod Actuator (Stepping Motor, Built-in Guide)
