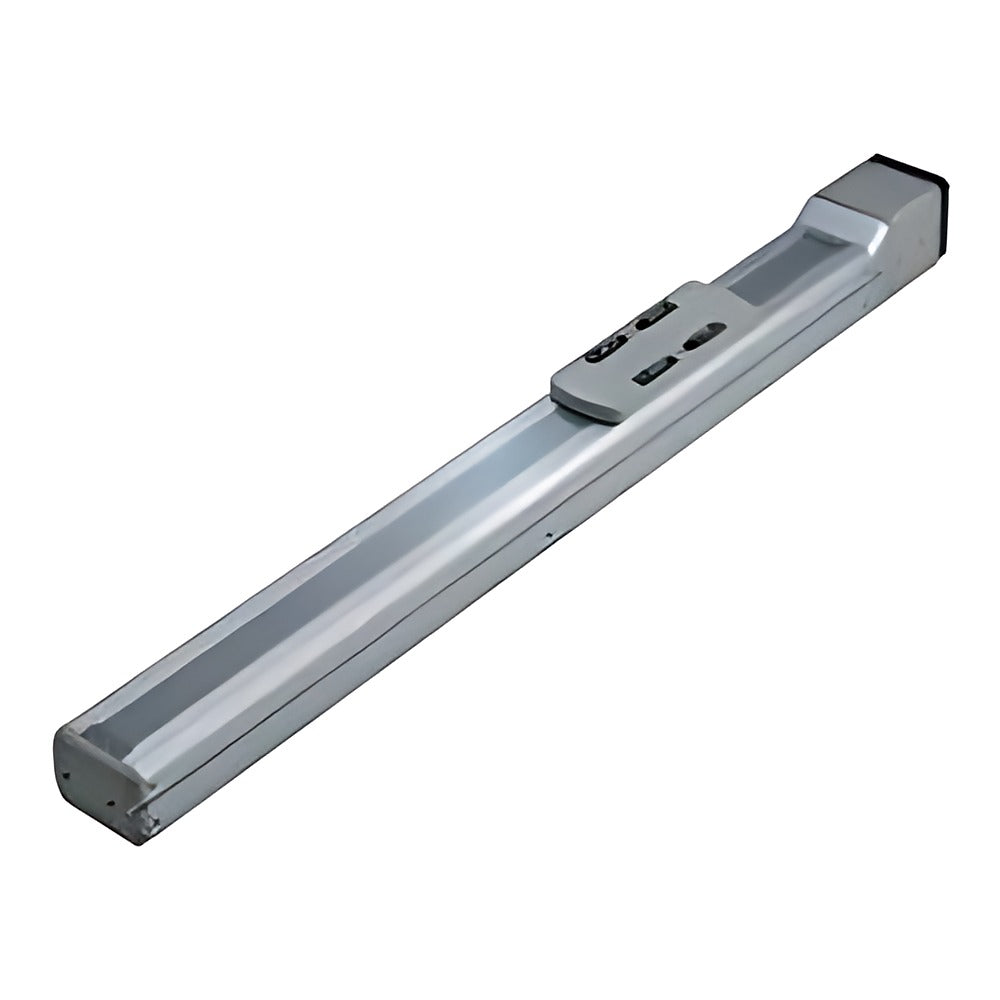

CKD ETS-14-X Electric Slider Actuator (Metal Stopper, Motorless)

CKD ETS-14-X Electric Slider Actuator (Metal Stopper, Motorless)

CKD ETS-14 metal-stopper (ETS-X) motorless ball-screw slider actuator for mounting your own servo motor, listed with full order codes by lead, stroke, motor mounting and motor size.

Key features

  • Motorless ball-screw slider with 135 mm body width, for user-supplied 200W/400W servo motors
  • Leads 5, 10, 16, 20 mm; strokes 50-1050 mm in 50 mm steps
  • Motor mounting: straight, right/bottom/left fold-back (built-in not available with metal stopper)
  • Metal stopper (ETS-X) specification; Up to 110 kg horizontal, 33 kg vertical
  • Codes shown with motor flange spec M (Mitsubishi/Delta/Sanyo/Fuji/Rockwell/Siemens); replace M with Y (Yaskawa/Keyence), P (Panasonic/Omron/Bosch Rexroth) or F (FANUC) as required
  • Order code options fixed to N: brake, home/limit sensors, grease nipple direction, positioning pin holes (select B/A-D/R/L/P per catalog)

Specifications

Series ETS-14 (ETS-X metal stopper)
Drive Ball screw dia. 16
Body Width 135 mm
Ball Screw Grade C7
Max Speed 250 / 500 / 800 / 1000 mm/s (lead 5/10/16/20)
Repeatability +/-0.01 mm
Lost Motion 0.1 mm or less
Dynamic Allowable Load 6567 N
Motor Flange Spec (in code) M
Ambient 0-40 C, 35-80% RH (no condensation)
Source CKD Korea catalog CB-055K, p. 136-143
ETS-14-05005-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05005-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05005-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05005-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05005-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05005-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05005-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05005-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05010-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05010-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05010-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05010-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05010-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05010-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05010-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05010-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05015-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05015-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05015-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05015-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05015-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05015-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05015-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05015-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05020-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05020-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05020-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05020-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05020-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05020-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05020-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05020-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05025-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05025-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05025-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05025-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05025-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05025-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05025-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05025-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05030-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05030-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05030-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05030-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05030-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05030-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05030-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05030-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05035-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05035-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05035-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05035-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05035-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05035-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05035-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05035-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05040-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05040-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05040-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05040-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05040-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05040-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05040-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05040-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05045-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05045-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05045-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05045-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05045-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05045-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05045-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05045-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05050-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05050-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05050-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05050-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05050-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05050-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05050-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05050-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05055-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05055-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05055-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05055-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05055-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05055-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05055-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05055-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05060-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05060-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05060-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05060-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05060-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05060-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05060-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05060-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05065-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05065-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05065-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05065-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05065-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05065-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05065-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05065-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05070-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05070-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05070-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05070-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05070-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05070-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05070-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05070-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05075-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05075-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05075-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05075-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05075-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05075-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05075-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05075-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05080-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05080-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05080-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05080-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05080-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05080-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05080-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05080-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05085-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05085-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05085-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05085-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05085-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05085-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05085-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05085-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05090-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05090-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05090-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05090-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05090-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05090-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05090-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05090-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05095-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05095-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05095-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05095-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05095-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05095-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05095-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05095-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05100-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05100-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05100-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05100-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05100-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05100-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05100-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05100-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05105-EM2NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05105-EM4NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05105-RM2NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05105-RM4NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05105-DM2NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05105-DM4NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05105-LM2NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05105-LM4NNNNN-X Screw Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10005-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10005-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10005-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10005-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10005-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10005-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10005-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10005-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10010-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10010-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10010-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10010-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10010-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10010-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10010-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10010-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10015-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10015-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10015-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10015-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10015-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10015-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10015-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10015-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10020-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10020-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10020-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10020-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10020-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10020-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10020-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10020-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10025-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10025-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10025-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10025-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10025-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10025-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10025-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10025-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10030-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10030-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10030-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10030-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10030-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10030-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10030-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10030-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10035-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10035-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10035-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10035-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10035-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10035-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10035-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10035-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10040-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10040-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10040-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10040-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10040-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10040-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10040-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10040-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10045-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10045-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10045-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10045-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10045-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10045-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10045-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10045-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10050-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10050-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10050-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10050-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10050-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10050-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10050-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10050-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10055-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10055-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10055-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10055-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10055-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10055-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10055-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10055-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10060-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10060-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10060-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10060-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10060-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10060-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10060-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10060-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10065-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10065-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10065-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10065-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10065-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10065-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10065-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10065-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10070-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10070-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10070-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10070-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10070-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10070-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10070-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10070-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10075-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10075-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10075-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10075-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10075-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10075-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10075-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10075-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10080-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10080-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10080-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10080-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10080-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10080-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10080-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10080-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10085-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10085-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10085-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10085-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10085-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10085-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10085-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10085-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10090-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10090-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10090-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10090-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10090-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10090-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10090-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10090-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10095-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10095-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10095-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10095-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10095-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10095-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10095-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10095-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10100-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10100-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10100-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10100-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10100-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10100-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10100-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10100-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10105-EM2NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10105-EM4NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10105-RM2NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10105-RM4NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10105-DM2NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10105-DM4NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10105-LM2NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10105-LM4NNNNN-X Screw Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16005-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16005-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16005-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16005-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16005-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16005-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16005-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16005-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16010-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16010-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16010-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16010-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16010-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16010-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16010-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16010-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16015-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16015-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16015-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16015-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16015-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16015-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16015-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16015-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16020-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16020-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16020-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16020-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16020-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16020-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16020-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16020-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16025-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16025-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16025-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16025-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16025-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16025-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16025-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16025-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16030-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16030-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16030-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16030-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16030-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16030-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16030-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16030-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16035-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16035-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16035-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16035-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16035-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16035-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16035-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16035-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16040-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16040-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16040-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16040-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16040-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16040-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16040-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16040-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16045-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16045-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16045-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16045-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16045-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16045-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16045-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16045-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16050-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16050-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16050-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16050-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16050-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16050-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16050-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16050-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16055-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16055-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16055-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16055-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16055-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16055-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16055-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16055-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16060-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16060-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16060-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16060-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16060-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16060-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16060-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16060-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16065-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16065-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16065-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16065-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16065-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16065-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16065-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16065-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16070-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16070-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16070-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16070-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16070-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16070-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16070-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16070-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16075-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16075-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16075-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16075-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16075-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16075-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16075-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16075-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16080-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16080-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16080-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16080-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16080-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16080-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16080-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16080-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16085-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16085-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16085-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16085-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16085-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16085-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16085-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16085-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16090-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16090-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16090-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16090-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16090-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16090-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16090-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16090-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16095-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16095-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16095-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16095-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16095-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16095-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16095-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16095-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16100-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16100-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16100-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16100-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16100-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16100-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16100-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16100-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16105-EM2NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16105-EM4NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16105-RM2NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16105-RM4NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16105-DM2NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16105-DM4NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16105-LM2NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16105-LM4NNNNN-X Screw Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20005-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20005-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20005-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20005-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20005-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20005-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20005-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20005-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20010-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20010-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20010-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20010-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20010-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20010-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20010-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20010-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20015-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20015-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20015-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20015-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20015-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20015-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20015-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20015-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20020-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20020-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20020-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20020-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20020-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20020-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20020-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20020-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20025-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20025-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20025-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20025-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20025-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20025-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20025-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20025-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20030-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20030-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20030-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20030-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20030-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20030-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20030-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20030-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20035-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20035-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20035-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20035-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20035-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20035-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20035-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20035-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20040-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20040-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20040-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20040-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20040-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20040-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20040-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20040-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20045-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20045-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20045-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20045-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20045-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20045-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20045-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20045-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20050-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20050-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20050-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20050-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20050-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20050-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20050-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20050-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20055-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20055-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20055-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20055-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20055-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20055-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20055-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20055-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20060-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20060-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20060-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20060-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20060-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20060-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20060-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20060-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20065-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20065-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20065-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20065-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20065-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20065-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20065-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20065-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20070-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20070-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20070-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20070-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20070-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20070-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20070-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20070-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20075-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20075-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20075-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20075-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20075-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20075-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20075-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20075-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20080-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20080-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20080-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20080-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20080-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20080-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20080-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20080-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20085-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20085-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20085-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20085-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20085-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20085-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20085-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20085-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20090-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20090-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20090-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20090-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20090-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20090-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20090-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20090-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20095-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20095-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20095-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20095-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20095-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20095-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20095-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20095-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20100-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20100-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20100-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20100-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20100-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20100-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20100-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20100-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20105-EM2NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20105-EM4NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20105-RM2NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20105-RM4NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20105-DM2NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20105-DM4NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20105-LM2NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20105-LM4NNNNN-X Screw Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
Electric ActuatorsCKD
672 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ETS-14-X Electric Slider Actuator (Metal Stopper, Motorless)

Brand CKD·Electric Actuators

Available part numbers (672)

ETS-14-05005-EM2NNNNN-X, ETS-14-05005-EM4NNNNN-X, ETS-14-05005-RM2NNNNN-X, ETS-14-05005-RM4NNNNN-X, ETS-14-05005-DM2NNNNN-X, ETS-14-05005-DM4NNNNN-X, ETS-14-05005-LM2NNNNN-X, ETS-14-05005-LM4NNNNN-X, ETS-14-05010-EM2NNNNN-X, ETS-14-05010-EM4NNNNN-X + 662 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ETS-14-05005-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05005-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05005-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05005-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05005-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05005-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05005-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05005-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05010-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05010-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05010-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05010-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05010-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05010-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05010-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05010-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05015-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05015-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05015-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05015-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05015-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05015-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05015-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05015-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05020-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05020-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05020-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05020-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05020-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05020-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05020-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05020-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05025-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05025-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05025-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05025-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05025-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05025-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05025-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05025-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05030-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05030-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05030-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05030-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05030-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05030-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05030-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05030-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05035-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05035-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05035-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05035-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05035-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05035-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05035-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05035-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05040-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05040-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05040-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05040-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05040-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05040-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05040-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05040-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05045-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05045-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05045-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05045-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05045-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05045-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05045-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05045-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05050-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05050-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05050-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05050-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05050-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05050-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05050-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05050-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05055-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05055-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05055-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05055-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05055-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05055-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05055-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05055-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05060-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05060-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05060-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05060-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05060-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05060-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05060-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05060-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05065-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05065-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05065-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05065-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05065-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05065-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05065-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05065-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05070-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05070-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05070-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05070-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05070-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05070-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05070-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05070-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05075-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05075-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05075-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05075-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05075-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05075-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05075-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05075-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05080-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05080-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05080-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05080-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05080-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05080-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05080-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05080-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05085-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05085-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05085-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05085-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05085-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05085-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05085-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05085-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05090-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05090-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05090-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05090-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05090-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05090-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05090-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05090-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05095-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05095-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05095-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05095-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05095-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05095-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05095-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05095-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05100-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05100-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05100-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05100-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05100-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05100-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05100-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05100-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-05105-EM2NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-05105-EM4NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-05105-RM2NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-05105-RM4NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-05105-DM2NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-05105-DM4NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-05105-LM2NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-05105-LM4NNNNN-XScrew Lead: 5 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10005-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10005-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10005-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10005-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10005-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10005-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10005-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10005-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10010-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10010-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10010-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10010-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10010-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10010-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10010-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10010-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10015-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10015-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10015-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10015-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10015-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10015-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10015-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10015-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10020-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10020-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10020-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10020-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10020-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10020-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10020-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10020-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10025-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10025-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10025-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10025-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10025-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10025-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10025-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10025-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10030-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10030-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10030-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10030-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10030-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10030-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10030-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10030-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10035-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10035-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10035-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10035-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10035-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10035-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10035-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10035-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10040-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10040-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10040-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10040-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10040-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10040-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10040-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10040-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10045-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10045-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10045-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10045-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10045-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10045-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10045-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10045-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10050-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10050-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10050-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10050-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10050-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10050-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10050-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10050-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10055-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10055-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10055-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10055-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10055-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10055-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10055-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10055-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10060-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10060-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10060-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10060-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10060-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10060-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10060-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10060-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10065-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10065-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10065-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10065-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10065-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10065-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10065-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10065-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10070-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10070-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10070-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10070-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10070-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10070-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10070-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10070-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10075-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10075-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10075-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10075-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10075-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10075-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10075-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10075-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10080-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10080-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10080-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10080-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10080-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10080-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10080-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10080-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10085-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10085-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10085-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10085-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10085-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10085-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10085-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10085-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10090-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10090-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10090-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10090-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10090-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10090-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10090-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10090-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10095-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10095-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10095-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10095-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10095-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10095-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10095-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10095-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10100-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10100-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10100-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10100-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10100-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10100-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10100-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10100-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-10105-EM2NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-10105-EM4NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-10105-RM2NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-10105-RM4NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-10105-DM2NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-10105-DM4NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-10105-LM2NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-10105-LM4NNNNN-XScrew Lead: 10 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16005-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16005-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16005-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16005-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16005-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16005-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16005-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16005-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16010-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16010-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16010-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16010-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16010-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16010-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16010-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16010-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16015-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16015-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16015-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16015-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16015-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16015-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16015-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16015-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16020-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16020-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16020-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16020-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16020-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16020-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16020-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16020-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16025-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16025-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16025-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16025-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16025-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16025-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16025-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16025-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16030-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16030-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16030-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16030-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16030-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16030-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16030-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16030-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16035-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16035-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16035-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16035-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16035-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16035-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16035-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16035-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16040-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16040-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16040-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16040-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16040-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16040-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16040-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16040-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16045-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16045-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16045-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16045-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16045-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16045-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16045-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16045-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16050-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16050-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16050-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16050-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16050-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16050-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16050-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16050-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16055-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16055-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16055-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16055-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16055-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16055-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16055-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16055-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16060-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16060-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16060-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16060-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16060-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16060-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16060-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16060-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16065-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16065-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16065-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16065-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16065-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16065-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16065-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16065-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16070-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16070-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16070-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16070-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16070-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16070-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16070-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16070-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16075-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16075-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16075-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16075-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16075-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16075-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16075-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16075-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16080-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16080-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16080-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16080-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16080-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16080-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16080-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16080-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16085-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16085-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16085-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16085-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16085-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16085-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16085-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16085-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16090-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16090-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16090-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16090-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16090-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16090-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16090-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16090-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16095-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16095-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16095-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16095-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16095-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16095-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16095-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16095-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16100-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16100-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16100-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16100-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16100-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16100-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16100-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16100-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-16105-EM2NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-16105-EM4NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-16105-RM2NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-16105-RM4NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-16105-DM2NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-16105-DM4NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-16105-LM2NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-16105-LM4NNNNN-XScrew Lead: 16 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20005-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20005-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20005-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20005-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20005-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20005-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20005-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20005-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 50 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20010-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20010-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20010-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20010-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20010-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20010-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20010-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20010-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 100 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20015-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20015-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20015-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20015-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20015-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20015-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20015-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20015-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 150 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20020-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20020-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20020-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20020-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20020-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20020-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20020-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20020-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 200 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20025-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20025-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20025-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20025-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20025-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20025-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20025-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20025-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 250 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20030-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20030-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20030-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20030-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20030-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20030-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20030-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20030-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 300 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20035-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20035-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20035-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20035-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20035-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20035-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20035-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20035-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 350 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20040-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20040-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20040-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20040-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20040-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20040-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20040-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20040-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 400 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20045-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20045-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20045-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20045-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20045-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20045-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20045-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20045-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 450 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20050-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20050-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20050-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20050-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20050-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20050-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20050-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20050-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 500 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20055-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20055-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20055-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20055-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20055-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20055-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20055-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20055-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 550 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20060-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20060-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20060-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20060-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20060-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20060-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20060-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20060-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 600 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20065-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20065-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20065-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20065-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20065-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20065-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20065-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20065-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 650 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20070-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20070-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20070-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20070-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20070-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20070-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20070-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20070-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 700 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20075-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20075-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20075-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20075-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20075-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20075-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20075-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20075-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 750 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20080-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20080-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20080-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20080-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20080-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20080-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20080-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20080-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 800 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20085-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20085-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20085-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20085-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20085-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20085-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20085-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20085-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 850 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20090-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20090-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20090-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20090-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20090-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20090-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20090-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20090-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 900 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20095-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20095-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20095-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20095-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20095-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20095-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20095-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20095-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 950 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20100-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20100-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20100-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20100-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20100-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20100-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20100-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20100-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 1000 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W
ETS-14-20105-EM2NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 200W
ETS-14-20105-EM4NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Straight (E) | Motor Size: 400W
ETS-14-20105-RM2NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 200W
ETS-14-20105-RM4NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Right fold-back (R) | Motor Size: 400W
ETS-14-20105-DM2NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 200W
ETS-14-20105-DM4NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Bottom fold-back (D) | Motor Size: 400W
ETS-14-20105-LM2NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 200W
ETS-14-20105-LM4NNNNN-XScrew Lead: 20 mm | Stroke: 1050 mm | Motor Mounting: Left fold-back (L) | Motor Size: 400W

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
