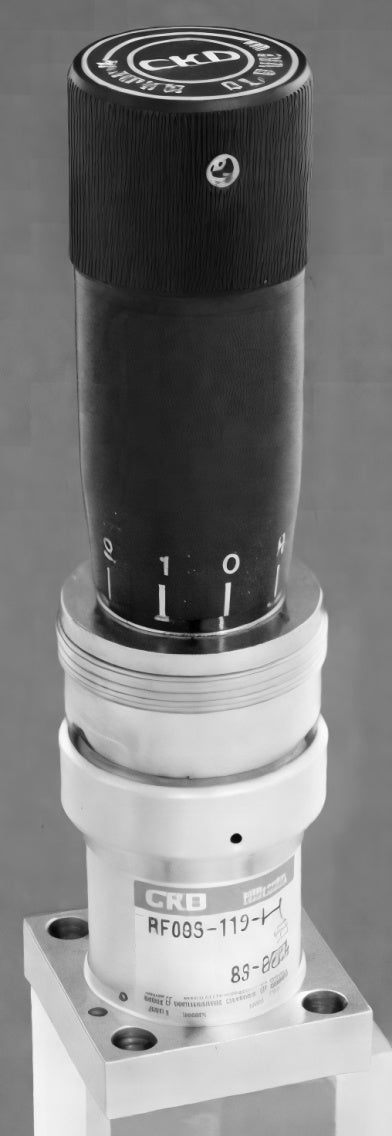

CKD Flow Control Valve for Integrated Gas System MFGD5/MFGD4 Series

CKD Flow Control Valve for Integrated Gas System MFGD5/MFGD4 Series

Metering flow control valves for integrated (modular) gas supply systems, single block D-type 2-port with W seal (nominal 6.35).

Key features

  • Two Cv adjustment ranges: 0.003-0.03 and 0.02-0.2
  • MFGD5 is for the IAGD5 (1.125 in) system, MFGD4 for IAGD4
  • Made to order; mounting bolts and gaskets sold separately

Specifications

Seal W seal (nominal 6.35)
Working pressure 1.3x10^-6 Pa(abs) to 0.7 MPa(G)
MFGD5-11D-W-1 System: IAGD5 (1.125 in) | Cv adjustment range: 0.003-0.03 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G) | Body: SUS316L
MFGD5-11D-W-4 System: IAGD5 (1.125 in) | Cv adjustment range: 0.02-0.2 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G) | Body: SUS316L
MFGD4-11D-W-1 System: IAGD4 | Cv adjustment range: 0.003-0.03 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G)
MFGD4-11D-W-4 System: IAGD4 | Cv adjustment range: 0.02-0.2 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G)
Process Gas ValvesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Flow Control Valve for Integrated Gas System MFGD5/MFGD4 Series

Brand CKD·Process Gas Valves

Available part numbers (4)

MFGD5-11D-W-1, MFGD5-11D-W-4, MFGD4-11D-W-1, MFGD4-11D-W-4

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFGD5-11D-W-1System: IAGD5 (1.125 in) | Cv adjustment range: 0.003-0.03 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G) | Body: SUS316L
MFGD5-11D-W-4System: IAGD5 (1.125 in) | Cv adjustment range: 0.02-0.2 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G) | Body: SUS316L
MFGD4-11D-W-1System: IAGD4 | Cv adjustment range: 0.003-0.03 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G)
MFGD4-11D-W-4System: IAGD4 | Cv adjustment range: 0.02-0.2 | Seal: W seal (nominal 6.35) | Working pressure: 1.3x10^-6 Pa(abs) to 0.7 MPa(G)
