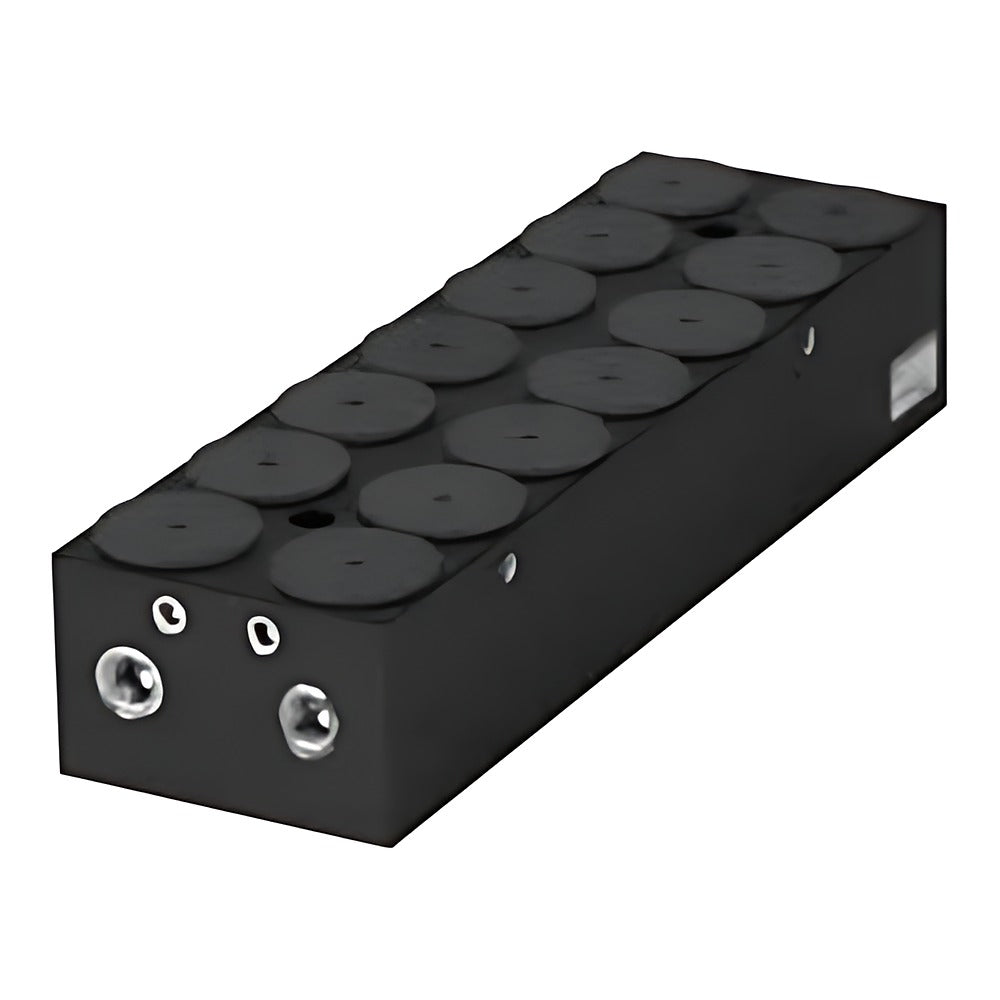

CKD GFM-A Float Star Alignment Floating Pad

CKD Float Star GFM-A alignment floating pad with a resin porous face and swivelling neck that follows substrate warpage for non-contact positioning.

Key features

Patented resin porous face plus swivel (oscillating) mechanism follows warped large glass substrates
Reference floating height 10 um or more; main use alignment / positioning
Porous material halves air consumption (CKD test) and suppresses static charge
Can also hold work by vacuum (-90 to -60 kPa, holding force 5 N or less)
Black carbon-fibre PPS body reduces stray reflection for inspection

Specifications

Fluid	Clean compressed air (class 1.1.1-1.6.2)
Operating pressure (floating)	80-200 kPa
Operating pressure (suction)	-90 to -60 kPa
Load	1-5 N
Air consumption	10 L/min or less (100 kPa)
Port	M5
Ambient temperature	5-40 C
Mounting	Porous face up only
Mass	Approx. 15 g
Source	CKD Korea catalog CB-024SK-9, p. 1143-1149

GFM-A

Type: Alignment floating pad | Porous face: Dia. 28 mm | Port: M5
