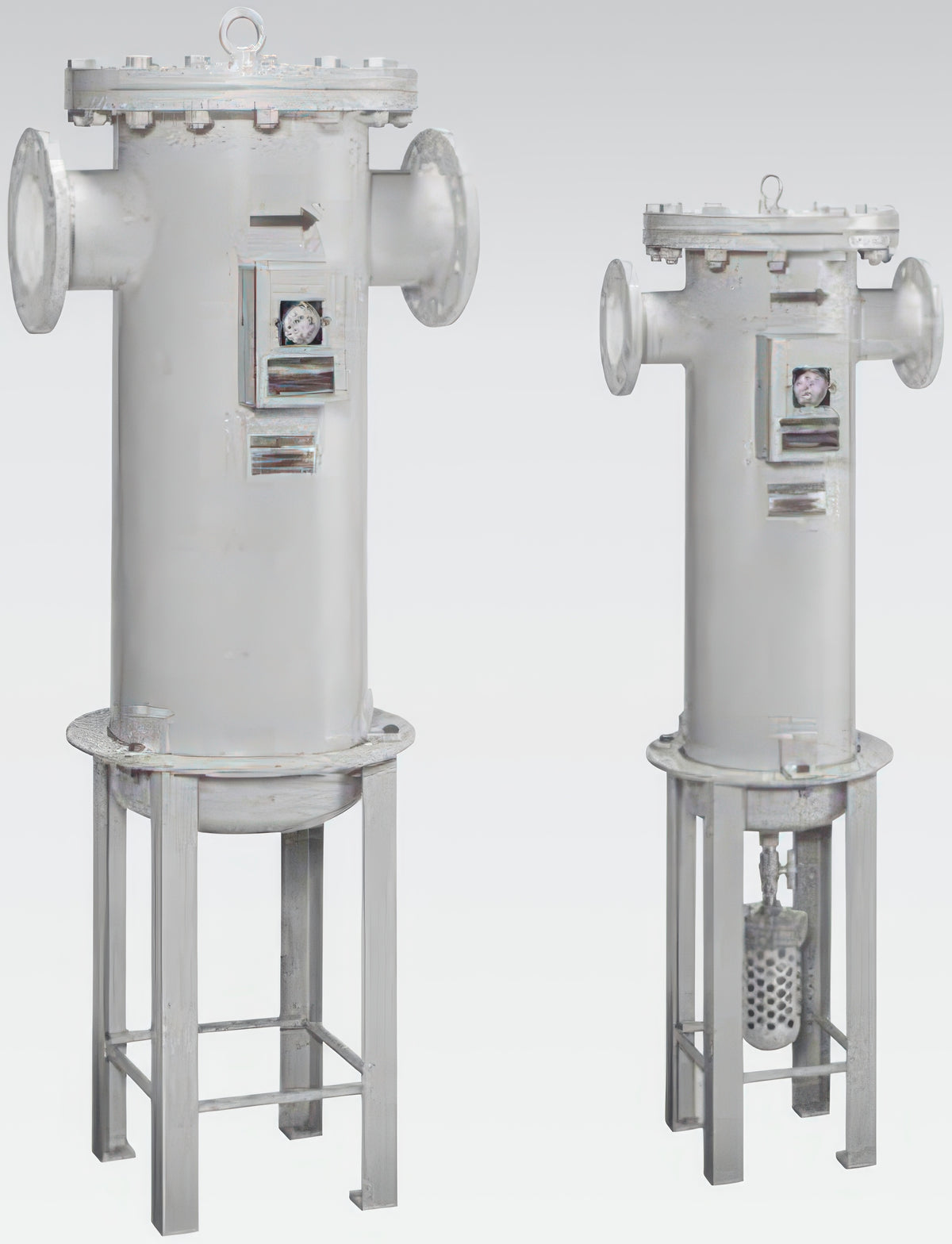

CKD Large Main Line Filter AF3000M Series (Micro alesser (oil mist removal))

CKD Large Main Line Filter AF3000M Series (Micro alesser (oil mist removal))

Large flanged main line oil mist removal filter (micro alesser) with 0.01 um filtration and 0.1 mg/m3 outlet oil concentration.

Key features

  • Working pressure 0.07 to 1.0 MPa, 10K flange connections 2B to 8B, with differential pressure gauge GA5102 as standard
  • Heavy-duty drain 5100-4C is standard equipment

Specifications

Filtration (um) 0.01
Outlet oil concentration (mg/m3) 0.1
Working pressure (MPa) 0.07-1.0
Auto drain 5100-4C
AF3016M-50 Air flow (m3/min ANR): 16 | Elements: 1 | Port: Flange 2B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 45 | Auto drain: 5100-4C
AF3032M-80 Air flow (m3/min ANR): 32 | Elements: 2 | Port: Flange 3B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 95 | Auto drain: 5100-4C
AF3048M-100 Air flow (m3/min ANR): 48 | Elements: 3 | Port: Flange 4B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 98 | Auto drain: 5100-4C
AF3064M-100 Air flow (m3/min ANR): 64 | Elements: 4 | Port: Flange 4B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 130 | Auto drain: 5100-4C
AF3080M-150 Air flow (m3/min ANR): 80 | Elements: 5 | Port: Flange 6B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 160 | Auto drain: 5100-4C
AF3096M-150 Air flow (m3/min ANR): 96 | Elements: 6 | Port: Flange 6B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 190 | Auto drain: 5100-4C
AF3128M-150 Air flow (m3/min ANR): 128 | Elements: 8 | Port: Flange 6B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 250 | Auto drain: 5100-4C
AF3160M-200 Air flow (m3/min ANR): 160 | Elements: 10 | Port: Flange 8B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 260 | Auto drain: 5100-4C
AF3192M-200 Air flow (m3/min ANR): 192 | Elements: 12 | Port: Flange 8B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 300 | Auto drain: 5100-4C
AF3256M-200 Air flow (m3/min ANR): 256 | Elements: 16 | Port: Flange 8B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 350 | Auto drain: 5100-4C
Air FiltersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Large Main Line Filter AF3000M Series (Micro alesser (oil mist removal))

Brand CKD·Air Filters

Available part numbers (10)

AF3016M-50, AF3032M-80, AF3048M-100, AF3064M-100, AF3080M-150, AF3096M-150, AF3128M-150, AF3160M-200, AF3192M-200, AF3256M-200

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AF3016M-50Air flow (m3/min ANR): 16 | Elements: 1 | Port: Flange 2B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 45 | Auto drain: 5100-4C
AF3032M-80Air flow (m3/min ANR): 32 | Elements: 2 | Port: Flange 3B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 95 | Auto drain: 5100-4C
AF3048M-100Air flow (m3/min ANR): 48 | Elements: 3 | Port: Flange 4B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 98 | Auto drain: 5100-4C
AF3064M-100Air flow (m3/min ANR): 64 | Elements: 4 | Port: Flange 4B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 130 | Auto drain: 5100-4C
AF3080M-150Air flow (m3/min ANR): 80 | Elements: 5 | Port: Flange 6B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 160 | Auto drain: 5100-4C
AF3096M-150Air flow (m3/min ANR): 96 | Elements: 6 | Port: Flange 6B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 190 | Auto drain: 5100-4C
AF3128M-150Air flow (m3/min ANR): 128 | Elements: 8 | Port: Flange 6B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 250 | Auto drain: 5100-4C
AF3160M-200Air flow (m3/min ANR): 160 | Elements: 10 | Port: Flange 8B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 260 | Auto drain: 5100-4C
AF3192M-200Air flow (m3/min ANR): 192 | Elements: 12 | Port: Flange 8B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 300 | Auto drain: 5100-4C
AF3256M-200Air flow (m3/min ANR): 256 | Elements: 16 | Port: Flange 8B (10K) | Filtration (um): 0.01 | Outlet oil concentration (mg/m3): 0.1 | Working pressure (MPa): 0.07-1.0 | Mass (kg): 350 | Auto drain: 5100-4C
