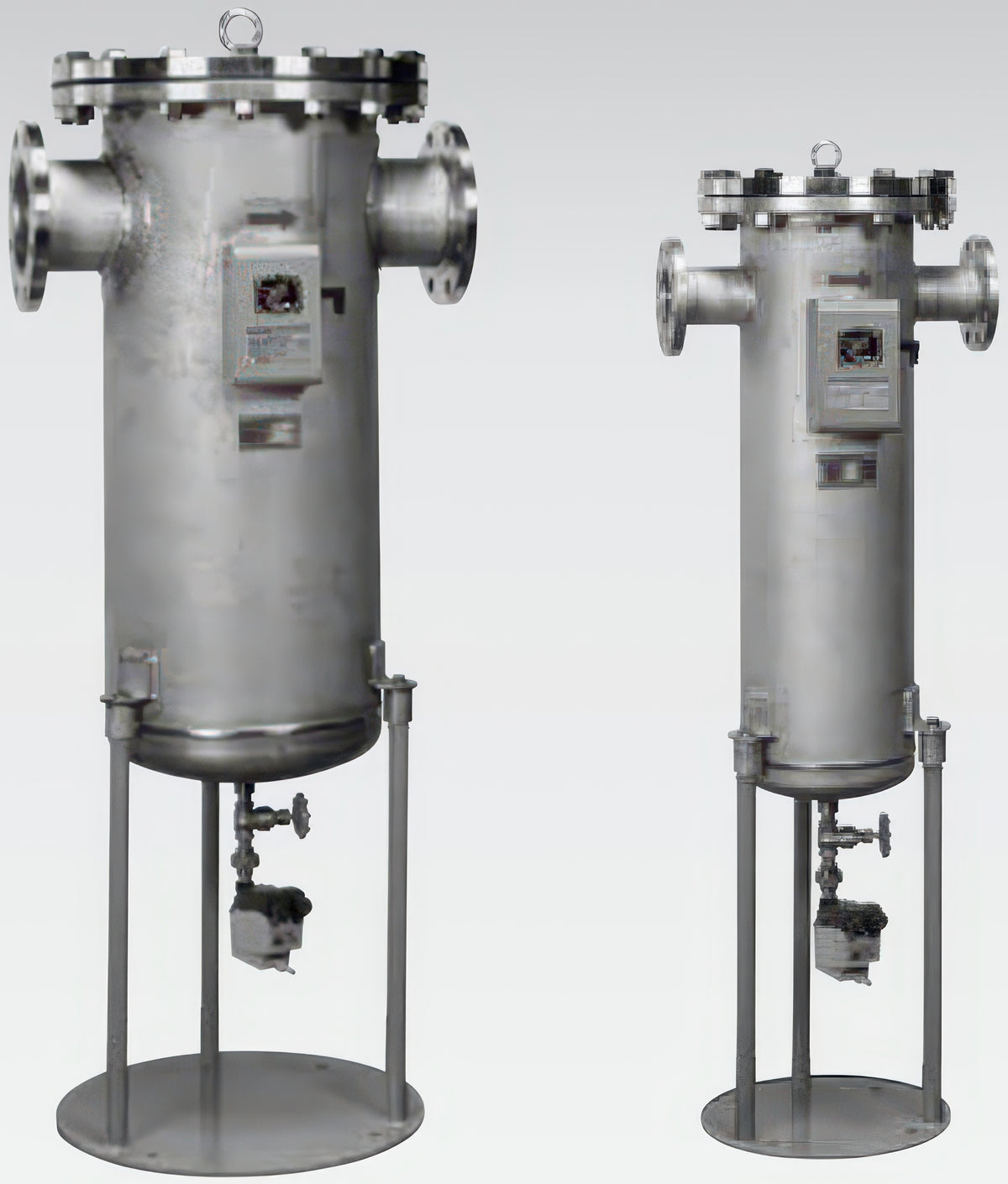

CKD Large Main Line Filter AF5000S Series (Oil removal)

CKD Large Main Line Filter AF5000S Series (Oil removal)

Large flanged main line filter (oil removal) for compressed air flows of 16 to 256 m3/min (ANR).

Key features

  • Working pressure 0.08 to 1.0 MPa, 10K flange connections 2B to 8B
  • A differential pressure indicator/switch is standard for monitoring element replacement
  • Supplied with drain DBV1003D

Specifications

Filtration (um) 0.3
Outlet oil concentration (mg/m3) 0.5
Working pressure (MPa) 0.08-1.0
Auto drain DBV1003D
AF5016S-50 Air flow (m3/min ANR): 16 | Elements: 1 | Port: Flange 2B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 38 | Auto drain: DBV1003D
AF5032S-80 Air flow (m3/min ANR): 32 | Elements: 2 | Port: Flange 3B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 76 | Auto drain: DBV1003D
AF5048S-100 Air flow (m3/min ANR): 48 | Elements: 3 | Port: Flange 4B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 78 | Auto drain: DBV1003D
AF5064S-100 Air flow (m3/min ANR): 64 | Elements: 4 | Port: Flange 4B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 107 | Auto drain: DBV1003D
AF5080S-150 Air flow (m3/min ANR): 80 | Elements: 5 | Port: Flange 6B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 140 | Auto drain: DBV1003D
AF5096S-150 Air flow (m3/min ANR): 96 | Elements: 6 | Port: Flange 6B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 167 | Auto drain: DBV1003D
AF5128S-150 Air flow (m3/min ANR): 128 | Elements: 8 | Port: Flange 6B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 223 | Auto drain: DBV1003D
AF5160S-200 Air flow (m3/min ANR): 160 | Elements: 10 | Port: Flange 8B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 232 | Auto drain: DBV1003D
AF5192S-200 Air flow (m3/min ANR): 192 | Elements: 12 | Port: Flange 8B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 269 | Auto drain: DBV1003D
AF5256S-200 Air flow (m3/min ANR): 256 | Elements: 16 | Port: Flange 8B (10K) | Filtration (um): 0.3 | Outlet oil concentration (mg/m3): 0.5 | Working pressure (MPa): 0.08-1.0 | Mass (kg): 330 | Auto drain: DBV1003D
Air FiltersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Large Main Line Filter AF5000S Series (Oil removal)

Brand CKD·Air Filters

Available part numbers (10)

AF5016S-50, AF5032S-80, AF5048S-100, AF5064S-100, AF5080S-150, AF5096S-150, AF5128S-150, AF5160S-200, AF5192S-200, AF5256S-200

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
