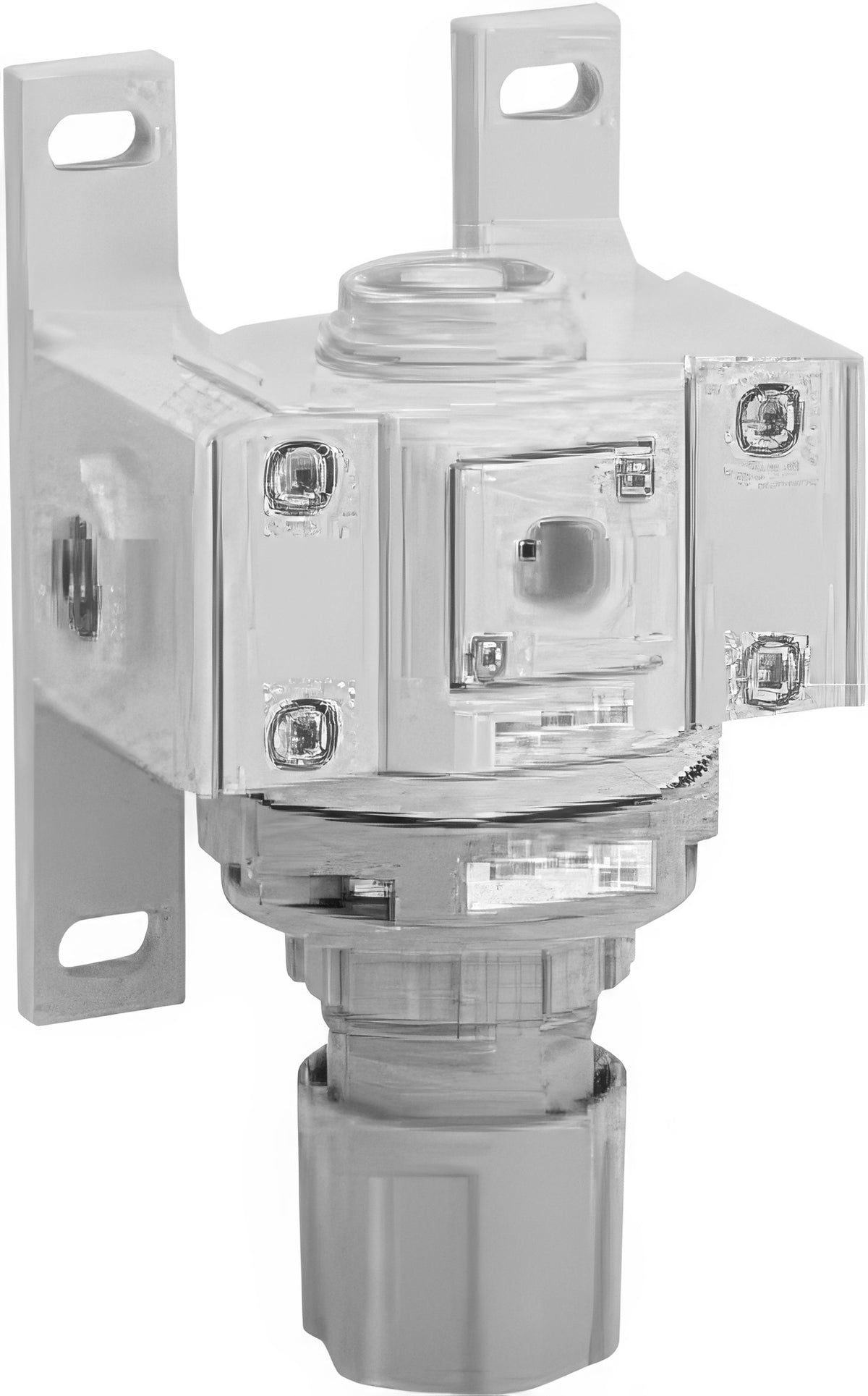

CKD Modular F.R Unit Accessories: Brackets, Joiners, Piping Adapters and Fittings (Clean Spec P70)

CKD Modular F.R Unit Accessories: Brackets, Joiners, Piping Adapters and Fittings (Clean Spec P70)

Accessories for CKD modular-type filters, regulators, filter-regulators and precision regulators in clean-room specification (P70, dust-generation prevention).

Key features

  • Includes C-type, L-type and T-type brackets, joiner sets, piping adapter sets with and without T-type brackets, and the relief-port fitting
B220-P70 Part: C-type bracket | Applicable: W2000/W2100, F2000, M2000, R2000/R2100 (2000 series); RP2000 precision regulator | Clean spec: P70 (dust-generation prevention)
B230-P70 Part: L-type bracket | Applicable: 2000 series W/R modular F.R units | Clean spec: P70 (dust-generation prevention)
B240-P70 Part: B-type bracket (steel, nickel plated) | Applicable: R2000/R2100 regulator | Clean spec: P70 (dust-generation prevention)
B320-P70 Part: C-type bracket | Applicable: 3000 series W/F/M/MX/R modular units; FAC3000 exhaust filter | Clean spec: P70 (dust-generation prevention)
B330-P70 Part: L-type bracket | Applicable: 3000 series W/R modular units | Clean spec: P70 (dust-generation prevention)
B420-P70 Part: C-type bracket | Applicable: 4000 series W/F/M/MX/R modular units | Clean spec: P70 (dust-generation prevention)
B430-P70 Part: L-type bracket | Applicable: 4000/6000 series W/R modular units | Clean spec: P70 (dust-generation prevention)
B620-P70 Part: C-type bracket | Applicable: 6000 series F/M/MX/R modular units | Clean spec: P70 (dust-generation prevention)
B131-P70 Part: L-type bracket | Applicable: RP1000 precision regulator | Clean spec: P70 (dust-generation prevention)
B310-P70 Part: T-type bracket set | Applicable: 2000/3000 series modular F.R | Dimensions: A 60, B 45, C 10, D 125 mm | O-ring JIS B2401-P21 | Mass 0.086 kg | Material: Die-cast aluminum alloy, painted | Clean spec: P70
B410-P70 Part: T-type bracket set | Applicable: 4000 series modular F.R | Dimensions: A 60, B 45, C 10, D 125 mm | O-ring JIS B2401-P21 | Mass 0.094 kg | Material: Die-cast aluminum alloy, painted | Clean spec: P70
B810-P70 Part: T-type bracket set | Applicable: 6000/8000 series modular F.R | Dimensions: A 70, B 50, C 15, D 150 mm | O-ring AS568-127 | Material: Die-cast aluminum alloy, painted | Clean spec: P70
C4000-J400-P70 Part: Joiner set | Applicable: 2000/3000/4000 series modular F.R | Seal: JIS B2401-P21 | Material: Die-cast aluminum alloy, painted | Clean spec: P70
C8000-J800-P70 Part: Joiner set | Applicable: 6000/8000 series modular F.R | Seal: AS568-127 | Mass: 0.094 kg | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-8-P70 Part: Piping adapter set | Port size: Rc1/4 | Applicable: 2000/3000/4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-10-P70 Part: Piping adapter set | Port size: Rc3/8 | Applicable: 2000/3000/4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-15-P70 Part: Piping adapter set | Port size: Rc1/2 | Applicable: 2000/3000/4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-20-P70 Part: Piping adapter set | Port size: Rc3/4 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-25-P70 Part: Piping adapter set | Port size: Rc1 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-20-P70 Part: Piping adapter set | Port size: Rc3/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-25-P70 Part: Piping adapter set | Port size: Rc1 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-32-P70 Part: Piping adapter set | Port size: Rc1-1/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-8-B31-P70 Part: Piping adapter set with T-type bracket (B31) | Port size: Rc1/4 | Applicable: 2000/3000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-10-B31-P70 Part: Piping adapter set with T-type bracket (B31) | Port size: Rc3/8 | Applicable: 2000/3000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-15-B31-P70 Part: Piping adapter set with T-type bracket (B31) | Port size: Rc1/2 | Applicable: 2000/3000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-8-B41-P70 Part: Piping adapter set with T-type bracket (B41) | Port size: Rc1/4 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-10-B41-P70 Part: Piping adapter set with T-type bracket (B41) | Port size: Rc3/8 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-15-B41-P70 Part: Piping adapter set with T-type bracket (B41) | Port size: Rc1/2 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-20-B41-P70 Part: Piping adapter set with T-type bracket (B41) | Port size: Rc3/4 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-25-B41-P70 Part: Piping adapter set with T-type bracket (B41) | Port size: Rc1 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-20-B81-P70 Part: Piping adapter set with T-type bracket (B81) | Port size: Rc3/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-25-B81-P70 Part: Piping adapter set with T-type bracket (B81) | Port size: Rc1 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-32-B81-P70 Part: Piping adapter set with T-type bracket (B81) | Port size: Rc1-1/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
R4000-E1-P70 Part: Fitting (relief port / breather hole) | Thread: M5 x 0.8 | Applicable tube OD: 6 mm | Material: Brass, nickel plated | Applicable: W/R modular units, RP1000, RP2000 | Clean spec: P70
Air Preparation AccessoriesCKD
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Modular F.R Unit Accessories: Brackets, Joiners, Piping Adapters and Fittings (Clean Spec P70)

Brand CKD·Air Preparation Accessories

Available part numbers (34)

B220-P70, B230-P70, B240-P70, B320-P70, B330-P70, B420-P70, B430-P70, B620-P70, B131-P70, B310-P70 + 24 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B220-P70Part: C-type bracket | Applicable: W2000/W2100, F2000, M2000, R2000/R2100 (2000 series); RP2000 precision regulator | Clean spec: P70 (dust-generation prevention)
B230-P70Part: L-type bracket | Applicable: 2000 series W/R modular F.R units | Clean spec: P70 (dust-generation prevention)
B240-P70Part: B-type bracket (steel, nickel plated) | Applicable: R2000/R2100 regulator | Clean spec: P70 (dust-generation prevention)
B320-P70Part: C-type bracket | Applicable: 3000 series W/F/M/MX/R modular units; FAC3000 exhaust filter | Clean spec: P70 (dust-generation prevention)
B330-P70Part: L-type bracket | Applicable: 3000 series W/R modular units | Clean spec: P70 (dust-generation prevention)
B420-P70Part: C-type bracket | Applicable: 4000 series W/F/M/MX/R modular units | Clean spec: P70 (dust-generation prevention)
B430-P70Part: L-type bracket | Applicable: 4000/6000 series W/R modular units | Clean spec: P70 (dust-generation prevention)
B620-P70Part: C-type bracket | Applicable: 6000 series F/M/MX/R modular units | Clean spec: P70 (dust-generation prevention)
B131-P70Part: L-type bracket | Applicable: RP1000 precision regulator | Clean spec: P70 (dust-generation prevention)
B310-P70Part: T-type bracket set | Applicable: 2000/3000 series modular F.R | Dimensions: A 60, B 45, C 10, D 125 mm | O-ring JIS B2401-P21 | Mass 0.086 kg | Material: Die-cast aluminum alloy, painted | Clean spec: P70
B410-P70Part: T-type bracket set | Applicable: 4000 series modular F.R | Dimensions: A 60, B 45, C 10, D 125 mm | O-ring JIS B2401-P21 | Mass 0.094 kg | Material: Die-cast aluminum alloy, painted | Clean spec: P70
B810-P70Part: T-type bracket set | Applicable: 6000/8000 series modular F.R | Dimensions: A 70, B 50, C 15, D 150 mm | O-ring AS568-127 | Material: Die-cast aluminum alloy, painted | Clean spec: P70
C4000-J400-P70Part: Joiner set | Applicable: 2000/3000/4000 series modular F.R | Seal: JIS B2401-P21 | Material: Die-cast aluminum alloy, painted | Clean spec: P70
C8000-J800-P70Part: Joiner set | Applicable: 6000/8000 series modular F.R | Seal: AS568-127 | Mass: 0.094 kg | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-8-P70Part: Piping adapter set | Port size: Rc1/4 | Applicable: 2000/3000/4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-10-P70Part: Piping adapter set | Port size: Rc3/8 | Applicable: 2000/3000/4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-15-P70Part: Piping adapter set | Port size: Rc1/2 | Applicable: 2000/3000/4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-20-P70Part: Piping adapter set | Port size: Rc3/4 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-25-P70Part: Piping adapter set | Port size: Rc1 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-20-P70Part: Piping adapter set | Port size: Rc3/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-25-P70Part: Piping adapter set | Port size: Rc1 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-32-P70Part: Piping adapter set | Port size: Rc1-1/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-8-B31-P70Part: Piping adapter set with T-type bracket (B31) | Port size: Rc1/4 | Applicable: 2000/3000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-10-B31-P70Part: Piping adapter set with T-type bracket (B31) | Port size: Rc3/8 | Applicable: 2000/3000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-15-B31-P70Part: Piping adapter set with T-type bracket (B31) | Port size: Rc1/2 | Applicable: 2000/3000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-8-B41-P70Part: Piping adapter set with T-type bracket (B41) | Port size: Rc1/4 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-10-B41-P70Part: Piping adapter set with T-type bracket (B41) | Port size: Rc3/8 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-15-B41-P70Part: Piping adapter set with T-type bracket (B41) | Port size: Rc1/2 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-20-B41-P70Part: Piping adapter set with T-type bracket (B41) | Port size: Rc3/4 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A400-25-B41-P70Part: Piping adapter set with T-type bracket (B41) | Port size: Rc1 | Applicable: 4000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-20-B81-P70Part: Piping adapter set with T-type bracket (B81) | Port size: Rc3/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-25-B81-P70Part: Piping adapter set with T-type bracket (B81) | Port size: Rc1 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
A800-32-B81-P70Part: Piping adapter set with T-type bracket (B81) | Port size: Rc1-1/4 | Applicable: 6000 series modular F.R | Material: Die-cast aluminum alloy, painted | Clean spec: P70
R4000-E1-P70Part: Fitting (relief port / breather hole) | Thread: M5 x 0.8 | Applicable tube OD: 6 mm | Material: Brass, nickel plated | Applicable: W/R modular units, RP1000, RP2000 | Clean spec: P70

Need a different model, or a part not listed here? Send us your parts list →
