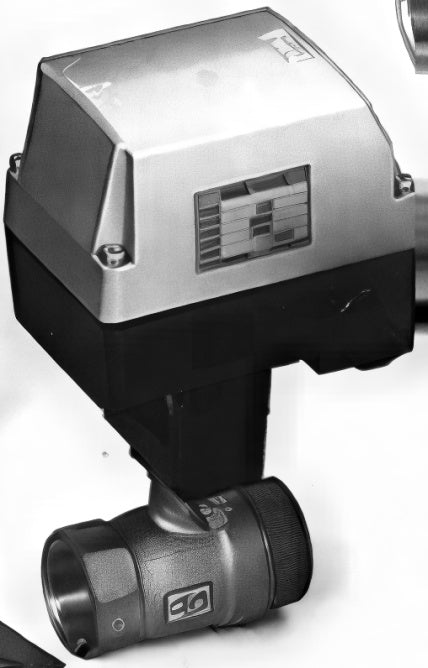

CKD Motorized Ball Valve 2-Port for Steam with Relay MSB1D Series (Standard Bore)

CKD Motorized Ball Valve 2-Port for Steam with Relay MSB1D Series (Standard Bore)

Motor-driven 2-port ball valve with built-in relay for steam and water, standard bore.

Key features

  • Rc3/8 to Rc2 ports, AC100V/AC200V
  • MSB1D-10 is full bore

Specifications

Fluid steam, water
Rated voltage AC100V, AC200V
MSB1D-10 Port: Rc3/8 | Orifice (mm): 10 | Cv: 10 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.3 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-15 Port: Rc1/2 | Orifice (mm): 10 | Cv: 6 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.3 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-20 Port: Rc3/4 | Orifice (mm): 15 | Cv: 16 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.5 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-25 Port: Rc1 | Orifice (mm): 20 | Cv: 29 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.6 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-32 Port: Rc1-1/4 | Orifice (mm): 25 | Cv: 50 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 2.6 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-40 Port: Rc1-1/2 | Orifice (mm): 32 | Cv: 98 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 3.1 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-50 Port: Rc2 | Orifice (mm): 40 | Cv: 125 | Operating pressure (MPa): 0-0.5 (fluid temp. 0-158 C) | Mass (kg): 3.9 | Fluid: steam, water | Rated voltage: AC100V, AC200V
Ball ValvesCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Motorized Ball Valve 2-Port for Steam with Relay MSB1D Series (Standard Bore)

Brand CKD·Ball Valves

Available part numbers (7)

MSB1D-10, MSB1D-15, MSB1D-20, MSB1D-25, MSB1D-32, MSB1D-40, MSB1D-50

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSB1D-10Port: Rc3/8 | Orifice (mm): 10 | Cv: 10 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.3 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-15Port: Rc1/2 | Orifice (mm): 10 | Cv: 6 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.3 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-20Port: Rc3/4 | Orifice (mm): 15 | Cv: 16 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.5 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-25Port: Rc1 | Orifice (mm): 20 | Cv: 29 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 1.6 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-32Port: Rc1-1/4 | Orifice (mm): 25 | Cv: 50 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 2.6 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-40Port: Rc1-1/2 | Orifice (mm): 32 | Cv: 98 | Operating pressure (MPa): 0-0.6 (fluid temp. 0-164 C) | Mass (kg): 3.1 | Fluid: steam, water | Rated voltage: AC100V, AC200V
MSB1D-50Port: Rc2 | Orifice (mm): 40 | Cv: 125 | Operating pressure (MPa): 0-0.5 (fluid temp. 0-158 C) | Mass (kg): 3.9 | Fluid: steam, water | Rated voltage: AC100V, AC200V
