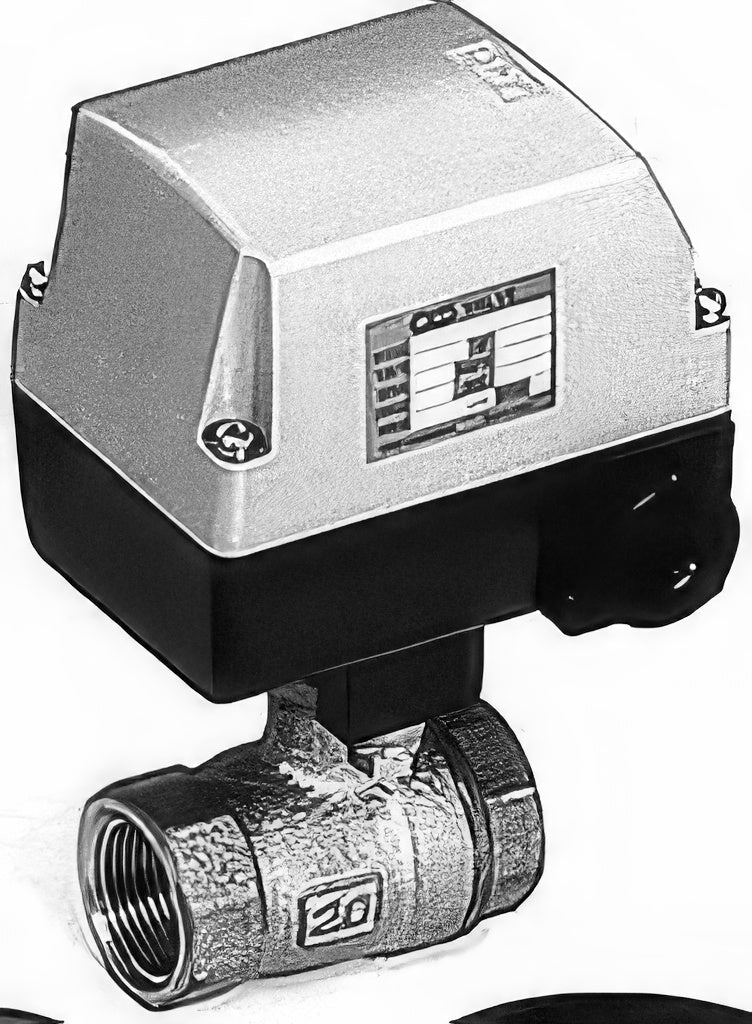

CKD Motorized Ball Valve 2-Port with Relay MXB1D Series (Standard Bore)

CKD Motorized Ball Valve 2-Port with Relay MXB1D Series (Standard Bore)

Motor-driven 2-port ball valve with built-in relay, standard bore, for water, air and oil.

Key features

  • Rc3/8 to Rc2 ports, AC100V/AC200V
  • MXB1D-10 is full bore

Specifications

Fluid water, air, oil (500 mm2/s or less)
Fluid temperature (C) 0-80
Rated voltage AC100V, AC200V
MXB1D-10 Port: Rc3/8 | Orifice (mm): 10 | Cv: 10 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.2 (stainless 1.2) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-15 Port: Rc1/2 | Orifice (mm): 10 | Cv: 6 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.3 (stainless 1.3) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-20 Port: Rc3/4 | Orifice (mm): 15 | Cv: 16 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.4 (stainless 1.4) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-25 Port: Rc1 | Orifice (mm): 20 | Cv: 29 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.6 (stainless 1.6) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-32 Port: Rc1-1/4 | Orifice (mm): 25 | Cv: 50 | Operating pressure (MPa): 0-1.0 | Mass (kg): 2.6 (stainless 2.7) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-40 Port: Rc1-1/2 | Orifice (mm): 32 | Cv: 98 | Operating pressure (MPa): 0-1.0 | Mass (kg): 3.0 (stainless 3.1) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-50 Port: Rc2 | Orifice (mm): 40 | Cv: 125 | Operating pressure (MPa): 0-0.5 | Mass (kg): 3.8 (stainless 3.9) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
Ball ValvesCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Motorized Ball Valve 2-Port with Relay MXB1D Series (Standard Bore)

Brand CKD·Ball Valves

Available part numbers (7)

MXB1D-10, MXB1D-15, MXB1D-20, MXB1D-25, MXB1D-32, MXB1D-40, MXB1D-50

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MXB1D-10Port: Rc3/8 | Orifice (mm): 10 | Cv: 10 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.2 (stainless 1.2) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-15Port: Rc1/2 | Orifice (mm): 10 | Cv: 6 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.3 (stainless 1.3) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-20Port: Rc3/4 | Orifice (mm): 15 | Cv: 16 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.4 (stainless 1.4) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-25Port: Rc1 | Orifice (mm): 20 | Cv: 29 | Operating pressure (MPa): 0-1.0 | Mass (kg): 1.6 (stainless 1.6) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-32Port: Rc1-1/4 | Orifice (mm): 25 | Cv: 50 | Operating pressure (MPa): 0-1.0 | Mass (kg): 2.6 (stainless 2.7) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-40Port: Rc1-1/2 | Orifice (mm): 32 | Cv: 98 | Operating pressure (MPa): 0-1.0 | Mass (kg): 3.0 (stainless 3.1) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
MXB1D-50Port: Rc2 | Orifice (mm): 40 | Cv: 125 | Operating pressure (MPa): 0-0.5 | Mass (kg): 3.8 (stainless 3.9) | Fluid: water, air, oil (500 mm2/s or less) | Fluid temperature (C): 0-80 | Rated voltage: AC100V, AC200V
