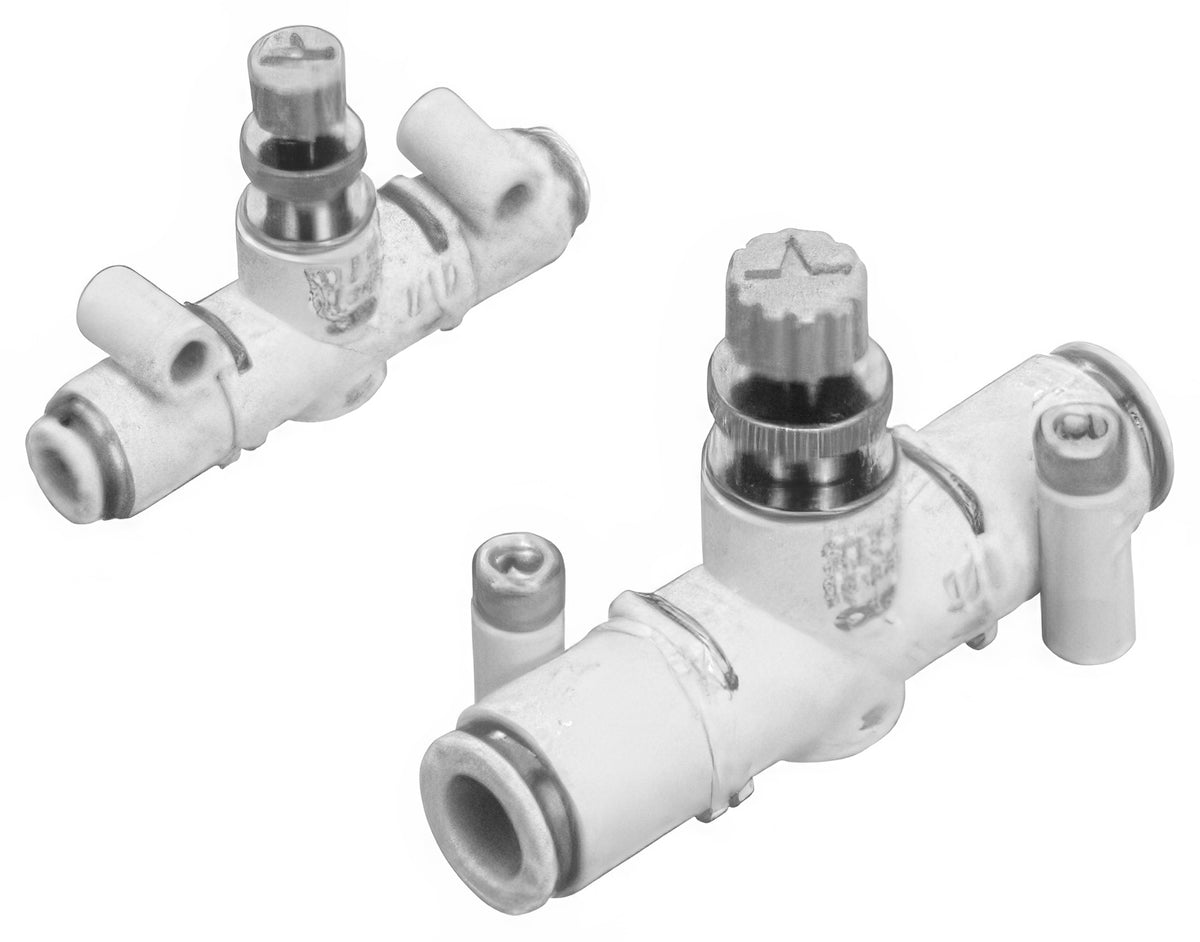

CKD Needle Valve SCL2-N Series (In-Line Type, Push-In Fitting)

CKD Needle Valve SCL2-N Series (In-Line Type, Push-In Fitting)

In-line needle valves with push-in fittings on both sides; the last code segment indicates the flow class.

Key features

  • Specifications are taken from the catalog system table; effective area and flow values are at 0.5 MPa, and values in parentheses are for the low-speed, fine-speed or low-flow versions where offered
  • The applicable cylinder bore is a reference value

Specifications

Connection Push-in fitting both sides (in-line)
SCL2-N-04-H44-010 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Effective area, controlled flow (mm2): 0.2 | Flow, controlled flow (L/min ANR): 13
SCL2-N-04-H44-050 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Effective area, controlled flow (mm2): 0.7 | Flow, controlled flow (L/min ANR): 50
SCL2-N-06-H66-010 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 0.2 | Flow, controlled flow (L/min ANR): 13
SCL2-N-06-H66-050 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 0.7 | Flow, controlled flow (L/min ANR): 50
SCL2-N-06-H66-150 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 2.2 | Flow, controlled flow (L/min ANR): 150
SCL2-N-08-H66-300 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 4.5 | Flow, controlled flow (L/min ANR): 300
SCL2-N-08-H88-300 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 8 | Effective area, controlled flow (mm2): 4.5 | Flow, controlled flow (L/min ANR): 300
Speed ControllersCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Needle Valve SCL2-N Series (In-Line Type, Push-In Fitting)

Brand CKD·Speed Controllers

Available part numbers (7)

SCL2-N-04-H44-010, SCL2-N-04-H44-050, SCL2-N-06-H66-010, SCL2-N-06-H66-050, SCL2-N-06-H66-150, SCL2-N-08-H66-300, SCL2-N-08-H88-300

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCL2-N-04-H44-010Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Effective area, controlled flow (mm2): 0.2 | Flow, controlled flow (L/min ANR): 13
SCL2-N-04-H44-050Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Effective area, controlled flow (mm2): 0.7 | Flow, controlled flow (L/min ANR): 50
SCL2-N-06-H66-010Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 0.2 | Flow, controlled flow (L/min ANR): 13
SCL2-N-06-H66-050Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 0.7 | Flow, controlled flow (L/min ANR): 50
SCL2-N-06-H66-150Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 2.2 | Flow, controlled flow (L/min ANR): 150
SCL2-N-08-H66-300Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Effective area, controlled flow (mm2): 4.5 | Flow, controlled flow (L/min ANR): 300
SCL2-N-08-H88-300Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 8 | Effective area, controlled flow (mm2): 4.5 | Flow, controlled flow (L/min ANR): 300
