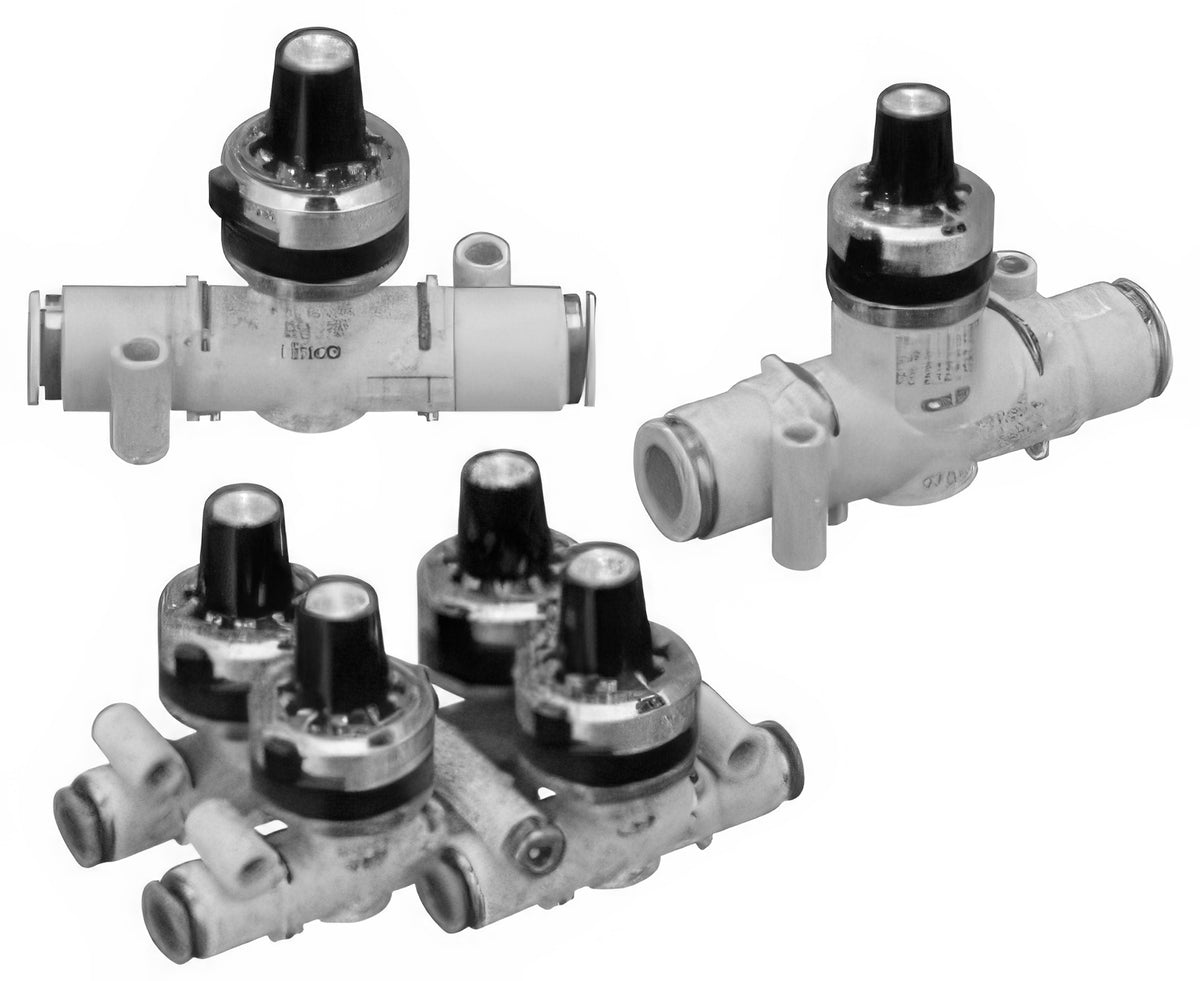

CKD Needle Valve with Check Valve and Dial, DVL-S Series (In-Line, Push-In)

CKD Needle Valve with Check Valve and Dial, DVL-S Series (In-Line, Push-In)

In-line speed control needle valves with check valve and numbered dial, push-in fittings on both sides.

Key features

  • The last code segment indicates the flow class
  • Specifications are taken from the catalog system table; effective area and flow values are at 0.5 MPa, and values in parentheses are for the low-speed, fine-speed or low-flow versions where offered
  • The applicable cylinder bore is a reference value

Specifications

Connection Push-in fitting both sides (in-line)
DVL-S-06-H44-020 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 2.5 | Effective area, controlled flow (mm2): 0.15 | Flow, free flow (L/min ANR): 170 | Flow, controlled flow (L/min ANR): 18 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H66-020 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 4.5 | Effective area, controlled flow (mm2): 0.15 | Flow, free flow (L/min ANR): 300 | Flow, controlled flow (L/min ANR): 18 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H44-080 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 2.5 | Effective area, controlled flow (mm2): 1.2 | Flow, free flow (L/min ANR): 170 | Flow, controlled flow (L/min ANR): 80 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H66-080 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 4.5 | Effective area, controlled flow (mm2): 1.2 | Flow, free flow (L/min ANR): 300 | Flow, controlled flow (L/min ANR): 80 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H66-160 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 4.5 | Effective area, controlled flow (mm2): 2.5 | Flow, free flow (L/min ANR): 300 | Flow, controlled flow (L/min ANR): 160 | Applicable cylinder bore (mm): 6 to 40
DVL-S-08-H66-240 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/4 equivalent | Effective area, free flow (mm2): 6 | Effective area, controlled flow (mm2): 3.6 | Flow, free flow (L/min ANR): 400 | Flow, controlled flow (L/min ANR): 240 | Applicable cylinder bore (mm): 20 to 50
DVL-S-08-H88-240 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 8 | Body size: 1/4 equivalent | Effective area, free flow (mm2): 8 | Effective area, controlled flow (mm2): 3.6 | Flow, free flow (L/min ANR): 550 | Flow, controlled flow (L/min ANR): 240 | Applicable cylinder bore (mm): 20 to 50
DVL-S-10-H88-400 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 8 | Body size: 3/8 equivalent | Effective area, free flow (mm2): 13.5 | Effective area, controlled flow (mm2): 6.6 | Flow, free flow (L/min ANR): 900 | Flow, controlled flow (L/min ANR): 440 | Applicable cylinder bore (mm): 32 to 75
DVL-S-10-H1010-400 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 10 | Body size: 3/8 equivalent | Effective area, free flow (mm2): 16.5 | Effective area, controlled flow (mm2): 6.6 | Flow, free flow (L/min ANR): 1100 | Flow, controlled flow (L/min ANR): 440 | Applicable cylinder bore (mm): 32 to 75
DVL-S-10-H1212-400 Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 12 | Body size: 3/8 equivalent | Effective area, free flow (mm2): 18 | Effective area, controlled flow (mm2): 6.6 | Flow, free flow (L/min ANR): 1200 | Flow, controlled flow (L/min ANR): 440 | Applicable cylinder bore (mm): 32 to 75
Speed ControllersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Needle Valve with Check Valve and Dial, DVL-S Series (In-Line, Push-In)

Brand CKD·Speed Controllers

Available part numbers (10)

DVL-S-06-H44-020, DVL-S-06-H66-020, DVL-S-06-H44-080, DVL-S-06-H66-080, DVL-S-06-H66-160, DVL-S-08-H66-240, DVL-S-08-H88-240, DVL-S-10-H88-400, DVL-S-10-H1010-400, DVL-S-10-H1212-400

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DVL-S-06-H44-020Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 2.5 | Effective area, controlled flow (mm2): 0.15 | Flow, free flow (L/min ANR): 170 | Flow, controlled flow (L/min ANR): 18 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H66-020Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 4.5 | Effective area, controlled flow (mm2): 0.15 | Flow, free flow (L/min ANR): 300 | Flow, controlled flow (L/min ANR): 18 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H44-080Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 4 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 2.5 | Effective area, controlled flow (mm2): 1.2 | Flow, free flow (L/min ANR): 170 | Flow, controlled flow (L/min ANR): 80 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H66-080Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 4.5 | Effective area, controlled flow (mm2): 1.2 | Flow, free flow (L/min ANR): 300 | Flow, controlled flow (L/min ANR): 80 | Applicable cylinder bore (mm): 6 to 40
DVL-S-06-H66-160Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/8 equivalent | Effective area, free flow (mm2): 4.5 | Effective area, controlled flow (mm2): 2.5 | Flow, free flow (L/min ANR): 300 | Flow, controlled flow (L/min ANR): 160 | Applicable cylinder bore (mm): 6 to 40
DVL-S-08-H66-240Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 6 | Body size: 1/4 equivalent | Effective area, free flow (mm2): 6 | Effective area, controlled flow (mm2): 3.6 | Flow, free flow (L/min ANR): 400 | Flow, controlled flow (L/min ANR): 240 | Applicable cylinder bore (mm): 20 to 50
DVL-S-08-H88-240Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 8 | Body size: 1/4 equivalent | Effective area, free flow (mm2): 8 | Effective area, controlled flow (mm2): 3.6 | Flow, free flow (L/min ANR): 550 | Flow, controlled flow (L/min ANR): 240 | Applicable cylinder bore (mm): 20 to 50
DVL-S-10-H88-400Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 8 | Body size: 3/8 equivalent | Effective area, free flow (mm2): 13.5 | Effective area, controlled flow (mm2): 6.6 | Flow, free flow (L/min ANR): 900 | Flow, controlled flow (L/min ANR): 440 | Applicable cylinder bore (mm): 32 to 75
DVL-S-10-H1010-400Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 10 | Body size: 3/8 equivalent | Effective area, free flow (mm2): 16.5 | Effective area, controlled flow (mm2): 6.6 | Flow, free flow (L/min ANR): 1100 | Flow, controlled flow (L/min ANR): 440 | Applicable cylinder bore (mm): 32 to 75
DVL-S-10-H1212-400Connection: Push-in fitting both sides (in-line) | Tube OD (mm): 12 | Body size: 3/8 equivalent | Effective area, free flow (mm2): 18 | Effective area, controlled flow (mm2): 6.6 | Flow, free flow (L/min ANR): 1200 | Flow, controlled flow (L/min ANR): 440 | Applicable cylinder bore (mm): 32 to 75
