CKD PAW-A-FP1 Powerful Arm, Palletizing Type (Food Processing)

CKD PAW-A-FP1 Powerful Arm, Palletizing Type (Food Processing)

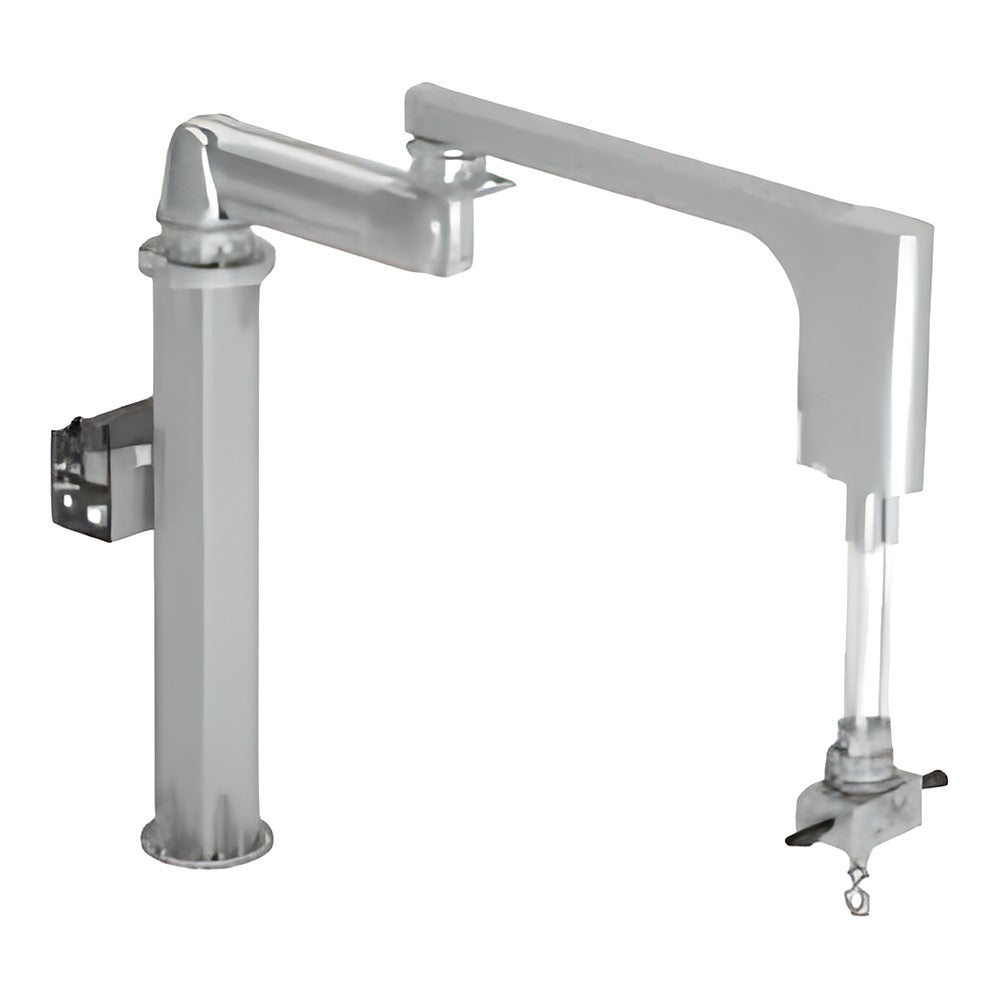

CKD PAW-A-FP1 palletizing-type powerful arm with long vertical handling range for stacking work in food plants.

Key features

  • Vertical operating range 450 mm (AS-45) or 1100 mm (AZ-110); max. turning radius 1600-2100 mm
  • Payload at 0.5 MPa: 53 kg (AS-45), 43-47 kg (AZ-110)
  • Option L rotation lock; option C bending direction on AS-45 and AZ-110 only
  • Product mass 161-183 kg; air consumption 11 or 35 L/min (ANR)
  • Not for conveying unpackaged food

Specifications

Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.25 MPa (0.35 MPa with L)
Proof pressure 1.05 MPa
Ambient temperature 5 to 60 C
Lubrication Not allowed
Source CKD Korea catalog CC-1271K-5, p. 118-119
PAW-AS-45-FP1 Model: AS-45 | Vertical stroke: 450 mm | Max. radius: 2000 mm | Option: None
PAW-AS-45-L-FP1 Model: AS-45 | Vertical stroke: 450 mm | Max. radius: 2000 mm | Option: Rotation lock (L)
PAW-AS-45-C-FP1 Model: AS-45 | Vertical stroke: 450 mm | Max. radius: 2000 mm | Option: Bending direction (C)
PAW-AS-45-LC-FP1 Model: AS-45 | Vertical stroke: 450 mm | Max. radius: 2000 mm | Option: Rotation lock + bending
PAW-AS-45-S-FP1 Model: AS-45-S | Vertical stroke: 450 mm | Max. radius: 1600 mm | Option: None
PAW-AS-45-S-L-FP1 Model: AS-45-S | Vertical stroke: 450 mm | Max. radius: 1600 mm | Option: Rotation lock (L)
PAW-AZ-110-FP1 Model: AZ-110 | Vertical stroke: 1100 mm | Max. radius: 2100 mm | Option: None
PAW-AZ-110-L-FP1 Model: AZ-110 | Vertical stroke: 1100 mm | Max. radius: 2100 mm | Option: Rotation lock (L)
PAW-AZ-110-C-FP1 Model: AZ-110 | Vertical stroke: 1100 mm | Max. radius: 2100 mm | Option: Bending direction (C)
PAW-AZ-110-LC-FP1 Model: AZ-110 | Vertical stroke: 1100 mm | Max. radius: 2100 mm | Option: Rotation lock + bending
PAW-AZ-110-S-FP1 Model: AZ-110-S | Vertical stroke: 1100 mm | Max. radius: 1700 mm | Option: None
PAW-AZ-110-S-L-FP1 Model: AZ-110-S | Vertical stroke: 1100 mm | Max. radius: 1700 mm | Option: Rotation lock (L)
Material Handling ArmsCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
