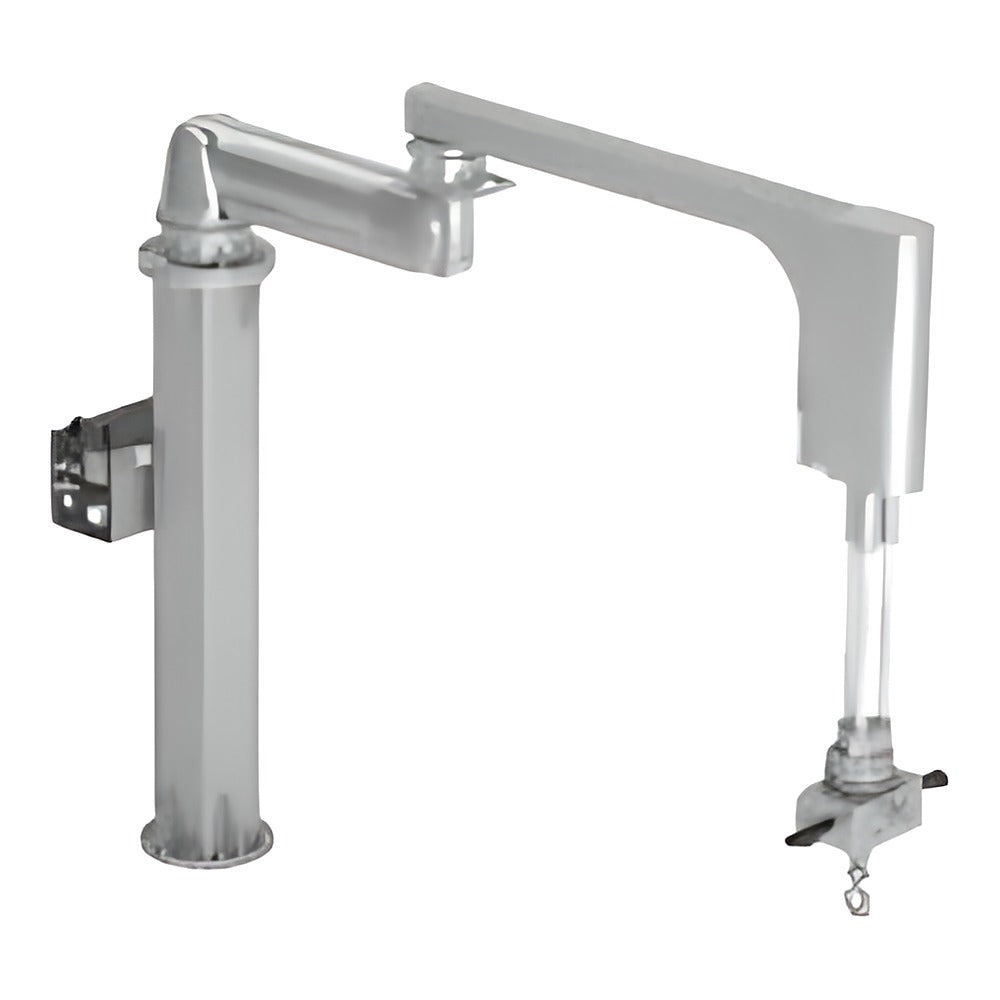

CKD PAW-FP1 Powerful Arm (Food Processing, Bore 80-125)

CKD PAW-FP1 Powerful Arm (Food Processing, Bore 80-125)

CKD PAW-FP1 pneumatic powerful arm (load-balancing assist arm) for manual handling in food processing, using NSF H1 lubricants.

Key features

  • Single-axis (S) arms with bore 80/100/125 mm or multi-axis (M) combinations with scara arm
  • Payload at 0.5 MPa: 30 kg (bore 80), 50 kg (bore 100), 80 kg (bore 125)
  • Options L rotation lock and R tip rotation mechanism listed; C bending direction and U piping outlet not expanded
  • Rubber cushion; max. operating pressure 0.7 MPa, min. 0.25 MPa (0.35 MPa with L)
  • Attachment FP1 compatibility to be confirmed with CKD; not for unpackaged food conveying

Specifications

Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.25 MPa (0.35 MPa with L)
Proof pressure 1.05 MPa
Ambient temperature 5 to 60 C
Cushion Rubber cushion
Lubrication Not allowed
Controller PAW-B series (ordered separately)
Source CKD Korea catalog CC-1271K-5, p. 116-117
