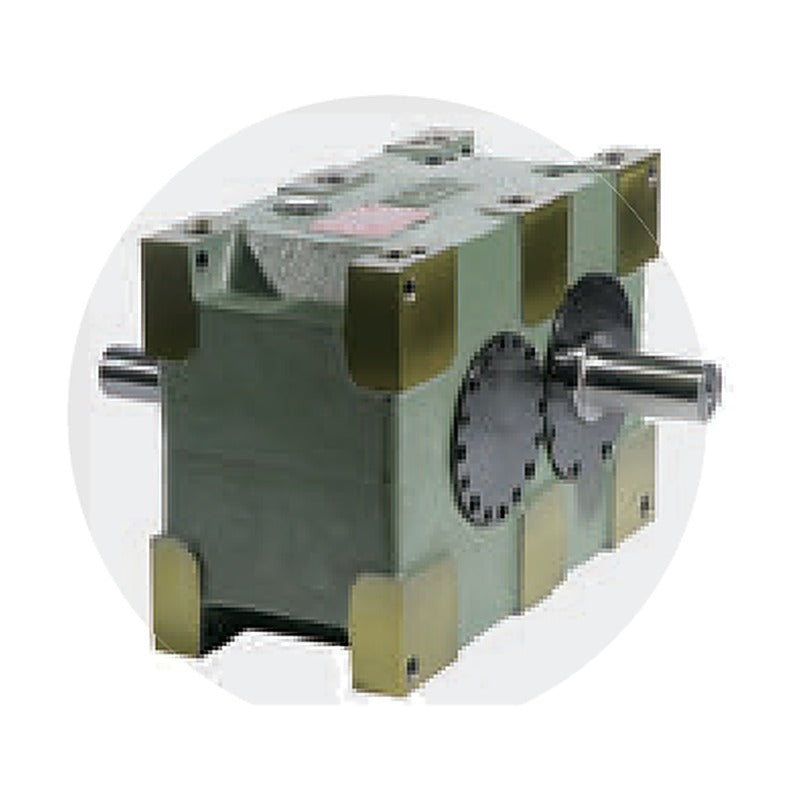

CODEX CF3 P Parallel Cam Index Drive (P65-P400)

CODEX CF3 P Parallel Cam Index Drive (P65-P400)

The CF3 P series parallel index drive uses conjugate (paired plate) cams with input and output shafts parallel. It is ideal for conveyor drives with small stop numbers and gives stable, backlash-free indexing through preloaded rollers.

Key features

  • Parallel input and output shafts
  • Conjugate twin plate cams for stable, preloaded motion
  • Well suited to conveyor drives with few stops
  • Mountable in any of six orientations
  • Free design of index angle and cam curve within range

Specifications

Drive type Parallel (conjugate) cam index drive (CF3)
Sizes P65 to P400
Stops 1, 2, 3, 4 (1 dwell); 6, 8 (2 dwell)
Index accuracy ±60 arc-sec (1 dwell), ±120 (2 dwell)
Repeatability 60 arc-sec
Ordering options Stops, index angle, cam curve, cam hand, dwell, input/output shaft layout
Source CODEX (Daedong Index) CODEX (Daedong Index) catalogue 2024 (CODEX), CF3 Parallel type
CF3-P65 Size: 65 | Output thrust: 280 kgf | Output radial: 200 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 13 kg
CF3-P80 Size: 80 | Output thrust: 400 kgf | Output radial: 290 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 25 kg
CF3-P105 Size: 105 | Output thrust: 550 kgf | Output radial: 460 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 45 kg
CF3-P130 Size: 130 | Output thrust: 650 kgf | Output radial: 730 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 80 kg
CF3-P165 Size: 165 | Output thrust: 950 kgf | Output radial: 1260 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 136 kg
CF3-P200 Size: 200 | Output thrust: 1550 kgf | Output radial: 1600 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 235 kg
CF3-P250 Size: 250 | Output thrust: 1800 kgf | Output radial: 1850 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 410 kg
CF3-P315 Size: 315 | Output thrust: 2600 kgf | Output radial: 3100 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 775 kg
CF3-P400 Size: 400 | Output thrust: 3500 kgf | Output radial: 5200 kgf | Index accuracy: ±60 arc-sec | Weight: approx. 1450 kg
