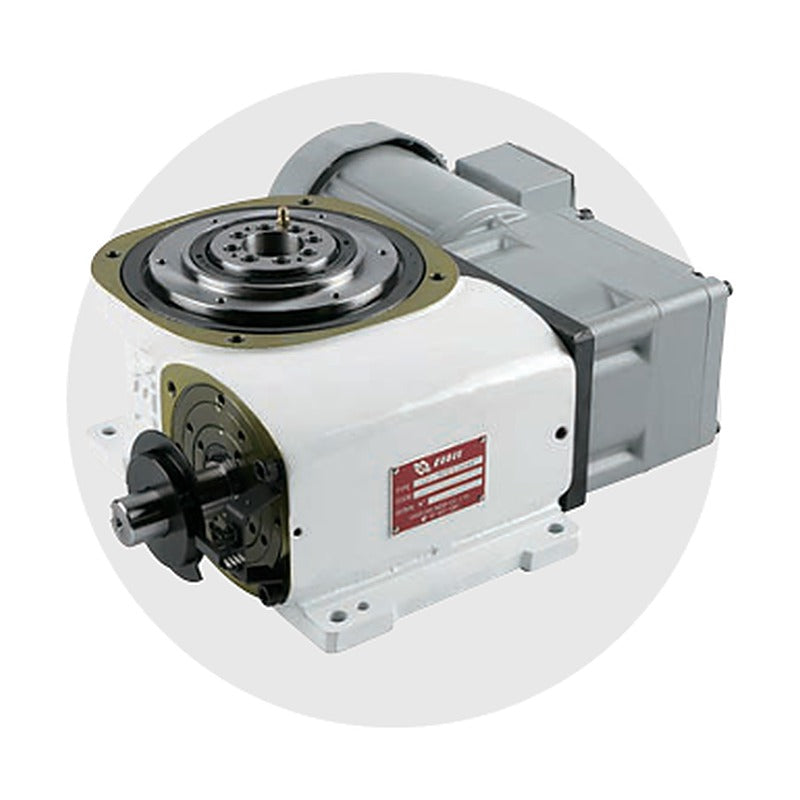

CODEX CF4 T Roller Gear Index Drive (Table Type, T70-T450)

The CF4 T series is a table-type roller gear index drive with a rotary table output for dial and turntable machines. The preloaded roller gear cam gives backlash-free indexing; each size is available with a geared motor package.

Key features

Roller gear (globoidal) cam with preloaded cam followers for zero backlash
High rigidity and high-speed indexing with smooth, low-vibration motion
Cam curves MT, MS or MCV selectable to suit speed and load
Machined on all six faces for mounting in any orientation
Low maintenance; 1 to 4 dwells per input revolution

Specifications

Drive type	Roller gear cam index drive (CF4)
Configuration	Table type
Sizes	T70 to T450
Cam curves	MT (modified trapezoid), MS (modified sine), MCV
Dwell	1, 2, 3 or 4 dwells per input revolution
Ordering options	Stops, index angle, cam curve, cam hand, dwell, input/output shaft layout
Output	Rotary table output with large hollow centre
Index accuracy	±20 to ±30 arc-sec (1 dwell)
Dwell tables	1 dwell and 2 dwell torque tables per size
Drive package	Available with mounted geared motor
Source	CODEX (Daedong Index) CODEX (Daedong Index) catalogue 2024 (CODEX), CF4 Table type

CF4-T70		Center distance: 70 mm \| Output thrust: 315 kgf \| Output radial: 170 kgf \| Index accuracy: ±30 arc-sec \| Weight: approx. 15 kg
CF4-T90		Center distance: 90 mm \| Output thrust: 500 kgf \| Output radial: 215.5 kgf \| Index accuracy: ±30 arc-sec \| Weight: approx. 25 kg
CF4-T110		Center distance: 110 mm \| Output thrust: 694 kgf \| Output radial: 347 kgf \| Index accuracy: ±30 arc-sec \| Weight: approx. 45 kg
CF4-T150		Center distance: 150 mm \| Output thrust: 1120 kgf \| Output radial: 695 kgf \| Index accuracy: ±30 arc-sec \| Weight: approx. 85 kg
CF4-T190		Center distance: 190 mm \| Output thrust: 1830 kgf \| Output radial: 915 kgf \| Index accuracy: ±30 arc-sec \| Weight: approx. 175 kg
CF4-T230		Center distance: 230 mm \| Output thrust: 2750 kgf \| Output radial: 1220 kgf \| Index accuracy: ±30 arc-sec \| Weight: approx. 290 kg
CF4-T280		Center distance: 280 mm \| Output thrust: 3050 kgf \| Output radial: 2200 kgf \| Index accuracy: ±25 arc-sec \| Weight: approx. 645 kg
CF4-T330		Center distance: 330 mm \| Output thrust: 3550 kgf \| Output radial: 3420 kgf \| Index accuracy: ±20 arc-sec \| Weight: approx. 1000 kg
CF4-T390		Center distance: 390 mm \| Output thrust: 4082 kgf \| Output radial: 3652 kgf \| Index accuracy: ±20 arc-sec \| Weight: approx. 1600 kg
CF4-T450		Center distance: 450 mm \| Output thrust: 4800 kgf \| Output radial: 4000 kgf \| Index accuracy: ±20 arc-sec \| Weight: approx. 2500 kg
