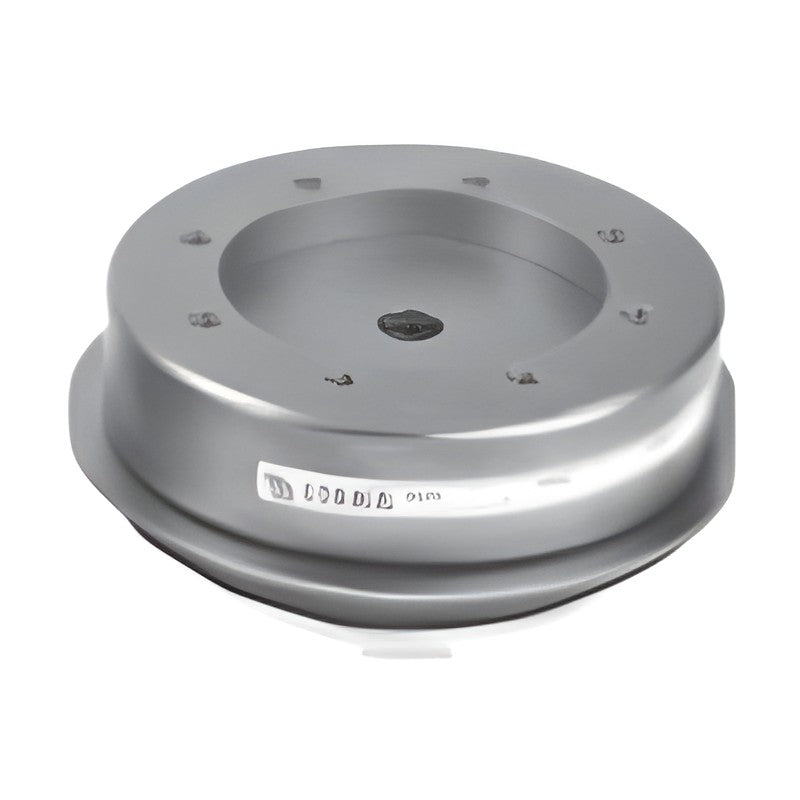

CODEX STC Accuracy Positioning Torque Limiter (ST4C-ST18C)

CODEX STC Accuracy Positioning Torque Limiter (ST4C-ST18C)

The STC series is an accuracy-positioning torque limiter, coupling type for connecting two shafts while tolerating shaft misalignment. It protects index drives from overload in rotation and thrust directions while transmitting torque accurately without backlash.

Key features

  • Protects index drives and machines from overload
  • Accurate torque transmission with no backlash
  • Positioning accuracy 30 sec (sizes 6-18), repeatability 15 sec
  • Adjustable trip torque by spring and adjusting nut
  • Bore with keyway (K) or power locker (C)

Specifications

Type Accuracy positioning torque limiter
Sizes ST4C to ST18C
Torque range 0.03 to 500 kgf·m
Positioning accuracy 1-2 min (ST4/ST5), 30 sec (ST6-ST18)
Repeatability 30 sec (ST4/ST5), 15 sec (ST6-ST18)
Ordering code Model, type, max torque, spring type, bore, K/C
Source CODEX (Daedong Index) CODEX (Daedong Index) catalogue 2024 (CODEX), torque limiter section
ST4C-007C Torque range: 0.03-0.07 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST4C-010C Torque range: 0.04-0.10 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST4C-030C Torque range: 0.1-0.30 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST4C-045C Torque range: 0.15-0.45 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST5C-030C Torque range: up to 0.30 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST5C-060C Torque range: 0.15-0.60 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST5C-100C Torque range: 0.20-1.00 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST5C-180C Torque range: 0.40-1.80 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST6C-06C Torque range: 0.2-0.6 kgf·m | Outer dia A: 93 mm | Positioning accuracy: 30 sec
ST6C-1C Torque range: 0.3-1.0 kgf·m | Outer dia A: 93 mm | Positioning accuracy: 30 sec
ST6C-3C Torque range: 1.0-3.0 kgf·m | Outer dia A: 93 mm | Positioning accuracy: 30 sec
ST6C-5C Torque range: 1.5-5.0 kgf·m | Outer dia A: 93 mm | Positioning accuracy: 30 sec
ST7C-6A Torque range: 2-6 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST7C-10A Torque range: 3-10 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST7C-20B Torque range: 6-20 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST7C-35B Torque range: 10-35 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST8C-12A Torque range: 4-12 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST8C-15A Torque range: 6-12 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST8C-35B Torque range: 10-35 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST8C-45B Torque range: 12-45 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST11C-20A Torque range: 7-20 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST11C-35A Torque range: 10-35 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST11C-65B Torque range: 20-65 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST11C-100B Torque range: 30-100 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST14C-30A Torque range: 10-30 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST14C-45A Torque range: 15-45 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST14C-130B Torque range: 50-130 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST14C-200B Torque range: 80-200 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST18C-160A Torque range: 70-160 kgf·m | Outer dia A: 285 mm | Positioning accuracy: 30 sec
ST18C-250A Torque range: 100-250 kgf·m | Outer dia A: 285 mm | Positioning accuracy: 30 sec
ST18C-380B Torque range: 160-380 kgf·m | Outer dia A: 285 mm | Positioning accuracy: 30 sec
ST18C-500B Torque range: 300-500 kgf·m | Outer dia A: 285 mm | Positioning accuracy: 30 sec
Torque LimiterCODEX
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CODEX STC Accuracy Positioning Torque Limiter (ST4C-ST18C)

Brand CODEX·Torque Limiter

Available part numbers (32)

ST4C-007C, ST4C-010C, ST4C-030C, ST4C-045C, ST5C-030C, ST5C-060C, ST5C-100C, ST5C-180C, ST6C-06C, ST6C-1C + 22 more — see full table ↓
