CODEX STF Accuracy Positioning Torque Limiter (ST4F-ST18F)

CODEX STF Accuracy Positioning Torque Limiter (ST4F-ST18F)

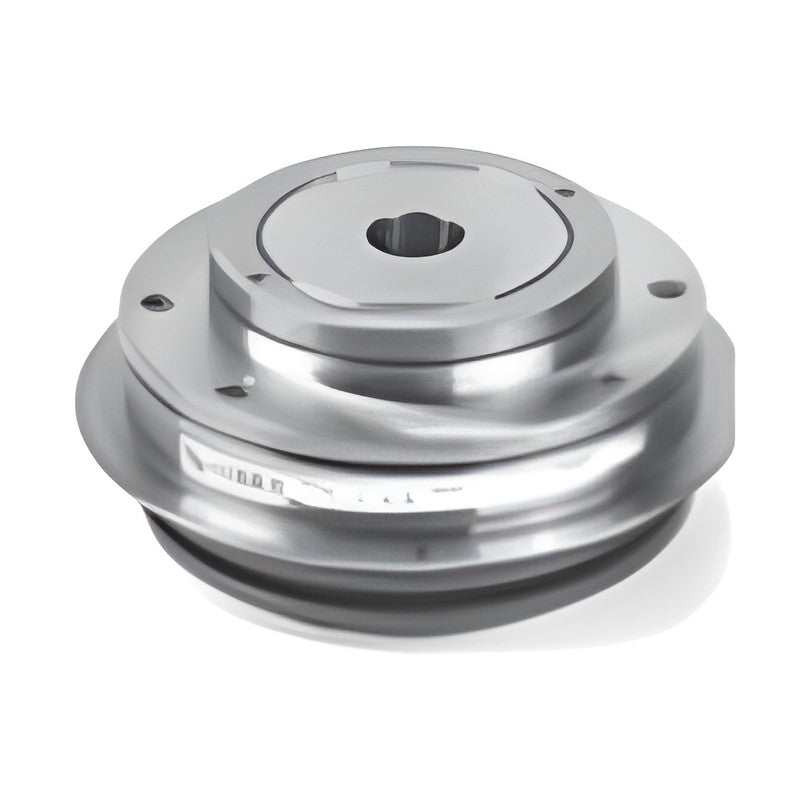

The STF series is an accuracy-positioning torque limiter, flange type for mounting tables, gears or sprockets directly on the limiter. It protects index drives from overload in rotation and thrust directions while transmitting torque accurately without backlash.

Key features

  • Protects index drives and machines from overload
  • Accurate torque transmission with no backlash
  • Positioning accuracy 30 sec (sizes 6-18), repeatability 15 sec
  • Adjustable trip torque by spring and adjusting nut
  • Bore with keyway (K) or power locker (C)

Specifications

Type Accuracy positioning torque limiter
Sizes ST4F to ST18F
Torque range 0.03 to 500 kgf·m
Positioning accuracy 1-2 min (ST4/ST5), 30 sec (ST6-ST18)
Repeatability 30 sec (ST4/ST5), 15 sec (ST6-ST18)
Ordering code Model, type, max torque, spring type, bore, K/C
Source CODEX (Daedong Index) CODEX (Daedong Index) catalogue 2024 (CODEX), torque limiter section
ST4F-007C Torque range: 0.03-0.07 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST4F-010C Torque range: 0.04-0.10 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST4F-030C Torque range: 0.1-0.30 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST4F-045C Torque range: 0.15-0.45 kgf·m | Outer dia A: 64 mm | Positioning accuracy: 1-2 min
ST5F-030C Torque range: up to 0.30 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST5F-060C Torque range: 0.15-0.60 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST5F-100C Torque range: 0.20-1.00 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST5F-180C Torque range: 0.40-1.80 kgf·m | Outer dia A: 82 mm | Positioning accuracy: 1-2 min
ST6F-07C Torque range: 0.2-0.7 kgf·m | Outer dia A: 88 mm | Positioning accuracy: 30 sec
ST6F-1C Torque range: 0.3-1.0 kgf·m | Outer dia A: 88 mm | Positioning accuracy: 30 sec
ST6F-3C Torque range: 1.0-3.0 kgf·m | Outer dia A: 88 mm | Positioning accuracy: 30 sec
ST6F-5C Torque range: 1.5-5.0 kgf·m | Outer dia A: 88 mm | Positioning accuracy: 30 sec
ST7F-7A Torque range: 2.2-7 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST7F-12A Torque range: 4-12 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST7F-25B Torque range: 8-25 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST7F-40B Torque range: 12-40 kgf·m | Outer dia A: 128 mm | Positioning accuracy: 30 sec
ST8F-12A Torque range: 5-12 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST8F-20A Torque range: 7-20 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST8F-40B Torque range: 12-40 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST8F-60B Torque range: 20-60 kgf·m | Outer dia A: 164 mm | Positioning accuracy: 30 sec
ST11F-25A Torque range: 8-25 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST11F-35A Torque range: 12-35 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST11F-85B Torque range: 22-85 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST11F-120B Torque range: 35-120 kgf·m | Outer dia A: 198 mm | Positioning accuracy: 30 sec
ST14F-30A Torque range: 11-30 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST14F-45A Torque range: 15-45 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST14F-120B Torque range: 42-120 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST14F-180B Torque range: 60-180 kgf·m | Outer dia A: 236 mm | Positioning accuracy: 30 sec
ST18F-130A Torque range: 40-130 kgf·m | Outer dia A: 280 mm | Positioning accuracy: 30 sec
ST18F-180A Torque range: 80-180 kgf·m | Outer dia A: 280 mm | Positioning accuracy: 30 sec
ST18F-300B Torque range: 150-300 kgf·m | Outer dia A: 280 mm | Positioning accuracy: 30 sec
ST18F-500B Torque range: 300-500 kgf·m | Outer dia A: 280 mm | Positioning accuracy: 30 sec
Torque LimiterCODEX
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
