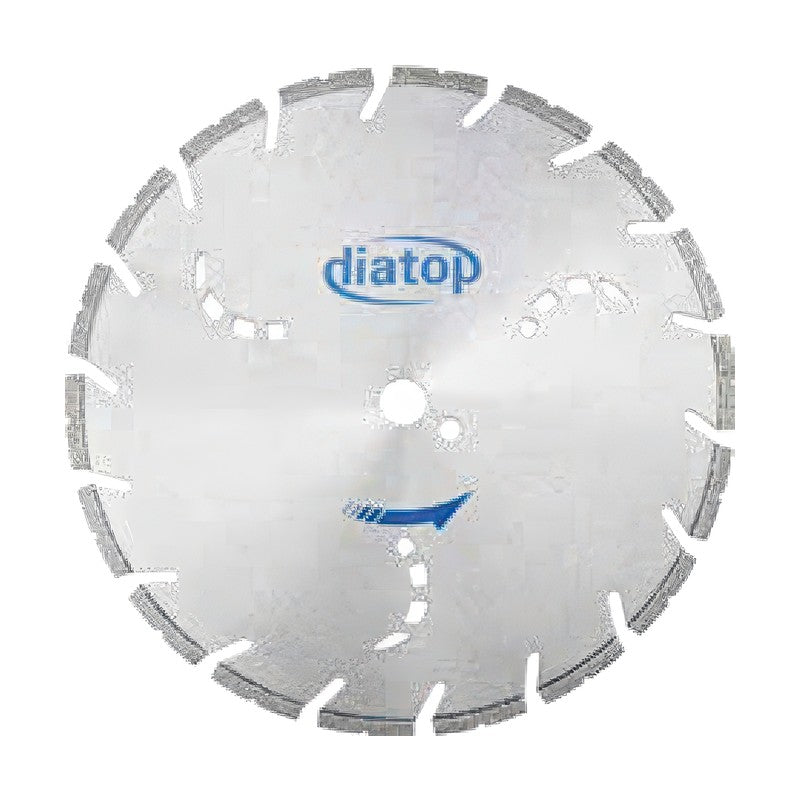

Diatop All-Round Anycon Blades (DCFH)

Diatop All-Round Anycon Blades (DCFH)

Laser-welded diamond blades for dry and wet free cutting of all kinds of cured concrete.

Key features

  • Able to cut lightly reinforced concrete
  • Cooling air holes for dry cutting
  • Premium and Supreme quality available; bore 1 in (25.4 mm) with drive pin

Specifications

Segment Height 7, 8, 10 mm (.275, .315, .394 in)
Bore 25.4 mm (1 in) with drive pin
DCFH3032 Diameter: 300 mm (12 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
DCFH3532 Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
DCFH4032 Diameter: 400 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
DCFH4536 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
Diamond Saw BladesDiatop
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop All-Round Anycon Blades (DCFH)

Brand Diatop·Diamond Saw Blades

Available part numbers (4)

DCFH3032, DCFH3532, DCFH4032, DCFH4536

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCFH3032Diameter: 300 mm (12 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
DCFH3532Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
DCFH4032Diameter: 400 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
DCFH4536Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 7, 8, 10 mm (.275, .315, .394 in) | Bore: 25.4 mm (1 in) with drive pin
