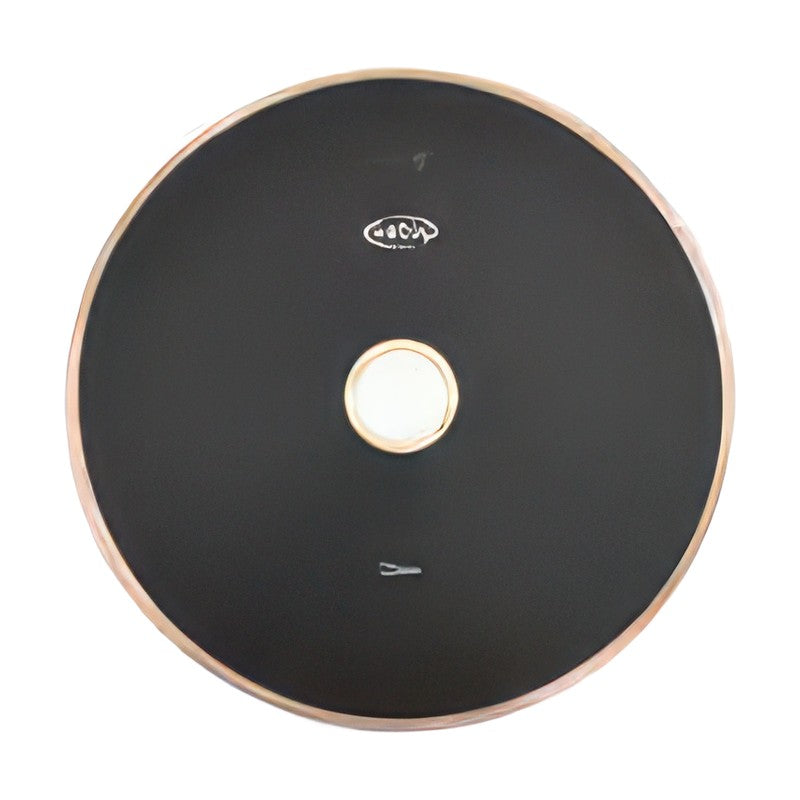

Diatop Continuous Rim Sintered Glass Blade (Wet)

Diatop Continuous Rim Sintered Glass Blade (Wet)

Sintered continuous rim diamond blade for wet cutting of glass.

Key features

  • Gives a clean cut
  • Super quality glass blade made with a special soft bond

Specifications

Arbor 22.23 mm (7/8")
SGB 100 D x T (inch): 4 x .063 in | D x T (mm): 100 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 115 D x T (inch): 4 1/2 x .063 in | D x T (mm): 115 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 125 D x T (inch): 5 x .063 in | D x T (mm): 125 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 150 D x T (inch): 6 x .063 in | D x T (mm): 150 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 180 D x T (inch): 7 x .063 in | D x T (mm): 180 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 200 D x T (inch): 8 x .063 in | D x T (mm): 200 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 230 D x T (inch): 9 x .063 in | D x T (mm): 230 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 250 D x T (inch): 10 x .063 in | D x T (mm): 250 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 300 D x T (inch): 12 x .078 in | D x T (mm): 300 x 2.0 mm | Rim Height: 8 mm | Arbor: 22.23 mm (7/8")
SGB 350 D x T (inch): 14 x .102 in | D x T (mm): 350 x 2.6 mm | Rim Height: 8 mm | Arbor: 22.23 mm (7/8")
SGB 400 D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Rim Height: 10 mm | Arbor: 22.23 mm (7/8")
Diamond Saw BladesDiatop
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Continuous Rim Sintered Glass Blade (Wet)

Brand Diatop·Diamond Saw Blades

Available part numbers (11)

SGB 100, SGB 115, SGB 125, SGB 150, SGB 180, SGB 200, SGB 230, SGB 250, SGB 300, SGB 350 + 1 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGB 100D x T (inch): 4 x .063 in | D x T (mm): 100 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 115D x T (inch): 4 1/2 x .063 in | D x T (mm): 115 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 125D x T (inch): 5 x .063 in | D x T (mm): 125 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 150D x T (inch): 6 x .063 in | D x T (mm): 150 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 180D x T (inch): 7 x .063 in | D x T (mm): 180 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 200D x T (inch): 8 x .063 in | D x T (mm): 200 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 230D x T (inch): 9 x .063 in | D x T (mm): 230 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 250D x T (inch): 10 x .063 in | D x T (mm): 250 x 1.6 mm | Rim Height: 7 mm | Arbor: 22.23 mm (7/8")
SGB 300D x T (inch): 12 x .078 in | D x T (mm): 300 x 2.0 mm | Rim Height: 8 mm | Arbor: 22.23 mm (7/8")
SGB 350D x T (inch): 14 x .102 in | D x T (mm): 350 x 2.6 mm | Rim Height: 8 mm | Arbor: 22.23 mm (7/8")
SGB 400D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Rim Height: 10 mm | Arbor: 22.23 mm (7/8")
