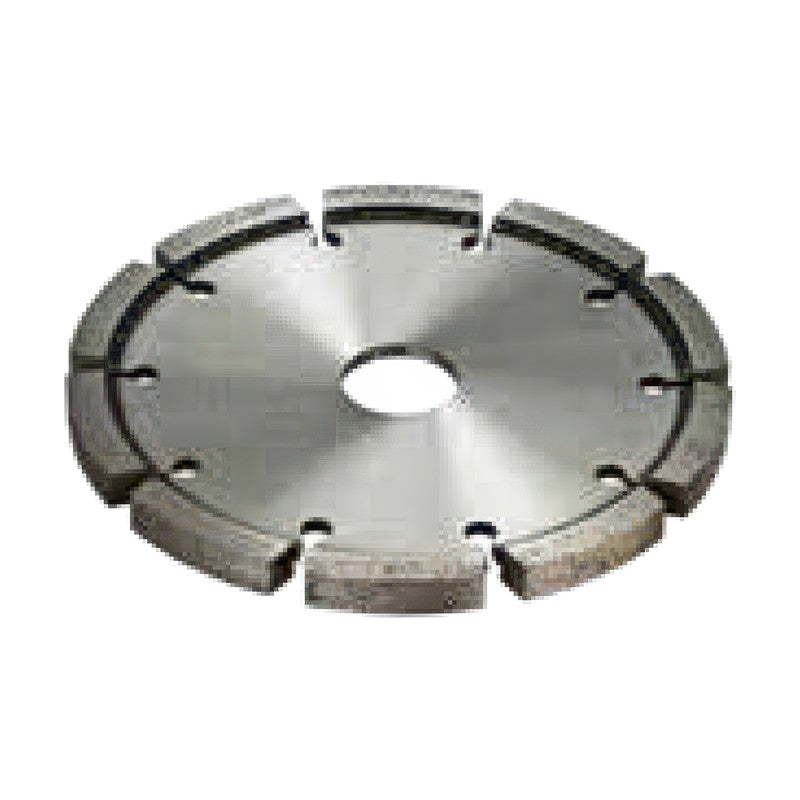

Diatop Laser Tuck Point Blades (STP)

Diatop Laser Tuck Point Blades (STP)

Laser-welded dry diamond tuck point blades for fast, efficient removal of mortar joints in brickwork.

Key features

  • Also used to clean concrete expansion joints
  • Hard and medium bonds available; standard arbor 7/8 in - 5/8 in

Specifications

Arbor 7/8 in - 5/8 in
STP1064 Diameter: 100 mm (4 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP1164 Diameter: 115 mm (4 1/2 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP1264 Diameter: 125 mm (5 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP1510 Diameter: 150 mm (6 in) | Segment Thickness: 10.0 mm (.394 in) | Segment Height: 7 mm | Arbor: 7/8 in - 5/8 in
STP1864 Diameter: 178 mm (7 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP2064 Diameter: 200 mm (8 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP2010 Diameter: 200 mm (8 in) | Segment Thickness: 10.0 mm (.394 in) | Segment Height: 7 mm | Arbor: 7/8 in - 5/8 in
STP2015 Diameter: 200 mm (8 in) | Segment Thickness: 15.0 mm (.590 in) | Segment Height: 7 mm | Arbor: 7/8 in - 5/8 in
Tuck Point BladesDiatop
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Laser Tuck Point Blades (STP)

Brand Diatop·Tuck Point Blades

Available part numbers (8)

STP1064, STP1164, STP1264, STP1510, STP1864, STP2064, STP2010, STP2015

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STP1064Diameter: 100 mm (4 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP1164Diameter: 115 mm (4 1/2 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP1264Diameter: 125 mm (5 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP1510Diameter: 150 mm (6 in) | Segment Thickness: 10.0 mm (.394 in) | Segment Height: 7 mm | Arbor: 7/8 in - 5/8 in
STP1864Diameter: 178 mm (7 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP2064Diameter: 200 mm (8 in) | Segment Thickness: 6.40 mm (.250 in) | Segment Height: 7, 9.6 mm | Arbor: 7/8 in - 5/8 in
STP2010Diameter: 200 mm (8 in) | Segment Thickness: 10.0 mm (.394 in) | Segment Height: 7 mm | Arbor: 7/8 in - 5/8 in
STP2015Diameter: 200 mm (8 in) | Segment Thickness: 15.0 mm (.590 in) | Segment Height: 7 mm | Arbor: 7/8 in - 5/8 in

Need a different model, or a part not listed here? Send us your parts list →
