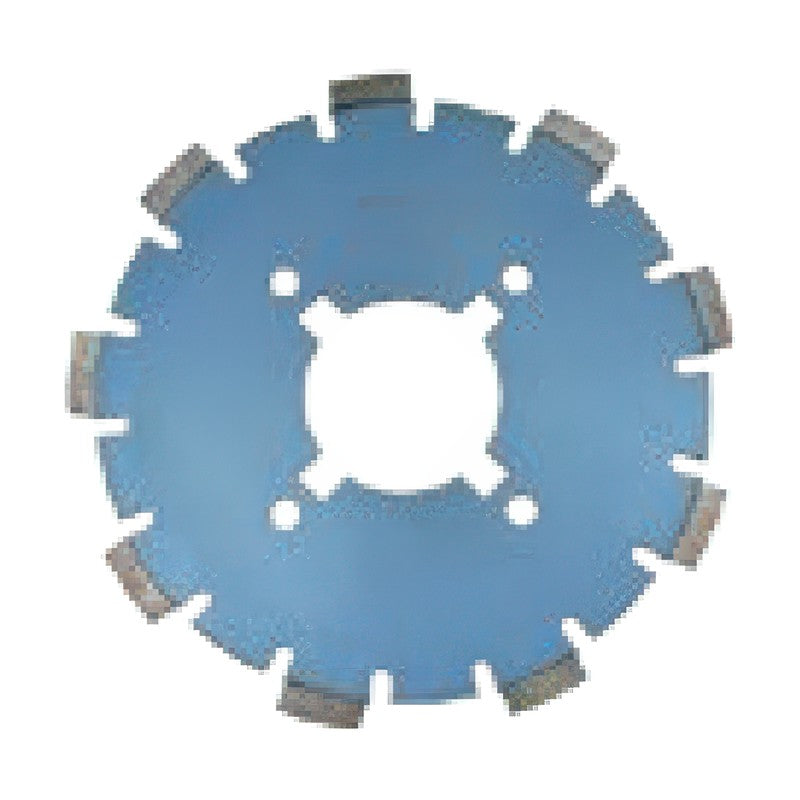

Diatop Multi Grooving Blades (MGB, Small Diameter)

Diatop Multi Grooving Blades (MGB, Small Diameter)

Diamond grooving blades used in stacks of multiple blades to make grooves on highways or airport runways.

Key features

  • Fast-cutting and long-life versions available
  • Available from 125 mm to 320 mm with various arbor configurations including hexagon and 127 mm with 8 holes
MGB1222 Diameter: 125 mm (5 in) | Segment Thickness: 2.2 mm (.087 in) | Segment Height: 7 mm (.275 in) | Arbor: 50 mm
MGB1522 Diameter: 150 mm (6 in) | Segment Thickness: 2.2 mm (.087 in) | Segment Height: 7 mm (.275 in) | Arbor: 55 mm
MGB2524H Diameter: 250 mm (10 in) | Segment Thickness: 2.4 mm (.095 in) | Segment Height: 7 mm (.275 in) | Arbor: Hexagon
MGB2560 Diameter: 250 mm (10 in) | Segment Thickness: 6.0 mm (.236 in) | Segment Height: 7 mm (.275 in) | Arbor: 75 mm
MGB2724H Diameter: 270 mm (10 5/8 in) | Segment Thickness: 2.4 mm (.095 in) | Segment Height: 7 mm (.275 in) | Arbor: Hexagon 6 pin holes
MGB3232 Diameter: 320 mm (12 5/8 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 8 mm (.315 in) | Arbor: 127mm with 8 holes
MGB3250 Diameter: 320 mm (12 5/8 in) | Segment Thickness: 5.0 mm (.196 in) | Segment Height: 8 mm (.315 in) | Arbor: 127mm with 8 holes
MGB32200 Diameter: 320 mm (12 5/8 in) | Segment Thickness: 10/20 mm (.788 in) | Segment Height: 12 mm (.472 in) | Arbor: 127mm with 8 holes
Grooving BladesDiatop
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Multi Grooving Blades (MGB, Small Diameter)

Brand Diatop·Grooving Blades

Available part numbers (8)

MGB1222, MGB1522, MGB2524H, MGB2560, MGB2724H, MGB3232, MGB3250, MGB32200

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGB1222Diameter: 125 mm (5 in) | Segment Thickness: 2.2 mm (.087 in) | Segment Height: 7 mm (.275 in) | Arbor: 50 mm
MGB1522Diameter: 150 mm (6 in) | Segment Thickness: 2.2 mm (.087 in) | Segment Height: 7 mm (.275 in) | Arbor: 55 mm
MGB2524HDiameter: 250 mm (10 in) | Segment Thickness: 2.4 mm (.095 in) | Segment Height: 7 mm (.275 in) | Arbor: Hexagon
MGB2560Diameter: 250 mm (10 in) | Segment Thickness: 6.0 mm (.236 in) | Segment Height: 7 mm (.275 in) | Arbor: 75 mm
MGB2724HDiameter: 270 mm (10 5/8 in) | Segment Thickness: 2.4 mm (.095 in) | Segment Height: 7 mm (.275 in) | Arbor: Hexagon 6 pin holes
MGB3232Diameter: 320 mm (12 5/8 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 8 mm (.315 in) | Arbor: 127mm with 8 holes
MGB3250Diameter: 320 mm (12 5/8 in) | Segment Thickness: 5.0 mm (.196 in) | Segment Height: 8 mm (.315 in) | Arbor: 127mm with 8 holes
MGB32200Diameter: 320 mm (12 5/8 in) | Segment Thickness: 10/20 mm (.788 in) | Segment Height: 12 mm (.472 in) | Arbor: 127mm with 8 holes
