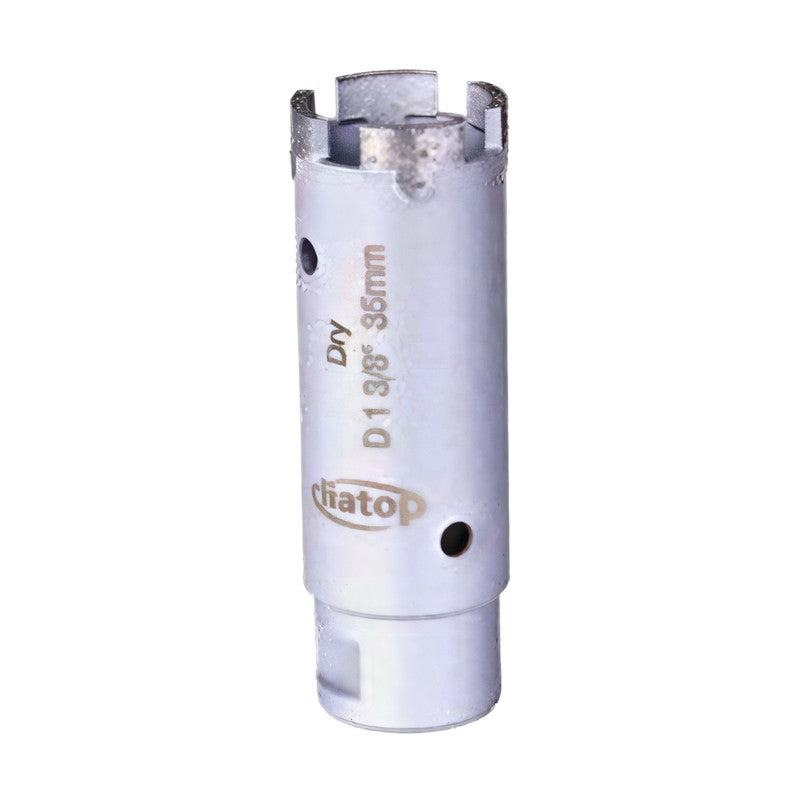

Diatop Power Dry Core Drill Bit for Granite (Turbo or Regular Segment)

Diatop Power Dry Core Drill Bit for Granite (Turbo or Regular Segment)

Diamond core drill bit for granite for dry or wet drilling.

Key features

  • T-shaped segments prevent segment loss
  • Easy and fast drilling
  • Available with turbo segments (PTC) or regular segments (PSC)

Specifications

Segment Height 7 mm
Thread M14, 5/8"-11
PTC 25 Diameter (inch): 1 in | Diameter (mm): 25 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 28 Diameter (inch): 1 1/8 in | Diameter (mm): 28 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 32 Diameter (inch): 1 1/4 in | Diameter (mm): 32 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 35 Diameter (inch): 1 3/8 in | Diameter (mm): 35 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 38 Diameter (inch): 1 1/2 in | Diameter (mm): 38 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PSC 25 Diameter (inch): 1 in | Diameter (mm): 25 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 28 Diameter (inch): 1 1/8 in | Diameter (mm): 28 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 32 Diameter (inch): 1 1/4 in | Diameter (mm): 32 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 35 Diameter (inch): 1 3/8 in | Diameter (mm): 35 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 38 Diameter (inch): 1 1/2 in | Diameter (mm): 38 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 50 Diameter (inch): 2 in | Diameter (mm): 50 mm | Segment Thickness: 3.3 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
Diamond Core Drill BitsDiatop
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Power Dry Core Drill Bit for Granite (Turbo or Regular Segment)

Brand Diatop·Diamond Core Drill Bits

Available part numbers (11)

PTC 25, PTC 28, PTC 32, PTC 35, PTC 38, PSC 25, PSC 28, PSC 32, PSC 35, PSC 38 + 1 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PTC 25Diameter (inch): 1 in | Diameter (mm): 25 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 28Diameter (inch): 1 1/8 in | Diameter (mm): 28 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 32Diameter (inch): 1 1/4 in | Diameter (mm): 32 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 35Diameter (inch): 1 3/8 in | Diameter (mm): 35 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PTC 38Diameter (inch): 1 1/2 in | Diameter (mm): 38 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Turbo | Thread: M14, 5/8"-11
PSC 25Diameter (inch): 1 in | Diameter (mm): 25 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 28Diameter (inch): 1 1/8 in | Diameter (mm): 28 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 32Diameter (inch): 1 1/4 in | Diameter (mm): 32 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 35Diameter (inch): 1 3/8 in | Diameter (mm): 35 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 38Diameter (inch): 1 1/2 in | Diameter (mm): 38 mm | Segment Thickness: 3.0 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
PSC 50Diameter (inch): 2 in | Diameter (mm): 50 mm | Segment Thickness: 3.3 mm | Segment Height: 7 mm | Segment Shape: Regular | Thread: M14, 5/8"-11
