Diatop Refractory Blades (DRFM)

Diatop Refractory Blades (DRFM)

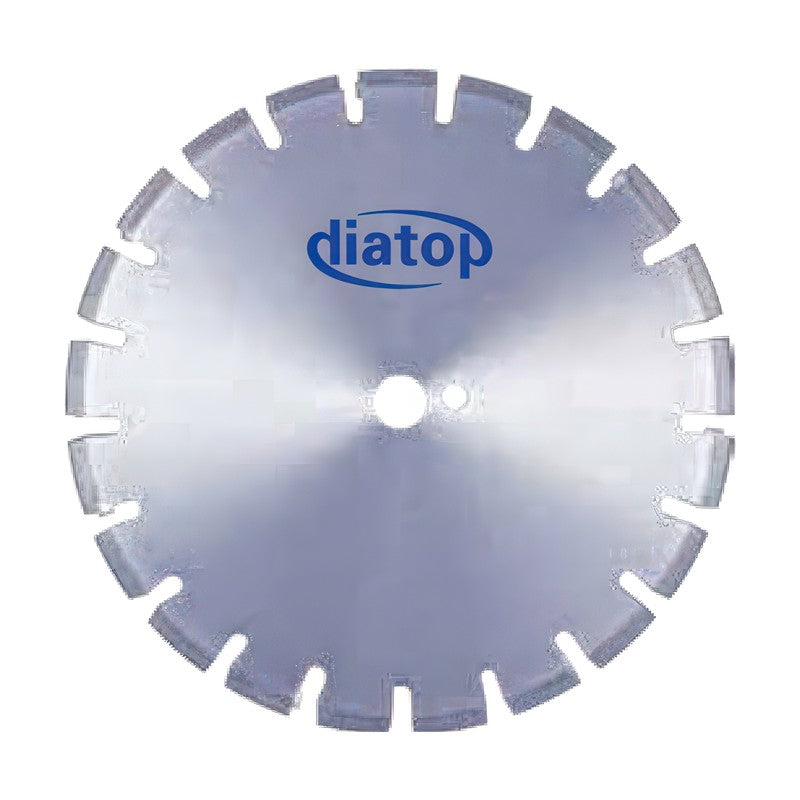

Dry laser-welded diamond blades for fast cutting of hard refractory bricks at the lowest possible cost per cut.

Key features

  • Bond selection: DRFS for very hard fused-cast refractories, DRFM for hard high-alumina, DRFH for medium hard refractories
  • Quality grades DRFHP Premium and DRFHS Supreme
  • Available arbors 20, 25.4, 30 and 50 mm; silent refractory blades available

Specifications

Segment Height 7, 8 mm
Arbor 20, 25.4, 30 or 50 mm
DRFM3532 Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM4032 Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM4532 Diameter: 450 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM4536 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM5036 Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
Masonry Saw BladesDiatop
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Refractory Blades (DRFM)

Brand Diatop·Masonry Saw Blades

Available part numbers (5)

DRFM3532, DRFM4032, DRFM4532, DRFM4536, DRFM5036

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DRFM3532Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM4032Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM4532Diameter: 450 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM4536Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
DRFM5036Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 7, 8 mm | Arbor: 20, 25.4, 30 or 50 mm
