• Diatop Regular Core Cutting Blade for Natural Rock
1 1

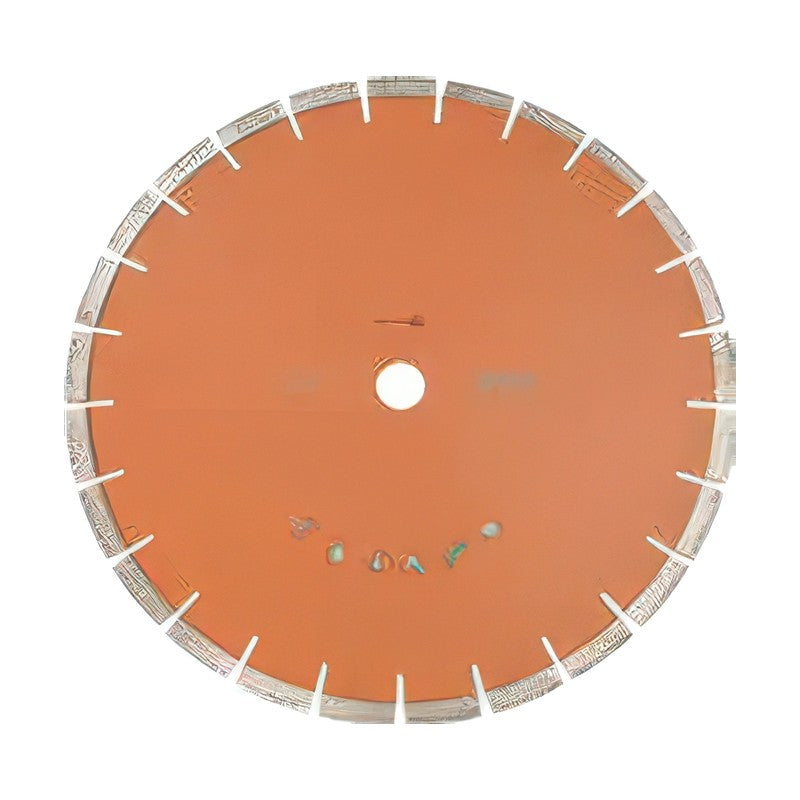

Diatop Regular Core Cutting Blade for Natural Rock

Diatop Regular Core Cutting Blade for Natural Rock

Silver-brazed wet core cutting blade for cutting cores of natural rocks and minerals.

Key features

  • Four bond grades (extremely soft, very soft, soft, medium) match rock categories Type 1 to Type 5
  • Pin holes are available on request

Specifications

Segment Height 10 mm
CCX 302810 D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 5 | Bond Hardness: Extremely soft
CCX 352810 D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 5 | Bond Hardness: Extremely soft
CCV 302810 D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 3,4 | Bond Hardness: Very soft
CCV 352810 D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 3,4 | Bond Hardness: Very soft
CCS 302810 D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 2 | Bond Hardness: Soft
CCS 352810 D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 2 | Bond Hardness: Soft
CCM 302810 D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 1 | Bond Hardness: Medium
CCM 352810 D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 1 | Bond Hardness: Medium
Core Cutting BladesDiatop
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Regular Core Cutting Blade for Natural Rock

Brand Diatop·Core Cutting Blades

Available part numbers (8)

CCX 302810, CCX 352810, CCV 302810, CCV 352810, CCS 302810, CCS 352810, CCM 302810, CCM 352810

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCX 302810D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 5 | Bond Hardness: Extremely soft
CCX 352810D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 5 | Bond Hardness: Extremely soft
CCV 302810D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 3,4 | Bond Hardness: Very soft
CCV 352810D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 3,4 | Bond Hardness: Very soft
CCS 302810D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 2 | Bond Hardness: Soft
CCS 352810D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 2 | Bond Hardness: Soft
CCM 302810D x T: 300 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 1 | Bond Hardness: Medium
CCM 352810D x T: 350 x 2.8 mm | Segment Height: 10 mm | Category of Rocks: Type 1 | Bond Hardness: Medium
