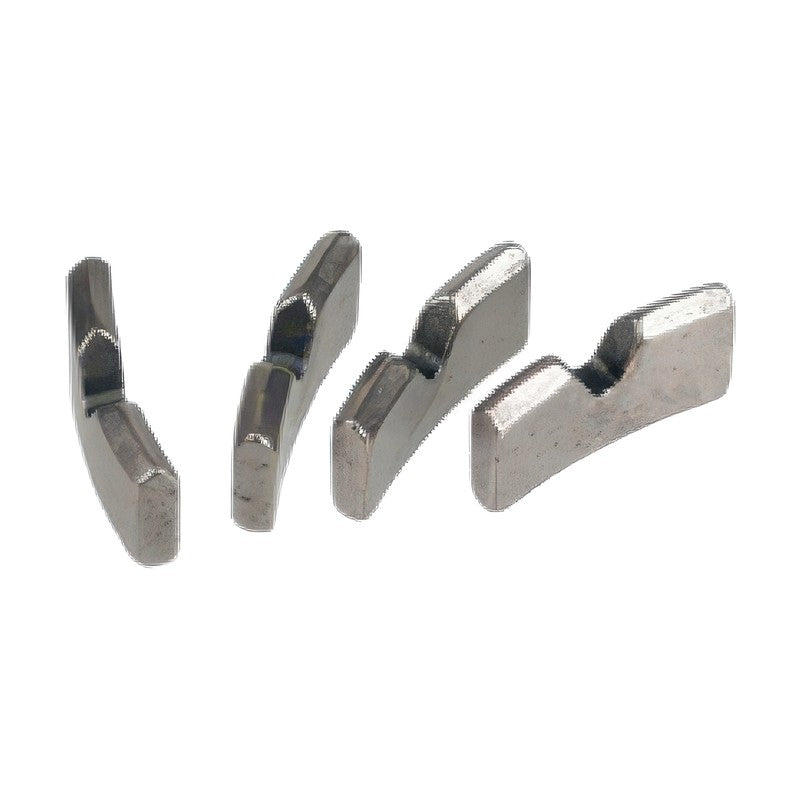

Diatop V Slot Roof Top Core Drill Segments (VSRT)

Diatop V Slot Roof Top Core Drill Segments (VSRT)

V-slot rooftop diamond replacement segments for core drill bits, 50 mm to 400 mm bit diameters.

VSRT50 Bit Diameter: 50 mm (2 in) | Segment Size (L x T x H): 24 x 3.0 x 10.0 mm
VSRT57 Bit Diameter: 57 mm (2 1/4 in) | Segment Size (L x T x H): 24 x 3.0 x 10.0 mm
VSRT60 Bit Diameter: 60 mm (2 3/8 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT63 Bit Diameter: 63 mm (2 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT70 Bit Diameter: 70 mm (2 3/4 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT76 Bit Diameter: 76 mm (3 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT83 Bit Diameter: 83 mm (3 1/4 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT89 Bit Diameter: 89 mm (3 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT102 Bit Diameter: 102 mm (4 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT115 Bit Diameter: 115 mm (4 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT127 Bit Diameter: 127 mm (5 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT140 Bit Diameter: 140 mm (5 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT152 Bit Diameter: 152 mm (6 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT200 Bit Diameter: 200 mm (8 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT230 Bit Diameter: 230 mm (9 in) | Segment Size (L x T x H): 24 x 4.0 x 10.0 mm
VSRT250 Bit Diameter: 250 mm (10 in) | Segment Size (L x T x H): 24 x 4.0 x 10.0 mm
VSRT350 Bit Diameter: 350 mm (14 in) | Segment Size (L x T x H): 24 x 4.5 x 10.0 mm
VSRT400 Bit Diameter: 400 mm (16 in) | Segment Size (L x T x H): 24 x 5.0 x 10.0 mm
Core Bit SegmentsDiatop
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop V Slot Roof Top Core Drill Segments (VSRT)

Brand Diatop·Core Bit Segments

Available part numbers (18)

VSRT50, VSRT57, VSRT60, VSRT63, VSRT70, VSRT76, VSRT83, VSRT89, VSRT102, VSRT115 + 8 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSRT50Bit Diameter: 50 mm (2 in) | Segment Size (L x T x H): 24 x 3.0 x 10.0 mm
VSRT57Bit Diameter: 57 mm (2 1/4 in) | Segment Size (L x T x H): 24 x 3.0 x 10.0 mm
VSRT60Bit Diameter: 60 mm (2 3/8 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT63Bit Diameter: 63 mm (2 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT70Bit Diameter: 70 mm (2 3/4 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT76Bit Diameter: 76 mm (3 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT83Bit Diameter: 83 mm (3 1/4 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT89Bit Diameter: 89 mm (3 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT102Bit Diameter: 102 mm (4 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT115Bit Diameter: 115 mm (4 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT127Bit Diameter: 127 mm (5 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT140Bit Diameter: 140 mm (5 1/2 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT152Bit Diameter: 152 mm (6 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT200Bit Diameter: 200 mm (8 in) | Segment Size (L x T x H): 24 x 3.5 x 10.0 mm
VSRT230Bit Diameter: 230 mm (9 in) | Segment Size (L x T x H): 24 x 4.0 x 10.0 mm
VSRT250Bit Diameter: 250 mm (10 in) | Segment Size (L x T x H): 24 x 4.0 x 10.0 mm
VSRT350Bit Diameter: 350 mm (14 in) | Segment Size (L x T x H): 24 x 4.5 x 10.0 mm
VSRT400Bit Diameter: 400 mm (16 in) | Segment Size (L x T x H): 24 x 5.0 x 10.0 mm
