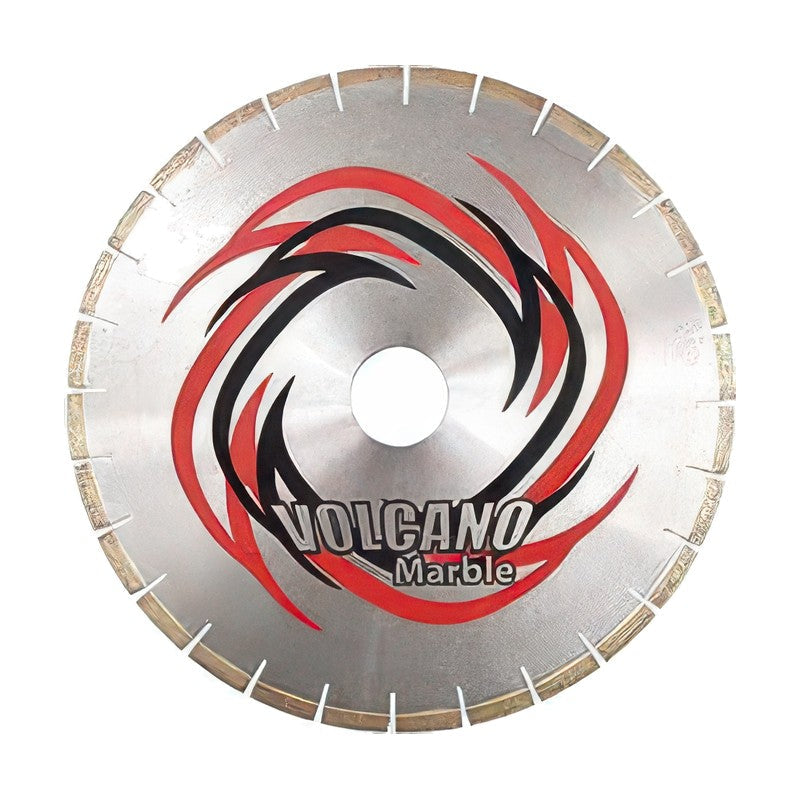

Diatop Volcano Marble Silent Bridge Saw Blade

Diatop Volcano Marble Silent Bridge Saw Blade

Silent, silver-brazed wet bridge saw blade for marble.

Key features

  • Highly welcomed by stone fabricators and suitable for bridge saws
  • Gives a fine cut on different marbles and travertine
  • A sandwich laminated core reduces noise, and a narrow slot gives chip-free cutting
  • Recommended speed ranges from 2600-3000 RPM (300 mm) to 1700-2100 RPM (450 mm) at 1.5-2.7 m/min feed

Specifications

Segment Height 10 mm
Arbor 60/50 mm
NSM 303210 D x T (inch): 12 x .125 in | D x T (mm): 300 x 3.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 353210 D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 403210 D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 453610 D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 504010 D x T (inch): 20 x .157 in | D x T (mm): 500 x 4.0 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 604210 D x T (inch): 24 x .165 in | D x T (mm): 600 x 4.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
Bridge Saw BladesDiatop
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Volcano Marble Silent Bridge Saw Blade

Brand Diatop·Bridge Saw Blades

Available part numbers (6)

NSM 303210, NSM 353210, NSM 403210, NSM 453610, NSM 504010, NSM 604210

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSM 303210D x T (inch): 12 x .125 in | D x T (mm): 300 x 3.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 353210D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 403210D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 453610D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 504010D x T (inch): 20 x .157 in | D x T (mm): 500 x 4.0 mm | Segment Height: 10 mm | Arbor: 60/50 mm
NSM 604210D x T (inch): 24 x .165 in | D x T (mm): 600 x 4.2 mm | Segment Height: 10 mm | Arbor: 60/50 mm
