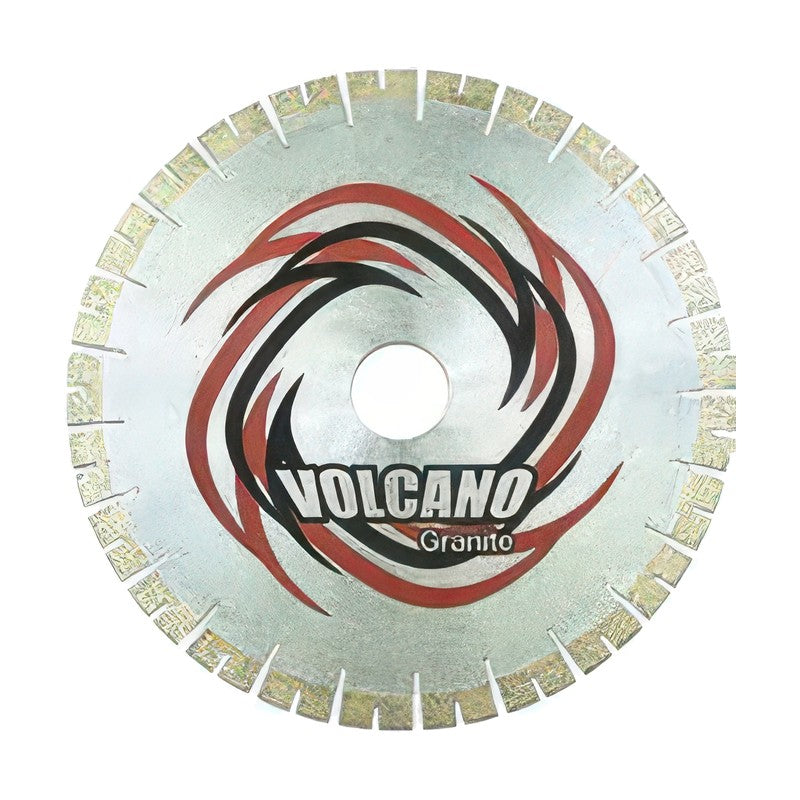

Diatop Volcano Split Segment Silent Bridge Saw Blade for Granite

Diatop Volcano Split Segment Silent Bridge Saw Blade for Granite

Silent, silver-brazed wet bridge saw blade with split segments for granite.

Key features

  • The split segments give high cutting speed and the finest clean edge
  • Titanium-coated diamonds for longer life, a soft bond for fast cutting and accurate side clearance with no wobbling
  • A laminated sandwich core reduces noise, and skilled brazing prevents segment loss
  • Recommended spindle speed is 1300-1600 RPM (350 mm) to 1000-1300 RPM (450 mm) at 3-5 m/min feed

Specifications

Segment Height 20 mm
Arbor 60/50 mm
NSPG 353220 D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 403220 D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 453620 D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 504020 D x T (inch): 20 x .157 in | D x T (mm): 500 x 4.0 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 604220 D x T (inch): 24 x .165 in | D x T (mm): 600 x 4.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
Bridge Saw BladesDiatop
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Volcano Split Segment Silent Bridge Saw Blade for Granite

Brand Diatop·Bridge Saw Blades

Available part numbers (5)

NSPG 353220, NSPG 403220, NSPG 453620, NSPG 504020, NSPG 604220

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSPG 353220D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 403220D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 453620D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 504020D x T (inch): 20 x .157 in | D x T (mm): 500 x 4.0 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSPG 604220D x T (inch): 24 x .165 in | D x T (mm): 600 x 4.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
