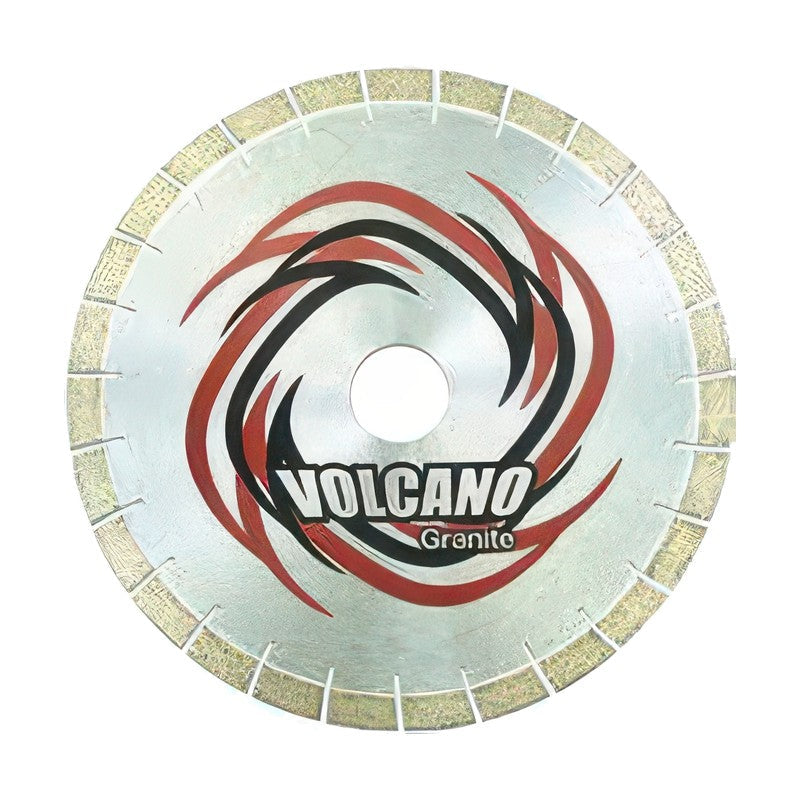

Diatop Volcano VIVO Silent Bridge Saw Blade for Granite

Diatop Volcano VIVO Silent Bridge Saw Blade for Granite

Silent, silver-brazed wet bridge saw blade for granite with a new segment design for improved cutting performance.

Key features

  • Titanium-coated diamonds give a longer life, with fast and smooth cutting
  • One of the most popular bridge saw blades in the stone industry
  • A laminated sandwich core reduces noise, sandwich segments cut cleanly, and a narrow slot gives chip-free cutting
  • Two pin holes are available on request

Specifications

Segment Height 20 mm
Arbor 60/50 mm
NSVG 353220 D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSVG 403220 D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSVG 453620 D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height: 20 mm | Arbor: 60/50 mm
Bridge Saw BladesDiatop
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Volcano VIVO Silent Bridge Saw Blade for Granite

Brand Diatop·Bridge Saw Blades

Available part numbers (3)

NSVG 353220, NSVG 403220, NSVG 453620

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSVG 353220D x T (inch): 14 x .125 in | D x T (mm): 350 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSVG 403220D x T (inch): 16 x .125 in | D x T (mm): 400 x 3.2 mm | Segment Height: 20 mm | Arbor: 60/50 mm
NSVG 453620D x T (inch): 18 x .141 in | D x T (mm): 450 x 3.6 mm | Segment Height: 20 mm | Arbor: 60/50 mm
