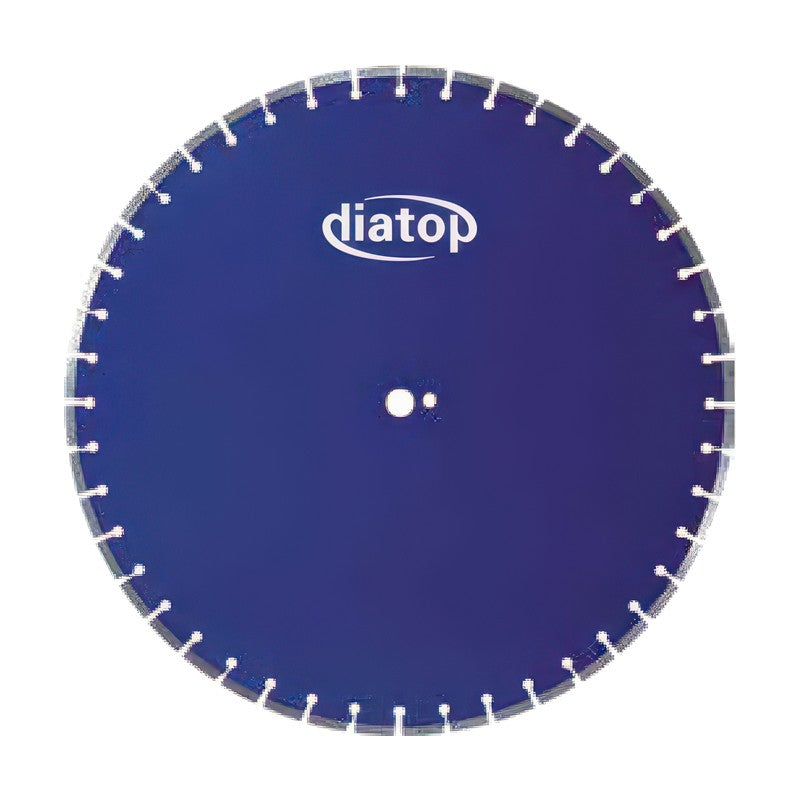

Diatop Wet Asphalt Over Concrete Blades (WOF)

Diatop Wet Asphalt Over Concrete Blades (WOF)

Laser-welded wet diamond saw blades for sawing asphalt laid over concrete, for high-power floor saws of 35-75 HP.

Key features

  • Choose the blade according to the ratio of asphalt to concrete: WOFM for hard aggregate or more concrete than asphalt, WOFH for soft to medium aggregate or more asphalt than concrete
  • Premium, Supreme and Ultra quality available

Specifications

Segment Height 10, 12 mm (.394, .472 in)
Arbor 25.4 mm (1 in) with pin hole
WOF3532 Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF4032 Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF4536 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF5040 Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF6040 Diameter: 600 mm (24 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF6642 Diameter: 660 mm (26 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF6648 Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF7542 Diameter: 750 mm (30 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF7548 Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
Diamond Saw BladesDiatop
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Wet Asphalt Over Concrete Blades (WOF)

Brand Diatop·Diamond Saw Blades

Available part numbers (9)

WOF3532, WOF4032, WOF4536, WOF5040, WOF6040, WOF6642, WOF6648, WOF7542, WOF7548

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WOF3532Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF4032Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF4536Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF5040Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF6040Diameter: 600 mm (24 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF6642Diameter: 660 mm (26 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF6648Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF7542Diameter: 750 mm (30 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
WOF7548Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10, 12 mm (.394, .472 in) | Arbor: 25.4 mm (1 in) with pin hole
